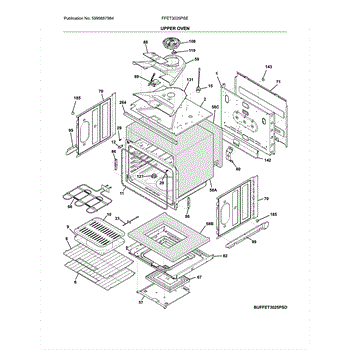

Parts for Frigidaire FFET3025PSE: Upper Oven Parts

Control panel for wall ovens. Replaces cracked, damaged, or worn panels. Installs on the front of the oven to restore the exterior finish and appearance.

Broiler pan for electric and gas ranges. Installs in oven cavity for broiling. Replace if cracked, warped, rusted, or heavily stained beyond cleaning.

This broiler insert is the oven pan insert that sits under the broiler burner to catch drips and help direct heat for even browning. It restores a stable cooking surface and keeps the broiler area cleaner. What it does:

• Holds food and catches grease and drips during broiling to prevent mess and flare-ups
• Directs heat from the broiler for consistent browning and searing
• Replaces damaged, warped, or corroded inserts that cause uneven cooking
• Helps prevent food from falling into the burner area

• One broiler insert

• Disconnect power to the appliance and allow the oven to cool completely before servicing
• Remove oven racks and slide the old insert out; position the new insert so it seats securely in the broiler cavity
• Wear heat-resistant gloves when testing the broiler after installation and inspect for proper fit before use
• Do not modify the part; use only as designed for the oven broiler assembly

This is a flexible gray gasket that lines the perimeter of the oven door to create an airtight seal when the door is closed. It prevents heat from escaping the oven cavity, helping maintain consistent cooking temperatures. Replace this seal if you feel excessive heat radiating from around the oven door, notice uneven cooking, or see visible wear, cracks, or gaps in the existing gasket.

This is a door-activated switch that detects whether the oven door is open or closed. It controls functions such as the oven light or signals the control board about door position. Replace this switch if the oven light stays on or off regardless of door position, or if the oven does not operate correctly due to a faulty door signal.

The Range Lamp Assembly is an OEM part for Frigidaire stoves and ranges. It consists of the halogen light bulb, lens cover, and wiring harness necessary to illuminate the oven cavity. This lamp assembly provides light to the cooking and baking space, making it easier to view food and monitor cooking progress.

Symptoms of a bad range lamp assembly include:

• The oven light not turning on at all
• Dim, flickering, or intermittent light
• Burned out or blown light bulb
• Cracks or damage to the lens cover

Causes of failure can be a burned out light bulb, broken wiring, or damage from impact or heat over time.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

This is a base panel that mounts to the lower portion of a wall oven or microwave combo unit, providing structural support and a finished exterior appearance. It helps enclose the oven cavity and protect internal components. Replace this panel if it is dented, warped, rusted, or damaged, which can affect the fit and insulation of the unit.

Insulation for wall ovens. Installs between oven cavity and outer cabinet. Replace if damaged, compressed, or missing to restore heat retention.

Broiler not heating or working? This broil element restores high-heat cooking. Easy DIY fix with four screws and wire connectors. Takes about 30 minutes.

The Bake Element is an OEM component for Frigidaire wall ovens. It is an integrated heating coil that generates heat through electric resistance when powered. Located near the bottom of the oven cavity, the bake element facilitates heating for various cooking functions like baking, roasting, or warming. This element measures approximately 13 x 11 inches.

Symptoms of a bad bake element include:

• Oven failing to reach or maintain desired cooking temperatures
• Bake cycles taking excessively long periods of time
• Hot or cold spots developing inside oven cavities
• Error codes appearing related to upper heating issues

Causes can be cracks in ceramic sheathing allowing arcing, or mineral deposits coating coils over extended use impeding heat transfer.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Heat shield for ranges and wall ovens. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to prevent overheating.

Replace a cracked, damaged, or missing shield in your wall oven or microwave combo. This protective panel installs behind components to prevent wear.

Internal shield for wall ovens and microwave combos. Replaces damaged, cracked, or missing shields. Installs inside the unit for proper protection.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

This is the door lock motor and switch assembly used in wall ovens and ranges to engage and disengage the door lock during the self-clean cycle. The motor drives the latch mechanism while the integrated switches signal the control board whether the door is locked or unlocked. Replace this assembly if the oven will not start the self-clean cycle, the door fails to lock or unlock, or you receive an error code related to the door lock.

Fix loud rattling or grinding noise from your oven fan. This convection fan motor restores quiet operation and even heat distribution. DIY repair.

Oven won't heat after self-cleaning? This high-limit thermostat cuts power when temperatures get too high. Moderately easy DIY repair fix.

This Tube Assembly routes water inside the refrigerator to the dispenser and ice-maker, restoring proper water flow and preventing leaks when the original line is damaged. Reliable replacement for delivery and fill connections. What it does:

• Transports water from the inlet to the ice maker/dispenser assembly
• Replaces cracked, kinked, or leaking tubing that causes puddles or low water flow
• Helps restore normal ice production and dispenser operation when the tube is the fault
• Matches OEM routing and connector types for correct fit and seal

• One tube assembly as shown

• Disconnect power and shut off the water supply before starting
• Remove ice maker or access panel as needed to reach routing; follow OEM service instructions
• Inspect fittings and replace any damaged clamps or seals; avoid kinking the new tube
• After installation, turn on water, check for leaks, and run dispenser/ice cycles to confirm proper flow

Reinforces and supports oven door glass panels. Replace if original stiffener is bent, cracked, or missing to properly secure glass in the door frame.

Positions and supports range components to maintain proper alignment. Replace if cracked, broken, or missing to prevent rubbing and ensure panels fit correctly.

The Vent Trim is an OEM part for Frigidaire wall ovens. This trim piece is located along the top front of the wall oven and serves an important functional and aesthetic purpose.

The vent trim facilitates proper airflow and ventilation around the top heating elements and glass door. It ensures heat and gases can safely escape during the cooking process. Over time, high heat exposure may cause damage, discoloration or warping of the original trim piece.

Causes can be standard wear and tear or accidental impact damage. Replacing with this OEM part restores your wall oven's appearance and ventilation system.

Symptoms of a bad front vent trim include:

• Excessive temperatures around the door glass or control panel areas
• Reduced airflow leading to decreased cooking performance
• Visual deformities, cracks or pieces missing from the trim

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Mounting screw for electric and gas ranges. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

Wiring harness for wall ovens. Connects electrical components inside the oven cavity. Replace if wires are frayed, burned, or connections are loose.

This is a metal mounting bracket used to secure an over-the-range microwave to the wall or cabinet during installation. It provides structural support and helps keep the microwave properly aligned and stable. Replace this bracket if it is bent, broken, or missing, which can cause the microwave to sit unevenly or become unsafe.

Replacement screw secures panels, trim, and internal components in your appliance. Needed when original fastener is missing, stripped, or damaged.

Illuminates your oven interior for visibility while cooking and cleaning. Replace when burned out to restore lighting. Verify fit with your model number.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
