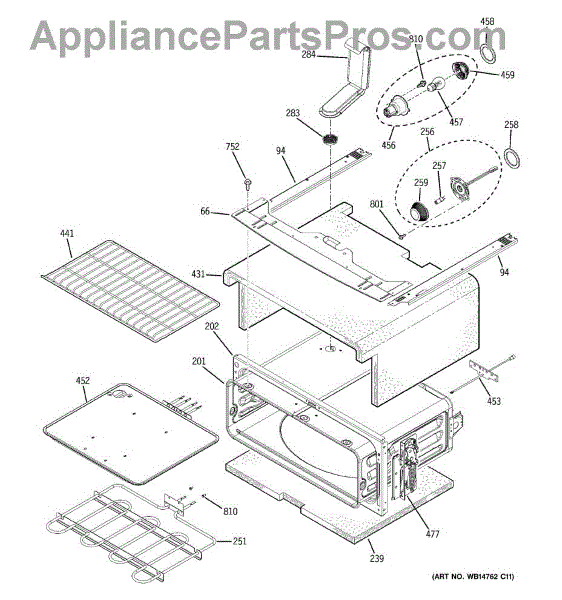

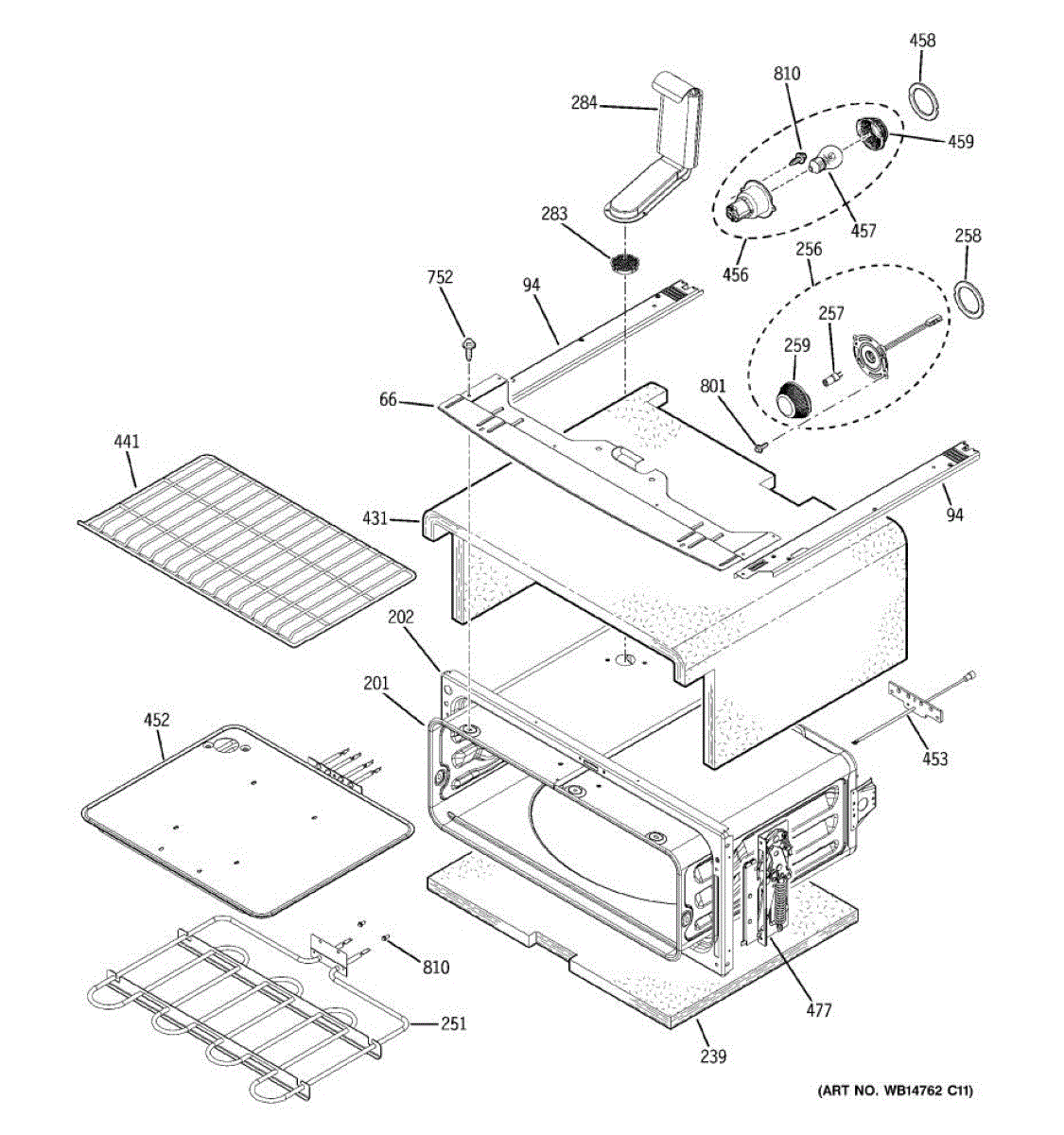

Parts for Ge JB870SR2SS: 03 - Upper Oven Parts

Halogen light bulb assembly for your oven. Replace when light dims, flickers, or burns out to restore interior visibility. Verify fit with your model.

Restores bright interior lighting in your oven or range. Replace when bulb burns out to clearly see food and monitor cooking progress. Verify G9 base fit.

This oven light gasket seals the light lens in the oven cavity to help keep the lens secure and reduce grease, moisture, and debris buildup. It restores a correct fit around the oven light opening for safer, cleaner operation. What it does:

• Replaces worn or damaged gasket around the oven light lens to prevent gaps and loose lens fit
• Helps limit grease, moisture, and food soil from entering the light cavity
• Reduces rattling or vibration of the light lens during use
• Can improve the appearance and sealing of the light area

• Disconnect power to the oven and allow the appliance to cool completely before replacing the gasket
• Remove the light lens or trim per your oven's service instructions, then seat the gasket into the channel or around the lens as shown in the OEM instructions
• Handle the lens and bulb carefully to avoid breakage; replace bulb if damaged

Replacement oven rack that slides into side supports to hold cookware at the desired baking level. Replace if bent, worn, or missing to restore level support.

A replacement broil shield that protects the oven cavity and surrounding components from direct broil heat. Restores proper heat deflection for safer, more consistent broiling and helps prevent heat damage to insulation and wiring. What it does:

• Shields the oven back and upper cavity from direct broil flame and radiant heat
• Helps maintain even broiling by directing heat away from sensitive components
• Reduces risk of heat damage to insulation, wiring, and control compartments
• Minimizes food drips and splatter reaching internal oven parts during broiling

• Disconnect power (and gas if applicable) before beginning any repair
• Remove oven racks and broil element access panels as needed to reach the shield
• Handle part carefully; edges may be sharp—wear gloves and eye protection
• Follow OEM instructions and torque guidelines when reinstalling panels and fasteners

Fix F2 or F3 error codes with a new oven temperature sensor. Restores accurate heating when your oven shuts off or won't maintain temperature. 10-15 min DIY.

Holds and powers the interior oven light bulb for visibility while cooking. Replace if light flickers, won't turn on, or bulbs burn out frequently. Verify fit by your model number before ordering.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Replace your cracked or missing oven light lens to restore safe illumination. This cover protects the bulb and diffuses light for clear visibility while cooking. Confirm fit by model number.

Upper hinge receiver for oven doors. Secures the door hinge assembly to the cabinet frame. Replace if cracked, broken, or missing for proper alignment.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.
