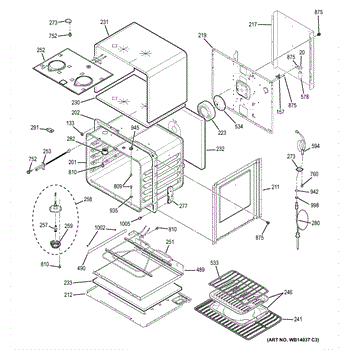

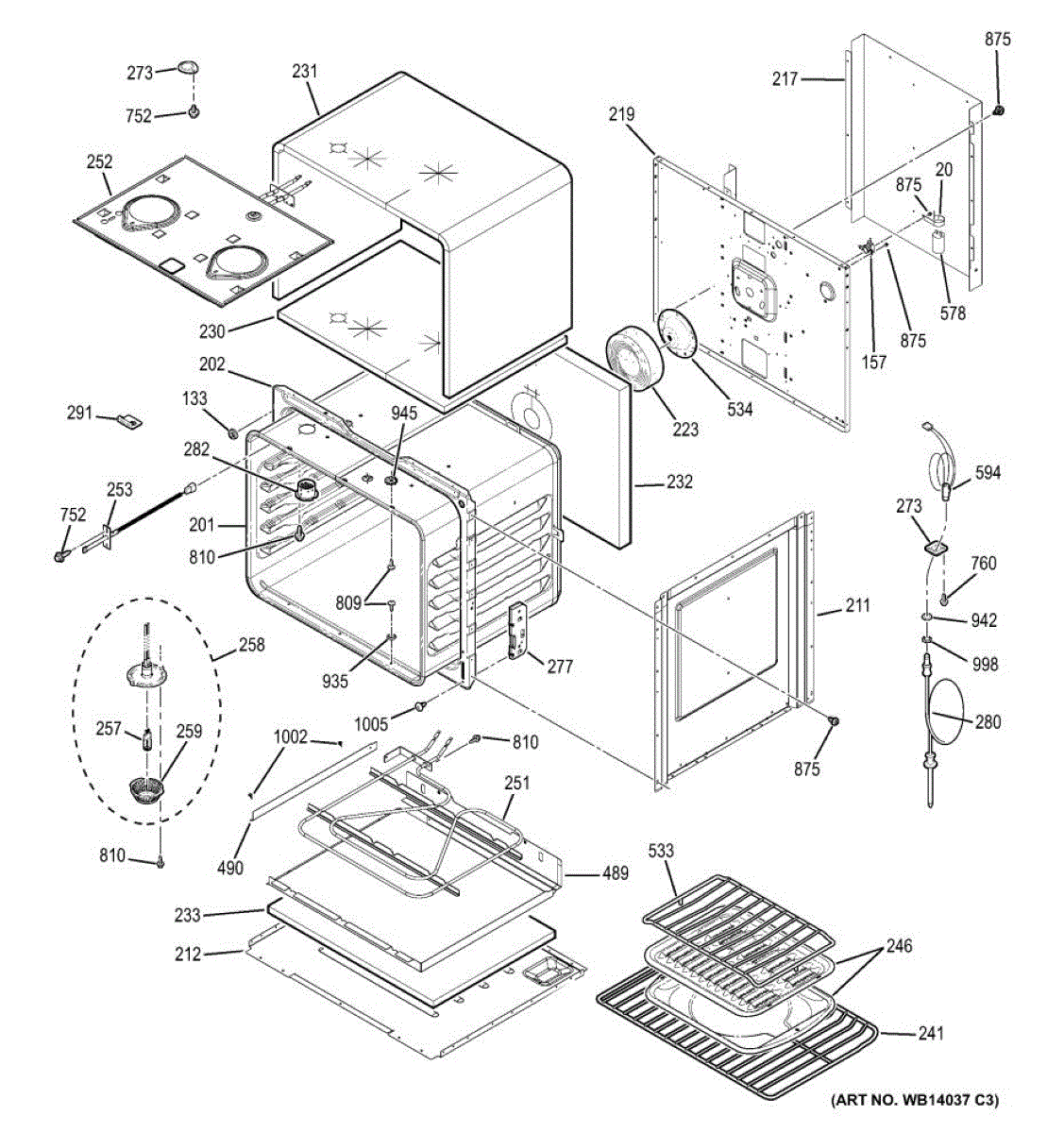

Parts for Ge ZET958SM3SS: 02 - Upper Oven Parts

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

The Hi-Limit Switch is an OEM replacement part for GE ranges. It is a safety component responsible for monitoring internal oven temperatures. The hi-limit switch helps prevent overheating by detecting when excessive heat has built up inside the oven cavity. It will automatically cut power to the bake/broil elements if temperatures rise too high.

Causes of a bad hi limit switch can include normal failure after years of exposure to heat, or issues with the electronic components or calibration.

Symptoms of a bad hi-limit switch include:

• The oven failing to heat up or bake/broil food properly
• Frequent thermal cut outs requiring the oven to be unplugged
• Delays in the oven reaching the set temperature
• Oven will not turn on

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This oven cavity insulation panel helps reduce heat loss and protect surrounding components for more even baking and safer exterior temperatures. It replaces worn or damaged insulation to restore proper thermal performance. What it does:

• Provides thermal barrier between the oven cavity and outer cabinet to help maintain oven temperature
• Reduces heat transfer to adjacent components and exterior surfaces
• Helps the oven reach and hold set temperatures more efficiently
• Commonly replaced when insulation is burned, torn, compressed, or missing

• One oven cavity insulation panel

• Disconnect power and gas before starting any repair
• Access may require removing the oven door, back panel, or cooktop per your model's service manual
• Wear gloves and a dust mask; insulation fibers can irritate skin and lungs
• Follow OEM instructions and torque specifications

This top cabinet insulation pad replaces the foam insulation in the refrigerator's upper cabinet to help reduce heat transfer and minimize frost buildup around the freezer compartment. It restores the original thermal barrier for consistent cooling performance. What it does:

• Replaces worn or damaged top-cabinet insulation that can let heat into the freezer area
• Helps reduce frost accumulation and relieves added compressor workload from heat gain
• Restores the appliance's designed thermal barrier for more even internal temperatures
• Fits into the cabinet ceiling area above the freezer compartment

• Disconnect power to the appliance before beginning any service
• Access usually requires removing interior liners, shelves, or the evaporator cover
• Handle insulation gently; avoid compressing or tearing the foam during installation
• Secure in original orientation and location; follow OEM fasteners or adhesive points

This gray oven rack is the removable shelf that supports cookware inside your oven. Replace a bent, rusted, or missing rack to restore safe loading, stable support, and proper positioning for even baking, roasting, and broiling. What it does:

• Provides a level, secure surface for pans and dishes at various rack positions
• Slides on the side supports to position food for more even heating
• Replace if the rack is bent/warped, broken, rusted, wobbly, or won't slide smoothly
• Ideal replacement when an original rack is missing

• 1 oven rack

• Let the oven cool completely; disconnect power if working near heating elements
• Pull the old rack to the stop, lift the front to clear the stops, and remove
• Align the new rack with the guides and push fully in until seated
• Verify the rack is level and securely supported before use

This replacement bake element fits the lower oven of compatible electric ranges. It supplies bottom heat for Bake mode, helping your oven preheat properly and cook evenly when the original element is burned out or damaged. What it does:

• Provides heat from the bottom of the oven during Bake cycles
• Helps reach and maintain the set temperature
• Common symptoms: no heat in Bake (broil may still work), very slow preheat, uneven baking, or a blistered/broken element

• 1 bake element

• Disconnect power at the breaker and allow the oven to cool completely
• Access from inside the oven; remove racks and the element's mounting screws
• Transfer the two wires one at a time to the new element and ensure tight connections
• Keep wires from slipping back into the insulation; do not overtighten mounting screws

The Broil Element is an OEM part for GE ranges. This part provides the high heat necessary for broiling, ensuring even cooking and browning of food placed in the upper section of the oven.

Causes of a bad broil element can include electrical issues such as short circuits or burnt-out connections, physical damage from impact, or wear and tear from frequent use.

Symptoms of a bad broil element include:

• Oven not heating properly during the broil setting
• Visible signs of damage such as breaks or burns on the element
• Uneven broiling results
• Element not glowing red when in use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor Assembly is an OEM part for GE ranges. This part monitors and regulates the oven temperature, ensuring that your appliance maintains the correct heat levels for optimal cooking performance.

Over time, the temperature sensor assembly can fail due to wear and tear or electrical faults. Exposure to high temperatures, repeated use, or accidental damage can compromise its functionality.

Symptoms of a bad temperature sensor assembly include:

• Incorrect oven temperature readings
• The oven not heating up properly
• Overheating or underheating during cooking
• Error codes related to temperature issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This halogen lamp with a G9 base restores bright, dependable interior lighting in your appliance. Replace a burned-out or damaged bulb so you can clearly see food and monitor cooking progress without opening the door. What it does:

• Provides bright illumination inside the appliance cavity when the light is switched on or the door is opened
• Restores visibility after the original bulb fails
• Common symptoms: no light, dim or flickering light, intermittent operation, or a visibly damaged capsule
• Direct-fit G9 bi-pin base installs into the existing socket

• 1 halogen lamp (G9 base)

• Disconnect power and allow the appliance to cool completely before service
• Remove the lens/cover as directed in your model's manual
• Handle the new halogen bulb with clean gloves or a tissue—oils on skin can shorten bulb life
• Align the G9 pins and press straight into the socket; replace the cover and restore power

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This vent tube assembly routes exhaust air and helps direct airflow away from the appliance to maintain proper ventilation and operation. It replaces a damaged, cracked, or disconnected tube to restore correct air discharge. What it does:

• Channels exhaust airflow from the appliance to the external vent path
• Prevents air leaks that can reduce venting efficiency or cause mild odors
• Replaces tubes that are cracked, split, corroded, or otherwise damaged
• Helps maintain consistent airflow for proper appliance performance

• One vent tube assembly as shown

• Disconnect power (and gas if applicable) and unplug the appliance before beginning work
• Use appropriate tools and fasteners; do not overtighten clamps to avoid crushing the tube

This roast rack is an oven insert that holds roasts and pans above the oven floor to improve air circulation and promote even browning. It restores proper clearance for drip pans and helps keep food out of accumulating juices. What it does

• Supports roasts, poultry and bakeware above the oven floor so hot air circulates evenly
• Prevents food from sitting in drippings for crisper browning and better roasting results
• Replaces bent, warped or missing oven racks that interfere with cookware stability
• Fits into oven side supports for secure placement during roasting

• One roast rack

• Allow the oven to cool and disconnect power before handling or replacing parts
• Slide the rack into the oven side supports until secure; ensure it sits level before use
• Use oven mitts when placing or removing hot cookware from the rack
• Clean by hand washing with warm, soapy water; avoid abrasive cleaners that can damage the finish

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

Package of 12

Black. 8-18 AB HXW 3/8

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
