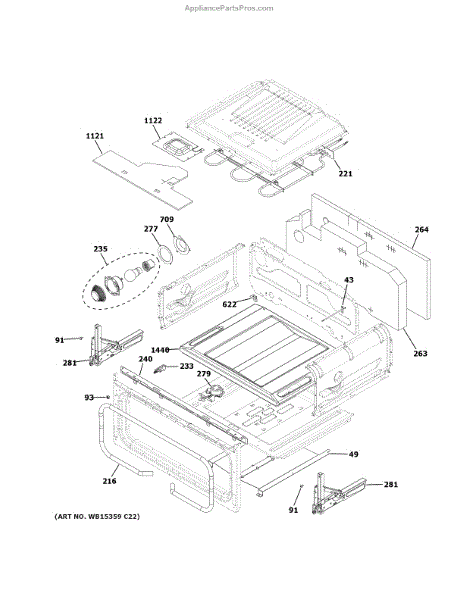

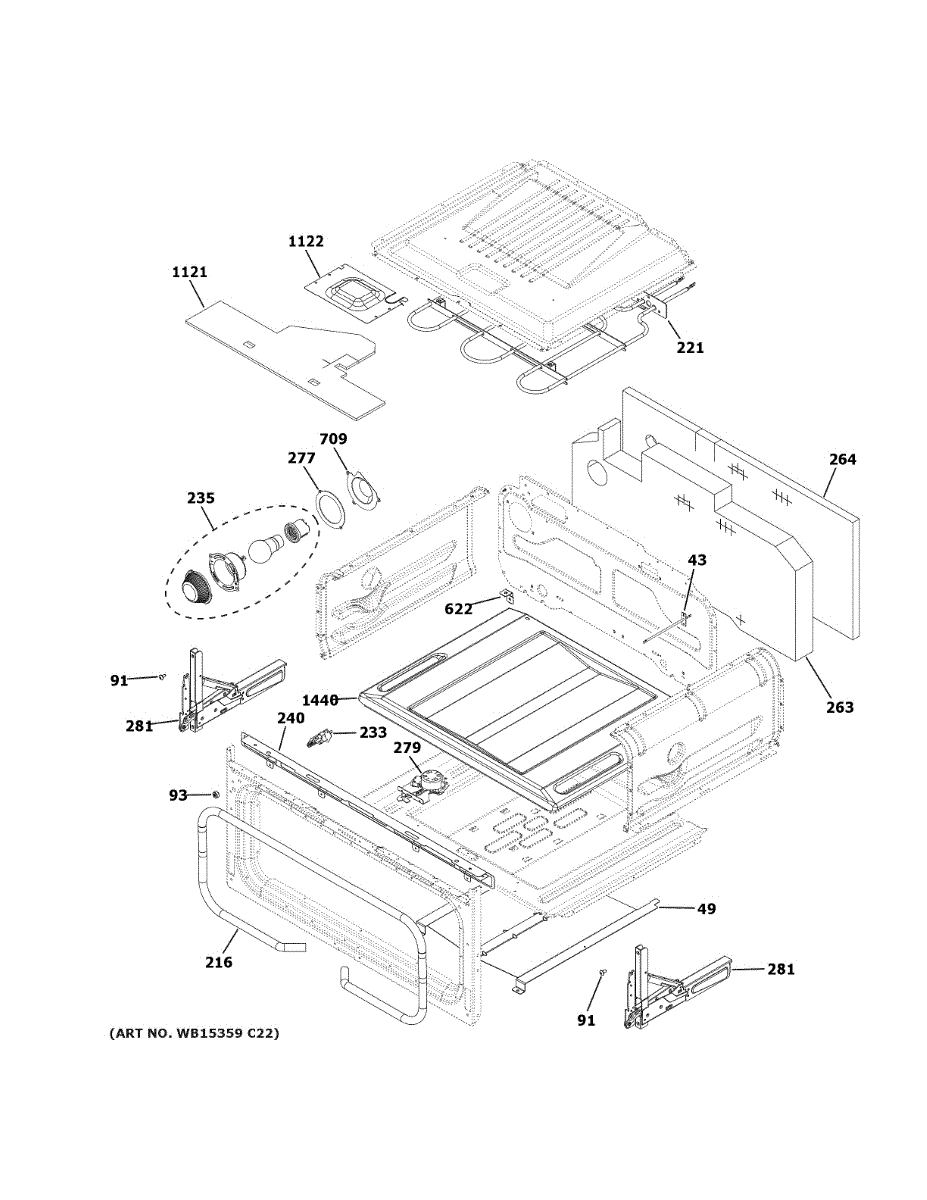

Parts for Ge CGS750M2N2S5: Upper Oven Parts

The Oven Sensor Kit is an OEM replacement part for GE ranges. It contains critical sensors that monitor the oven's temperature, functions, and safety features during the cooking process. An accurate and fully functioning sensor kit is essential for reliable oven performance.

Causes of a bad oven sensor kit can include failures in individual sensors due to prolonged use and heat exposure over time. Electrical issues affecting communication between sensors and the control board may also require sensor replacement.

Symptoms of a bad oven sensor kit include:

• The oven not heating or cooling as expected
• Inability to properly select or maintain temperature settings
• Error codes or failure messages appearing
• Safety features like the door lock not activating

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small replacement bumper cushions and protects the appliance frame/trim where panels meet, helping reduce vibration, chipping and rattles for a cleaner, quieter fit. Ideal when the original bumper is worn, cracked or missing. What it does:

• Cushions contact between the frame/trim and adjacent panels to reduce noise and prevent damage
• Helps maintain proper panel alignment and sealing where the trim meets the cabinet
• Reduces rattling or vibration caused by loose or degraded trim pads
• Restores protective spacing that prevents chips or scratches to finished surfaces

• One frame front bumper

• Disconnect power to the appliance before starting work and follow all safety precautions
• Usually installs by pressing into a slot or onto a mounting surface after removing the trim piece; some trim removal may be required
• Inspect mating surfaces for damage or debris and clean before installing the new bumper
• Replace with the exact part number only; do not force or modify the bumper to fit

This oven door gasket seals the inner edge of the oven door to help keep heat inside for even cooking and efficient operation. It replaces worn or damaged door seals that let heat escape. What it does:

• Forms a heat-resistant seal between the oven door and oven cavity to reduce heat loss
• Helps maintain consistent oven temperatures for better cooking and baking results
• Commonly replaced when you notice heat escaping, visible gaps, or a torn/brittle seal
• Reduces energy waste and can help prevent exterior surfaces from becoming unusually hot

• One oven door gasket

• Disconnect power to the appliance and ensure the oven is completely cool before starting
• Remove the old gasket per your oven's service instructions, then press the new gasket into the door channel evenly
• Do not stretch the gasket; fit it gently to avoid deforming the seal
• If adhesive or clips are required for your specific model, use only the method specified by the manufacturer

This broil element heats the top of the oven to produce high, direct heat for broiling and browning foods. Replaces a damaged or non-heating upper element to restore broil performance and even cooking on the top rack. What it does:

• Generates the high, direct heat needed for broiling and searing
• Heats when the oven is set to the "Broil" function
• Commonly used when the oven won't broil, the top of food isn't browning, or the element shows visible damage
• Works with the oven's broil control and thermostat to reach and maintain broil temperatures

• 1 broil element (upper oven)

• Disconnect power to the range at the breaker or unplug before servicing
• Handle element and terminals carefully to avoid bending or breaking mounting tabs
• Reconnect wiring exactly as found; if terminals are loose or corroded, replace connectors

The Plunger Switch is an OEM part for GE gas ranges. It is an electro-mechanical component that activates the burners and bake/broil modes when the oven door is securely closed.

Causes of failure include worn contact points, damaged wiring, or defective internal components.

Symptoms of a bad plunger switch include:

• Inability to select oven cooking functions when door is closed
• Error messages related to unsafe door conditions
• Random activation of burners with door open
• Failure of door interlock safety feature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This oven back insulation replaces the rear cavity insulation to help contain heat and improve oven performance. It fits behind the oven liner and restores proper thermal protection for safe, efficient operation. What it does:

• Replaces damaged or missing rear oven insulation that can allow heat loss.
• Helps reduce heat transfer to surrounding cabinetry and components.
• Can improve temperature stability and reduce uneven cooking when insulation is compromised.
• Helps limit hot spots and reduce abnormal smells from overheated cabinet areas.

• One oven back insulation panel (1 piece).

• Disconnect power at the breaker and allow the appliance to cool completely before service.
• Access typically requires removal of the oven's rear access panel or slide-in range rear cover—keep fasteners in a safe place.
• Wear gloves and eye protection; handle insulation carefully to avoid tearing or compressing the material.
• Reinstall panels and fasteners securely; test oven heating after reassembly.

This oven back insulation panel fits behind the oven cavity to help contain heat and protect surrounding components. It restores proper thermal shielding so your oven can heat more efficiently and reduces heat transfer to the cabinet. What it does:

• Replaces damaged or missing rear oven insulation to help maintain internal oven temperature and improve cooking consistency.
• Protects wiring, electronics, and exterior cabinet parts from excess heat.
• Can reduce hot spots or higher-than-normal exterior temperatures around the oven.
• Eliminate burning smells caused by insulation deterioration or exposed hot surfaces.

• Disconnect power to the appliance before starting and allow the oven to cool completely.
• Access usually requires removal of the oven back panel or slide-in range rear cover; follow OEM service instructions.
• Handle insulation gently and wear gloves and a dust mask if material is dusty or deteriorated.
• Do not block ventilation openings when reinstalling; ensure panel is seated as OEM intended.

This oven light gasket fits between the glass lens and the oven liner. It restores a proper seal around the light opening to help keep grease and moisture out of the light cavity and hold the lens securely in place. What it does:

• Seals the joint between the oven light lens and the cavity wall
• Helps prevent grease and moisture from entering the light assembly
• Keeps the lens snug to reduce looseness or rattling
• Replace if the gasket is cracked, flattened, brittle, missing, or if moisture/grease is visible around the lens

• One oven light lens gasket

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/retainer as your model requires (unscrew lens or release clips)
• Note gasket orientation and clean the mating surfaces
• Seat the new gasket evenly and reinstall the lens; do not overtighten the glass

The Latch Automatic is an OEM part for GE gas ranges. It is responsible for securely latching the oven door shut during baking and broiling cycles.

Causes of a bad latch include normal wear and tear, abuse like slamming the door, or failure of electronic sensors meant to monitor latch position.

Symptoms of a bad automatic latch include:

• The door popping or bouncing open during use
• Difficulty latching the door fully in the closed position
• Loose movement, wobbling, or shaking of the door when latched

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore models.

This right-hand hinge assembly secures and guides your refrigerator door for smooth opening and reliable closure. Replacing a worn hinge restores correct door alignment and helps stop sagging, rubbing, or noisy operation. What it does:

• Supports the right-side refrigerator door and maintains proper alignment
• Allows the door to pivot smoothly during opening and closing
• Helps ensure a consistent seal to protect internal temperatures
• Commonly replaces hinges that are bent, worn, or making grinding or squeaking noises

• Disconnect power to the appliance before starting any repair.
• Remove food and all loose items from the door; support the door while replacing the hinge.
• This repair may require two people to safely hold and align the door during installation.
• Use appropriate tools and follow the refrigerator's service manual for torque and alignment details.

This angle support is a small metal mounting bracket that stabilizes and secures components inside the appliance, helping keep shelves, panels, or assemblies aligned for reliable operation and safe use. What it does:

• Provides structural support for interior panels, shelves, or trim to prevent sagging or misalignment
• Holds assemblies in the correct position to reduce rattling and vibration during use
• Restores proper fit and clearance when a bent or broken bracket causes shifting
• Works with fasteners to anchor components where a right-angle connection is needed

• Inspect surrounding parts and fasteners; replace any damaged screws or clips as needed
• Use the correct size fastener and torque to avoid stripping or cracking adjacent parts
• Disconnect power and follow manufacturer safety guidelines before working near electrical components

This replacement lamp cover protects and diffuses interior appliance light for even illumination and safe bulb containment. It restores a cracked, cloudy, or missing light lens to improve visibility inside the compartment. What it does:

• Protects the interior light bulb from impact, moisture, and food debris.
• Diffuses and softens the bulb's light for more even interior illumination.
• Stops rattling or falling lens issues caused by a cracked or broken cover.
• Helps prevent direct contact with the hot bulb and reduces glare.

• One lamp cover / light diffuser.

• Disconnect power or unplug the appliance before servicing to avoid electrical shock.
• Remove the old cover carefully and dispose of any broken pieces safely.
• Handle the replacement cover gently to avoid cracks; align and snap/slide into place per the original mounting.
• After installation, restore power and replace bulb if still dim or nonfunctional.

This cover latch secures the appliance's top access cover so it stays closed during use and lets you open the cover for service or maintenance. It restores a positive, smooth-closing latch action for safe access. What it does:

• Holds the top/access cover closed to prevent accidental opening during operation
• Provides a solid engagement point for the cover to snap or latch into place
• Replaces a broken, worn or loose latch that causes rattling or an unsecured cover
• Helps ensure proper alignment of the cover for safe servicing and operation

• Disconnect power (unplug or shut off breaker) before beginning any service
• Typically installs with simple snap-in or screw fasteners; keep fasteners from the original part

This oven bottom is the replacement inner floor panel that covers the oven cavity to protect components and simplify cleanup. It restores a smooth, durable surface for normal baking and broiling. What it does:

• Replaces a warped, rusted, cracked or damaged oven floor panel that can trap food and spills
• Protects the lower cavity and heating elements from drips and debris
• Helps maintain proper airflow and a consistent cooking surface inside the oven
• Makes cleaning easier by providing a single, removable panel

• Disconnect power (or gas) to the appliance before beginning service
• Remove oven racks and any access panels needed to access the old oven bottom
• Use proper tools and follow OEM instructions; the heating element or broiler assembly may need temporary removal on some models
