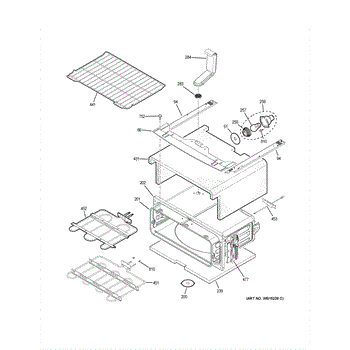

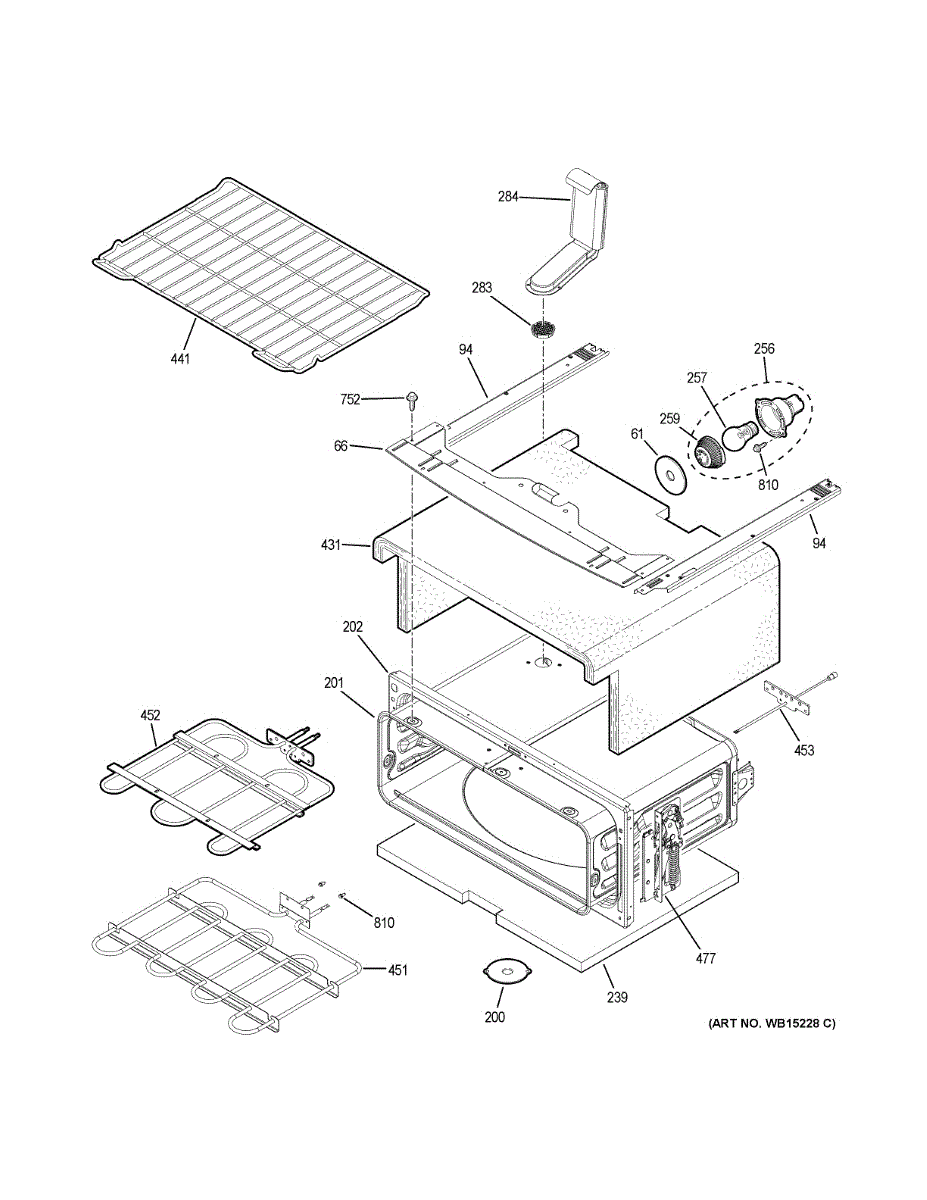

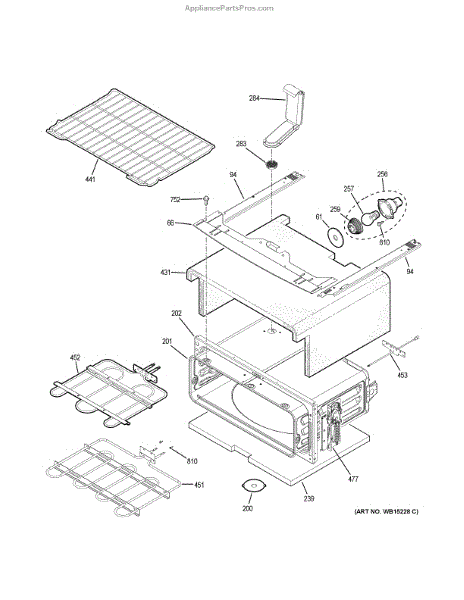

Parts for Ge JB860DJ7BB: Upper Oven Parts

Rangetop enclosure for electric ranges. Installs on the main cooking surface to contain and support the heating elements. Replace if cracked or damaged.

Holds and powers the interior oven light bulb for visibility while cooking. Replace if light flickers, won't turn on, or bulbs burn out frequently. Verify fit by your model number before ordering.

Replace your cracked or missing oven light lens to restore safe illumination. This cover protects the bulb and diffuses light for clear visibility while cooking. Confirm fit by model number.

Replacement oven rack for electric ranges. Provides elevated surface for baking, roasting, and broiling. Replace if warped, discolored, or cracked.

Oven not heating or baking unevenly? This lower bake element restores consistent oven temperature for proper cooking. Moderately difficult DIY repair.

This broil shield is the oven's rear cavity panel that protects the oven back and nearby components from direct broiler heat. It helps channel heat for safer broiling and prevents heat damage to internal parts. What it does:

• Deflects direct broiler heat away from the oven back wall and components
• Helps maintain proper broiling performance by directing heat toward food
• Reduces risk of heat-related damage, discoloration, or premature wear on internal oven parts
• Limits grease and debris contact with sensitive rear components

• Disconnect power (and gas supply on gas ovens) before servicing the oven
• Remove oven racks and, if required, the broil element to access the shield
• Handle edges carefully—metal parts can be sharp
• Keep hardware removed during disassembly; screw locations for reassembly

Fix F2 or F3 error codes with a new oven temperature sensor. Restores accurate heating when your oven shuts off or won't maintain temperature. 10-15 min DIY.

This right-side hinge assembly secures and guides the appliance door for consistent opening and closing, restoring proper alignment and sealing. It's a direct-fit replacement when the door feels loose, binds, or won't stay aligned. What it does:

• Supports the door on the right side and maintains correct pivoting motion
• Restores proper door alignment to improve closing and sealing
• Helps eliminate sagging, binding, or uneven gaps during operation
• Works with existing hinge pins and mounts where applicable

• Replace both hinges if the left-side hinge shows similar wear; balance is recommended for long-term alignment
• Disconnect power and remove any panels or door components per manufacturer instructions before starting
• Use proper tools and keep fasteners organized; tighten to OEM torque if specified

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed
