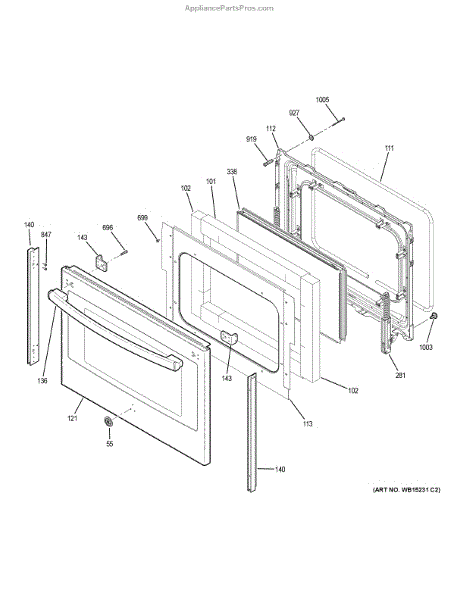

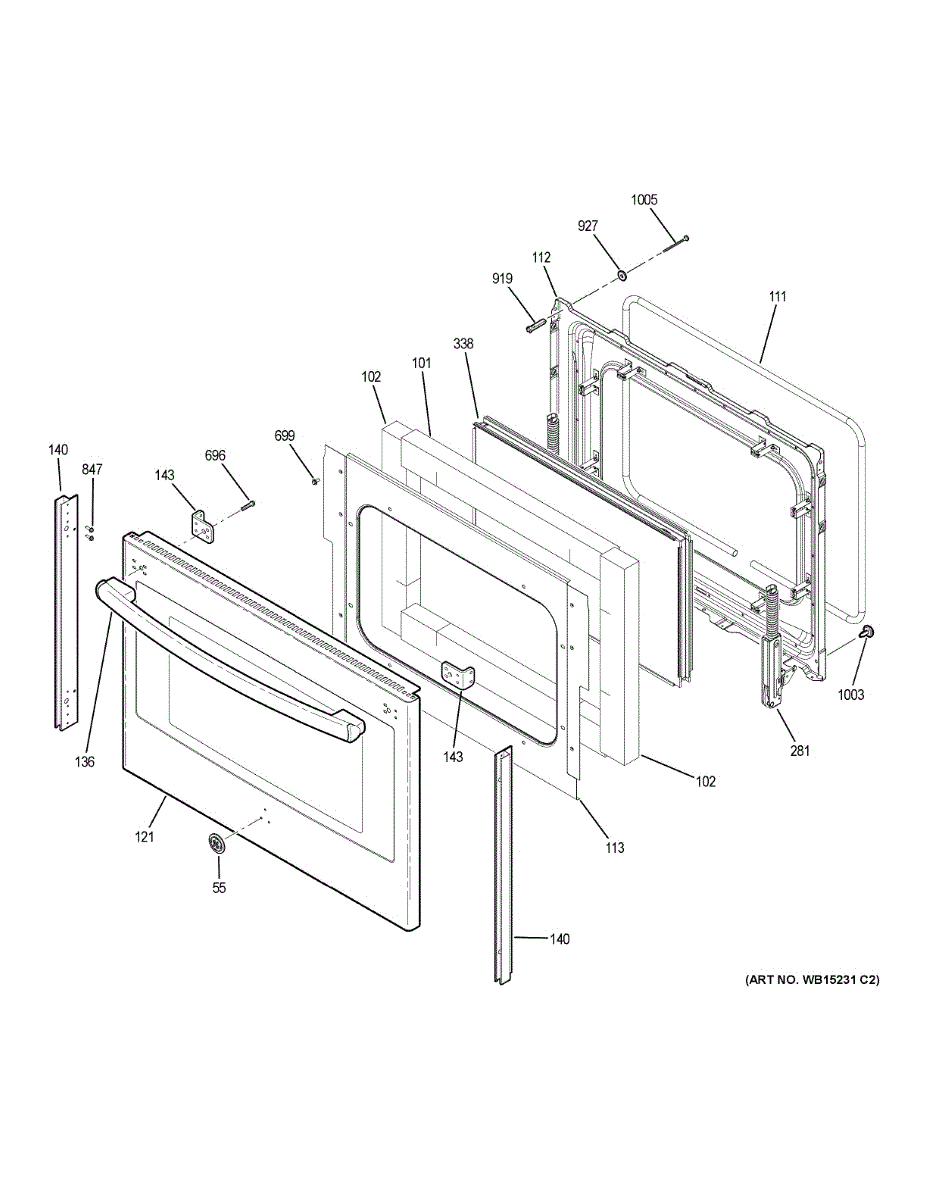

Parts for Ge JB860DJ7BB: Lower Door Parts

This oven door insulation pad fits behind the inner door liner to help retain heat in the oven cavity and reduce heat transfer to the outer door. It restores proper oven temperature control and improves cooking consistency. What it does:

• Replaces worn or damaged insulation that can allow heat to escape from the oven cavity
• Helps the oven reach and maintain set temperatures for more even baking and roasting
• Reduces excessive outer door temperatures and hot spots on the range front
• Restores the intended thermal barrier between the oven cavity and outer door assembly

• One oven door insulation pad

• Disconnect power to the appliance before starting any repair; allow the oven to cool completely
• Installation commonly requires removing the oven door and inner door liner—follow OEM instructions
• Handle insulation carefully; wear gloves and a dust mask if material is fibrous

This oven door insulation side panel fits inside the oven door to help reduce heat transfer and improve cooking consistency. It replaces damaged or missing insulation to help maintain proper oven temperatures and protect the door assembly. What it does

• Helps retain heat inside the oven for more even cooking and efficient operation
• Reduces exterior door temperature by insulating the inner door cavity
• Prevents hot spots and heat loss caused by torn, compressed, or missing insulation
• Supports the oven door structure and helps keep inner components protected

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the oven door per the manufacturer instructions to access internal insulation
• Handle insulation and door components carefully; wear gloves and eye protection
• Follow OEM instructions for reassembly and proper placement of the insulation panel

The Oven Door Gasket is an OEM part for GE ranges. This gasket is responsible for creating an air-tight seal between the door and the oven housing. It allows heat to be properly contained within the oven cavity during the cooking process.

Causes of a bad gasket can include warping, cracking, or breakdown of the gasket material over repeated heating and cooling cycles. Exposure to excessive heat or impact damage is also possible.

Symptoms of a bad gasket include:

• Inability to maintain proper oven temperatures
• Leaks of heat, smoke, or flames from the door seal area
• Drafts or cold spots felt around the door perimeter
• Difficulty in fully latching the oven door closed

This OEM GE replacement gasket is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven door insulation retainer secures the insulation inside the oven door, helping maintain proper heat containment and preventing insulation from shifting. It's a small but important clip that keeps the door's inner components stable. What it does:

• Holds inner door insulation in place so insulation stays positioned during use
• Helps maintain consistent heat distribution by preventing insulation gaps
• Reduces rattling or movement of the door interior when opening or closing
• Commonly replaced when insulation is loose, visible, or shifting inside the door

• One oven door insulation retainer

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Access typically requires removing the oven door or inner door panel — follow your model's service instructions
• Handle door panels and insulation carefully to avoid damage; keep fasteners organized for reassembly

This outer door panel is the exterior front skin for the oven door, restoring the range's finished appearance and protecting inner components. It replaces a faded, dented, or scratched outer panel to improve look and function. What it does:

• Covers and protects the oven door's internal structure and insulation
• Restores the appliance's exterior finish and color after damage or wear
• Helps reduce drafts by sealing the outer face of the door
• Prevents further cosmetic damage from daily use

• Remove power to the appliance before starting work to avoid electrical hazards
• Panel installation may require removing the oven door or loosening hinges; follow manufacturer instructions
• Handle panel carefully to avoid scratching the finish; use appropriate screw and fastener torque

This left-side black door handle replaces a damaged or missing handle to restore a secure grip and the appliance's finished appearance. Designed to match the original door hardware for a straightforward replacement. What it does:

• Replaces the left door handle to provide a safe, comfortable grip for opening and closing the door
• Addresses symptoms like cracked, loose, broken, or missing handles
• Restores the appliance's exterior appearance to its intended look
• Designed to align with factory mounting points for direct replacement when compatible

• Follow the appliance manufacturer's service instructions for removal and installation
• Preserve existing mounting screws/fasteners unless new hardware is explicitly included
• Use basic hand tools; wear gloves to protect finish and avoid cuts from sharp edges

This replacement door-handle bracket secures the refrigerator door handle to the door, restoring a firm, aligned grip. Durable black finish matches the original part and helps keep the handle properly positioned during everyday use. What it does:

• Secures the door handle to the refrigerator door so the handle stays tight and aligned
• Replaces cracked, broken or worn brackets that cause a loose or wobbly handle
• Restores proper handle engagement for opening and closing the door
• Helps prevent additional stress to the handle and mounting area

• One black door-handle bracket

• Basic hand tools required; for exact steps
• Support the handle during removal and installation to avoid dropping or damaging the door
• Disconnect power and water before working on the appliance for safety
• If screws or fasteners appear stripped or damaged, replace them to ensure a secure fit

The Window Pack Assembly is an OEM replacement part for GE electric ranges. It comprises the outer oven window and securing brackets that hold the glass in place.

Causes of failure can include cracks in the glass from impact or thermal stress over time. Mounting brackets may loosen from normal use.

Symptoms of a faulty window pack assembly include:

• Fogging or condensation between panes of glass
• Leaks evident around the perimeter of the oven window
• Window that rocks or wiggles in the frame
• Inability to securely latch the window shut

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models.

This hex washer-head screw secures sheet-metal panels, brackets, and assemblies in your appliance. Replacing a missing, stripped, or rusted fastener restores a tight, rattle-free fit and helps keep components properly aligned during everyday use.

• Fastens panels, brackets, and assemblies to the chassis
• Helps maintain alignment and stability under normal vibration and heat
• Direct replacement for lost, damaged, or stripped hardware
• Common signs include loose or rattling panels, gaps/misalignment, or a rounded screw head

• Disconnect power; if servicing a gas appliance, also shut off gas and allow surfaces to cool
• Match the new screw to the original location; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping sheet metal
• Use an appropriate nut driver or socket for the hex head

ST10-16 X 7/16"

Package of 12

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This is a replacement screw used to secure panels and components on compatible appliances. It provides a direct-fit fastening solution to restore proper part alignment and prevent rattling or loose panels. What it does

• Fastens appliance panels, brackets or assemblies where an 8-18 x 5/8 screw is specified
• Replaces missing or stripped fasteners that allow parts to shift or vibrate
• Restores secure mounting for components to reduce noise and movement
• Useful when a factory screw is damaged, corroded, or lost during service

• One screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver size and type to avoid stripping the head
• Install by hand first, then snug with a driver—do not over-torque
• Keep removed hardware organized to ensure correct reassembly
