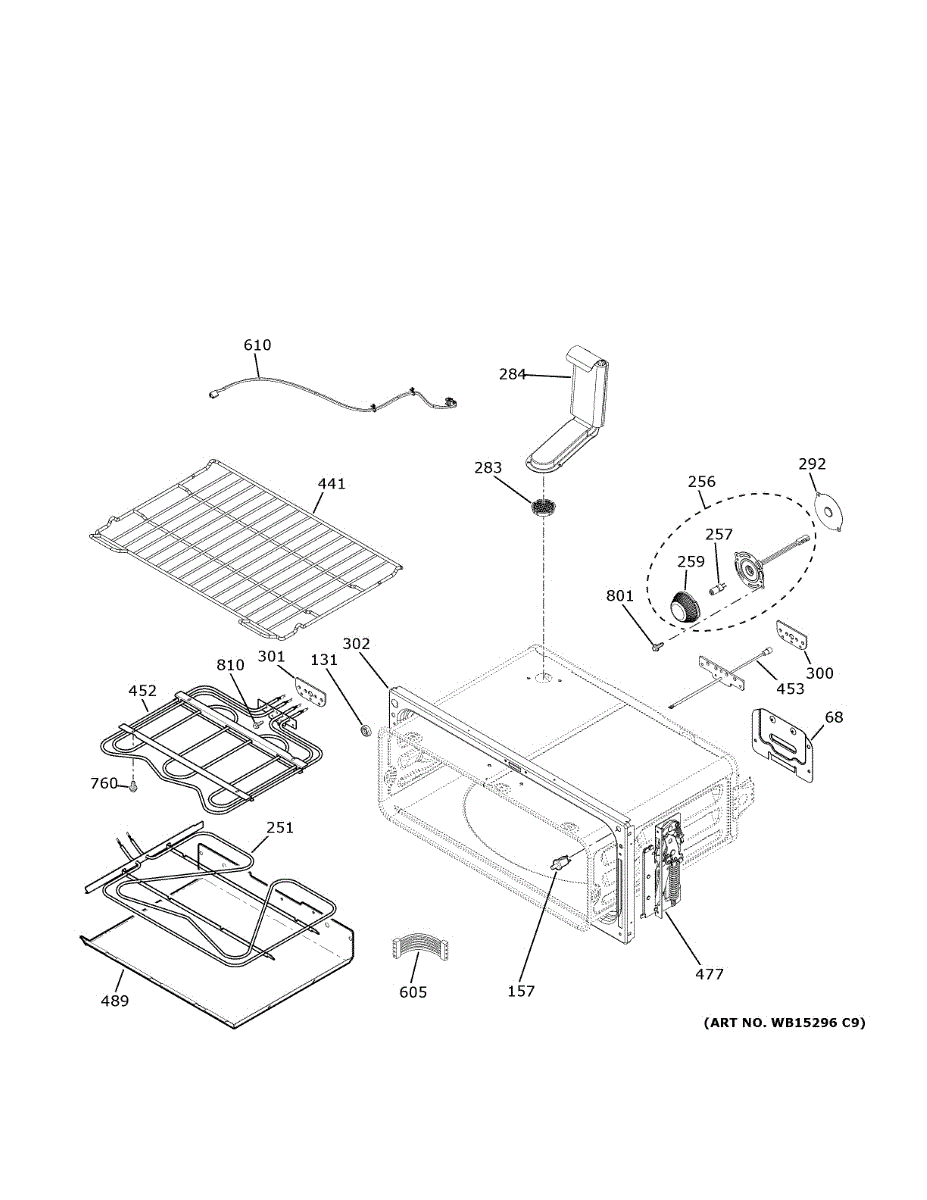

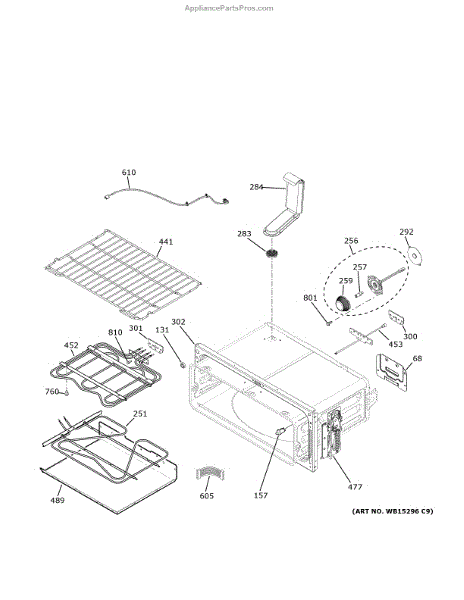

Parts for Ge JSS86SP2SS: Upper Oven Parts

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

The Lamp Halogen Assembly is an OEM part for GE ranges. It is the internal light bulb that illuminates the oven cavity.

Symptoms of a bad lamp halogen assembly include:

• Dim or flickering oven light
• Stuck-on or unresponsive oven light functionality
• Burned out or blackened bulb

Causes can be normal life cycle burnout after extended use or damage from excess vibration.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models. U

This halogen lamp with a G9 base restores bright, dependable interior lighting in your appliance. Replace a burned-out or damaged bulb so you can clearly see food and monitor cooking progress without opening the door. What it does:

• Provides bright illumination inside the appliance cavity when the light is switched on or the door is opened
• Restores visibility after the original bulb fails
• Common symptoms: no light, dim or flickering light, intermittent operation, or a visibly damaged capsule
• Direct-fit G9 bi-pin base installs into the existing socket

• 1 halogen lamp (G9 base)

• Disconnect power and allow the appliance to cool completely before service
• Remove the lens/cover as directed in your model's manual
• Handle the new halogen bulb with clean gloves or a tissue—oils on skin can shorten bulb life
• Align the G9 pins and press straight into the socket; replace the cover and restore power

This smoke eliminator is a charcoal-based filter designed for recirculating range and microwave venting. It helps reduce cooking odors and airborne grease particles when the appliance is used in non-vented (recirculating) mode. What it does:

• Adsorbs and reduces cooking odors and smoke in recirculating vent systems
• Helps capture particles that pass through the venting fan to keep kitchen air fresher
• Commonly replaced when strong cooking smells persist or airflow seems less effective
• Fits into the appliance's recirculating filter slot to restore odor control

• One (1) smoke eliminator charcoal filter

• Turn power to the appliance off before accessing the vent/filter area
• Remove the vent or grille per your appliance manual, replace the old filter with the new one, and reassemble
• No special tools usually required; refer to your model's instructions for exact access steps
• Replace periodically or when odor reduction becomes noticeably worse

The Oven Rack is an OEM replacement part for GE ranges. It provides an elevated surface for baking, roasting or broiling food inside the oven cavity.

Causes of a bad rack can include warping or discoloration from exposure to high heat over time. Cracks or breakage may also occur due to mishandling or loading the rack with excess weight.

Symptoms of a bad oven rack include:

• Food not baking or cooking evenly while on the rack
• Difficulty sliding the rack in and out of the oven
• Cracks, bends or broken welds in the rack frame

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement broil shield that protects the oven cavity and surrounding components from direct broil heat. Restores proper heat deflection for safer, more consistent broiling and helps prevent heat damage to insulation and wiring. What it does:

• Shields the oven back and upper cavity from direct broil flame and radiant heat
• Helps maintain even broiling by directing heat away from sensitive components
• Reduces risk of heat damage to insulation, wiring, and control compartments
• Minimizes food drips and splatter reaching internal oven parts during broiling

• Disconnect power (and gas if applicable) before beginning any repair
• Remove oven racks and broil element access panels as needed to reach the shield
• Handle part carefully; edges may be sharp—wear gloves and eye protection
• Follow OEM instructions and torque guidelines when reinstalling panels and fasteners

This right-side hinge assembly secures and guides the appliance door for consistent opening and closing, restoring proper alignment and sealing. It's a direct-fit replacement when the door feels loose, binds, or won't stay aligned. What it does:

• Supports the door on the right side and maintains correct pivoting motion
• Restores proper door alignment to improve closing and sealing
• Helps eliminate sagging, binding, or uneven gaps during operation
• Works with existing hinge pins and mounts where applicable

• Replace both hinges if the left-side hinge shows similar wear; balance is recommended for long-term alignment
• Disconnect power and remove any panels or door components per manufacturer instructions before starting
• Use proper tools and keep fasteners organized; tighten to OEM torque if specified
