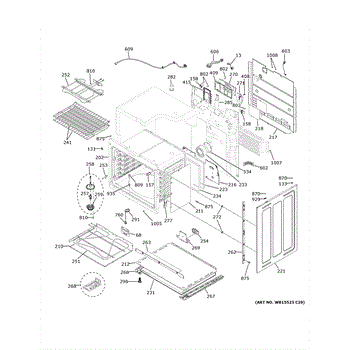

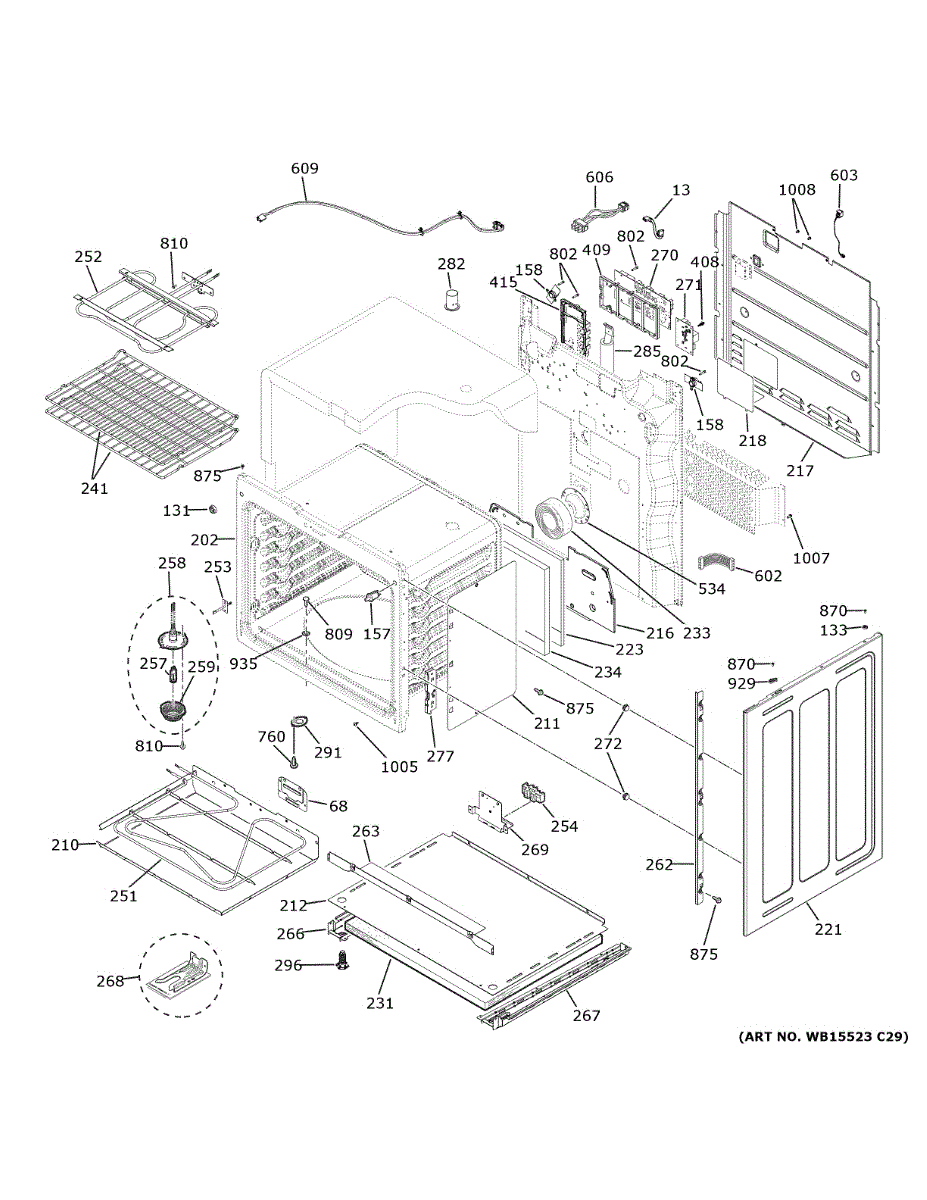

Parts for Ge JSS86SP2SS: Lower Oven Parts

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

This hi-limit thermostat is a temperature-sensing safety switch that stops power to the heating circuit if temperatures rise above safe levels, helping protect the appliance from overheating and heat-related damage. What it does:

• Senses excessive temperature and interrupts power to the heating element
• Helps prevent continuous heating and potential overheating hazards
• Can cause the appliance to lose heat or fail to maintain temperature when it trips or fails
• Common symptom: no heat or intermittent heating when the limiter is open

• Disconnect power to the appliance before inspecting or replacing the limiter
• Locate and replace only the thermostat explicitly matching the appliance's wiring and mounting
• Verify wiring terminals match and are secure; do not modify terminals or leads

This cover terminal block protects the appliance's power connection area by covering the terminal block where the power cord attaches. It keeps wiring secure and helps reduce risk of accidental contact and shorting. What it does:

• Covers and protects the power cord terminal block from dust, moisture and accidental contact
• Prevents exposed terminal ends that can cause arcing or shorts
• Helps keep wiring routed and secured at the power connection
• Common replacement when the original cover is cracked, melted or missing

• One cover terminal block

• Disconnect power (unplug or shut off breaker) before inspecting or replacing the cover
• Remove any mounting screws and lift off the old cover to access terminals; document wire locations before disconnecting
• Reinstall cover after confirming tight, correct terminal connections and that no bare conductors are exposed
• If terminals or wiring show damage (burning, melting, corrosion), replace or repair those parts before reinstalling the cover and restore power only when safe

This oven rack replaces a damaged or missing rack to restore safe, level support for cookware. It slides on the existing side rails to position pans at the proper height for baking, roasting, or broiling.

• Provides a sturdy, level surface for pans and bakeware
• Slides smoothly on the oven's support rails for easy access
• Replaces racks that are bent, warped, rusted, or broken
• Helps prevent tipping or wobbling during use

• Allow the oven to cool completely before servicing
• Pull the old rack straight out to remove
• Insert the new rack, matching the original orientation, and engage both side rails evenly
• Verify the rack seats level and slides fully before use

The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

The Terminal Block Assembly is an OEM part for GE electric ranges. It provides connections between internal wiring and the home's electrical supply.

Causes of failure can include corrosion of metal prongs from heat and moisture exposure over time, splitting insulation sheathing from continuous vibrations, or loosened mounting fasteners.

Symptoms of a faulty terminal block include:

• Intermittent or unstable power to heating elements surfaces
• Loose, frayed, or corroded wire attachments risking electrical faults
• Inability to maintain programmed cooking temperatures

This part is also compatible with Hotpoint and RCA electric range models.

This halogen lamp with a G9 base restores bright, dependable interior lighting in your appliance. Replace a burned-out or damaged bulb so you can clearly see food and monitor cooking progress without opening the door. What it does:

• Provides bright illumination inside the appliance cavity when the light is switched on or the door is opened
• Restores visibility after the original bulb fails
• Common symptoms: no light, dim or flickering light, intermittent operation, or a visibly damaged capsule
• Direct-fit G9 bi-pin base installs into the existing socket

• 1 halogen lamp (G9 base)

• Disconnect power and allow the appliance to cool completely before service
• Remove the lens/cover as directed in your model's manual
• Handle the new halogen bulb with clean gloves or a tissue—oils on skin can shorten bulb life
• Align the G9 pins and press straight into the socket; replace the cover and restore power

The Lamp Halogen Assembly is an OEM part for GE ranges. It is the internal light bulb that illuminates the oven cavity.

Symptoms of a bad lamp halogen assembly include:

• Dim or flickering oven light
• Stuck-on or unresponsive oven light functionality
• Burned out or blackened bulb

Causes can be normal life cycle burnout after extended use or damage from excess vibration.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models. U

This anti-tip bracket assembly secures the rear of your range to the floor or wall. It helps prevent the appliance from tipping forward during everyday use and supports compliance with manufacturer safety and installation requirements. What it does:

• Anchors the range so the rear leveling foot engages the bracket to help prevent tipping
• Helps correct a range that rocks, shifts, or tilts when the door is opened or racks are pulled
• Replaces a missing, bent, or corroded anti-tip bracket
• Supports passing the required anti-tip safety check after installation

• One anti-tip bracket assembly

• Disconnect power; for gas models, also shut off the gas supply before starting
• Mount the bracket to the floor or wall as directed in the range's installation instructions
• Slide the range back so the rear leveling foot fully engages the bracket; verify the unit is level
• Perform the anti-tip test specified in the installation manual to confirm proper engagement

The Machine Control Relay Board is an OEM part for GE electric ranges. Containing electronic relays, this board oversees critical functions of the range like power levels, temperature control, and safety features.

Symptoms of a bad relay board include:

• Burners only heating to low temperatures
• Oven not reaching or maintaining set heat
• Timer or power level controls malfunctioning
• Safety issues arising from improper operations

Causes can be failures over time from sustained heat, electrical fluctuations, or physical damage. This board directly impacts cooking performance and safety.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This relay daughter board is the small control board that mounts to or plugs into the main control. It restores reliable switching of power to high-demand components so cooking functions operate as intended. What it does:

• Works with the main control to energize onboard relays and switch line voltage to high-load components
• Routes power to elements, fans, motors, or other loads as designed by the appliance
• Common failure symptoms include no heat, certain functions not working, intermittent operation, or visible burn marks/heat damage on the board
• Presents relay clicking without the related component activating

• One relay daughter board

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD precautions; handle the PCB by its edges and avoid flexing the board
• Photograph and label wiring; move connectors one at a time to the new board
• Ensure the board is properly seated/secured on standoffs and all connectors are fully engaged before restoring power

This vent tube directs heated air and moisture from the appliance to its exhaust path, maintaining proper airflow around internal components. Replace a cracked, warped, or missing tube to restore safe ventilation and help prevent heat and condensation buildup. What it does:

• Channels hot air and steam from the cavity to the outlet
• Helps prevent heat accumulation around controls and adjacent surfaces
• Reduces moisture/condensation at the vent outlet
• Common symptoms: excessive warmth near the console, persistent odors/steam, visible damage, or rattling from a loose/broken tube

• 1 vent tube

• Disconnect power; shut off gas. Allow the appliance to cool completely before servicing.
• Access and attachment points vary by model; refer to your service manual or diagram for location.
• Note the tube's orientation and routing; transfer any brackets or seals from the old part if present.
• Reuse existing screws/clamps and ensure the vent path is clear after installation.

A replacement plastic PCB standoff that secures and insulates the appliance control board from the chassis to prevent shorts and maintain stable mounting. Restores correct spacing and support for a loose or rattling control board. What it does:

• Holds the printed circuit board off the metal frame to prevent electrical contact and shorting
• Keeps the control board aligned and stable to reduce vibration-related faults or intermittent connections
• Provides an insulated mounting point where an original standoff is cracked, missing, or worn
• Helps ensure reliable screw placement and consistent board spacing during reassembly

• One plastic PCB standoff

• Disconnect power to the appliance before servicing to avoid shock or damage
• Use the original screw size and do not overtighten to prevent cracking the standoff or PCB
• Replace any damaged mounting hardware; verify the board sits flat and is properly insulated from metal parts

The Harness Wire is an OEM part for GE cooktops. It is responsible for securely connecting and routing wiring between the various electronic components and controls of the cooktop.

Causes of a bad harness wire can include cracked, frayed, or broken insulation leading to electrical shorts, damage to connecting terminals preventing a solid connection, or loose wiring interfering with proper operations.

Symptoms of a bad harness wire include:

• Controls or switches that do not work properly or become unresponsive
• Error codes displayed or abnormal control panel behaviors
• Burners that will not ignite or will not stay lit
• Units that cease functioning entirely

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement 8-18 screw with a SKT25 drive used to secure panels and components on compatible appliances. It restores proper fastening and helps eliminate loose or rattling parts for safer, quieter operation. What it does:

• Fastens panels, brackets, and internal components where 8-18 thread hardware is required
• Replaces missing or stripped screws that cause loose panels or vibration
• Helps keep wiring and assemblies properly secured to prevent shifting during use
• Uses a SKT25 (Torx/socket) drive for a secure, tamper-resistant fit

• Use the correct SKT25 driver or bit to avoid cam-out and fastener damage
• Tighten securely but avoid over-torquing to prevent thread or component damage
• Disconnect power to the appliance before working on electrical panels or internal components
• If a screw is severely corroded or a hole is damaged, replace with the correct OEM fastener and repair the mounting point as needed

This 10-32 x 3.30 screw with a Torx T20 drive secures panels and components in place to restore safe, rattle-free operation. Use when worn or missing screws cause loose trim, control panels, or internal assemblies. What it does

• Fastens panels, brackets, and components using a 10-32 thread for a secure hold
• Replaces stripped, corroded, or missing screws that cause vibration or rattling
• Helps maintain proper alignment of control panels and internal parts
• Restores grounding/retention where original screws are required for safety

• One 10-32 x 3.30 Torx T20 screw (quantity: 1)

• Use the correct Torx T20 driver to avoid damaging the screw head
• Tighten snugly but do not overtighten; replace with identical part for fit and safety
• Power off and unplug the appliance before accessing internal components
• If screws fasten parts involved with grounding or electrical connections, verify secure contact after reinstalling

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
