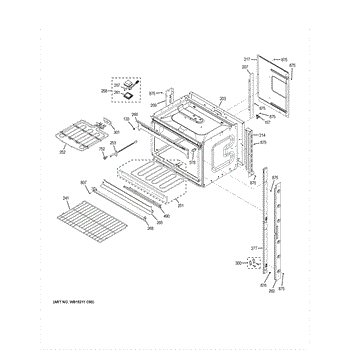

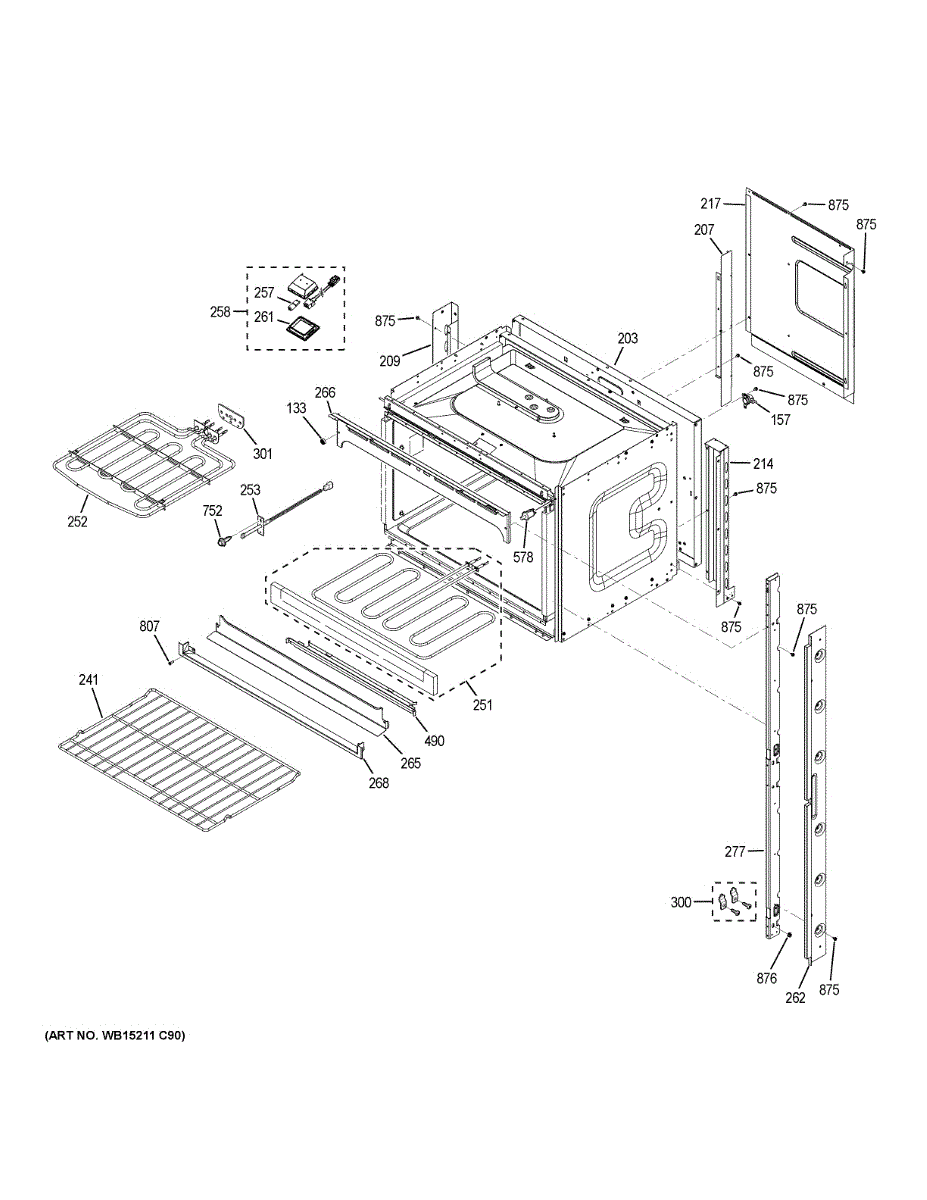

Parts for Ge JT3500EJ5ES: Upper Oven Parts

Fixes oven not heating after self-clean cycle. This thermal safety switch cuts power when temperatures get too high. Simple diagnosis with continuity test.

Replace a bent, rusted, or missing oven rack. Provides a stable, heat-safe surface for cookware and allows proper positioning for baking and roasting.

Oven not heating or baking unevenly? This hidden bake element kit restores proper heating. Includes element, bracket, and wiring for complete repair.

Fix uneven browning or a non-working broiler with this upper heating element. Common solution when the oven heats but won't broil. DIY-friendly replacement.

Fix F2 or F34 error codes and inaccurate oven temperatures with this temperature sensor assembly. Moderate DIY repair, 30-60 minutes install time.

Halogen bulb illuminates your oven cavity so you can monitor cooking without opening the door. Replace when dim or burnt out. Verify fit with your model.

Halogen light assembly illuminates your oven cavity during cooking. Replace if light won't turn on, flickers, or glass is cracked. Confirm fit by model.

Replace your wall oven light lens cover to restore visibility inside the oven cavity. Essential when cracked, discolored, or damaged by heat exposure. Verify fit with your model number before ordering.

Vertical side trim piece for electric wall ovens. Covers the side edge of the oven cavity. Replace if cracked, chipped, discolored, or missing.

Lower vent trim for electric ranges and wall ovens. Replace this cosmetic trim piece if cracked, chipped, discolored, or missing. Installs at base.

Black upper vent trim for wall ovens. Covers the ventilation opening on the control panel area. Replace if cracked, faded, or missing for a clean look.

Secures and supports oven door pivot for proper alignment and smooth opening/closing. Replace if door sags, won't close flush, or hinge feels loose. Confirm fit with your model number.

Heat escaping around broil element? This pass-through gasket seals the opening where the element enters the oven liner, containing heat and steam. Quick DIY fix.

Shields your oven's hidden bake element from spills and debris. Directs heat for even cooking and reduces cleaning. Moderately easy DIY install.

This is a high-amp SPDT (single pole, double throw) switch used in the oven door mechanism. It detects whether the oven door is open or closed and signals the control to enable or disable certain functions such as the oven light or broil element. Replace this switch if the oven light does not turn on or off when the door is opened or closed, or if the oven does not operate correctly in relation to door position.

This replacement screw fastens panels, brackets, or trim inside your appliance. Swapping in a new screw restores a tight, secure fit and helps stop rattles, looseness, or misalignment caused by missing or damaged hardware.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain proper alignment and spacing of components
• Replaces missing, rusted, or stripped hardware
• Helps resolve loose panels/handles, vibration, or rattling noises

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location; start threads by hand to avoid cross-threading
• Use the appropriate driver and tighten snugly without overtightening
• Inspect the mounting hole or clip for damage and address as needed before reassembly

Black. 8-18 AB HXW 3/8
