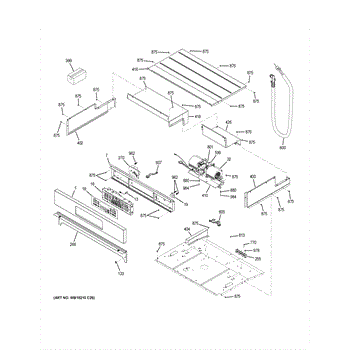

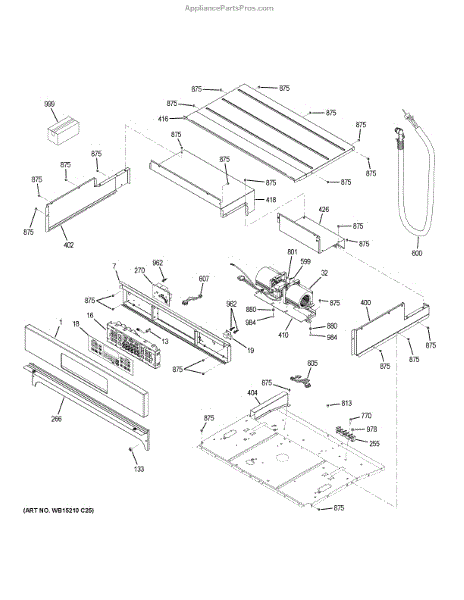

Parts for Ge JT3500EJ5ES: Control Panel Parts

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

Wall oven display not working or showing error codes? This control board manages all oven functions and display. Moderate difficulty repair for DIYers.

Decorative overlay panel that surrounds your wall oven controls and display. Replace if faded, peeling, cracked, or worn from repeated use over time.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the ele

Fixes loose power connections and electrical arcing in ranges and ovens. This terminal block secures incoming wiring for safe, reliable operation.

Black upper vent trim for wall ovens. Covers the ventilation opening on the control panel area. Replace if cracked, faded, or missing for a clean look.

The GE Board Relay Daughter is an OEM part for GE ranges. It enables relay-based electrical control functions for safe operation.

Causes of a bad board relay can include failures in the circuit components over many power cycles. Moisture

Upper air vent channel for wall ovens. Directs airflow in the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

Upper fan mount bracket for wall ovens and ranges. Secures the cooling fan assembly in place. Replace if bracket is bent, broken, or missing.

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay a

This 6 ft conduit provides a protective, flexible channel for routing wiring between components, helping keep wiring organized and shielded from damage. It's an optional replacement for appliances that require extended wiring protection. What it does

Fix oven power issues or control malfunctions with this main wire harness. Connects control board to heating elements and components. Moderate difficulty.

Fix oven door latch issues with this wire harness. Resolves electrical connection problems in the door lock assembly. Moderate DIY repair in 30-45 minutes.

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order when original screw is missing, stripped, or lost.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black. 8-18 AB HXW 3/8

Rubber grommet for electric ovens and ranges. Seals and protects wiring or components passing through metal panels. Replace if cracked or missing.

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
