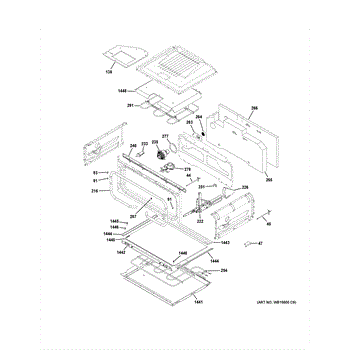

Parts for Ge PS96PZR1SS: Upper Oven Parts

The Sensor Assembly is an OEM component specially designed for GE slide-in electric ranges. It contains both the internal temperature sensor, as well as the electronic board that powers the oven convection fan and thermostat functions.

Causes of a bad sensor assembly can include faulty solder connections, damaged wiring from overheating, or component failure from years of use.

Symptoms of a bad sensor assembly include:

• Inability to achieve or regulate proper oven cooking temperatures
• Convection fan failing to operate as programmed
• Unexplained error codes shown on display
• Oven failing to start baking or convection cooking cycles

As a critical safety and performance mechanism, sensor stability ensures accurate temperature monitoring cycle after cycle. This genuine GE replacement sensor assembly facilitates ideal temperature control and airflow – upholding the quality of cooking your appliance was engineered for. Compatible ranges also include select KitchenAid and Monogram wall oven models.


This small replacement bumper cushions and protects the appliance frame/trim where panels meet, helping reduce vibration, chipping and rattles for a cleaner, quieter fit. Ideal when the original bumper is worn, cracked or missing. What it does:

• Cushions contact between the frame/trim and adjacent panels to reduce noise and prevent damage
• Helps maintain proper panel alignment and sealing where the trim meets the cabinet
• Reduces rattling or vibration caused by loose or degraded trim pads
• Restores protective spacing that prevents chips or scratches to finished surfaces

• One frame front bumper

• Disconnect power to the appliance before starting work and follow all safety precautions
• Usually installs by pressing into a slot or onto a mounting surface after removing the trim piece; some trim removal may be required
• Inspect mating surfaces for damage or debris and clean before installing the new bumper
• Replace with the exact part number only; do not force or modify the bumper to fit

This induction duct gasket seals the air/heat duct on compatible induction ranges to help maintain proper airflow and reduce heat or steam leakage. It restores the factory seal for safer, more reliable cooktop operation. What it does:

• Seals the duct path beneath the cooktop to help direct hot air and exhaust where intended
• Reduces heat and steam escape that can cause nearby panels to overheat or discolor
• Helps prevent smoke, burning smells, or combustion of debris that may collect in gaps
• Supports proper cooling/venting of internal components for consistent performance

• Disconnect power to the appliance before starting any repair
• Remove cooktop or access panels to reach the duct area
• Clean mating surfaces of old gasket material, grease, and debris before installing the replacement
• Use appropriate hand tools and avoid sharp bending or crushing the gasket during placement

This oven door gasket seals the inner edge of the oven door to help keep heat inside for even cooking and efficient operation. It replaces worn or damaged door seals that let heat escape. What it does:

• Forms a heat-resistant seal between the oven door and oven cavity to reduce heat loss
• Helps maintain consistent oven temperatures for better cooking and baking results
• Commonly replaced when you notice heat escaping, visible gaps, or a torn/brittle seal
• Reduces energy waste and can help prevent exterior surfaces from becoming unusually hot

• One oven door gasket

• Disconnect power to the appliance and ensure the oven is completely cool before starting
• Remove the old gasket per your oven's service instructions, then press the new gasket into the door channel evenly
• Do not stretch the gasket; fit it gently to avoid deforming the seal
• If adhesive or clips are required for your specific model, use only the method specified by the manufacturer

The Plunger Switch is an OEM part for GE gas ranges. It is an electro-mechanical component that activates the burners and bake/broil modes when the oven door is securely closed.

Causes of failure include worn contact points, damaged wiring, or defective internal components.

Symptoms of a bad plunger switch include:

• Inability to select oven cooking functions when door is closed
• Error messages related to unsafe door conditions
• Random activation of burners with door open
• Failure of door interlock safety feature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This angle support is a small metal mounting bracket that stabilizes and secures components inside the appliance, helping keep shelves, panels, or assemblies aligned for reliable operation and safe use. What it does:

• Provides structural support for interior panels, shelves, or trim to prevent sagging or misalignment
• Holds assemblies in the correct position to reduce rattling and vibration during use
• Restores proper fit and clearance when a bent or broken bracket causes shifting
• Works with fasteners to anchor components where a right-angle connection is needed

• Inspect surrounding parts and fasteners; replace any damaged screws or clips as needed
• Use the correct size fastener and torque to avoid stripping or cracking adjacent parts
• Disconnect power and follow manufacturer safety guidelines before working near electrical components

This oven back insulation replaces the rear cavity insulation to help contain heat and improve oven performance. It fits behind the oven liner and restores proper thermal protection for safe, efficient operation. What it does:

• Replaces damaged or missing rear oven insulation that can allow heat loss.
• Helps reduce heat transfer to surrounding cabinetry and components.
• Can improve temperature stability and reduce uneven cooking when insulation is compromised.
• Helps limit hot spots and reduce abnormal smells from overheated cabinet areas.

• One oven back insulation panel (1 piece).

• Disconnect power at the breaker and allow the appliance to cool completely before service.
• Access typically requires removal of the oven's rear access panel or slide-in range rear cover—keep fasteners in a safe place.
• Wear gloves and eye protection; handle insulation carefully to avoid tearing or compressing the material.
• Reinstall panels and fasteners securely; test oven heating after reassembly.

This oven back insulation panel fits behind the oven cavity to help contain heat and protect surrounding components. It restores proper thermal shielding so your oven can heat more efficiently and reduces heat transfer to the cabinet. What it does:

• Replaces damaged or missing rear oven insulation to help maintain internal oven temperature and improve cooking consistency.
• Protects wiring, electronics, and exterior cabinet parts from excess heat.
• Can reduce hot spots or higher-than-normal exterior temperatures around the oven.
• Eliminate burning smells caused by insulation deterioration or exposed hot surfaces.

• Disconnect power to the appliance before starting and allow the oven to cool completely.
• Access usually requires removal of the oven back panel or slide-in range rear cover; follow OEM service instructions.
• Handle insulation gently and wear gloves and a dust mask if material is dusty or deteriorated.
• Do not block ventilation openings when reinstalling; ensure panel is seated as OEM intended.

This oven light gasket fits between the glass lens and the oven liner. It restores a proper seal around the light opening to help keep grease and moisture out of the light cavity and hold the lens securely in place. What it does:

• Seals the joint between the oven light lens and the cavity wall
• Helps prevent grease and moisture from entering the light assembly
• Keeps the lens snug to reduce looseness or rattling
• Replace if the gasket is cracked, flattened, brittle, missing, or if moisture/grease is visible around the lens

• One oven light lens gasket

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/retainer as your model requires (unscrew lens or release clips)
• Note gasket orientation and clean the mating surfaces
• Seat the new gasket evenly and reinstall the lens; do not overtighten the glass

This automatic oven door latch secures the oven door during self-clean cycles and whenever the door must stay locked for safe operation. It replaces a worn or broken latch to restore proper door locking and oven safety. What it does:

• Engages and holds the oven door closed during self-clean and high-temperature cycles
• Prevents the door from opening unexpectedly while the oven is locked
• Helps the oven complete timed cycles that require a secured door
• Common symptom: oven shows locked/door error or will not start self-clean

• One automatic oven door latch assembly

• Replace with the oven power turned off and the appliance unplugged or breaker switched off
• Typically mounts to the oven door frame; handle and trim removal may be required
• Verify part orientation and latch engagement before reassembling door trim

This red front trim is a color-matched cosmetic replacement that restores the look of the appliance's control/door front while protecting the underlying edge from chips and scratches. Ideal for visible trim that's faded, cracked, or missing. What it does:

• Replaces damaged or missing front trim to improve appearance
• Covers and protects the exposed front edge of the control/door area
• Hides chips, scratches and worn paint for a cleaner finish
• Helps maintain proper fit and alignment of adjacent trim pieces

• Disconnect power to the appliance before starting any work
• Removal may require lifting or partially removing the control panel or door; keep fasteners organized
• Trim typically snaps or screws into place — avoid forcing to prevent breakage

A single #8-18, 1/2-inch screw used to secure interior and exterior appliance panels and components. Replaces a worn or missing fastener to restore secure mounting and reduce rattles or loose parts. What it does:

• Fastens panels, trim, brackets, and small components where a #8-18, 1/2" screw is required
• Replaces missing or stripped screws that cause loose panels or vibration noise
• Provides a proper threaded connection for reliable mechanical support
• Matches common OEM panel and trim fastening points

• Unplug the appliance or shut off power before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-tightening, which can strip threads or crack panels
• If thread engagement is damaged, replace the mating fastener or insert as needed
