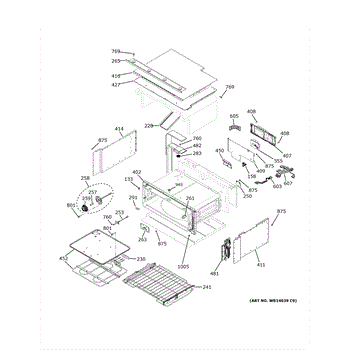

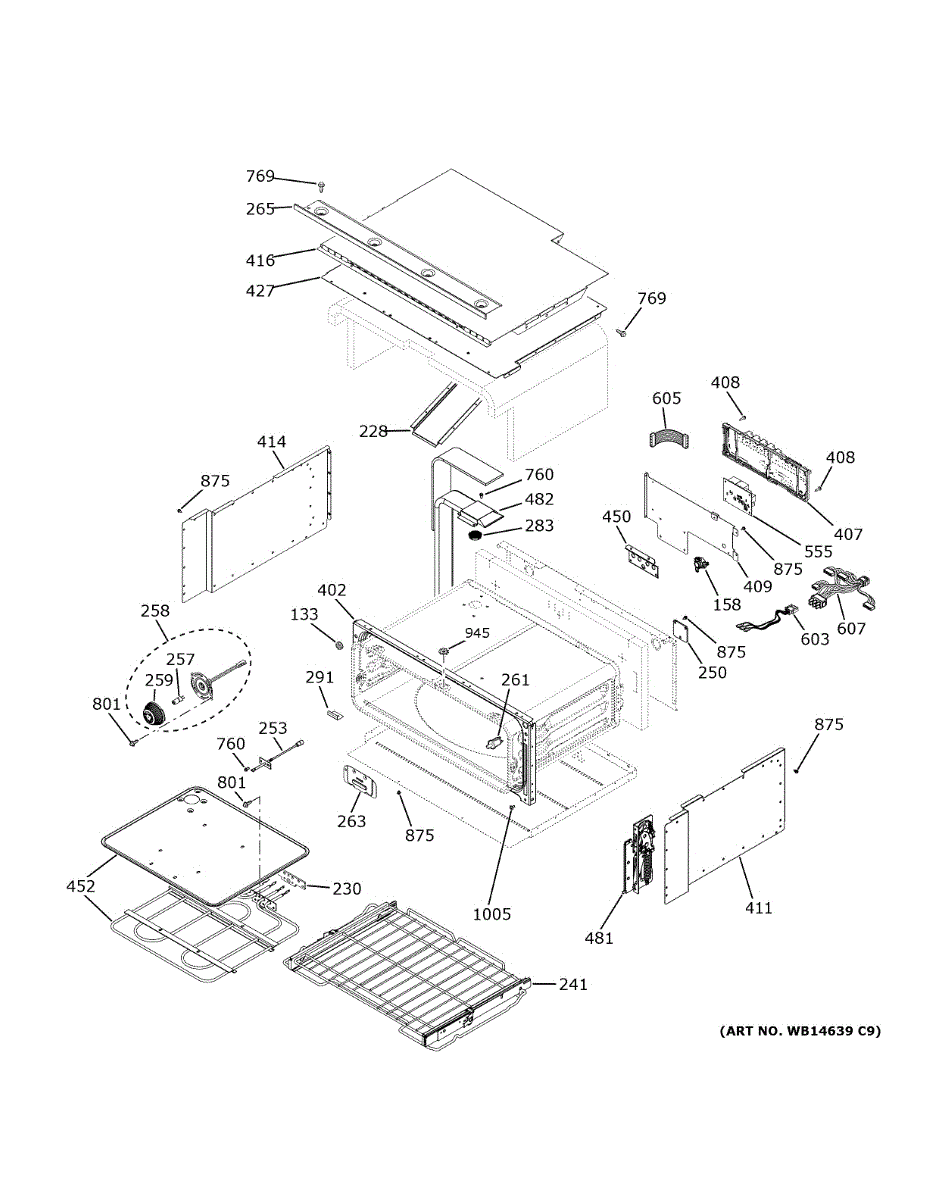

Parts for Ge PTS9200SN2SS: Upper Oven Parts

This oven rack slide assembly replaces a worn or damaged slide to restore smooth, reliable rack movement and proper rack support. It helps racks glide in and out without binding or dropping, improving oven usability and safety. What it does

• Replaces a damaged or bent oven rack slide so racks move smoothly and stay supported.
• Helps fix symptoms like racks that bind, stick, fall, or do not stay level.
• Restores proper alignment for safe loading and unloading of bakeware.
• Works as the direct-fit slide assembly used on compatible GE ovens.

• One rack oven slide assembly.

• Disconnect power and allow the oven to fully cool before beginning any service.
• Remove oven racks and any trim needed to access the existing slide; retain mounting screws if they are reused.
• Align the new slide, secure with the original hardware or included fasteners, and confirm smooth operation before returning racks to service.

The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

This halogen lamp with a G9 base restores bright, dependable interior lighting in your appliance. Replace a burned-out or damaged bulb so you can clearly see food and monitor cooking progress without opening the door. What it does:

• Provides bright illumination inside the appliance cavity when the light is switched on or the door is opened
• Restores visibility after the original bulb fails
• Common symptoms: no light, dim or flickering light, intermittent operation, or a visibly damaged capsule
• Direct-fit G9 bi-pin base installs into the existing socket

• 1 halogen lamp (G9 base)

• Disconnect power and allow the appliance to cool completely before service
• Remove the lens/cover as directed in your model's manual
• Handle the new halogen bulb with clean gloves or a tissue—oils on skin can shorten bulb life
• Align the G9 pins and press straight into the socket; replace the cover and restore power

This SPDT high-amp switch controls high-current circuits by switching one input between two outputs, restoring proper electrical control in affected appliance functions. Built for high-load switching where reliable on/off selection is required. What it does:

• Directs high-current power from a single input to one of two outputs (single-pole, double-throw action)
• Replaces worn or failed selector/limit-style switches that cause intermittent or no power to a circuit
• Commonly used where a high-amp, durable switching contact is required to complete a function
• Helps stop symptoms like intermittent operation, failure to switch between states, or no power to the controlled circuit

• One SPDT high-amp switch (WB24T10160)

• Disconnect power to the appliance before inspecting or replacing the switch
• Verify wiring locations and take a photo before removal for correct reconnection
• Use proper tools and avoid touching energized contacts;

This smoke eliminator is a charcoal-based filter designed for recirculating range and microwave venting. It helps reduce cooking odors and airborne grease particles when the appliance is used in non-vented (recirculating) mode. What it does:

• Adsorbs and reduces cooking odors and smoke in recirculating vent systems
• Helps capture particles that pass through the venting fan to keep kitchen air fresher
• Commonly replaced when strong cooking smells persist or airflow seems less effective
• Fits into the appliance's recirculating filter slot to restore odor control

• One (1) smoke eliminator charcoal filter

• Turn power to the appliance off before accessing the vent/filter area
• Remove the vent or grille per your appliance manual, replace the old filter with the new one, and reassemble
• No special tools usually required; refer to your model's instructions for exact access steps
• Replace periodically or when odor reduction becomes noticeably worse

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

This broil shield assembly protects the oven cavity and components from direct broiler heat, helping keep the oven interior functioning safely and reducing the chance of heat damage. It fits behind the broil element and routes heat away from surrounding parts. What it does:

• Shields the oven back wall and wiring from intense broiler heat
• Helps prevent heat-related discoloration, warping, and premature part wear
• Can reduce smoke caused by direct drips hitting the broil element
• Restores proper broiler airflow and shielding after damage or corrosion

• High-level replacement — remove power (unplug or turn off breaker) before servicing
• Use basic hand tools; avoid contact with sharp sheet-metal edges
• Inspect surrounding insulation and fasteners; replace any damaged clips or hardware

This relay daughter board is the small control board that mounts to or plugs into the main control. It restores reliable switching of power to high-demand components so cooking functions operate as intended. What it does:

• Works with the main control to energize onboard relays and switch line voltage to high-load components
• Routes power to elements, fans, motors, or other loads as designed by the appliance
• Common failure symptoms include no heat, certain functions not working, intermittent operation, or visible burn marks/heat damage on the board
• Presents relay clicking without the related component activating

• One relay daughter board

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD precautions; handle the PCB by its edges and avoid flexing the board
• Photograph and label wiring; move connectors one at a time to the new board
• Ensure the board is properly seated/secured on standoffs and all connectors are fully engaged before restoring power
