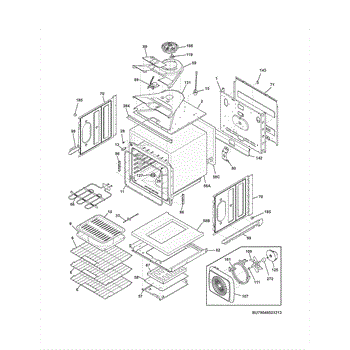

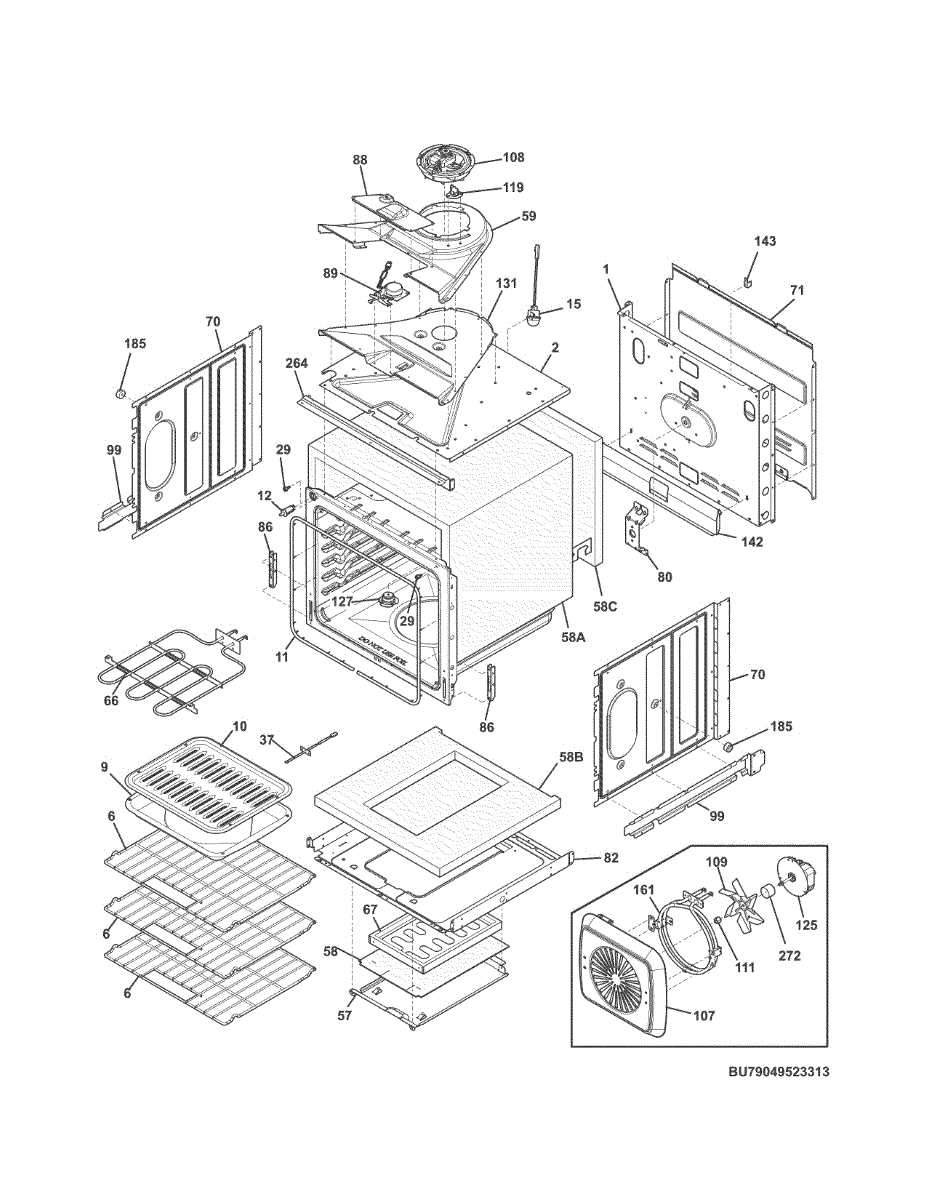

Parts for Kenmore 790.49529313 (79049529313, 790 49529313): Upper Oven Parts

This oven rack slides into wall oven side rails for holding cookware. Replace worn, bent, or missing racks to restore full oven capacity and functionality.

Broiler pan for electric and gas ranges. Installs in oven cavity for broiling. Replace if cracked, warped, rusted, or heavily stained beyond cleaning.

This broiler insert is the oven pan insert that sits under the broiler burner to catch drips and help direct heat for even browning. It restores a stable cooking surface and keeps the broiler area cleaner. What it does:

• Holds food and catches grease and drips during broiling to prevent mess and flare-ups
• Directs heat from the broiler for consistent browning and searing
• Replaces damaged, warped, or corroded inserts that cause uneven cooking
• Helps prevent food from falling into the burner area

• One broiler insert

• Disconnect power to the appliance and allow the oven to cool completely before servicing
• Remove oven racks and slide the old insert out; position the new insert so it seats securely in the broiler cavity
• Wear heat-resistant gloves when testing the broiler after installation and inspect for proper fit before use
• Do not modify the part; use only as designed for the oven broiler assembly

Flexible door seal creates an airtight barrier to maintain proper oven temperature and energy efficiency. Replace if worn, cracked, or loose. Verify fit.

Oven not responding to buttons or features won't activate? This control switch restores reliable operation by opening and closing electrical circuits.

The Range Lamp Assembly is an OEM part for Frigidaire stoves and ranges. It consists of the halogen light bulb, lens cover, and wiring harness necessary to illuminate the oven cavity. This lamp assembly provides light to the cooking and baking space, making it easier to view food and monitor cooking progress.

Symptoms of a bad range lamp assembly include:

• The oven light not turning on at all
• Dim, flickering, or intermittent light
• Burned out or blown light bulb
• Cracks or damage to the lens cover

Causes of failure can be a burned out light bulb, broken wiring, or damage from impact or heat over time.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

Front console assembly that houses the user interface for your wall oven. Replace when the original panel is cracked, faded, worn, or damaged. 150 chars

Insulation for electric wall ovens and microwave combos. Replaces damaged, missing, or deteriorated thermal insulation. Essential for heat retention.

This replacement element restores dependable heat in your cooking appliance. When an element fails, a burner or the oven can stop heating or heat unevenly; replacing it helps bring back consistent, reliable temperature performance. What it does:

• Converts electrical energy into heat for cooking
• Replaces an open or shorted element that no longer heats or heats intermittently
• Can help with symptoms like no heat, slow heating, uneven temperatures, or visible breaks/blistering on the element
• Addresses nuisance tripping or sparking caused by a damaged element

• 1 element

• Disconnect power at the breaker and allow the appliance to cool completely
• Photograph wire routing; move connectors one at a time to the new element and ensure tight, secure connections
• Handle the element carefully to avoid bending or cracking insulators
• Reassemble panels, restore power, and test for proper heating

This replacement radiant surface element restores consistent burner heating under the glass cooktop on compatible electric ranges. It helps your cooking zone reach and maintain temperature so pots and pans heat evenly.

• Converts electrical energy into radiant heat beneath the glass surface
• Maintains set temperature by cycling on and off during operation
• Common symptoms: burner won't heat, heats weakly or unevenly, or only part of the ring glows
• May show visible scorching or breaks when inspected after access

• Disconnect power at the breaker before servicing and allow the cooktop to cool completely
• Lift/prop the glass top or remove the burner pan as your model requires to access the element
• Label and transfer wires one at a time; ensure all terminals are firmly seated
• Handle the element carefully to avoid bending or stressing the coil and supports

Heat shield for ranges and wall ovens. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to prevent overheating.

Replace your wall oven's internal shield if cracked, broken, or missing. This protective cover shields electrical components from heat and debris.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Fix loud rattling or grinding noise from your oven fan. This convection fan motor restores quiet operation and even heat distribution. DIY repair.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Oven won't heat after self-cleaning? This high-limit thermostat cuts power when temperatures get too high. Moderately easy DIY repair fix.

Oven not heating evenly or convection fan not running? This wall oven motor powers the convection fan for consistent baking and roasting temperatures.

This Tube Assembly routes water inside the refrigerator to the dispenser and ice-maker, restoring proper water flow and preventing leaks when the original line is damaged. Reliable replacement for delivery and fill connections. What it does:

• Transports water from the inlet to the ice maker/dispenser assembly
• Replaces cracked, kinked, or leaking tubing that causes puddles or low water flow
• Helps restore normal ice production and dispenser operation when the tube is the fault
• Matches OEM routing and connector types for correct fit and seal

• One tube assembly as shown

• Disconnect power and shut off the water supply before starting
• Remove ice maker or access panel as needed to reach routing; follow OEM service instructions
• Inspect fittings and replace any damaged clamps or seals; avoid kinking the new tube
• After installation, turn on water, check for leaks, and run dispenser/ice cycles to confirm proper flow

Reinforces and supports oven door glass panels. Replace if original stiffener is bent, cracked, or missing to properly secure glass in the door frame.

Positions and supports range components to maintain proper alignment. Replace if cracked, broken, or missing to prevent rubbing and ensure panels fit correctly.

Replacement water-line tube that routes water inside the refrigerator to the ice maker or dispenser, helping restore proper water flow and reduce leaks. Designed to match factory routing so the line fits and seals correctly at the connections. What it does:

• Carries water from the cabinet valve to the ice maker or dispenser.
• Restores normal dispenser flow and ice production when the tube is cracked, pinched, or clogged.
• Helps stop visible leaks or pooling caused by damaged or misrouted tubing.
• Matches factory bends for correct routing and clearance behind panels.

• Disconnect power and shut off the water supply before starting any work.
• Remove shelves or panels as needed for access; watch for sharp edges.
• Check and replace any worn clamps or fittings; tighten connections and test for leaks with water on before reassembling.

Mounting screw for electric and gas ranges. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

Wiring harness for wall ovens. Connects electrical components inside the oven cavity. Replace if wires are frayed, burned, or connections are loose.

Secures internal panels or components to the range frame. Replace this mounting bracket if bent, broken, or missing to restore stable support and alignment.

Replacement screw secures panels, trim, and internal components in your appliance. Needed when original fastener is missing, stripped, or damaged.

Illuminates your oven interior for visibility while cooking and cleaning. Replace when burned out to restore lighting. Verify fit with your model number.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
