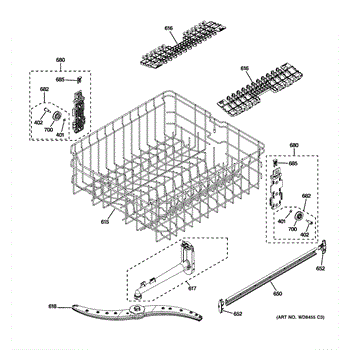

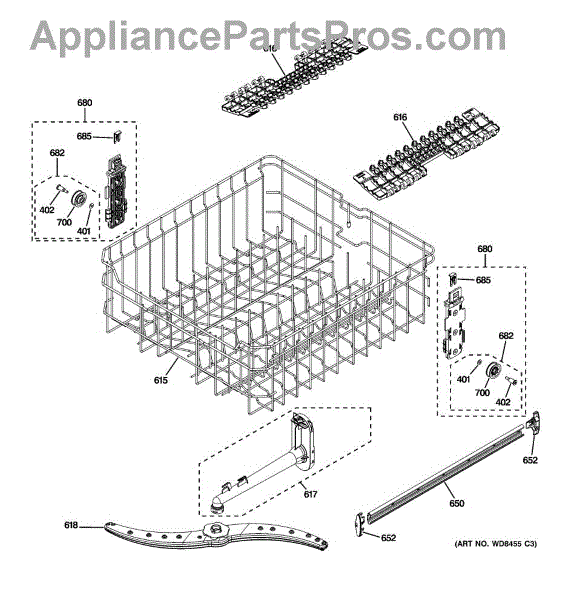

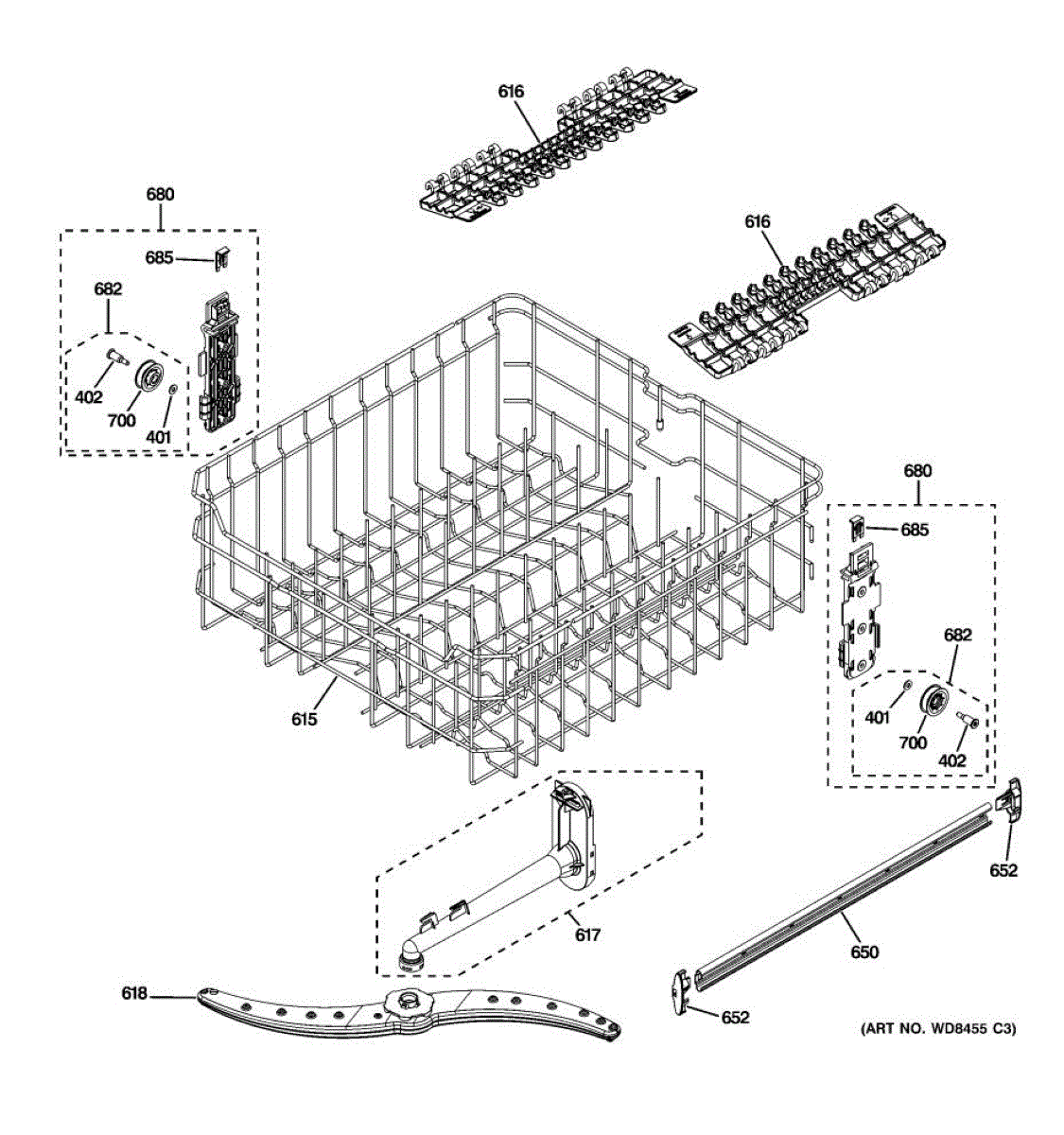

Parts for Ge GDF540HSD0SS: 03 - Upper Rack Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Restore safe, organized loading on the top level. Replacing a damaged upper rack brings back smooth sliding, proper item placement, and dependable use without snagging or collapsed tines.

What it does

• Holds cups, glasses, and bowls securely on the upper level
• Helps prevent items from tipping or falling through the rack
• Restores smooth slide-in/slide-out when rails and rollers are intact
• Replaces racks with broken, rusty, or missing tines

What’s included
One upper rack assembly.

Install notes

• Open the door, pull the rack to the stops, then release/remove end caps to slide the rack out
• Seat the new rack on the rails and reinstall end caps—do not force
• Transfer any clip-on accessories from the old rack if applicable
• Run a quick rinse cycle to confirm smooth travel

The Middle Conduit Assembly is an OEM part for GE dishwashers, designed to facilitate the proper routing and distribution of water during the wash cycle. This part ensures that water is evenly distributed to the middle spray arm, providing effective and efficient cleaning of dishes placed on the middle rack.

Causes of a bad middle conduit assembly can include clogs from food debris, mineral buildup from hard water, and physical damage due to regular use or improper loading of dishes. These issues can impede water flow, reducing the dishwasher’s cleaning efficiency.

Symptoms of a bad Middle Conduit Assembly include:

• Poor cleaning performance, especially with dishes on the middle rack
• Water not reaching the middle spray arm
• Unusual noise during the wash cycle, indicating a disruption in water flow

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rail End Cap is an OEM part for GE dishwashers. This part is designed to fit on the end of the dishwasher rack rails, preventing the racks from sliding off the rails when they are pulled out for loading or unloading dishes. The end cap plays a role in the smooth operation of the dishwasher rack system, ensuring the stability and security of the racks as they move in and out of the dishwasher.

Causes of damage to the rail end cap often include normal wear and tear, accidental breakage during rack movement, or deterioration over time due to exposure to high temperatures and moisture typical in dishwashers.

Symptoms of a bad Rail End Cap include:

• Dishwasher racks slipping off the rails
• Difficulty in pulling out or pushing in the racks smoothly
• Visible damage or wear on the end cap

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
