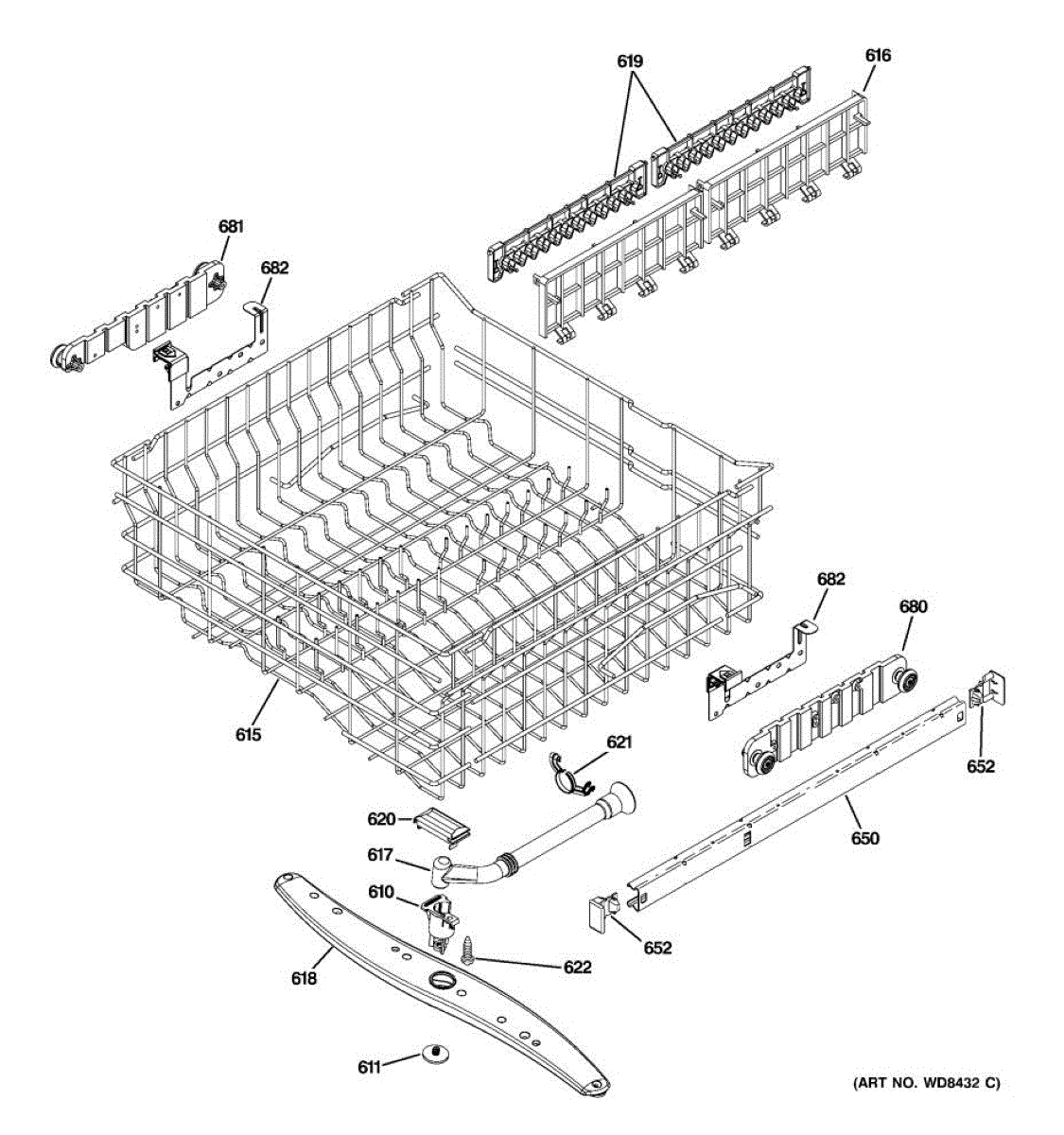

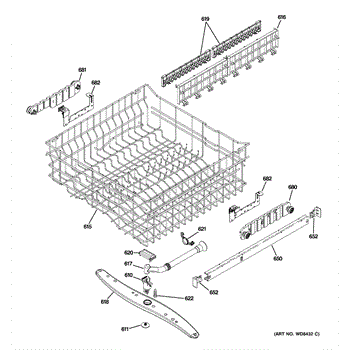

Parts for Ge GLD7708V00BB: 03 - Upper Rack Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dishes not getting clean in the upper rack? A worn middle spray arm hub prevents proper rotation and water distribution. DIY fix in 15 minutes.

Specs: B-16 HXW 1/2 SS

Multi-purpose shelf for dishwasher interior. Replaces broken, cracked, or missing shelves. Adds versatile storage space for small items during wash cycles.

Routes water from the pump to the middle spray arm in your dishwasher. Replace if cracked, clogged, or leaking to restore proper water delivery to the rack.

Secures wine glasses and goblets in your dishwasher rack. Replace broken, cracked, or missing stemware clips to prevent tipping during wash cycles.

This middle spray arm bracket secures the mid-level spray arm to the upper rack, keeping it centered and aligned so it spins freely and delivers even spray coverage for reliable cleaning performance.

• Supports and stabilizes the middle spray arm beneath the upper rack
• Maintains proper clearance for smooth rotation and spray pattern
• Replace if cracked, warped, or worn
• Common symptoms: middle arm falls off or won't spin, wobbles, scraping noises, or poor cleaning on the upper rack

• Disconnect power to the dishwasher before servicing
• Slide out the upper rack; release tabs or fasteners to remove the old bracket
• Transfer the spray arm to the new bracket and snap or secure it in place
• Spin the arm by hand to ensure free rotation before running a cycle

Secures the middle water feed tube to the upper rack in your dishwasher. Replace if cracked, broken, or missing to keep the conduit properly aligned.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Snaps onto the dishwasher rack rail to prevent the rack from sliding off the track. Replace if cracked, broken, or missing to restore secure movement.

This lever assembly allows the upper dish rack to be adjusted for height, located on the right side of the dishwasher rack. Replace when the rack won't adjust properly, feels loose, or the lever mechanism is broken or missing.

Adjusts the height of the dishwasher's left dish rack and is located on the side of the rack assembly. Replace when the rack won't stay in position, is difficult to adjust, or the lever mechanism is broken.

This hex-head screw secures dishwasher panels, brackets, and internal hardware so parts stay tight and rattle-free. Replace missing or stripped fasteners to restore a secure fit and reliable operation.

• Fastens panels, brackets, and other dishwasher components to the tub or frame
• Replaces a missing, stripped, or corroded screw that no longer holds securely
• Helps eliminate vibration and rattling caused by loose hardware
• Maintains proper alignment and secure mounting of parts during operation

• Disconnect power and shut off water supply before servicing
• Keep track of fastener locations and orientation for correct reassembly
• Start threads by hand; use an appropriate nut driver or socket to tighten
• Tighten snugly—do not overtighten, especially when threading into plastic
