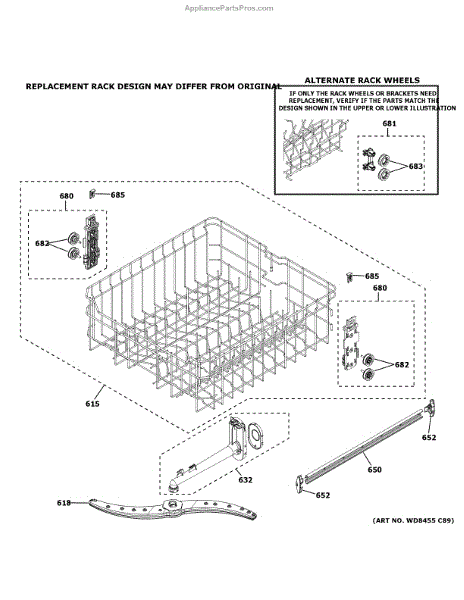

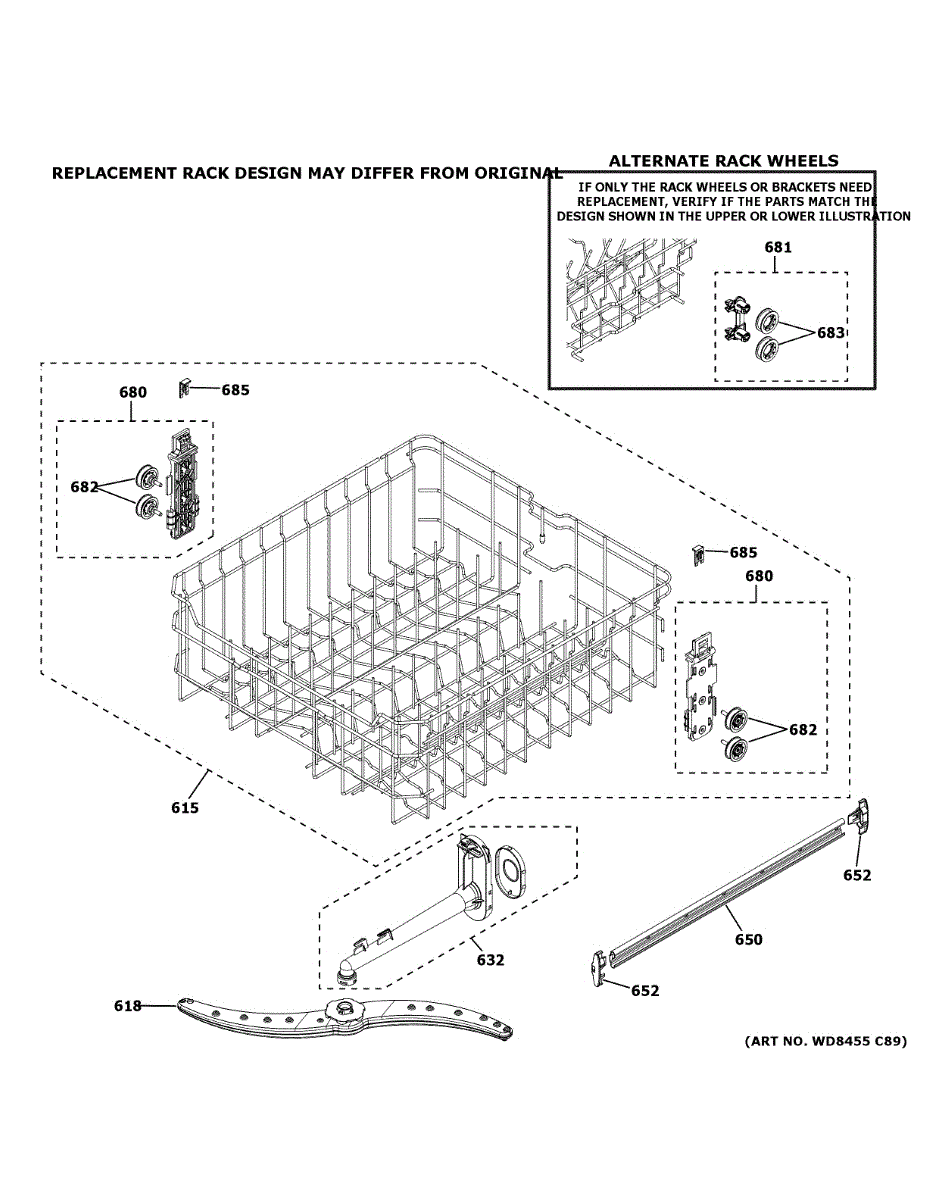

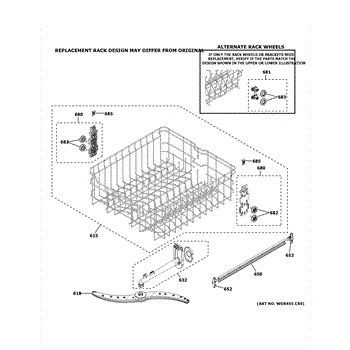

Parts for Ge GDF510PGR0BB: Upper Rack Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Restore safe, organized loading on the top level. Replacing a damaged upper rack brings back smooth sliding, proper item placement, and dependable use without snagging or collapsed tines.

What it does

• Holds cups, glasses, and bowls securely on the upper level
• Helps prevent items from tipping or falling through the rack
• Restores smooth slide-in/slide-out when rails and rollers are intact
• Replaces racks with broken, rusty, or missing tines

What’s included
One upper rack assembly.

Install notes

• Open the door, pull the rack to the stops, then release/remove end caps to slide the rack out
• Seat the new rack on the rails and reinstall end caps—do not force
• Transfer any clip-on accessories from the old rack if applicable
• Run a quick rinse cycle to confirm smooth travel

Replace your dishwasher's middle spray arm if it's cracked, broken, or worn. Snaps into place in the mid-rack section. Tool-free installation.

Replacement middle water conduit assembly for dishwashers. Routes water to the middle spray arm. Replace if cracked, broken, or leaking. 11 inches long.

Dishwasher rack slide enables smooth upper rack movement. Replace when rack sticks, binds, or won't glide properly. Confirm fit with your model number.

Replacement end cap for dishwasher rack rails. Prevents upper or lower rack from sliding off when pulled out. Needed when cracked, broken, or missing.

Rack roller assembly with wheels for dishwasher upper or lower racks. Installs at rack corners to guide smooth sliding. Replace when cracked or wheels jam.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Upper rack roller and stud assembly for dishwashers. Mounts inside the upper dish rack to guide smooth rolling movement. Replace if cracked or worn.

Replacement roller for dishwasher racks. Installs on the rack guide rails to allow smooth gliding in and out. Needed when rollers are cracked or worn.

Replacement roller for dishwasher racks. Installs on the rack guide rails to allow smooth gliding in and out. Needed when rollers are cracked or worn.

Secures rack-mounted components to your dishwasher rack. Replace this clip bracket if cracked, broken, or missing to keep accessories firmly attached.
