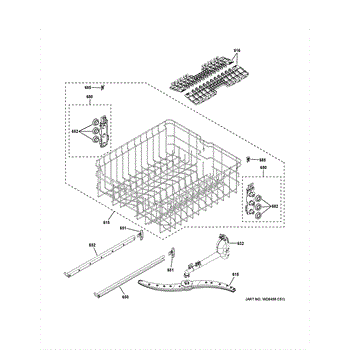

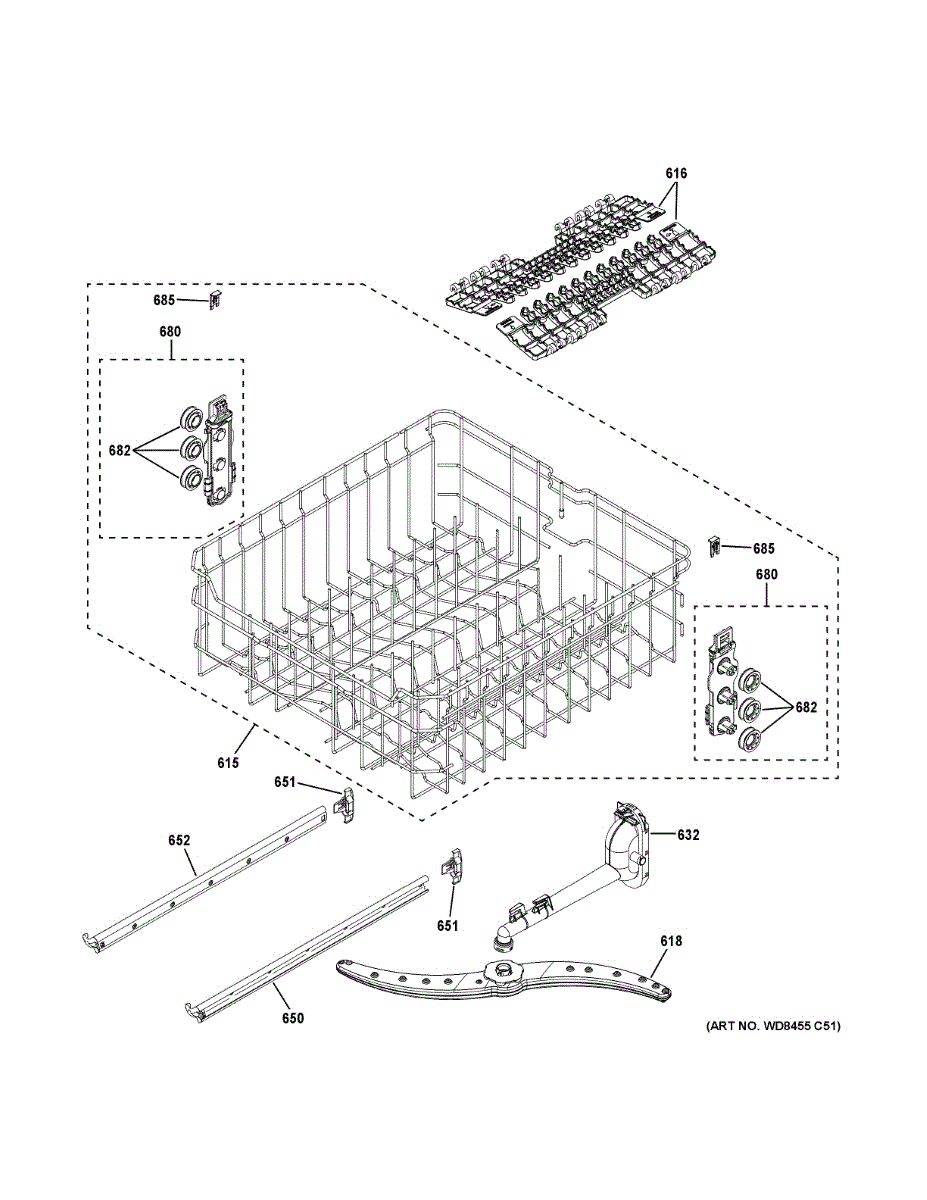

Parts for Ge GDF530PGM4BB: Upper Rack Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Restore safe, organized loading on the top level. Replacing a damaged upper rack brings back smooth sliding, proper item placement, and dependable use without snagging or collapsed tines.

What it does

• Holds cups, glasses, and bowls securely on the upper level
• Helps prevent items from tipping or falling through the rack
• Restores smooth slide-in/slide-out when rails and rollers are intact
• Replaces racks with broken, rusty, or missing tines

What’s included
One upper rack assembly.

Install notes

• Open the door, pull the rack to the stops, then release/remove end caps to slide the rack out
• Seat the new rack on the rails and reinstall end caps—do not force
• Transfer any clip-on accessories from the old rack if applicable
• Run a quick rinse cycle to confirm smooth travel

This shelf cup is a replacement door bin retainer that secures a refrigerator door shelf in place, helping keep bottles and containers stable and preventing the shelf from shifting or falling during normal use. What it does:

• Supports and locks the front edge of a refrigerator door shelf or bin
• Prevents the shelf/bin from slipping forward when door is opened or items are removed
• Restores proper alignment and stable storage for bottles, jars, and small containers
• Compatible with common door shelf assemblies that use molded cup retainers

• Snap-in replacement; remove the old cup by prying gently and press new cup into place until fully seated
• Inspect surrounding mounting points and shelf for damage before installation
• Use non-marring tools and avoid excessive force to prevent cracking nearby trim
• Disconnect power only to remove interior shelves or to access electrical components

The Middle Spray Arm Assembly is an OEM component for GE dishwashers. It is responsible for dispersing water across dishes located in the mid-section of the dishwasher rack.

The spray arm plays an essential role in cleaning by spraying water directly onto dishes to wash away soap scum and food particles. It works with the lower spray arm and rinse arms to achieve maximum coverage and cleaning power throughout the wash cycle.

Causes of a bad middle spray arm can include buildup of minerals or debris that clogs the spray holes or damage to the arm itself such as bending or breakage.

Symptoms of a bad middle spray arm assembly include:

• Spotty or incomplete cleaning of dishes in the mid-rack section
• Clogging or slowed water dispersal from the spray arm
• Leaks or drips from the spray arm connection point

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore model dishwashers.

The Middle Conduit Assembly is an OEM part for GE dishwashers, designed to facilitate the proper routing and distribution of water during the wash cycle. This part ensures that water is evenly distributed to the middle spray arm, providing effective and efficient cleaning of dishes placed on the middle rack.

Causes of a bad middle conduit assembly can include clogs from food debris, mineral buildup from hard water, and physical damage due to regular use or improper loading of dishes. These issues can impede water flow, reducing the dishwasher’s cleaning efficiency.

Symptoms of a bad Middle Conduit Assembly include:

• Poor cleaning performance, especially with dishes on the middle rack
• Water not reaching the middle spray arm
• Unusual noise during the wash cycle, indicating a disruption in water flow

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-hand rack slide and end cap assembly guides and retains the dishwasher rack on its track. Replacing a worn assembly restores smooth rack travel and helps prevent the rack from over-extending or dropping on the right side.

• Provides the right-side slide track for the dishrack and includes the built-in end-cap stop
• Maintains rack alignment for smooth in-and-out movement
• Replace if the slide is bent or the stop/end cap is cracked or missing
• Typical symptoms include the rack falling off the track, over-extending, binding, or sitting unevenly on the right side

• Disconnect power at the breaker and turn off water if moving the appliance for access
• Pull the rack out; support it before removing the existing slide
• Remove any mounting screws or release locking tabs to detach the old slide; transfer hardware if required
• Position and secure the new right-hand slide; ensure the end cap locks, then test rack travel

The Rail End Cap is an OEM part for GE dishwashers. This part is designed to fit on the end of the dishwasher rack rails, preventing the racks from sliding off the rails when they are pulled out for loading or unloading dishes. The end cap plays a role in the smooth operation of the dishwasher rack system, ensuring the stability and security of the racks as they move in and out of the dishwasher.

Causes of damage to the rail end cap often include normal wear and tear, accidental breakage during rack movement, or deterioration over time due to exposure to high temperatures and moisture typical in dishwashers.

Symptoms of a bad Rail End Cap include:

• Dishwasher racks slipping off the rails
• Difficulty in pulling out or pushing in the racks smoothly
• Visible damage or wear on the end cap

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This left-hand rack slide end cap restores the stop at the end of your dishwasher's rack rail. It keeps the rack secured on the slide and ensures controlled travel when the original cap is broken or missing.

• Snaps onto the left rack slide/rail to act as a retention stop
• Helps keep the rack aligned and prevents it from pulling completely out
• Typical symptoms: rack slides out too far, falls off the rail, or the end cap is broken/missing
• Maintains proper rack retention to reduce spills and track damage

• Disconnect power and shut off water before service
• Pull the rack forward to access the end of the left slide rail (left side when facing the dishwasher)
• Release the locking tab to remove the old cap; align and push the new cap onto the rail until it clicks
• Slide the rack in and out to confirm smooth travel and a positive stop

Rack bracket with three wheels for the dishwasher rack. This assembly mounts to the rack and rides in the rail to keep the rack level and rolling smoothly, replacing cracked wheels or a damaged bracket to restore easy operation.

• Supports the rack and rolls along the rail on three wheels
• Restores smooth in-and-out rack movement
• Helps keep the rack aligned and prevents derailing or dropping
• Typical failure signs: cracked/broken wheels, damaged bracket, rack binding

• Disconnect power at the breaker; shut off water supply for safety
• Pull the rack out and remove any rail end caps/stops to access the bracket
• Release the old bracket and install the new one in the same orientation
• Reinstall stops, reseat the rack, and verify smooth travel

The Rack Roller is an OEM component compatible with GE dishwashers. Located on the rack guide rails inside the washer tub, it facilitates smooth gliding of rack shelving in and out for easy loading and unloading.

Causes of failure can include cracked/warped rollers from years of continual movement, accumulation of debris preventing free motion, or detachment of roller heads compromising installation.

Symptoms include:

• Difficulty fully extending or retracting racks
• Off-tracking of shelving from left to right rails
• Scratches or damage to dishware from improper rack functioning

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This clip bracket attaches to the dishwasher rack to secure a rack-mounted component or accessory. Replace a cracked or missing bracket to keep parts firmly in place so the rack loads easily and performs as designed.

• Attaches to the rack to hold the mating part securely in place
• Helps prevent shifting, rattling, or accessories falling off during cycles
• Restores proper fit when the original clip is broken, worn, or missing
• Typical signs: accessory won't stay attached, clip is visibly cracked or missing, loose components during operation

• Disconnect power at the breaker and turn off the water supply
• Pull out the rack to access the clip location
• Release the old clip's locking tabs and remove; align and snap the new clip firmly in place
• Verify a secure fit before reinstalling the rack and running a test cycle

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
