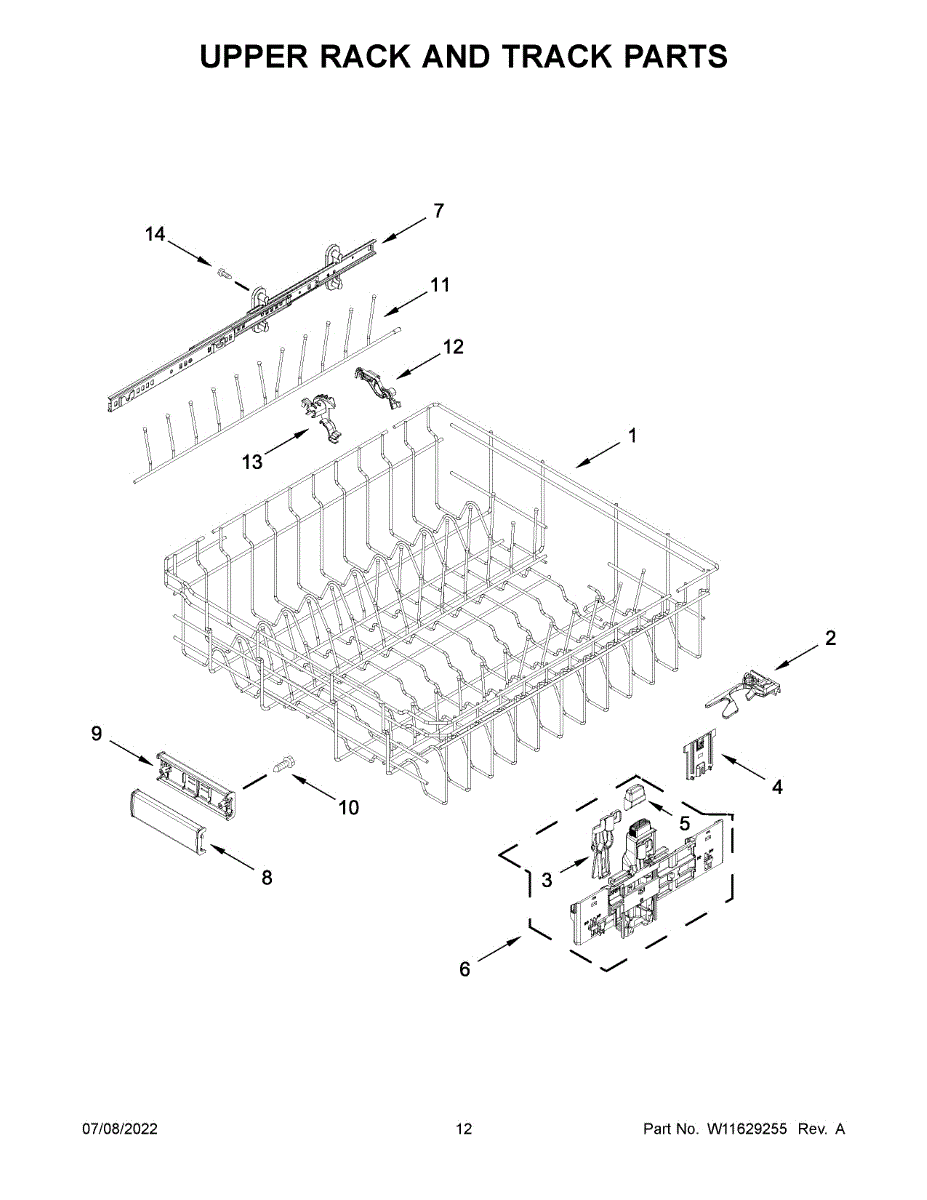

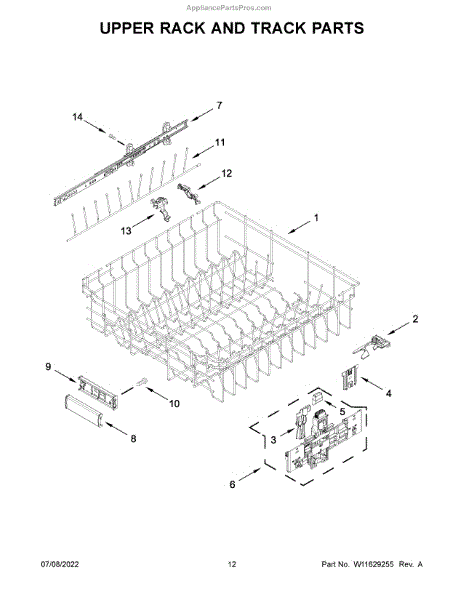

Parts for Kitchenaid KDTM804KBS1: Upper Rack And Track Parts

Parts for Kitchenaid KDTM804KBS1: Upper Rack And Track Parts

Location on Diagram
Part Description
Price & Availability
Best Seller
Product photo
4.9 (421)
By: Whirlpool
Part Number: W10549851

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

More
$9.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
1
By: Whirlpool
Part Number: W11836634
$254.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2
Product photo
By: Whirlpool
Part Number: W11545820

The Tine Clip is an OEM part specifically designed for Whirlpool brand dishwashers. This small but important piece secures individual tines to the upper dish rack for stability during washing.

Repeated use causes plastic clips to become brittle or dislodge over time from heavy loads. This jeopardizes proper rack assembly and performance.

Causes of a bad tine clip could be normal wear and tear, damaged pads from sharp dishes, or improper loading of heavily soiled cookware.

Symptoms of a failing tine clip include:

  • Loosened or detaching dishrack tines that shift positions
  • Gaps allowing collected food and particles to fall through
  • Reduced support for delicate or small dishes in affected areas

This OEM Whirlpool replacement restores the rack's fully functional design. Compatible with Maytag, KitchenAid, Jenn-Air, and other models, it improves washing coverage and optimizes usable space.


More
$24.68

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
3
By: Whirlpool
Part Number: W11180178

If your dishwasher spray arm wobbles or doesn't rotate properly, the positioner may be worn. This part centers and stabilizes the spray arm for proper water distribution.

More
$59.48

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4
Product photo
By: Whirlpool
Part Number: W11580020

Replacement clip that secures the adjuster arm assembly in your dishwasher. Needed when the original clip is broken, cracked, or missing.

More
$43.64

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
5
By: Whirlpool
Part Number: W11267699

Fix rattling or misaligned parts with this dishwasher mounting bracket. Secures internal components to reduce vibration and restore proper positioning.

More
$53.42

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6A
Product photo
By: Whirlpool
Part Number: W11268078

Replaces a broken or worn dishwasher rack adjuster that allows upper rack height adjustment. Installs on rack rails to restore smooth positioning.

More
$59.48

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6
By: Whirlpool
Part Number: W11690884

This is a left-side rack adjuster that allows you to raise or lower the upper dish rack in a dishwasher. It slides along a track mounted inside the tub wall to accommodate taller items on either the upper or lower rack. Replace this part if the upper rack tilts, won't stay in position, or no longer slides smoothly on one side.

More
$40.54

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7
By: Whirlpool
Part Number: W11666271
$61.65

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7A
By: Whirlpool
Part Number: W11778690

Replacement rack track for dishwashers. Installs along the side wall to guide the upper or lower rack. Needed when the original track is cracked or broken.

More
$50.57

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
Best Seller
Product photo
4.9 (421)
By: Whirlpool
Part Number: W10549851

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

More
$9.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
8
By: Whirlpool
Part Number: W11268682
$42.54

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
9
By: Whirlpool
Part Number: W11268681
$47.53

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
10
Best Seller
Product photo
4.6 (5)
By: Whirlpool
Part Number: WP9741232

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
11
5.0 (1)
By: Whirlpool
Part Number: W11806546
$43.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
12
Product photo
By: Whirlpool
Part Number: W11627535

Replaces a broken or missing dishwasher rack tine. Snaps into the lower or upper rack to restore adjustable dish support. Ideal for cracked tines.

More
$16.48

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
13
By: Whirlpool
Part Number: W11179755

Retainer clip secures wiring, tubing, or trim panels inside your dishwasher. Replace if cracked, broken, or missing to prevent loose components from shifting.

More
$14.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
14
By: Whirlpool
Part Number: W11847092
$7.60

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
Best Seller
Product photo
4.9 (421)
By: Whirlpool
Part Number: W10549851

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

More
$9.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
