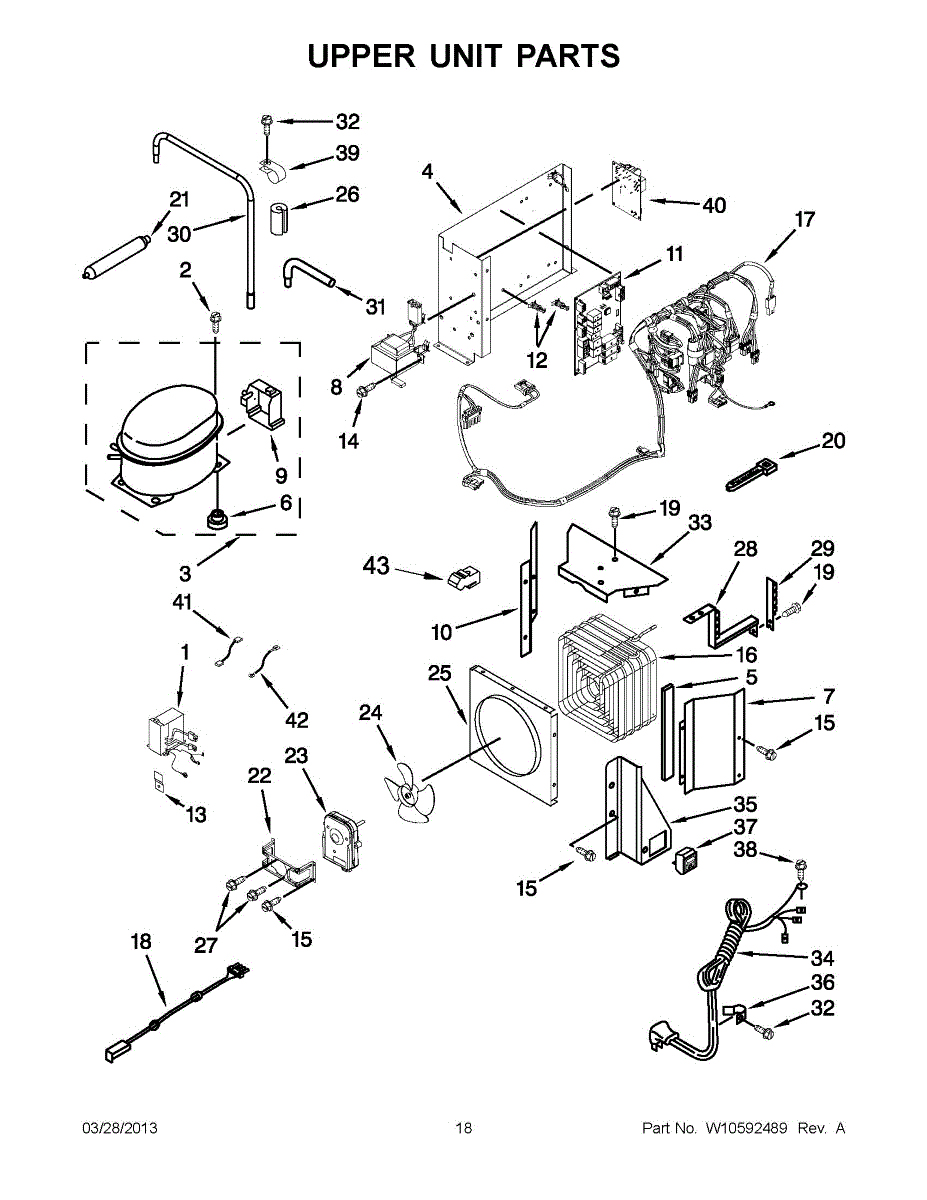

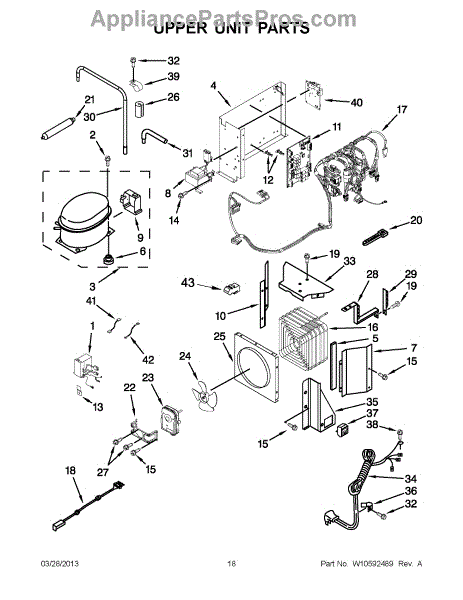

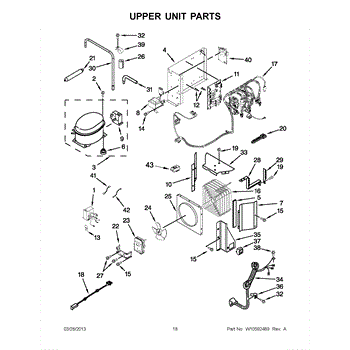

Parts for Kitchenaid KBRC36FTS07: 09 - Upper Unit Parts

If your refrigerator's compressor won't run or runs erratically, the inverter box assembly may have failed. This housing protects control electronics.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

If your refrigerator isn't cooling or runs constantly, the compressor may have failed. This critical component circulates refrigerant through the system.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Protects the terminal block on your refrigerator compressor by shielding electrical connections. Replace if cracked, broken, or missing for safety.

Fix unresponsive buttons, incorrect cycles, or error codes with this refrigerator electronic control board. Restores cycle control and display functions.

Plastic spacer that mounts between refrigerator door panels or hinges. Replace if cracked, broken, or missing to restore proper door alignment.

Mounting bracket that secures the inverter box inside your refrigerator. Replace if cracked, bent, or missing to properly support the inverter assembly.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

Hex head screw for trash compactor assembly. Replaces lost, stripped, or damaged screws during repairs. Essential hardware for securing components.

If your refrigerator runs constantly or doesn't cool properly, a clogged or damaged condenser coil may be the cause. This part restores heat dissipation.

8-32 x .312 inch mounting screw for washers. Replaces lost, stripped, or damaged screws that secure panels, brackets, and components inside the unit.

Secures wiring bundles inside your microwave. Replace this wire tie if it's cracked, broken, or missing to keep internal wires organized and secure.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Mounting bracket for refrigerator interior components. Replaces broken, cracked, or missing brackets that secure shelves or bins in place.

Refrigerator not cooling but freezer works? A failed condenser fan motor prevents heat from escaping. DIY repair takes 10-20 minutes with basic tools.

Fix clicking noise, poor cooling, or overheating compressor by replacing a cracked or warped condenser fan blade. Restores airflow across the coil.

Replace a faulty water dispenser orifice if water flow is restricted or dripping. This small precision part controls water flow rate in your refrigerator.

Seals openings where hoses or wires pass through cabinet walls. Replace if cracked, torn, or missing to prevent chafing and vibration noise. Verify fit.

Replacement mounting screw for securing panels, trim, and components. Needed when original screws are stripped, missing, or lost during repairs.

Replace the water supply tube in your refrigerator. This tube delivers water to the dispenser and ice maker. Order a new tube if yours is cracked or leaking.

Fix a leaking or slow-filling water dispenser or ice maker with this water fill tube. Replaces cracked or clogged tubes to restore proper water flow.

Secures the handle end cap to the center of your refrigerator door. Replace if missing, stripped, or lost during handle repairs. 8-18 x 1/2 inch size.

Replacement power cord for refrigerators. Installs at the rear panel to supply electricity. Order if your cord is crushed, damaged, or frayed.

Mounting bracket for refrigerator internal components. Replace if your original bracket is cracked, broken, bent, or missing to restore proper support.

Refrigerator won't turn on or stays running constantly? This power disconnect switch controls main power to your unit. Easy DIY replacement fix.

8-16 x 3/8 inch screw fastener for dryers. Secures baffles to drum and various internal components. Replace if missing, stripped, or damaged.

Fix a refrigerator that won't cool, loses power intermittently, or has an unresponsive control panel. This main electronic control board restores function.

Jumper wire for refrigerators. Connects electrical components inside the control system. Replace if wire is damaged, corroded, or missing.

Size: 1/2 inch.

Size: 5/8 inch.

Fix refrigerant leaks or low cooling with this 3/4 inch service valve. Essential for AC system pressure testing and refrigerant recharge procedures.

Fix refrigerant leaks or low cooling with this 3/16 inch service valve. Essential for AC recharging and system maintenance on multiple models.

Refrigerator not cooling properly? A faulty 1/4 inch service valve can prevent proper refrigerant flow. This valve connects refrigerant lines in your system.

Service valve for refrigerators, freezers, and ice makers. Used for refrigerant system service and maintenance. 5/16 inch fitting size for technicians.

Fix refrigerant leaks or cooling issues with this 3/8 inch service valve. Essential for refrigeration system repairs and maintenance on multiple models.
