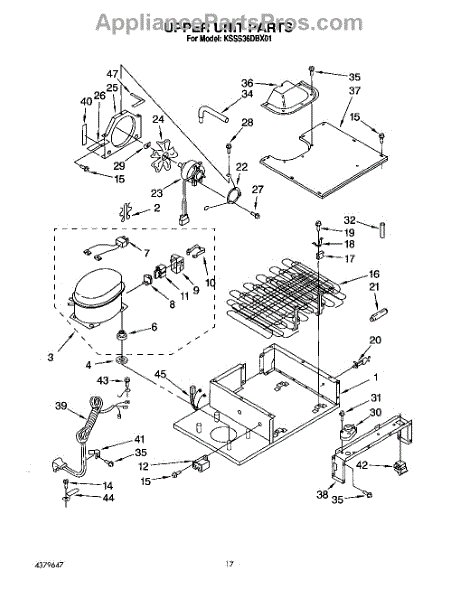

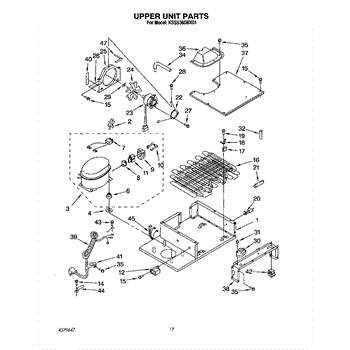

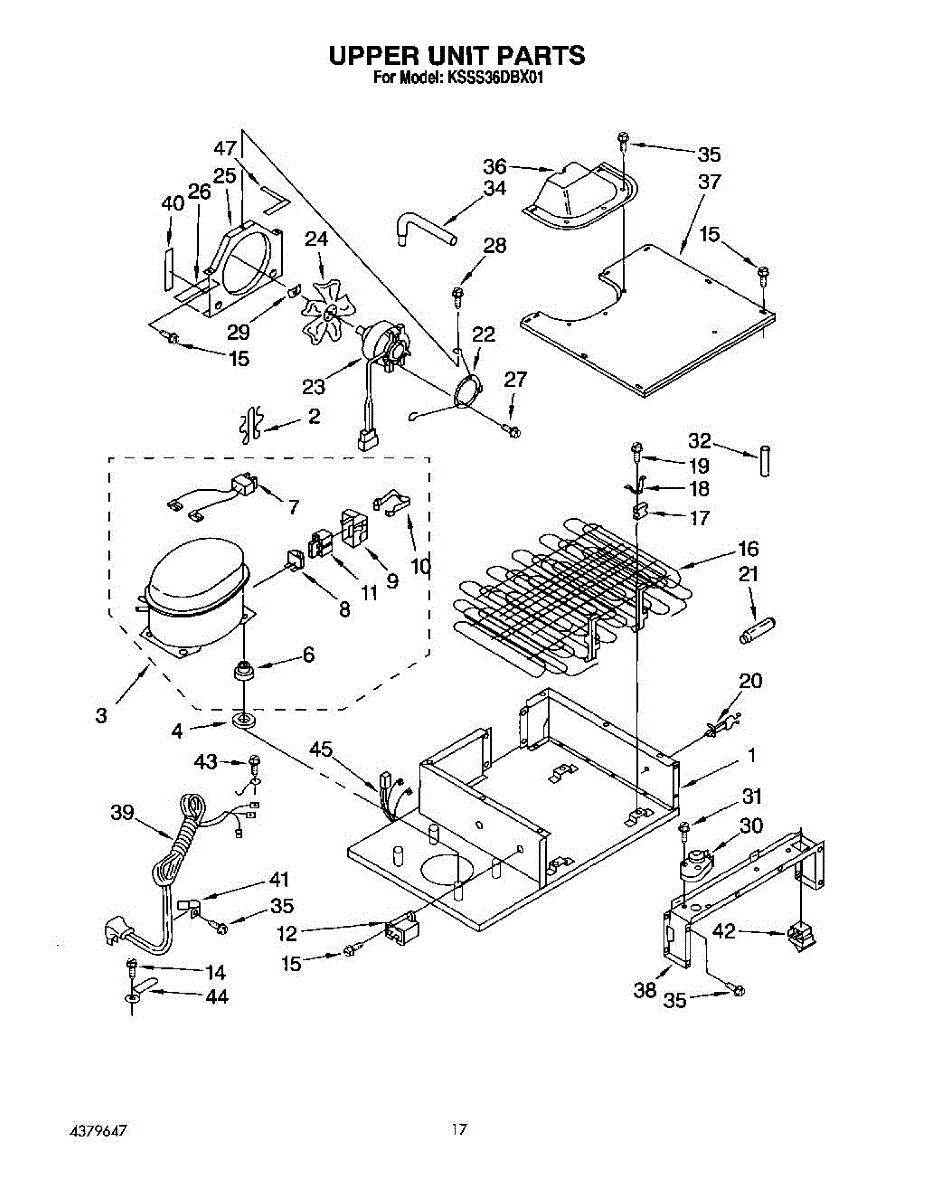

Parts for Kitchenaid KSSS36DBX01: 11 - Upper Unit Parts

This rubber grommet cushions and secures the compressor to the fridge frame, helping reduce vibration and noise while protecting mounting hardware. It's a direct-fit replacement for a single compressor mounting point. What it does:

• Absorbs compressor vibration to reduce operational noise and rattling
• Protects compressor studs and mounting bracket from metal-on-metal wear
• Helps keep the compressor properly positioned during operation
• Commonly replaced when cracked, flattened, or missing and causing vibration or noise

• One compressor-mount grommet

• Disconnect power to the appliance before beginning any repair
• Support the compressor or work with the unit tilted to relieve pressure on mounts
• Remove old grommet(s) and clean mounting surfaces before installing the new grommet
• If multiple mounts show wear, replace them as a set for balanced support

This wire assembly connects the capacitor to the appliance's motor or control, restoring a secure electrical path for reliable start/run operation. Replaces a damaged or worn harness to help resolve starting and intermittent power issues. What it does:

• Provides insulated wiring and terminals to link the capacitor to the motor or control
• Ensures a secure electrical connection for proper start/run signaling
• Can resolve symptoms such as failure to start, humming or intermittent motor starting
• Prevents shorts or arcing from frayed or damaged wiring when functioning correctly

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a dangerous charge — have the capacitor safely discharged before disconnecting wires
• Match connectors and routing to the original harness; secure wires away from moving parts and heat sources

This compressor overload is the thermal protector for your refrigerator's compressor. It opens the circuit when the motor overheats or draws excessive current, helping prevent damage and restoring reliable starts when the original protector fails.

• Interrupts power to protect the compressor during overheat or overcurrent conditions
• If failed, symptoms include: compressor won't start, repeated clicking or brief hum then stop, warm refrigerator/freezer, and an unusually hot compressor shell
• A weak protector may trip repeatedly and reset after cooling, causing intermittent cooling
• Works in tandem with the start relay/device to manage compressor startup current

• Disconnect power before servicing and pull the unit forward for rear access
• Remove the rear cover; note wire positions and take a photo for reference
• Pull the old overload straight off the compressor terminal; transfer leads and firmly seat the new overload in the same orientation
• Capacitors can retain a charge—handle with care; reinstall cover and restore power to test

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

Size: 8-32 x .312 inch.

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Timer is an OEM part for Whirlpool refrigerators. This component is essential for controlling the defrost cycle of the refrigerator, ensuring that the appliance operates efficiently by periodically melting any frost buildup on the evaporator coils. By regulating the defrosting process, the timer helps maintain the optimal temperature and energy efficiency of the refrigerator.

Causes of a bad timer can include electrical malfunctions, wear and tear over time, or exposure to power surges. When the timer fails, the defrost cycle may not run correctly, leading to issues with frost buildup and inefficient cooling.

Symptoms of a bad timer include:

• The refrigerator running continuously without cycling off
• Frost buildup on the evaporator coils
• The refrigerator being too warm or too cold
• The defrost cycle not initiating or running too frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement mounting screw used to secure panels and components on compatible Whirlpool appliances, restoring loose or missing fasteners for safe, stable operation. What it does

• Fastens appliance panels, brackets, and small components in place
• Replaces stripped, rusted, or missing screws that cause rattling or loose parts
• Helps restore proper alignment and reduce vibration-related noise
• Matches OEM fit and function for straightforward replacement

• One replacement screw

• Use the matching screwdriver or nut driver to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or panel damage
• Turn off and unplug the appliance before accessing internal components

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This Power Disconnect Switch is the refrigerator's on/off service switch. It interrupts incoming power when actuated, allowing safe servicing or resetting of the unit without unplugging it and helping prevent unintended operation when access panels are open. What it does:

• Interrupts electrical power to the unit when switched off or tripped
• Provides a dedicated service disconnect for safe maintenance and resets
• Common symptoms: no power, intermittent shutdowns, or the unit won't stay on unless the switch is held/positioned
• Visual clues: broken actuator or heat-discolored/loose terminals

• Power disconnect switch only

• Disconnect power at the breaker before servicing
• Access the switch location; on many built-in units it's behind the top grille or control panel
• Move wires one at a time to the new switch to maintain correct orientation
• Restore power and verify the switch cleanly turns the unit on and off

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.
