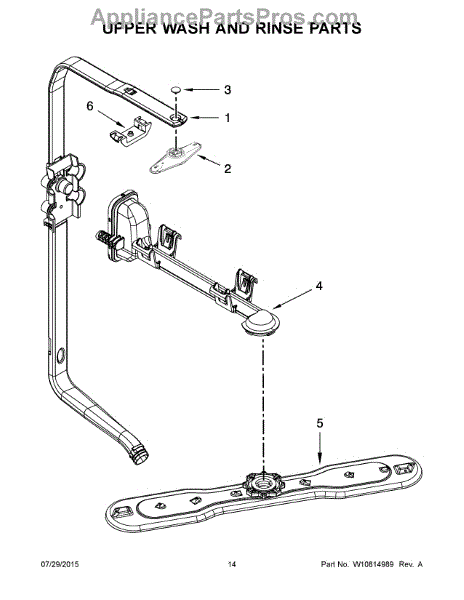

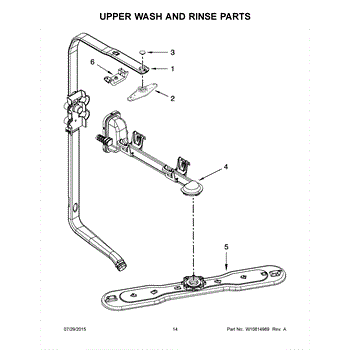

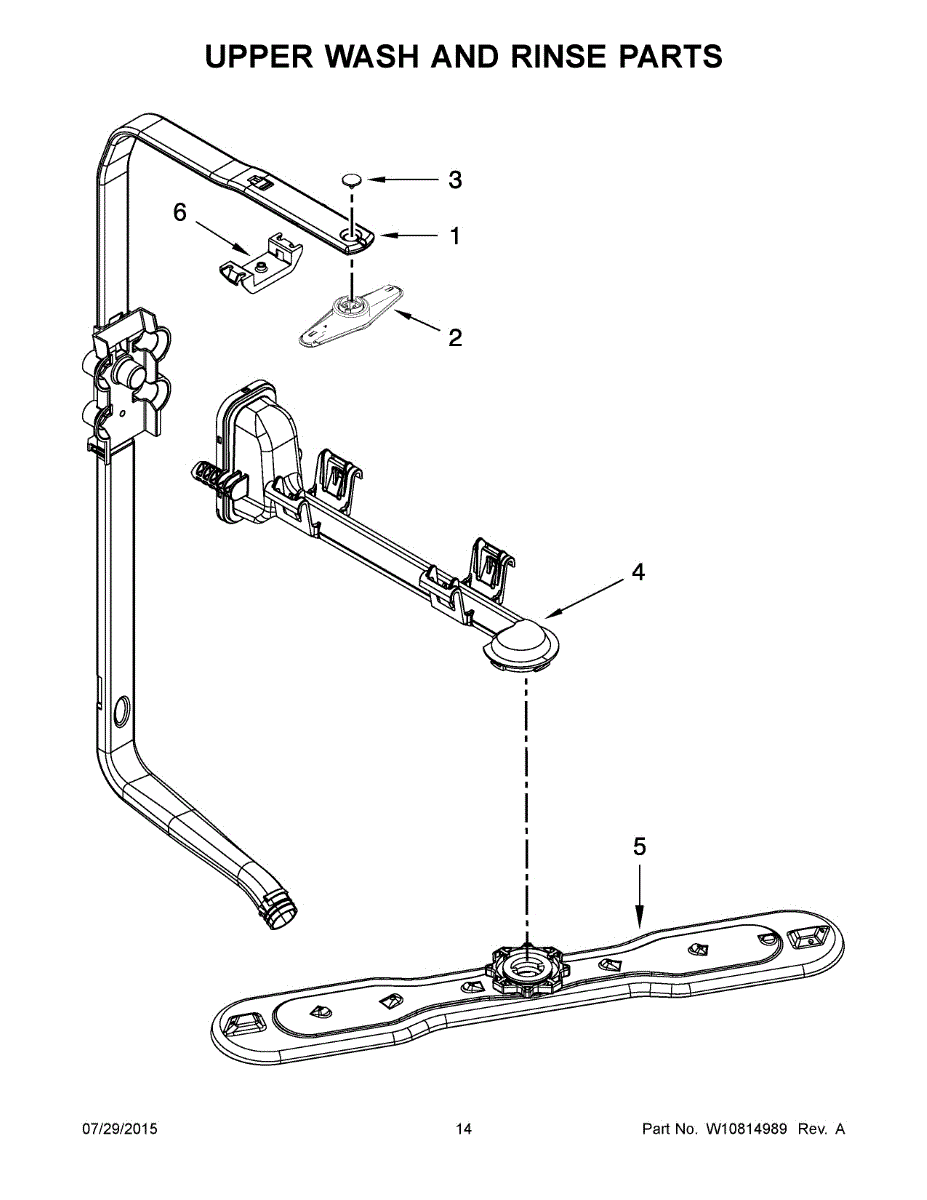

Parts for Maytag MDB5969SDM2: 08 - Upper Wash And Rinse Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Tube-Feed is an OEM part for Whirlpool dishwashers. This part directs water from the pump to the spray arms, ensuring proper water flow and distribution during the wash cycle.

Common causes of a faulty tube-feed include clogs from food debris, cracks or breaks due to wear and tear, or damage from improper installation or handling.

Symptoms of a bad tube-feed include:

• Reduced water pressure from the spray arms
• Incomplete or poor cleaning results
• Visible cracks, holes, or damage to the tube
• Leaks or water pooling inside the dishwasher

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Upper Spray Arm is an OEM part for Whirlpool dishwashers. It is responsible for distributing water throughout the upper part of the dishwasher during the wash cycle, ensuring dishes are cleaned effectively.

Causes of a bad upper spray arm can include clogging from food particles, mineral deposits from hard water, or physical damage to the spray arm. These issues can impede the spray arm's ability to rotate and distribute water properly.

Symptoms of a bad upper spray arm include:

• Poor cleaning performance on the top rack
• Spray arm not spinning
• Visible damage or clogging of the spray arm holes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the spray arm retainer, use part number WP3400918.

The Retainer is an OEM replacement part for Whirlpool built-in dishwashers. It is a plastic clip located within the lower wash arm assembly. This retainer securely holds the pivot hub bearing and ensures smooth oscillation of the lower wash arm during cycles.

Causes of retainer failure commonly relate to plastic material degradation from regular heat and chemical exposures over many uses. Crack propagation weakens the clips ability to precisely position bearing elements.

Symptoms of an inadequate retainer may include:

• Grinding or scraping noises coming from the wash arm area
• Restricted movement or binding of the lower spray arm assembly
• Potential loose wash arm parts that could interrupt spray patterns

This OEM Whirlpool replacement is also compatible with KitchenAid, Maytag, and some Sears/Kenmore dishwashers.

The Manifold is an OEM part for Whirlpool dishwashers. It distributes water evenly throughout the dishwasher during the wash cycle. The manifold ensures that water reaches all areas of the dishwasher, allowing for thorough cleaning of dishes. It measures approximately 13 inches in length and 3 inches in width.

Causes of a bad manifold can include clogging due to hard water deposits, damage from foreign objects within the dishwasher, or cracks and leaks from wear and tear over time.

Symptoms of a bad manifold include:

• Poor cleaning performance
• Uneven water distribution
• Leaks inside the dishwasher
• Unusual noises during the wash cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Spray Arm is an OEM part for Whirlpool dishwashers. This part distributes the water evenly throughout the dishwasher tub, ensuring thorough cleaning of dishes and utensils.

Causes of a malfunctioning Spray Arm can be due to clogging from food debris or mineral buildup, damage from impact, or wear and tear on bearings or rotation mechanism.

Symptoms of a bad Spray Arm include:

• Poor cleaning performance, leaving dishes with residue or spots
• Uneven water distribution, resulting in wet or dry areas in the tub
• Loud noises or grinding sounds during the wash cycle
• Leaks or water spills from the spray arm area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This mounting bracket secures an appliance component in the correct position, providing stable support and alignment. Replacing a damaged bracket helps stop looseness and vibration that can lead to noise, poor fit, or premature wear.

• Provides a rigid mounting point to hold the related assembly in place
• Restores proper spacing and alignment for consistent operation
• Helps reduce rattling, buzzing, or vibration from movement
• Replaces cracked, bent, or corroded brackets that no longer hold securely

• Disconnect power; shut off water supply if applicable
• Note the original orientation; transfer any clips, spacers, or grommets from the old bracket
• Reuse existing screws/fasteners; hand-start threads to avoid cross-threading
• Do not overtighten fasteners; confirm clearance and smooth operation before reassembly
