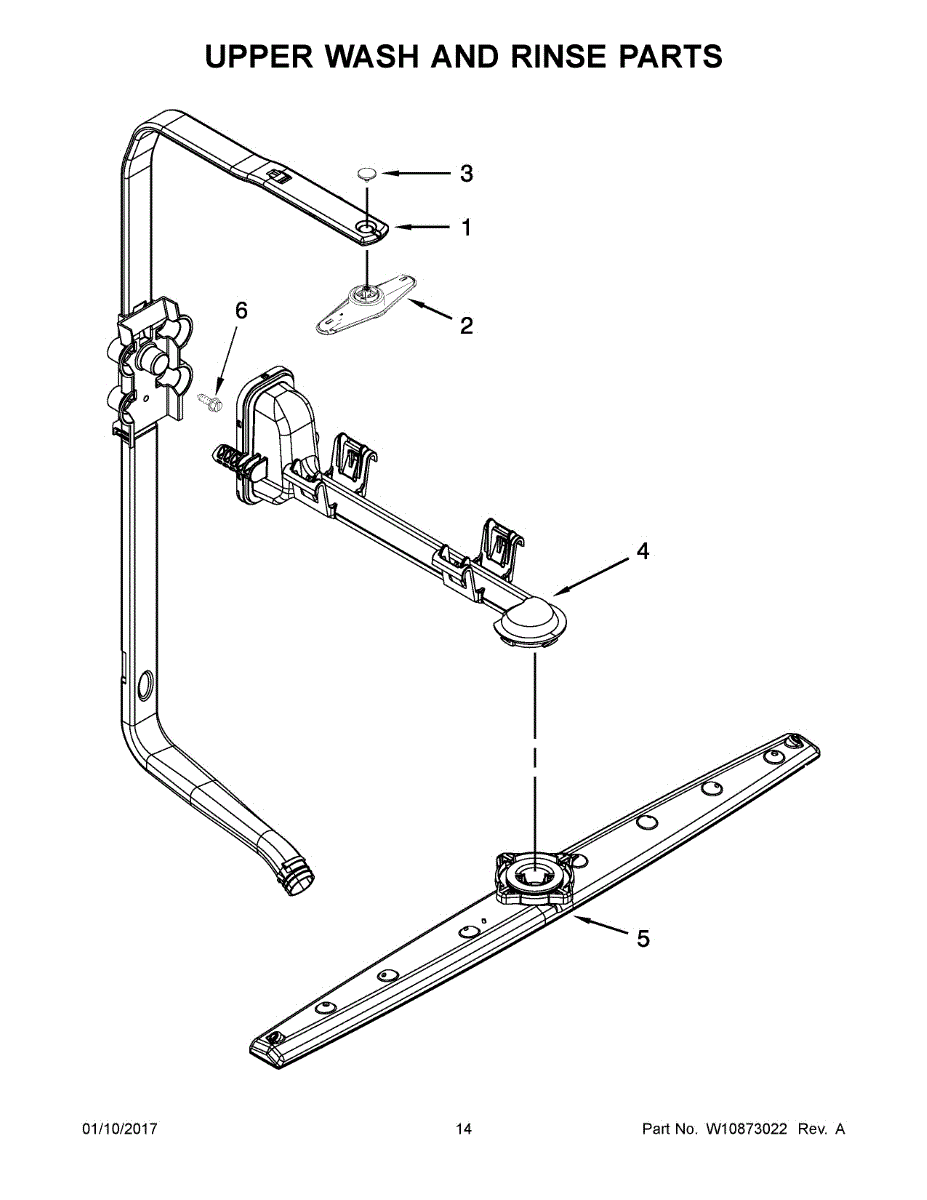

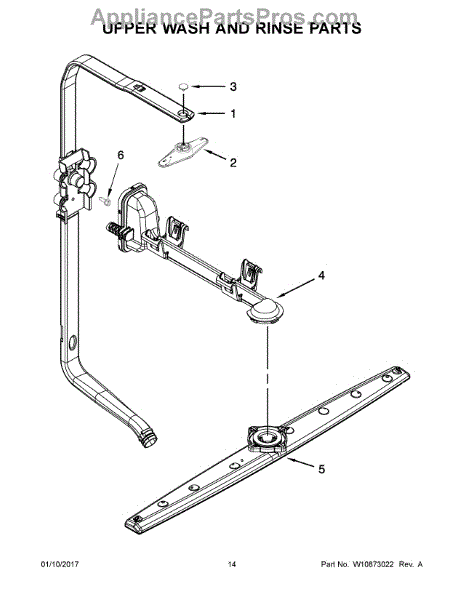

Parts for Whirlpool WDF540PADT3: 08 - Upper Wash And Rinse Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The feed tube assembly routes wash water up the back wall of your dishwasher to the upper spray system, restoring balanced spray pressure and coverage on the upper rack when the original tube is cracked, warped, leaking, or obstructed. What it does:

• Directs water from the circulation pump to the upper spray system via the rear manifold/docking port
• Maintains a sealed path to prevent internal leaks and pressure loss
• Damage or clogs can cause poor top-rack cleaning, weak spray, noisy operation, or residual detergent
• Visible cracks, broken tabs, or leaks at the rear wall indicate replacement is needed

• Feed tube assembly

• Disconnect power and shut off the water supply before servicing
• Open the door and remove racks as needed; release screws/clips securing the rear feed tube and detach from the docking port
• Transfer any reusable seals or brackets; align and secure the new tube without overtightening plastic fasteners
• Run a short cycle to check for leaks and proper upper-spray operation

The Upper Spray Arm is an OEM part for Whirlpool dishwashers. It is responsible for distributing water throughout the upper part of the dishwasher during the wash cycle, ensuring dishes are cleaned effectively.

Causes of a bad upper spray arm can include clogging from food particles, mineral deposits from hard water, or physical damage to the spray arm. These issues can impede the spray arm's ability to rotate and distribute water properly.

Symptoms of a bad upper spray arm include:

• Poor cleaning performance on the top rack
• Spray arm not spinning
• Visible damage or clogging of the spray arm holes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the spray arm retainer, use part number WP3400918.

The Retainer is an OEM replacement part for Whirlpool built-in dishwashers. It is a plastic clip located within the lower wash arm assembly. This retainer securely holds the pivot hub bearing and ensures smooth oscillation of the lower wash arm during cycles.

Causes of retainer failure commonly relate to plastic material degradation from regular heat and chemical exposures over many uses. Crack propagation weakens the clips ability to precisely position bearing elements.

Symptoms of an inadequate retainer may include:

• Grinding or scraping noises coming from the wash arm area
• Restricted movement or binding of the lower spray arm assembly
• Potential loose wash arm parts that could interrupt spray patterns

This OEM Whirlpool replacement is also compatible with KitchenAid, Maytag, and some Sears/Kenmore dishwashers.

The Manifold is an OEM part for Whirlpool dishwashers. It is responsible for providing water supply to the spray arms during the wash and rinse cycles. It provides proper distribution of water throughout the dishwasher, allowing for thorough cleaning of your dishes. It connects the main water supply line to various parts within the dishwasher, ensuring a consistent flow of water.

A bad manifold can occur due to wear and tear, clogs, or damage to the tubing. If you notice symptoms such as reduced water flow, leaks, or improper cleaning results, it may be time to replace the water supply tube manifold.

Symptoms of a bad manifold include:

• Reduced water flow during the wash cycle
• Leaks or drips from the manifold area
• Improper cleaning or rinsing results

Repair your dishwasher by replacing the faulty or worn-out water supply tube manifold with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Arm Spray is an OEM part for Whirlpool dishwashers. This component is crucial in the dishwasher's ability to effectively clean dishes, as it distributes water evenly throughout the unit during a wash cycle. Located beneath the upper rack, the arm spray rotates and sprays water at a controlled pressure and angle, ensuring that all dishes, regardless of their placement, are thoroughly washed.

Causes of a bad arm spray include clogging from food particles or mineral deposits from hard water, physical damage that can prevent it from spinning, and wear that reduces the effectiveness of the spray holes.

Symptoms of a bad arm spray include:

• Dishes remain dirty or spotty after washing
• Decreased water pressure in the spray
• Unusual noise during operation as the arm struggles to rotate

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a genuine replacement screw used to secure components and panels on compatible Whirlpool appliances, restoring a firm, vibration-free fit. It replaces worn or missing fasteners to help keep parts aligned and stable. What it does

• Secures panels, brackets, or internal components to prevent shifting or rattling
• Replaces stripped, rusted, or missing screws that cause loose parts or noise
• Helps maintain proper alignment of mounted components for safe operation
• Useful when reassembling repair work or after removing parts for service

• One replacement screw

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread damage
• Disconnect power before servicing electrical appliances; follow OEM safety guidance
• If screw threads or holes are damaged, replace both screw and mating hardware as needed
