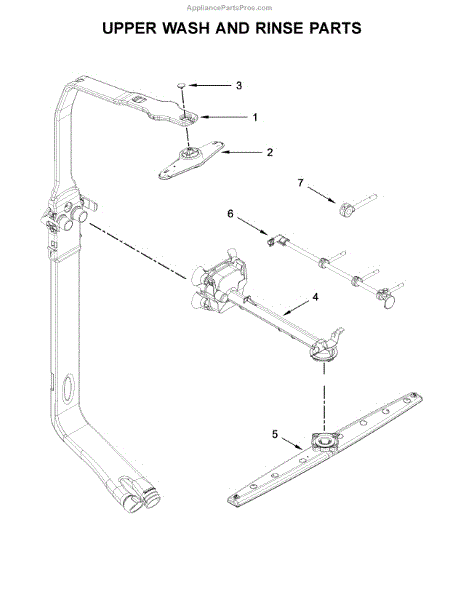

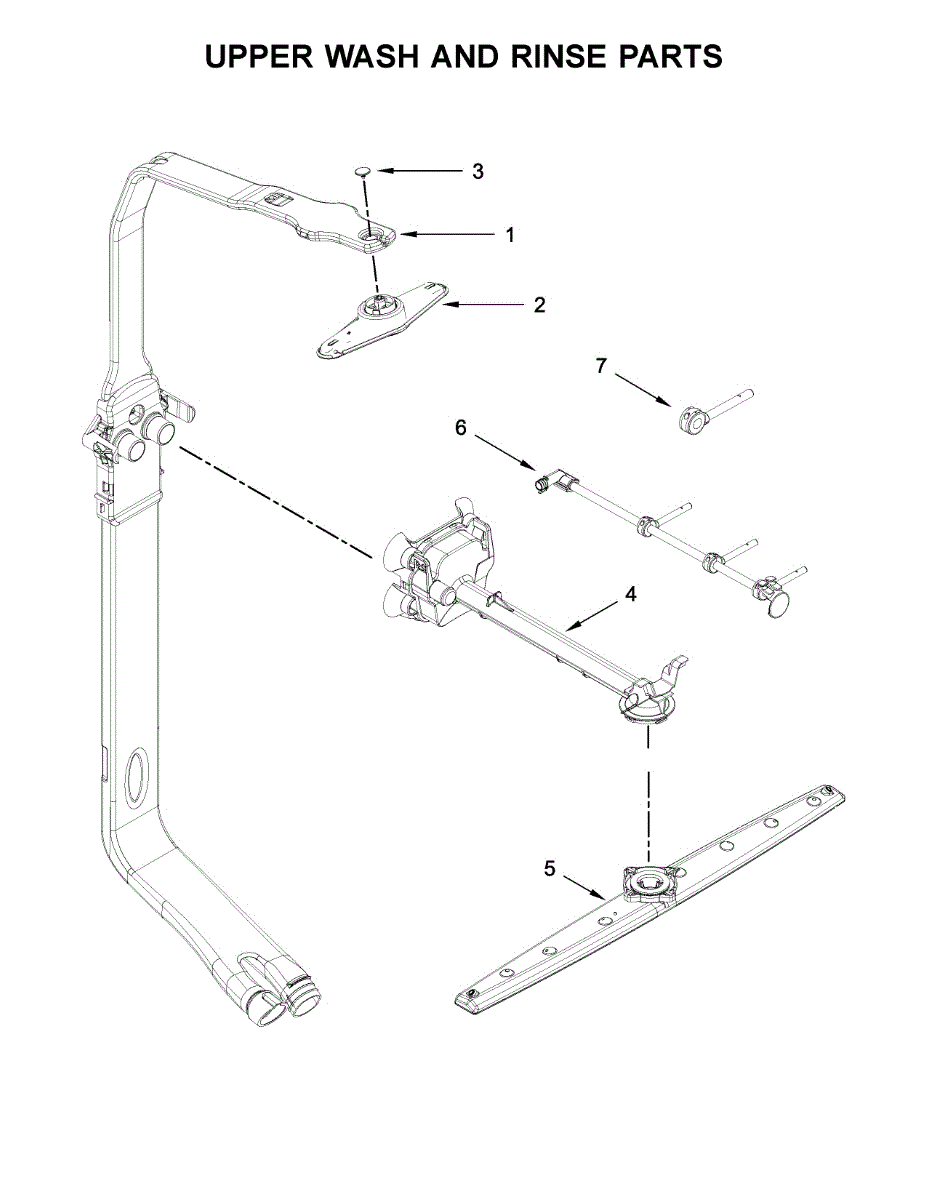

Parts for Kitchenaid KDPE334GBS0: Upper Wash And Rinse Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This feed tube directs water from the household supply to the refrigerator ice maker, ensuring consistent water delivery for ice production and dispenser operation. Replaces a cracked, clogged, or damaged feed tube to restore proper water flow. What it does

• Channels water from the inlet to the ice maker or dispenser; helps maintain steady fill cycles
• Commonly replaced when the ice maker won't fill, fills slowly, or leaks near the ice maker area
• Prevents water spray or pooling caused by split or pinched tubing
• Works with the appliance's existing fittings and seals to control flow path

• One feed tube

• Turn off water supply and unplug the appliance before starting any repair
• Handle tubing gently; avoid sharp bends or kinks that can restrict flow
• Inspect and replace associated seals or clamps if they show wear or leakage

The Upper Spray Arm is an OEM part for Whirlpool dishwashers. It is responsible for distributing water throughout the upper part of the dishwasher during the wash cycle, ensuring dishes are cleaned effectively.

Causes of a bad upper spray arm can include clogging from food particles, mineral deposits from hard water, or physical damage to the spray arm. These issues can impede the spray arm's ability to rotate and distribute water properly.

Symptoms of a bad upper spray arm include:

• Poor cleaning performance on the top rack
• Spray arm not spinning
• Visible damage or clogging of the spray arm holes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the spray arm retainer, use part number WP3400918.

The Retainer is an OEM replacement part for Whirlpool built-in dishwashers. It is a plastic clip located within the lower wash arm assembly. This retainer securely holds the pivot hub bearing and ensures smooth oscillation of the lower wash arm during cycles.

Causes of retainer failure commonly relate to plastic material degradation from regular heat and chemical exposures over many uses. Crack propagation weakens the clips ability to precisely position bearing elements.

Symptoms of an inadequate retainer may include:

• Grinding or scraping noises coming from the wash arm area
• Restricted movement or binding of the lower spray arm assembly
• Potential loose wash arm parts that could interrupt spray patterns

This OEM Whirlpool replacement is also compatible with KitchenAid, Maytag, and some Sears/Kenmore dishwashers.

The Arm Manifold is an OEM part for Whirlpool dishwashers. As the central water inlet, it distributes flow to spray arms and nozzles for washing coverage.

Symptoms of a bad Arm Manifold involve:

• Reduced lower spray patterns minimizing lower rack contact
• Mineral buildup audibly disturbs water pressure
• Splashing from cracked housings disturbing proper coverage

Causes include limescale narrowing passages as well as mechanical stresses fracturing manifolds over extended use. Failures hamper sanitization.

This OEM Whirlpool part is also compatible with some Maytag, KitchenAid, and Jenn-Air models.

The Spray Arm is an OEM part for Whirlpool dishwashers. It plays a crucial role in the cleaning process by rotating and spraying water onto the dishes to remove food particles and debris. The spray arm measures approximately 18.75 inches long and 2 inches wide.

Causes of a bad spray arm can include clogging due to food particles or mineral deposits, cracks or breakage from regular use, or a malfunction in the rotating mechanism. These issues can impede the spray arm's ability to distribute water effectively, leading to poor cleaning performance.

Symptoms of a bad spray arm include:

•  Dishes not being cleaned properly
• Noticeable clogs or blockages in the spray holes
• The spray arm not rotating during the wash cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Manifold is an OEM part for Whirlpool dishwashers. It distributes water evenly throughout the dishwasher during the wash cycle for thorough cleaning of your dishes. It directs the flow of water to the spray arms, allowing for efficient and effective cleaning.

A bad manifold/water guide can occur due to clogs, leaks, or damage caused by hard water or debris buildup. If you notice symptoms such as poor cleaning results, reduced water pressure, or water leaking from the dishwasher, it may be time to replace the manifold/water guide.

Symptoms of a bad manifold/water guide include:

• Poor cleaning performance
• Reduced water pressure
• Water leaks from the dishwasher

Restore the cleaning performance of your Whirlpool dishwasher by replacing the faulty or damaged manifold/water guide with this genuine OEM part.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
