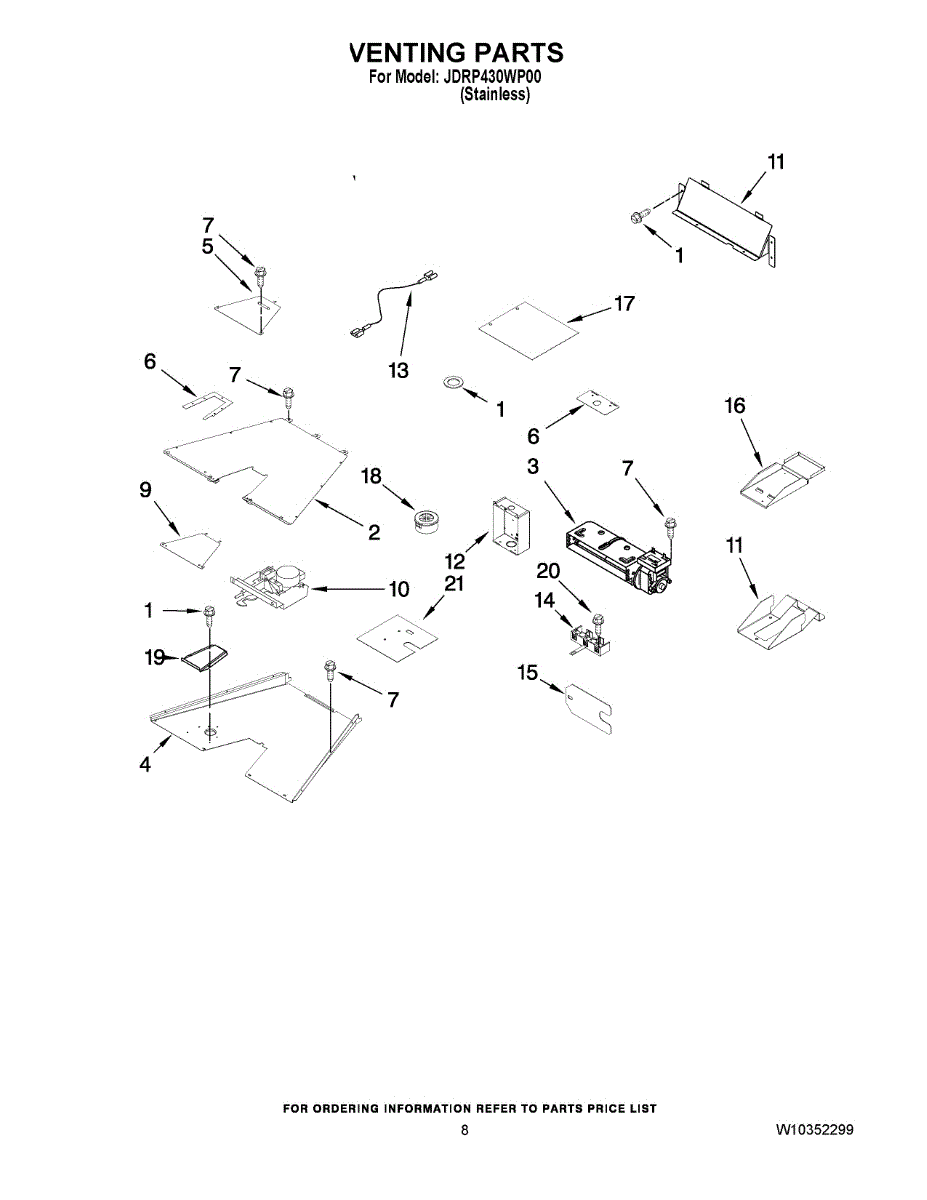

Parts for Jenn-Air JDRP430WP00: 05 - Venting Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This door latch secures the appliance door and signals the control that it's safely closed. Replacing a worn or broken latch restores reliable door closure and proper cycle operation. What it does:

• Holds the door closed and aligned during use
• Engages the door strike to complete the door/lock switch circuit
• Resolve issues such as: door won't latch or pops open; cycles won't start; intermittent "door open" messages; needing to press/hold the door to run

• One door latch

• Disconnect power before servicing
• Access is typically from the door/front panel; note screw locations and latch orientation
• Transfer any mounting hardware from the original latch if needed
• After installation, verify smooth latch engagement with the strike and run a test cycle

This surface burner ignitor creates the spark that lights gas at a cooktop/range burner. Replacing a worn or cracked electrode restores quick, reliable ignition and helps prevent repeated clicking or failed lighting at that burner.

• Generates a high-voltage spark at the burner to ignite gas
• Common fix for a surface burner that won't light or takes many clicks to light
• Addresses visible cracks, chips, or burned ignition tip on the electrode

• Disconnect power and shut off gas supply before servicing; allow the appliance to cool
• Handle the ceramic insulator carefully; avoid touching the electrode tip
• Note wire routing and ensure a secure connection to the harness/spark module
• Position the electrode correctly relative to the burner head for consistent ignition

The Terminal Block is an OEM part for Whirlpool ranges and ovens. It is designed to provide a secure connection point for the appliance's electrical wiring, ensuring the safe transmission of power to the heating elements and other components.

You should replace the terminal block if it becomes damaged or faulty. Causes of a bad terminal block can include electrical arcing, loose connections, or damage from overheating. A compromised terminal block can lead to electrical issues, affecting the performance and safety of the appliance.

Symptoms of a bad terminal block include:

• The oven or range not heating up properly
• Visible damage or burning around the terminal block
• Intermittent power issues or flickering display
• Unusual electrical smells or sparks from the terminal area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This bushing is a small sleeve-style bearing that supports a rotating shaft and reduces metal-to-metal wear for smooth operation. It helps restore proper alignment and quiet operation when the original bushing is worn. What it does

• Guides and supports a rotating shaft or spindle to reduce friction and wear
• Prevents metal-to-metal contact that can cause grinding or scoring
• Helps stop rubbing, squeaking, or vibration caused by a worn bearing surface
• Restores proper alignment of the moving component for smoother operation

• Inspect the mating shaft and housing for wear or damage before installing a new bushing
• Press or seat the bushing evenly; avoid hammering directly on the bushing surface
• Use proper tools and safety gear; disconnect power or unplug the appliance before service
• If surrounding parts are worn (shafts, seals, clips), replace them to prevent premature bushing failure

Size: 10-32 inch.
