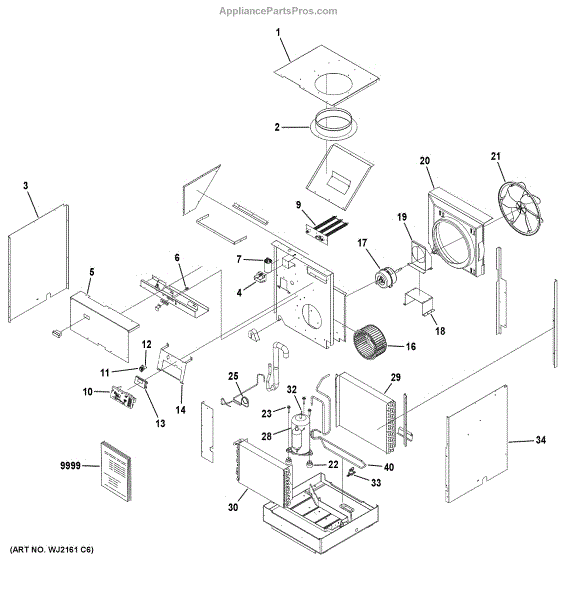

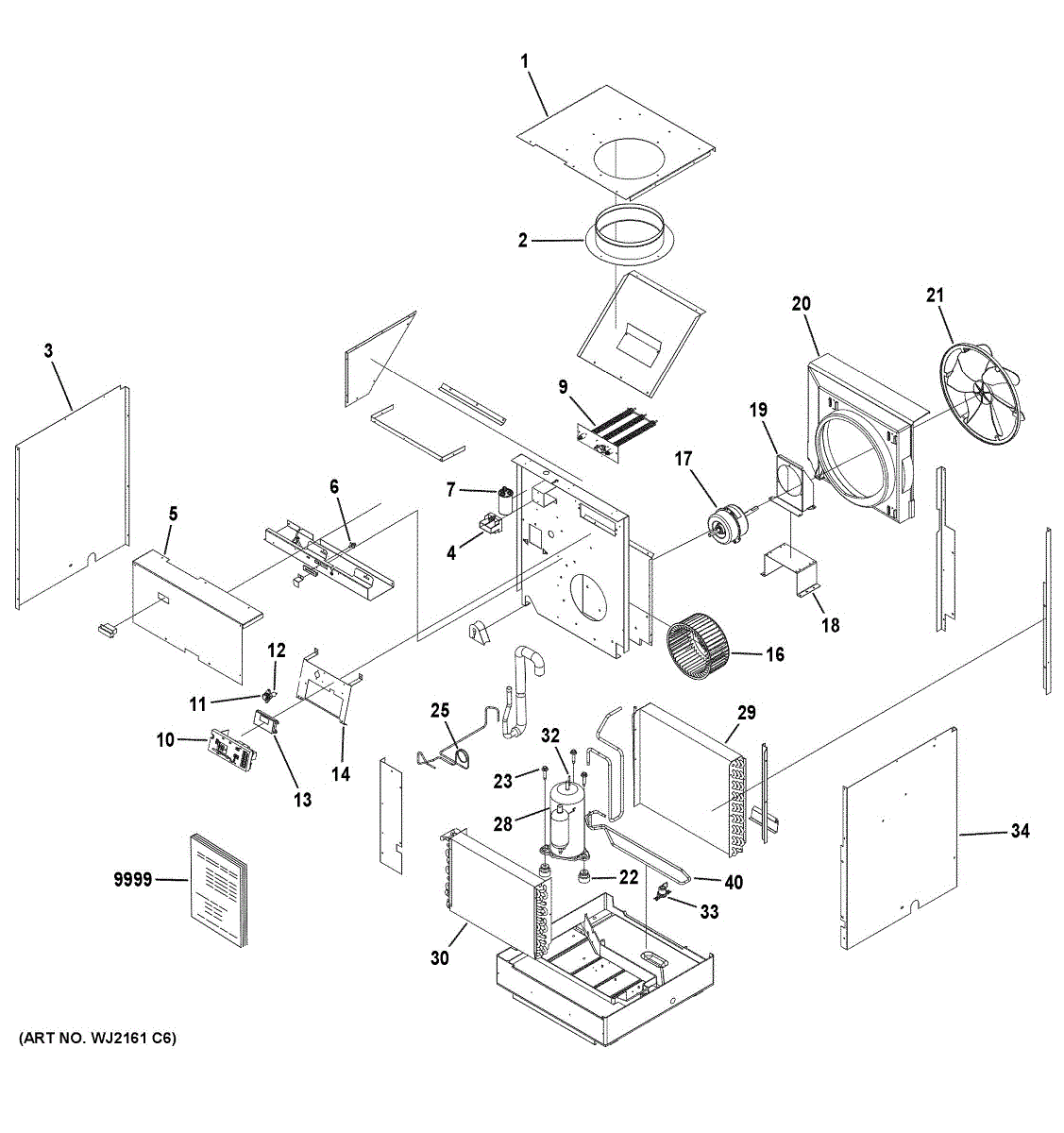

Parts for Ge AZ90E09D2CW1: Vertical Zoneline Parts

This main control board is the appliance's central electronic controller that manages cycles, user inputs and timed operations so the unit runs correctly and responds to commands. Replaces a faulty board to restore normal control functions. What it does:

• Receives and processes user panel inputs and sensor signals to control cycles and components
• Sends power and timing signals to motors, valves and heaters as commanded
• Can cause loss of display, unresponsive controls, or failure to start when faulty
• May produce error codes or intermittent operation if contact points or components fail

• Disconnect power before servicing to avoid electrical shock
• Handle the board by the edges and avoid static discharge; use anti-static precautions
• Verify connector orientation and seating; match labels and harnesses before reconnecting

This refrigerator fan motor drives the appliance's air-flow fan to move cool air across coils and components, helping maintain proper cooling and prevent overheating. Replaces a failed fan motor to restore normal airflow and reduce noise or temperature issues. What it does:

• Spins the refrigerator fan blade to circulate air across evaporator or condenser coils.
• Helps maintain consistent temperatures by moving cooled air through the cabinet.
• A failing motor can cause reduced cooling, warm spots, or increased noise.
• Works with the fan blade, mounting bracket, and housing to ensure proper airflow.

• Disconnect power to the appliance before starting any repair.
• Verify motor orientation, mounting points, and electrical connector match the original before installation.
• Handle the shaft and wiring carefully to avoid damage; replace any worn fan blade or mounting hardware as needed.

This compressor overload protects the refrigerator compressor by interrupting power during motor overheating or electrical faults, helping prevent damage and repeated starter failure. It's a small, replaceable device used with the compressor start components. What it does:

• Protects the compressor by cutting power if the motor overheats or draws excessive current
• Works with the start relay/capacitor to help the compressor start reliably
• Commonly replaces a failed overload that causes the compressor not to run or to click repeatedly
• Helps prevent further compressor damage from repeated overheating events

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect the start relay and wiring when replacing the overload; replace damaged components
• Mount and connect the overload exactly as the original; verify proper seating on compressor terminals
