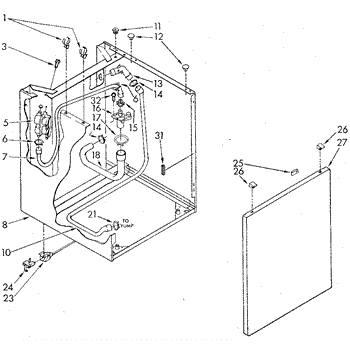

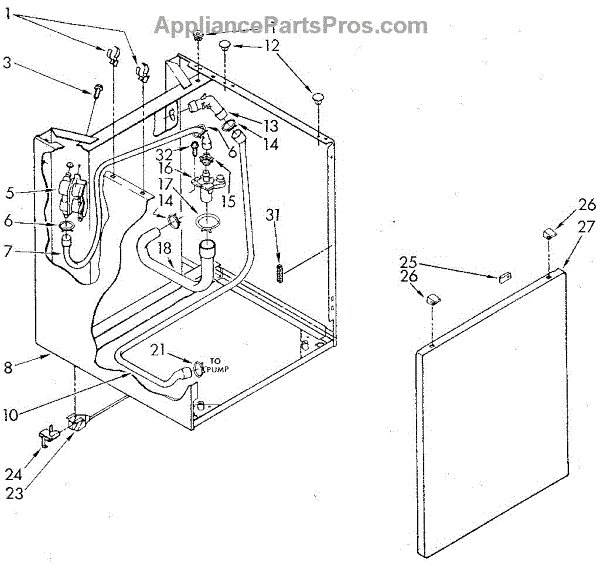

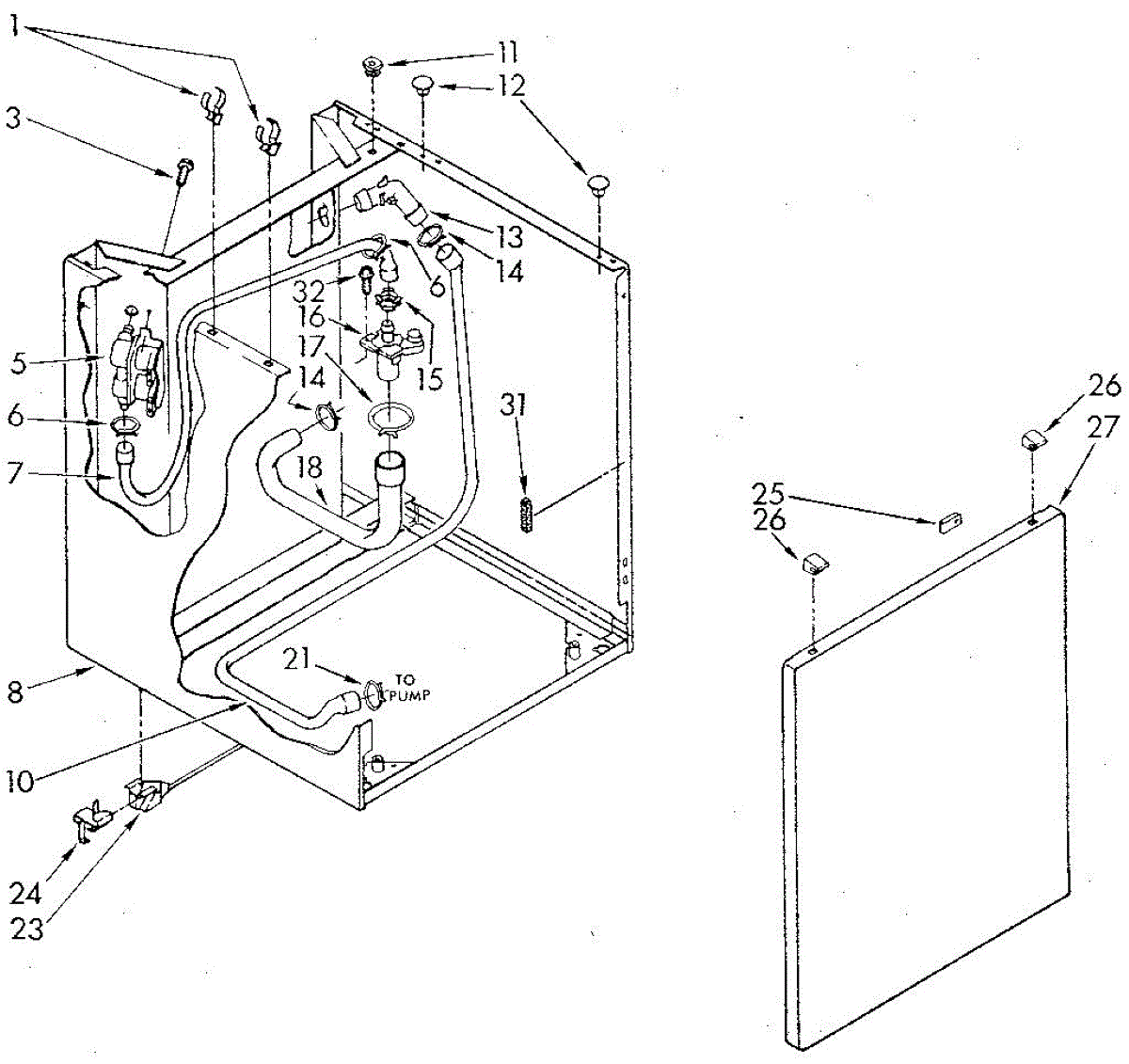

Parts for Sears 11089675610: Washer Cabinet Parts

The Water Inlet Valve is an OEM part for Whirlpool washing machines. It controls the flow of hot and cold water into the washer. This component is crucial for starting the wash cycle, as it opens to allow water to enter and closes to stop the flow once the appropriate level is reached, ensuring efficient wash performance.

Causes of a bad Water Inlet Valve can include mineral deposits and sediment build-up, which can obstruct the flow of water, or mechanical failure such as a broken solenoid that prevents the valve from opening or closing properly.

Symptoms of a bad Water Inlet Valve include:

• Water not filling the tub at the beginning of the cycle
• Water leaking from the valve
• Washer not starting due to inability to fill
• Unusual noises from the valve area during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw grommet anchors a screw in thin appliance panels so trim, covers, or consoles stay tight. It provides a snug, vibration-damping fit where a standard screw could loosen or strip over time.

• Creates a captive insert so a screw can securely fasten to sheet metal or plastic panels
• Replaces a worn, cracked, or missing grommet to restore proper screw retention
• Helps reduce panel rattles and movement from vibration
• Typical signs of failure: screw won't tighten, panel or trim feels loose, grommet falls out

• Disconnect power and shut off gas/water as applicable before servicing
• Remove the screw and lift out the old grommet; clear debris from the opening
• Press the new grommet straight into the hole until fully seated and flush
• Reinstall the screw and tighten gently to avoid deforming the grommet

Replacement plug button that snaps into place to cover a small access hole or fastener opening. Restores a finished appearance and helps keep dirt, moisture and small objects out of the appliance cavity. What it does:

• Covers exposed holes or mounting openings for a clean, finished look
• Prevents dirt and debris from entering small internal cavities
• Replaces missing, cracked or worn plug buttons that no longer stay seated
• Small, low-profile design to match factory appearance

• Disconnect power to the appliance before servicing
• Typically installs by pressing into the opening until it snaps flush; a small flat screwdriver can assist
• Avoid prying against surrounding trim to prevent cosmetic damage
• Keep small parts away from children and pets

This connector is an insulated electrical harness terminal that joins appliance wiring to restore a secure electrical connection and help prevent intermittent power or arcing. It's a direct-replacement style used on select Whirlpool appliances. What it does:

• Provides a secure, insulated connection between two wires or a wire and a component terminal.
• Helps stop intermittent power, flickering, or loss of function caused by loose or damaged terminals.
• Reduces risk of arcing and overheating at a compromised connection point.
• Matches OEM fit/shape to maintain proper routing and strain relief where applicable.

• Turn off and unplug the appliance (or shut off breaker) before inspecting or replacing electrical parts.
• Inspect surrounding wiring and terminals for heat or corrosion; replace damaged wiring as needed.
• Use proper crimping or terminal tools and secure strain relief; verify firm, no-play connections before restoring power.

This cap fits over the siphon break fitting in a drain system, helping contain splashes and seal the opening so the break can work as intended. Replace a cracked, loose, or missing cap to stop leaks and maintain proper drainage.

• Covers and seals the siphon break body/fitting
• Helps prevent water leakage or spray at the break during drain
• Supports proper anti-siphon/backflow operation of the drain path
• Typical signs include leaking at the break, a cap that won't stay on, or visible cracks

• Disconnect power; shut off water if working near hoses
• Access the siphon break and remove the old/damaged cap
• Clean the mating area; install the new cap and hand-tighten—do not overtighten
• Run a short fill/drain and check for leaks

This replacement siphon break is used in the drain system. It admits air into the drain hose to prevent a vacuum from forming, stopping siphoning/backflow so the washer maintains proper water level and helping prevent leaks from a cracked or clogged break.

• Admits air into the drain line to prevent siphoning and backflow
• Helps the washer maintain correct water levels during fill and rinse
• Common symptoms include water draining out while filling, gurgling/backflow, or leaks near the rear drain connection
• Replace if the siphon break is cracked, brittle, obstructed, or leaking

• Disconnect power and, if needed, turn off water supply; pull the unit forward for access
• Place a towel or pan to catch residual water when removing hoses
• Note hose routing and clamp positions; transfer/secure clamps and ensure no kinks
• Run a brief fill/drain test and check all connections for leaks

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

The Water Inlet Hose directs household water from the inlet valve into the appliance's internal water path, supporting proper fill operation. Replacing a worn or cracked hose helps prevent leaks and protects nearby components. What it does:

• Routes water from the inlet valve to the internal fill channel
• Helps maintain a watertight connection under normal water pressure
• Common symptoms: water on the floor during fill, dripping at the rear/base, slow or incomplete fills, visible cracking or bulging on the hose
• Helps resolve fill-related error codes caused by leaks or air intrusion

• 1 water inlet hose

• Disconnect power and shut off the water supply before servicing
• Keep towels or a shallow pan handy to catch residual water
• Transfer and secure existing clamps/fittings; ensure the hose is fully seated and clamps are snug
• Restore water and power, then run a test fill to check for leaks

This leveling link assembly connects and stabilizes the appliance's leveling system so the unit sits square and the door closes properly. It prevents uneven operation and helps stop rocking or tipping during use. What it does:

• Links the cabinet to the leveling leg so height adjustments transfer correctly
• Restores stable, even positioning to reduce rocking and misalignment
• Helps ensure the door seals and latches properly by keeping the appliance level
• Commonly replaced when links are broken, bent or separated from the leg/box

• One leveling link assembly

• Disconnect power to the appliance before servicing
• Support the appliance so it cannot tip when removing or installing the link
• Verify leveling leg height and alignment after installation; adjust legs as needed

This small retaining clip secures a lever mechanism inside the appliance, keeping the linkage aligned so the control operates smoothly. Replacing a bent or missing clip helps restore proper engagement and prevents the mechanism from popping loose. What it does:

• Locks the lever mechanism to its bracket or shaft
• Maintains alignment of moving linkage for consistent operation
• Replaces missing, bent, or broken retainer
• Common symptoms: loose/wobbly lever, mechanism slips out, control doesn't engage reliably

• Clip only

• Disconnect power before servicing
• Access the mechanism per your model's service information and relieve any spring/linkage tension
• Note the original orientation; use needle-nose pliers to seat the new clip fully in the groove
• Test the mechanism for smooth operation before reassembly

This top front lock secures the front edge of a lift-up range cooktop to the cabinet frame. Replacing a worn lock restores a flush, stable fit so the cooktop stays closed during everyday cooking and cleaning.

• Locks the cooktop down to prevent unintended lifting during use or cleaning
• Maintains alignment so the front edge sits flush and stable
• Reduces vibration and rattling from a loose or misaligned top
• Common symptoms: cooktop won't latch or stay down, front gap, rattling or movement

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Lift the cooktop to access the front frame, remove the old lock, and install the new lock in the same orientation
• Secure with the original fasteners and verify the lock fully engages the mating catch
• Close the cooktop and confirm a flush, stable fit

Use only in brake shoe assembly on roller & pin. Color: White/Grey.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Size: .20 Fl. Oz. (6 ml)

The Gear Case Oil is an OEM part for Whirlpool washing machines. It lubricates the gears and components within the washing machine’s transmission, ensuring smooth and efficient operation during the wash and spin cycles.

Causes of bad gear case oil can include degradation over time, contamination from water or debris, and leaks due to worn seals or gaskets.

Symptoms of a bad gear case oil include:

• Loud or unusual noises during the wash or spin cycles
• The washing machine not agitating or spinning properly
• Oil leaks visible under the washing machine
• Increased friction or overheating of the transmission components

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
