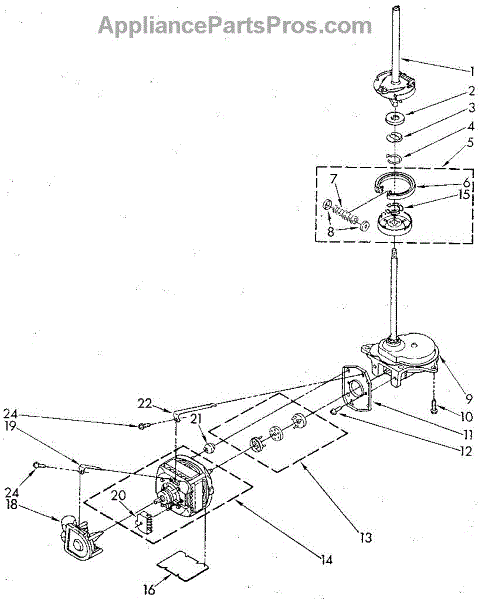

Parts for Sears 11089675610: Brake, Clutch, Gearcase, Motor, And Pump Parts

The Basket Drive is an OEM replacement part for Whirlpool washers. The basket drive is responsible for rotating the wash basket during the cycle.

Common causes of a bad basket drive include regular wear and tear, mechanical failures, or damage from overloading the washer. These issues can prevent the washer drum from spinning or agitating properly.

Symptoms of a bad basket drive can include:

• The washer fails to agitate or spin clothes properly
• Strange noises are heard coming from the drive area
• The basket no longer rotates smoothly
• Excessive vibration is noticed

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Spin Tube Thrust Washer is an OEM component for Whirlpool washing machines. It is a washer that fits around the agitator shaft and helps create a seal between the agitator shaft and the aluminum tub. This washer allows the agitator to spin freely during the wash and spin cycles without causing excessive vibration or noise.

Symptoms of a bad spin tube thrust washer include:

• Noises like banging or clunking coming from the agitator area
• Shaking or vibrating of the washer tub during spinning

Causes of a bad thrust washer include normal wear and tear after extended use. Exposure to extended periods of unbalanced loads can also put excessive strain on the washer components and lead to premature failure of the thrust washer seal.

This replacement part is also compatible with select Kenmore, Maytag, KitchenAid, and Jenn-Air models.

The Clutch Assembly is an OEM replacement part for Whirlpool washing machines. It is a component that is responsible for transferring power from the motor to the transmission, allowing the washer tub to spin during the wash and spin cycles.

Symptoms of a bad Clutch Assembly include:

• The washer tub not spinning or agitating during the wash or spin cycles
• Loud grinding or screeching noises coming from the washer
• Excessive vibrations or shaking during the spin cycle
• The washer failing to start or complete the wash or spin cycles properly

Causes of needing to replace the clutch assembly can include normal wear and tear over time, bearing failure, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

The Clutch Band and Lining Kit is an OEM part for Whirlpool washing machines. It contains the clutch band and clutch lining components essential for proper transmission of power from the washer motor to its drum during the spin cycle. The clutch band and lining allow for a controlled amount of slippage to safely extract water from clothes without damage.

Symptoms of a bad clutch band and lining include:

• Excessive noise or vibration during spin
• Slow or ineffective spinning
• The drum failing to spin or “locking up”
• Premature wear of other transmission parts

Over time and with heavy use, these components can wear down. If slipping or damage is detected, it’s important to replace the kit to avoid potential transmission repairs.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Clutch Band and Lining Kit is an OEM part for Whirlpool washing machines. It contains the clutch band and clutch lining components essential for proper transmission of power from the washer motor to its drum during the spin cycle. The clutch band and lining allow for a controlled amount of slippage to safely extract water from clothes without damage.

Symptoms of a bad clutch band and lining include:

• Excessive noise or vibration during spin
• Slow or ineffective spinning
• The drum failing to spin or “locking up”
• Premature wear of other transmission parts

Over time and with heavy use, these components can wear down. If slipping or damage is detected, it’s important to replace the kit to avoid potential transmission repairs.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Transmission is an OEM part for Whirlpool washing machines. This integral component is at the heart of the washing machine's operation, translating the motor's power into action by driving the agitator and spinning the drum.

Regular inspection and maintenance can prolong the life of the transmission, but if these symptoms occur, it may be time to replace this critical component.

Symptoms of a bad Transmission include:

• The washing machine making unusual noises during the wash or spin cycles, such as grinding or whining sounds.
• The washer failing to agitate properly, affecting the cleanliness of the laundry.
• The drum not spinning during the spin cycle, leaving clothes wetter than usual.
• Leakage of transmission fluid beneath the washing machine.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This anti-rattle screw secures panels or brackets to prevent vibration noise in compatible appliances. Replacing a missing or stripped screw restores a tight fit and helps keep the cabinet and assemblies stable and quiet.

• Secures brackets, ducts, or panels to reduce buzzing and rattling during operation
• Replaces a lost, worn, or damaged anti-rattle fastener
• Helps maintain proper alignment and prevents vibration-related wear
• Typical symptoms include persistent rattling, a loose panel, or hardware found inside the cabinet

• Disconnect power before servicing; for gas appliances, shut off the gas supply
• Access the mounting point and remove the loose or damaged screw
• Start the new screw by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the bracket/clip before reassembly

Note: The manufacturer no longer includes the motor shield WP3946532 mentioned in the video. If needed, order it separately.

The Direct Drive Washer Motor is an OEM part for Whirlpool washing machines This motor drives the agitation, spinning, and draining processes during the laundry cycles, ensuring clothes come out clean and well spun.

Causes of a bad Direct Drive Washer Motor can range from wear and tear over time, overheating due to overloading or obstructed movement, and electrical failures like short circuits or blown capacitors.

Symptoms of a failing Direct Drive Washer Motor include:

• The washing machine not agitating or spinning correctly
• A noticeable decline in the washer's performance
• Unusual noises, such as humming or buzzing, indicating the motor is struggling

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This anti-rattle clip adds light spring tension to keep a small component snug and quiet during operation. Replacing a bent or missing clip helps reduce vibration noise and maintains a secure fit of the attached part.

• Applies tension to prevent rattling and buzzing during use
• Helps keep the mounted piece properly seated and aligned
• Common symptoms of failure: audible rattle, loose/wobbly component, missing or deformed clip
• Simple, drop-in replacement where the original clip is used

• Disconnect power to the appliance before servicing
• Note the original clip's orientation; transfer the new clip the same way
• Use needle-nose pliers for placement; avoid over-bending the clip
• The component is secure and clears adjacent parts before reassembly

This motor shield covers the drive motor on top-load washers to deflect splashes, lint, and debris away from the motor and wiring. Replace a cracked or missing shield to help protect the motor assembly at the base of the machine. What it does:

• Covers the washer's drive motor to deflect incidental water and debris
• Helps protect motor windings and terminals from splashes
• Replaces a cracked, warped, or missing cover
• Common signs: visible damage, rattling from the base, or corrosion/debris buildup around the motor

• 1 motor shield

• Unplug the appliance and turn off water supply before servicing
• Access the motor area from the bottom of the cabinet; note the shield's orientation
• Remove the damaged shield and install the new shield fully seated, reusing existing fasteners/clips
• Confirm clearance from moving parts before restoring power and testing

The Direct Drive Washer Pump is an OEM part for Whirlpool washing machines. It is responsible for pumping water out of the washer during the drain cycle, ensuring that the washing machine drains efficiently after each wash.

Causes of a bad direct drive washer pump can include blockages from debris or foreign objects, wear and tear from regular use, damage to the pump impeller, or electrical issues affecting the pump motor. Over time, these factors can hinder the pump's performance, leading to operational issues.

Symptoms of a bad direct drive washer pump include:

• Washer not draining water properly
• Unusual noises during the drain cycle, such as grinding or humming
• Water leaks from the bottom of the washer
• Washing machine stopping mid-cycle due to drainage issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Related item: Motor coupling 285753A.

This motor retainer secures the motor to its mounting point, keeping the assembly tight and aligned. Replace a worn or broken retainer to cut vibration and noise and to protect nearby seals, wiring, and components. What it does:

• Holds the motor firmly in place within the assembly
• Maintains alignment for smooth, quiet operation
• Supports sealing surfaces and connections; on water-bearing assemblies, help prevent leaks
• Replace if you notice a loose or rattling motor, new vibration/noise, or signs of movement or leakage at the motor

• Includes 1 motor retainer.

• Disconnect power; turn off water supply.
• Access the motor area and support the motor before removing the old retainer.
• Inspect mating parts and seals; replace any damaged components.
• Fully seat the motor and install the new retainer securely; test for abnormal noise or leaks.

Use only in brake shoe assembly on roller & pin. Color: White/Grey.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Size: .20 Fl. Oz. (6 ml)

The Gear Case Oil is an OEM part for Whirlpool washing machines. It lubricates the gears and components within the washing machine’s transmission, ensuring smooth and efficient operation during the wash and spin cycles.

Causes of bad gear case oil can include degradation over time, contamination from water or debris, and leaks due to worn seals or gaskets.

Symptoms of a bad gear case oil include:

• Loud or unusual noises during the wash or spin cycles
• The washing machine not agitating or spinning properly
• Oil leaks visible under the washing machine
• Increased friction or overheating of the transmission components

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
