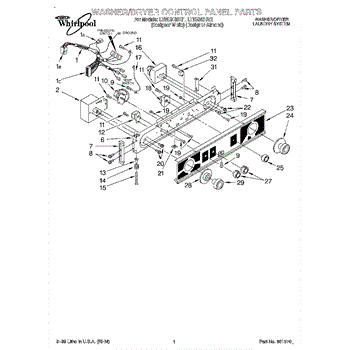

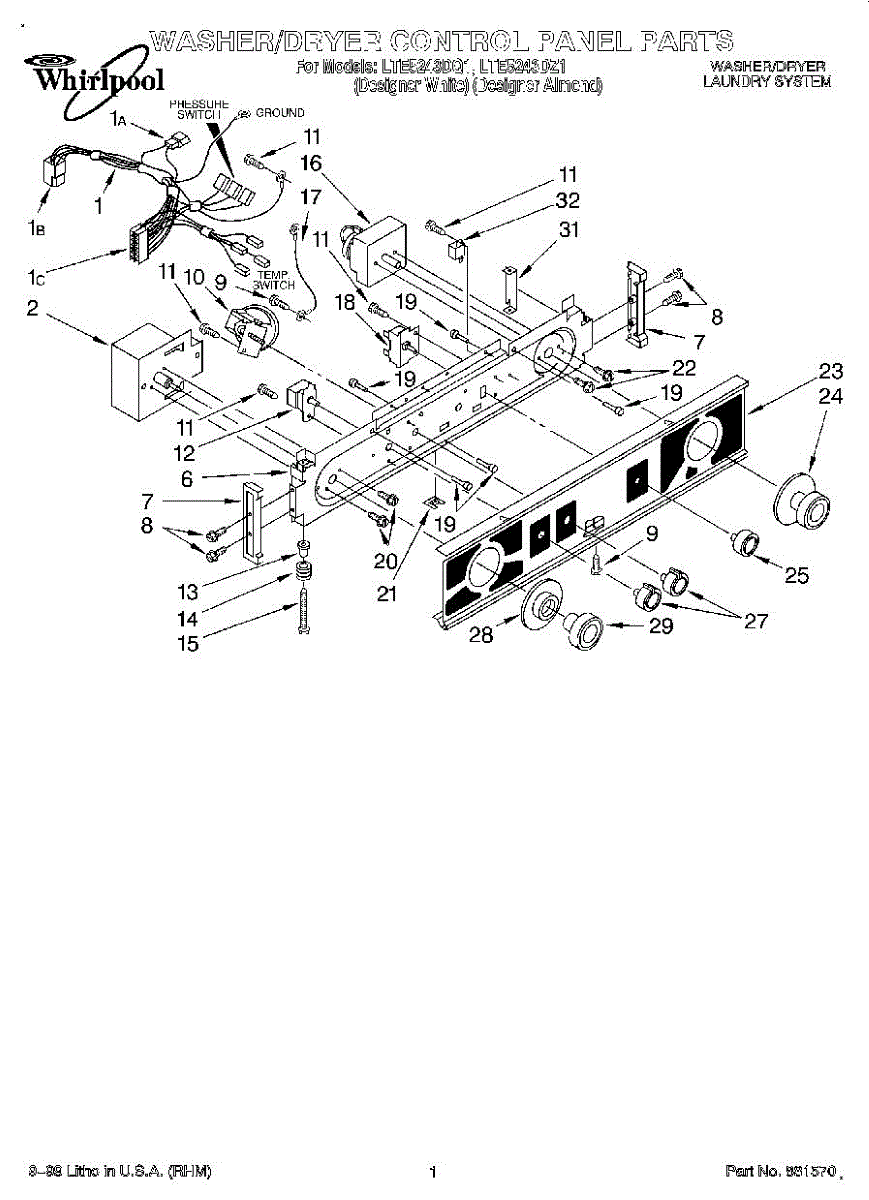

Parts for Whirlpool LTE5243DZ1: 01 - Washer / Dryer Control Panel Parts

This electrical connector safely disconnects power between the washer's motor and control circuits. Located inside the washer cabinet near the motor, it allows for safe component servicing. Replace if the washer experiences electrical issues, intermittent operation, or if the connector shows signs of burning or corrosion.

This is a 3-circuit electrical receptacle connector that provides power connections within the ice machine. It serves as the interface for internal wiring, allowing electrical components to connect securely. Replace this part if internal components are losing power intermittently or if the connector housing is cracked, melted, or shows signs of arcing.

Console wire harness connects your control panel to restore button, light, and display function. Replace if controls are unresponsive. Confirm fit by model.

If your washer won't advance through cycles, won't drain, or won't spin, the timer may be faulty. Moderately difficult repair requires console removal.

Replacement mounting bracket for washer dryer combo units. Secures internal components in place. Order if your original bracket is cracked, bent, or missing.

Size: 8-18 x 3/4 inch.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

Washer won't fill or overfills? Water level pressure switch senses tub water and controls fill cycles. Restores accurate fill levels and agitation.

10 - 16 x 1/2

Can't select water temperature on your washer dryer combo? This 4-position temperature selector switch restores cold, warm, and hot cycle control.

Replacement shaft bushing sleeve for washer dryer combo drum assemblies. Restores smooth rotation when the original is worn, cracked, or missing.

Fix a loose or non-functioning console lock with this replacement spring. Restores proper tension to the control lock mechanism. Simple repair for DIYers.

This 4-cycle dryer timer controls the sequence and duration of your drying programs. Replace it to restore proper cycle advance and automatic shut-off when the unit stalls mid-cycle or runs past the set time.

• Sequences power to the motor and heater based on the selected program
• Advances the cycle and turns the dryer off at the end of the set time
• Supports timed drying and cool-down functions
• Common symptoms of a failing timer: cycle won't advance, runs too long/short, or won't shut off at end

• Disconnect power; for gas models, shut off gas supply
• Access the control console; remove the knob and rear panel as needed
• Transfer wires one at a time to matching terminals;
• Secure the timer, reassemble the console, and test all cycles

The Start Switch is an OEM replacement part for Whirlpool dryers. It is an electronic component responsible for initiating the heating elements and tumble cycles upon user command from the control panel.

Causes of a bad start switch involve general wear over extended use. Failure of the internal conducting surfaces interrupts circuit activation as well.

Symptoms of a bad start switch include:

• Heating elements or tumble cycles that will not engage properly
• Dryer fails to operate or stops mid-cycle unexpectedly
• Control panel appears non-responsive to selections
• Error codes related to ignition or power delivery faults

Note: This dryer push-to-start switch has 2 terminals.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric dryer models.

This is a small rubber or plastic bumper that attaches to the console area of an ice machine. It acts as a cushion to prevent vibration noise and protect surfaces from impact during operation. Replace this bumper if it is cracked, missing, or deteriorated, which can cause rattling sounds or allow the console to shift out of position.

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Provides fastening with a built-in washer for even clamping and retention
• Replaces missing, stripped, or corroded hardware
• Helps address loose panels/handles and vibration or rattle noises
• Supports proper alignment of covers, brackets, and trim

• Disconnect power and shut off water or gas (as applicable) before servicing
• Match to the original fastener; location and quantity in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten; replace other severely rusted or damaged fasteners in the same area

Secures the control console to the cabinet, preventing rattles and loose movement. Replace when the panel sags or won't stay in place. Confirm fit.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

White timer knob that fits onto your dryer's timer shaft. Replace if yours is cracked, broken, worn, or missing to restore cycle selection control.

Replace your dryer's cracked, broken, or missing timer knob and dial. Restores control of timer settings. Biscuit/biscotti color finish.

Color: White.

Color: White.

Almond

White

The Washer Timer Dial is an OEM replacement part for Whirlpool washers. Positioned just behind the washer timer knob, the timer dial has a gray indicator that helps the user select the appropriate cycle. It interacts with the timer to ensure the washer operates in the correct mode and duration according to the chosen cycle.

Over time, the timer dial may degrade due to regular use, excessive force during cycle selection, or accidental impact. This can lead to inaccurate cycle selection, making it hard to use the washer efficiently.

Color: White

Symptoms of a faulty Washer Timer Dial include:

• Misalignment or sticking when choosing cycles
• Difficulty accurately selecting the desired cycle
• Cracked or broken indicator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replace your washer's control knob if it's cracked, broken, or missing. This knob installs on the control panel to operate cycle selections and settings.

The Knob is an OEM part for Whirlpool washers. This part allows users to select and control the various wash cycles and settings by turning the knob to the desired position. It fits securely onto the washer's control shaft, providing an intuitive and reliable interface for managing the washing machine's functions.

Causes of a bad knob can include regular wear and tear, damage from repeated use, or breakage due to accidental impact.

Symptoms of a bad knob include:

• The knob not turning smoothly or becoming difficult to turn
• The knob slipping off or not staying securely on the control shaft
• Inaccurate or unresponsive cycle and setting adjustments
• Visible cracks, breaks, or wear on the knob

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Control panel won't stay closed or pops open during cycles? This console lock secures the control console and prevents accidental setting changes.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Use only in brake shoe assembly on roller & pin. Color: White/Grey.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

This is a small tube of silicone-based gasket sealer used to bond and seal gaskets during washer repairs. It creates a watertight seal between mating surfaces to prevent leaks around tub components or pump housings. Use this adhesive when replacing gaskets or resealing joints where the original sealant has deteriorated and water is leaking.

Lubricates transmission gears for smooth wash and spin cycles. Replace when degraded or after transmission repairs. Verify compatibility with your model.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
