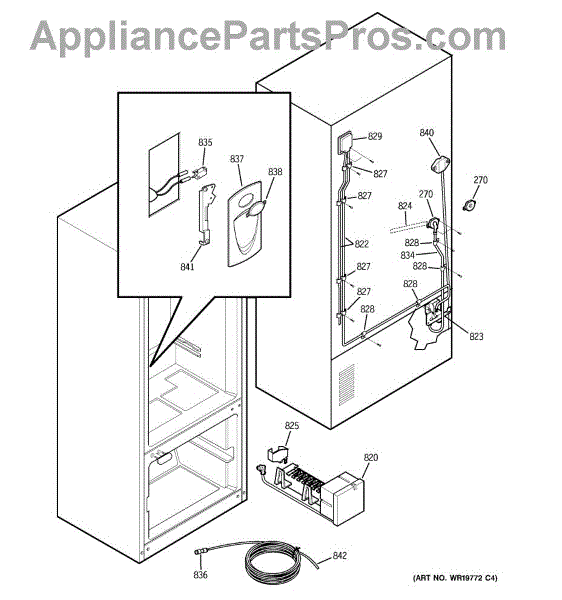

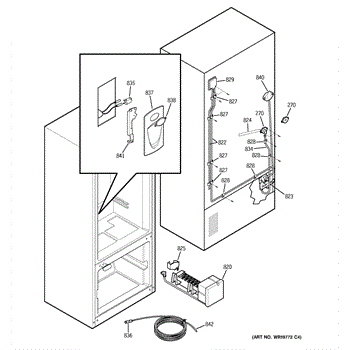

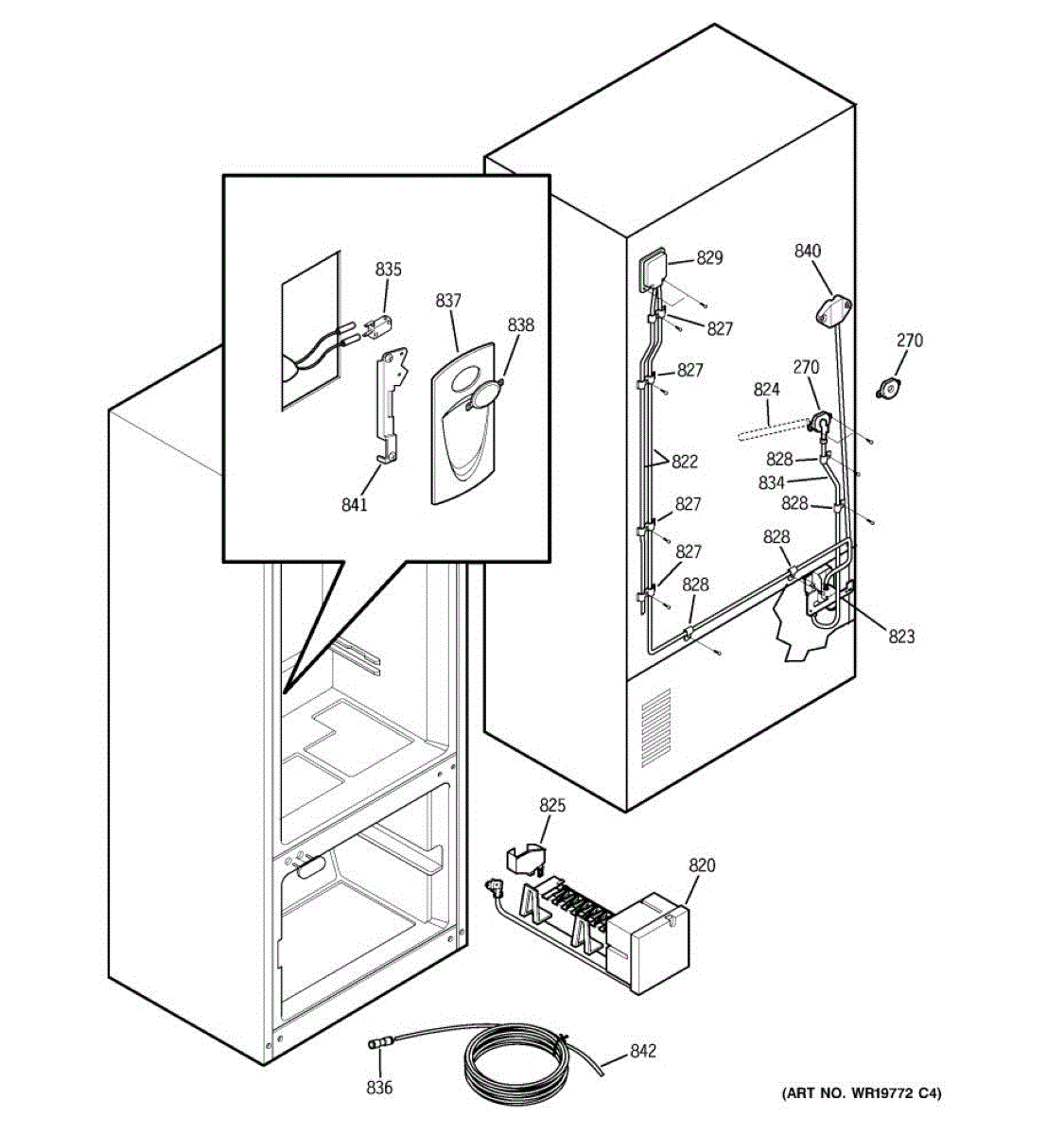

Parts for Ge PFS22MISABB: 04 - Water System Parts

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

Please note: You may also need to order an adapter. For the adapter to convert the male connector from rectangular to oval use part number WR29X10049. Water valve in kit is part# WR57X10033.

This ice maker fill cup directs water from the refrigerator fill tube into the ice maker mold so each cycle fills correctly. Replacing a damaged cup restores consistent ice production and helps prevent water spills. What it does:

• Channels water from the fill tube into the ice maker mold for proper tray filling.
• Prevents water from dripping into the freezer compartment when intact.
• A cracked, warped, or missing fill cup can cause underfilled ice cubes, overflowing molds, or water pooling in the freezer.
• Compatible with common top/front-mounted household ice makers that use a separate plastic fill cup.

• Disconnect power and shut off the water supply before starting work.
• Remove the ice bin or ice maker assembly as needed to access the fill cup.
• The cup typically snaps or slides into place; use gentle pressure and avoid forcing plastic tabs.

This refrigerator switch actuator is the small linkage that presses a microswitch when the matching lever or door moves. Replacing a worn or broken actuator helps restore reliable response when you press the control or close the door.

• Engages the microswitch when the associated lever or mechanism is pressed
• Transfers motion from the user control to trigger the intended function
• Helps maintain proper alignment for consistent switch engagement
• Common clues it's failing: no response unless pressed hard, intermittent operation, or visible damage/missing piece

• Disconnect power to the refrigerator before servicing; also turn off the water supply
• Note the actuator's orientation and take a quick photo before removal
• Use small tools to release locking tabs; avoid prying against the microswitch or wiring
• After installation, manually press the actuator to confirm the switch clicks and responds before reassembly

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
