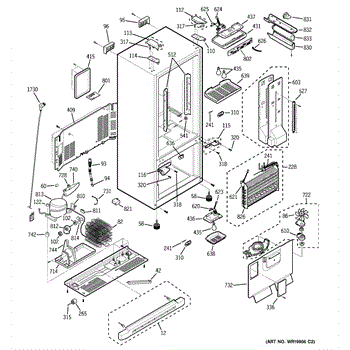

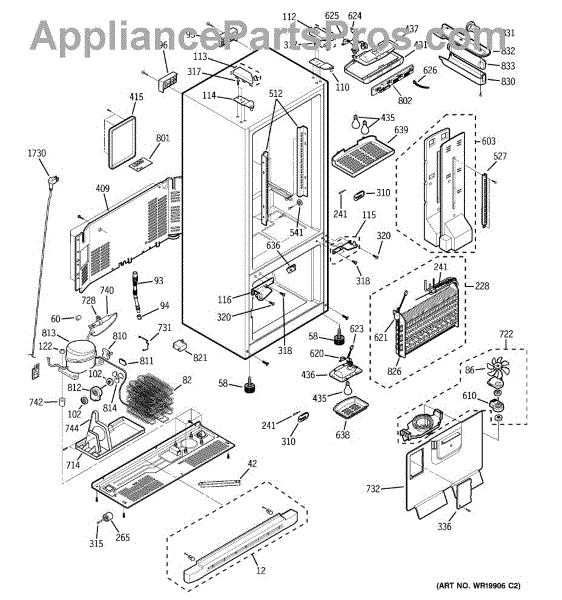

Parts for Ge PFS22MISABB: 02 - Cabinet Parts

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

This rubber damping bumper cushions and reduces vibration where two appliance components meet, helping doors and panels close more softly and preventing metal-on-metal noise and wear. It's a simple replacement that restores quieter operation. What it does:

• Absorbs shock and vibration between mating parts to reduce noise
• Helps door or panel close smoothly and prevents slamming
• Prevents direct metal-on-metal contact to reduce wear and rattles
• Small, flexible pad designed to sit in a mounting recess or on a bracket

• One rubber damping bumper

• Small part; verify mounting location and orientation before removing the old bumper
• Use basic hand tools as needed; replace only after disconnecting power if working near electrical components
• Inspect surrounding brackets and fasteners for damage and clean mounting area before installing
• If adhesive is present, allow it to cure per manufacturer instructions before normal use

This right-side cabinet support secures and aligns the appliance cabinet for proper door and panel fit, helping restore stable operation and reduce cabinet movement or gaps. It's a direct-fit replacement designed to reinstall quickly with common tools. What it does:

• Provides structural support for the appliance cabinet on the right side to prevent sagging or misalignment
• Keeps panels and doors properly aligned to stop rubbing, uneven gaps, or poor sealing
• Restores stable mounting points for attached components and hardware
• Helps reduce vibration or movement that can occur when cabinet supports are worn or damaged

• Disconnect power (and water, if applicable) before starting any repair
• Remove outer panels or trim as needed to access the right-side support; keep fasteners organized
• Use basic hand tools; verify orientation and fit before tightening all fasteners
• Replace with OEM-approved parts for secure installation

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

This evaporator fan motor assembly circulates cold air across the evaporator coils to maintain even temperatures and help the refrigerator cool efficiently. Replaces a worn or noisy evaporator fan motor to restore airflow. What it does:

• Moves air over the evaporator coils to support consistent cooling and temperature distribution.
• Helps prevent frost buildup by maintaining airflow across the evaporator.
• Reduces noise or vibration caused by a failing or unbalanced fan motor.
• Supports proper defrost performance by ensuring air circulation during cycles.

• One evaporator fan motor assembly

• Disconnect power to the appliance before inspecting or replacing the fan assembly.
• Replacement may require removing interior panels or the freezer evaporator cover; keep fasteners organized.
• Handle the fan blades carefully to avoid bending; ensure proper blade alignment on the motor shaft.

L175-20F

L140-30F

The GE Door Light Switch is an OEM Replacement Part that serves as the Freezer Door Fan and Light Switch. The switch is made from metal, wiring, and plastic. It plays an essential role in energy conservation by turning off the light when the refrigerator or freezer door is closed

Over time, the door light switch can wear out or fail due to frequent use, exposure to moisture, or electrical issues. When this happens, the interior light may not function correctly, which can hinder visibility inside the refrigerator.

Symptoms of a bad door light switch may include:

• Interior light not turning on when the door is opened
• Interior light not turning off when the door is closed
• Flickering or intermittent operation of the interior light

This switch is compatible with select GE and Hotpoint models.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Board Asm Main Control is an OEM replacement part for GE refrigerators. It serves as the electronic brain of the appliance, controlling and coordinating all the essential functions and operations of the refrigerator.

Causes of a bad refrigerator main control board can include electrical malfunctions, power surges, or physical damage due to moisture or impact over time.

Symptoms of a bad main control board include:

• The refrigerator not powering on or responding to user inputs
• Inconsistent temperature regulation or cooling performance
• Error codes or fault indicators displayed on the control panel
• Individual components or systems, like the ice maker or defrost cycle, not functioning properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the display/control circuit board for the refrigerator's user interface. It drives the temperature/readout display and processes button inputs so you can adjust settings and dispenser functions from the front panel.

• Manages the front-panel display and keypad signals
• Helps when the display is blank or dim
• Helps when buttons don't respond or settings won't change
• Helps with erratic or incorrect temperature readouts

• Disconnect power to the refrigerator before servicing
• Use proper ESD precautions when handling the board
• Take photos of wire/ribbon connections to ensure correct reassembly
• After installation, restore power and verify display and button operation

This PTC start relay and overload protector assembly mounts on the compressor. It manages compressor start-up and cuts power if overheating occurs. Replacing a failed start device may restore normal cooling and stop repeated clicking from the compressor area.

• Controls compressor start-up through a PTC start device that disengages after the motor is running
• Overload protector interrupts power if current draw or temperature is excessive to protect the compressor
• Visual clues of failure can include heat damage or a burnt odor around the start device

• Disconnect power and allow the compressor to cool before servicing
• Note wire positions; transfer wires and install the assembly on the compressor pins in the same orientation
• Ensure terminals are fully seated; do not force if fitment differs from the original
• If present, reconnect any external run capacitor exactly as originally routed

This overload relay protects and helps start the refrigerator/freezer compressor by cutting power if the motor overheats or draws excessive current. Replaces a failed relay to restore normal compressor start and protect the compressor from damage. What it does:

• Senses excessive compressor current or heat and interrupts power to prevent motor damage
• Works with the compressor start device to help the compressor start reliably
• Commonly replaces a failed relay when the compressor hums but won't start or the refrigerator is not cooling
• Helps prevent repeated compressor attempts that can trip breakers or overheat wiring

• Disconnect power to the appliance before accessing electrical components
• Handle terminals carefully; ensure correct seating on the compressor motor pins
• Only install parts that match the appliance's service literature and wiring configuration

This condenser fan motor circulates air across the refrigerator condenser to help remove heat and support efficient cooling. Replacing a faulty motor restores proper condenser airflow and can prevent temperature rise and compressor overwork. What it does:

• Spins the condenser fan to draw air across condenser coils, aiding heat dissipation
• Helps the compressor run efficiently by preventing condenser overheating
• Common symptoms of failure: refrigerator or freezer running warm, motor not running, humming, or loud/abnormal fan noise
• Can cause longer run cycles and higher energy use when airflow is restricted or stopped

• Disconnect power to the appliance before starting any repair
• Handle the fan blade and condenser fins carefully to avoid damage
• Verify wiring and mounting locations match the original; secure all connectors and fasteners

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Lower

This replacement filter bypass adapter lets a refrigerator water line run without a filter cartridge installed, providing a secure connection so the dispenser and ice maker can continue to get water when a filter is removed. What it does:

• Replaces the filter cartridge with a sealed bypass so water flows through the housing without a filter element
• Restores normal dispenser and ice maker flow after removing or bypassing a cartridge
• Prevents leaks at the filter housing when a cartridge is not installed
• Useful when using an alternate filtration system or awaiting a replacement cartridge

• Shut off the water supply and run the dispenser until flow stops before starting
• Remove the old filter or cartridge per the owner's manual, then install the bypass in the same orientation
• Inspect the housing O-ring and replace if damaged to ensure a tight seal

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation
