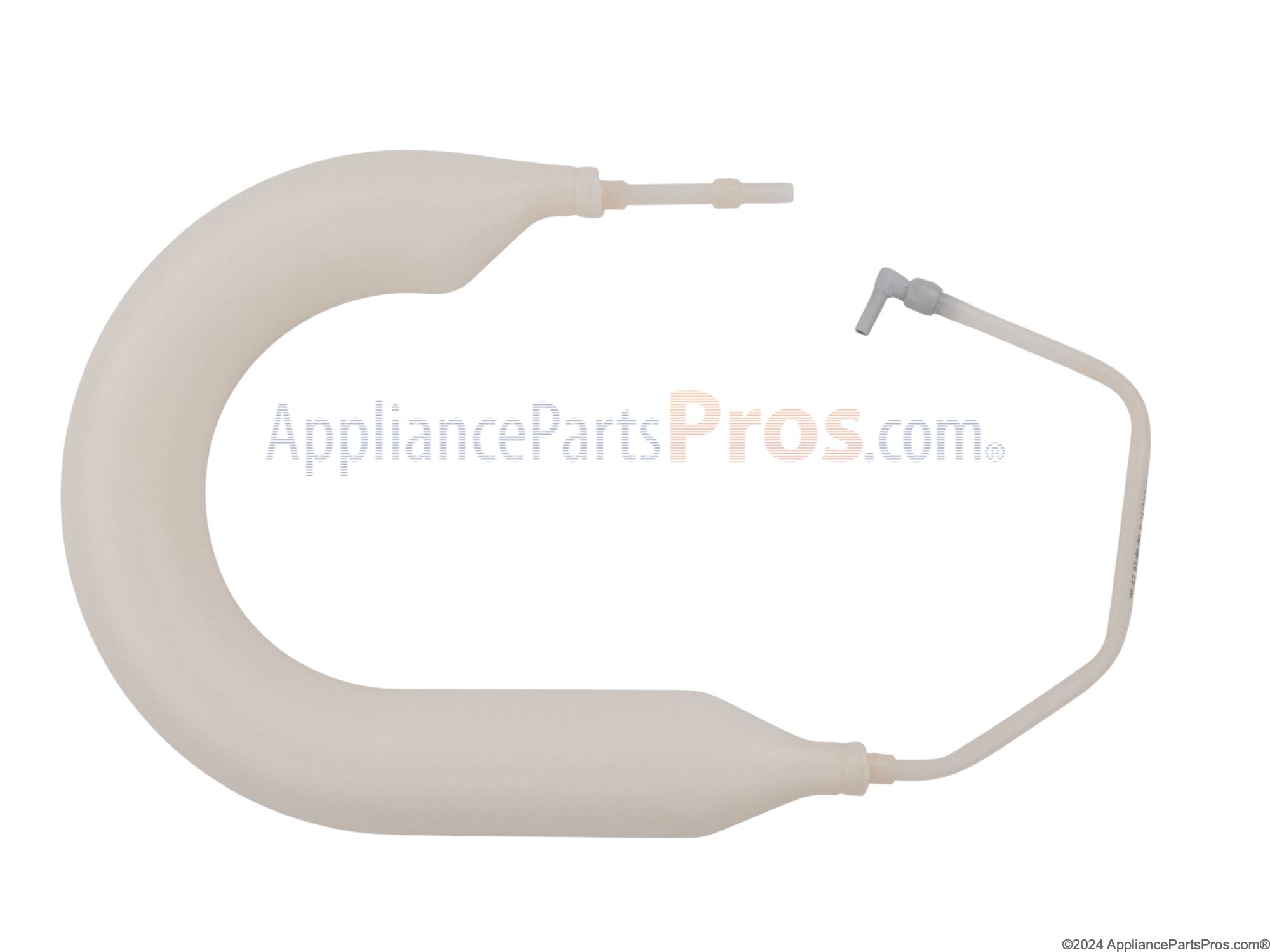

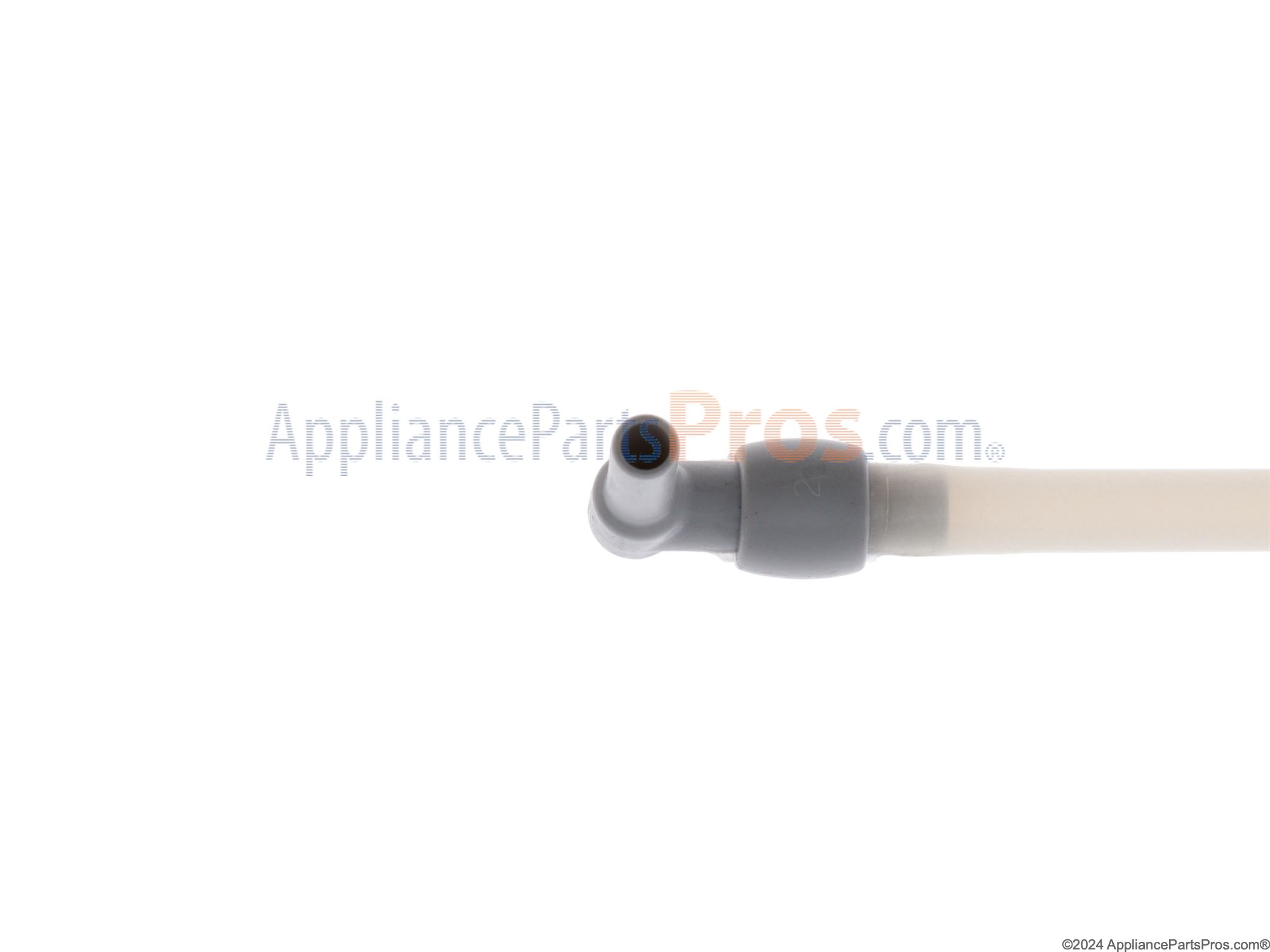

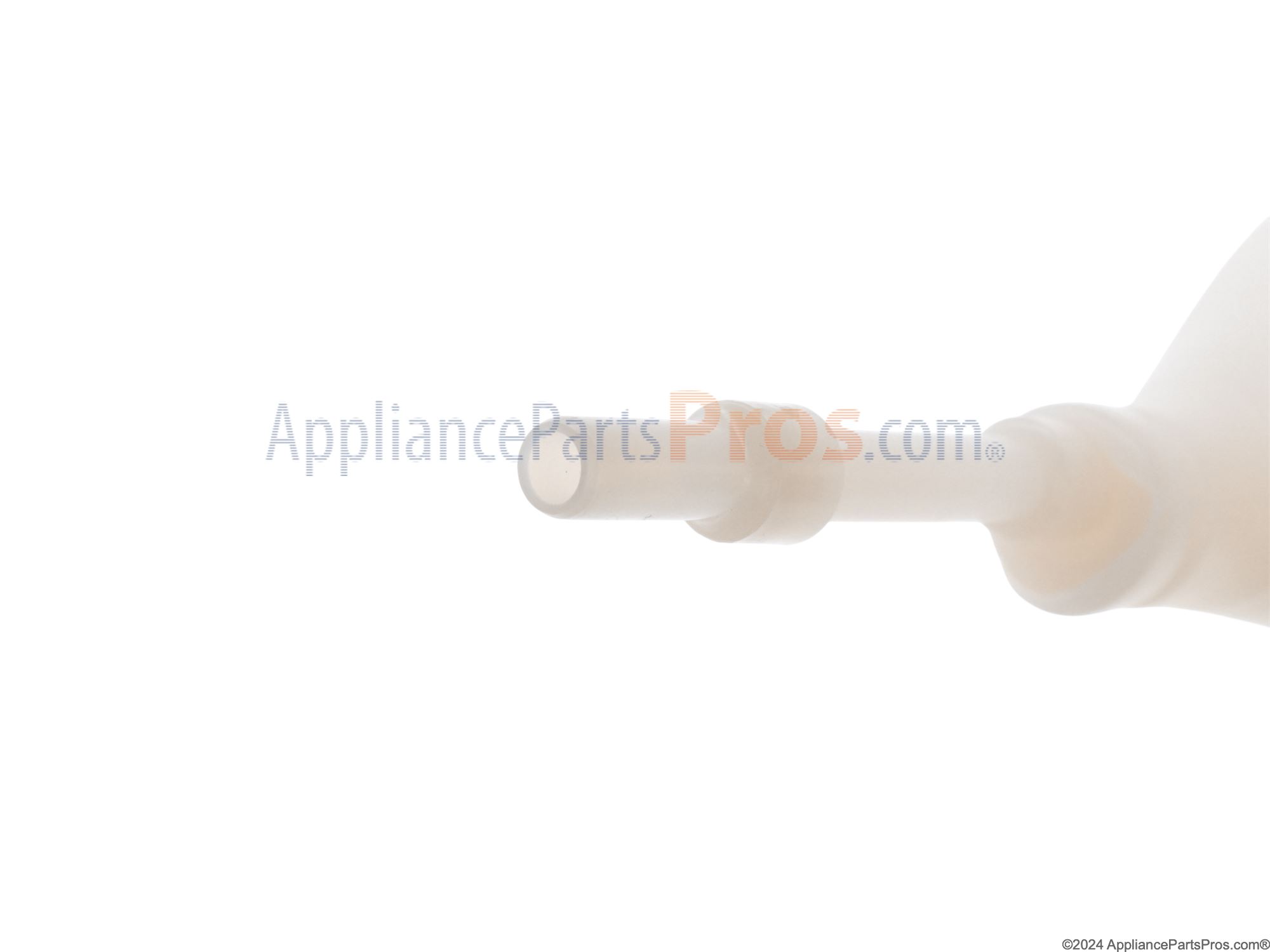

Whirlpool W11168758 Water Reservoir OEM Part

The storage device for water had a cracked fitting so when either the water or ice solenoid was activated the water ran into the compartment. I replaced the storage device (reservoir) once I figured out how to remove the upper cover in the top of the refrigerator. I needed to remove two screws located by the water filter these are the only fasterners needed to be removed, after that you need to pry down on the entire cover which is snapped in place, disconned the electrical connections and your on the road to recovery. It should be noted a appliance repair person came to the house as the refrigerator was under warranty, he could not figure how to remove the upper cover. He said he would return, never did and never returned any phone calls. The old saying is true in this case, if you want the job done right you just may have to do it yourself.....

Replaced the water reservoir. Was leaking from fitting that connects to the water filter assembly.

This bladder is located above the lights in the top of this fridge. The OEM part was cracked at would spray out at a joint when someone used the water on the front of fridge. I purchased and installed this part.

Shut off the water supply and power to the unit. I removed perishables to give myself room to work. I removed 2, 1/4" screws by the water filter and carefully pried off the the top right cover near the water filter using a putty knife to expose the wiring and water lines. I used a 1/2 wrench to depress the water line value to remove the supply lines (I used blue tape to remember/code how to put them back on) from the reservoir and the water filter housing. I cut the nylon ties securing the reservoir to the cover to remove the reservoir. It is a bit bulky because it is full of water. Be patient and careful and give yourself and 1 hour plus in time.

I replaced the filter housing and the tank supply. A bit difficult but not terrible.
