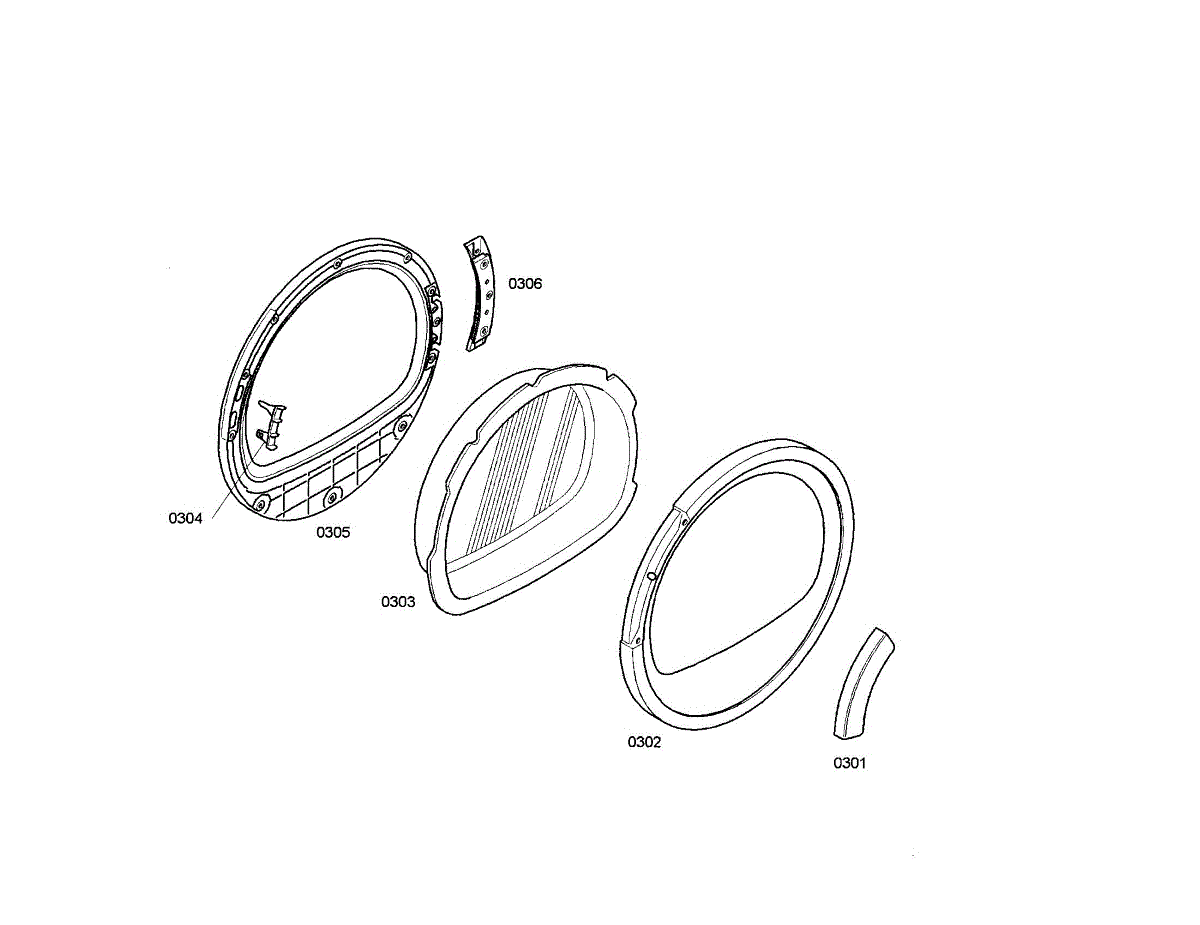

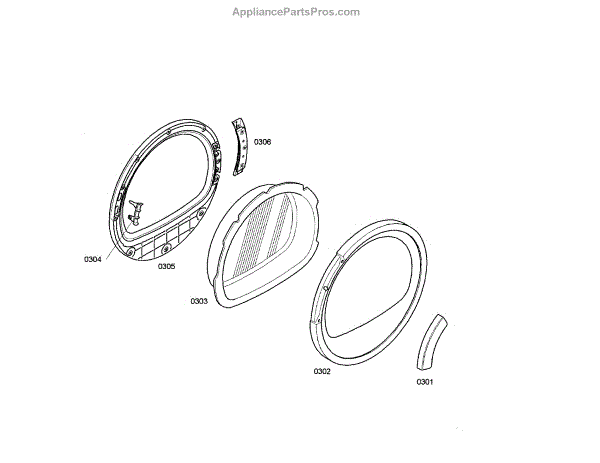

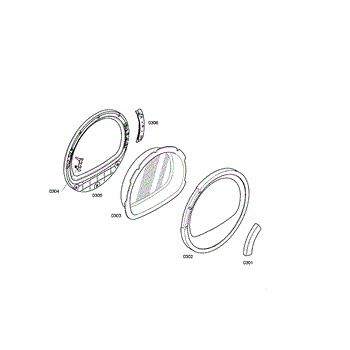

Parts for Bosch WTE86300US/01: Window Parts

This is a replacement rotary program selector knob that restores reliable selection of oven/cooktop cycles and settings. It provides a clear grip and tactile detent for accurate program changes. What it does:

• Replaces a worn, cracked, or missing program selector knob used to choose cooking or cycle settings
• Restores secure engagement so the control shaft turns and registers program selections
• Helps prevent slipping or intermittent program selection caused by a damaged knob
• Matches OEM shape and detent feel for consistent user operation

• Remove power to the appliance before servicing to avoid shock or unintended operation
• Pull the old knob straight off the control shaft; press the replacement onto the shaft until fully seated
• If knob does not seat, check the control shaft for damage or debris before forcing

This small mounting spacer positions and secures internal components, keeping proper clearance and preventing rubbing or misalignment. It helps maintain appliance performance by holding parts at the correct distance during operation. What it does:

• Creates a consistent gap between adjacent parts to prevent contact and wear
• Helps align components for smooth operation and reduced vibration
• Stabilizes assemblies to reduce noise and movement
• Protects wiring and housings by maintaining proper clearance

• Disconnect power and/or water supply before servicing the appliance
• Handle small parts carefully; keep track of fasteners and orientation for reassembly
• Replace only with the identical spacer to maintain correct fit and function

This sealing ring provides a tight, low-profile seal to help prevent water or air leaks and keep the appliance operating as designed. It restores the original sealing surface for reliable performance. What it does

• Forms a watertight/airtight barrier at the mating surface to help stop leaks and drips.
• Helps maintain correct pressure and airflow paths inside the appliance.
• Reduces risk of moisture damage to cabinet or components near the seal.
• Common symptom: visible leaking, pooling, or persistent moisture around the joint.

• Inspect mating surfaces for damage, dirt, or residue and clean before installing the seal.
• Replace only with the matching part number to ensure a proper fit and function.
• Avoid stretching, nicking, or twisting the seal during installation; seat it evenly.
• Disconnect power and water and follow manufacturer safety instructions before service.

This heating element replaces the dishwasher's wash water heater to restore normal wash and dry performance. It heats incoming water for better cleaning and helps reduce moisture left in dishes after a cycle. What it does:

• Heats dishwasher wash water to improve detergent activation and soil removal
• Supports dishwasher drying by raising interior temperature during/after the cycle
• Common symptom: dishwasher not heating water or dishes not drying properly
• Common symptom: longer-than-normal cycles or decreased cleaning performance

• Disconnect power and water before beginning repair; this part requires access to the lower tub/pump area
• Inspect and replace any tub gaskets or seals if they are damaged or leaking when reassembling
• Verify electrical connections are secure and test for continuity with a multimeter before and after installation
• If you see corrosion or other damage to mounting hardware, replace affected components to ensure a safe, watertight fit

The Limiter-Temperature is an OEM component specifically designed for select Bosch vented dryers requiring controlled heat. As a safety device, it restricts air exiting the exhaust to prevent accidental ignition of accumulated lint.

Precisely calibrated mechanothermal links automatically trip circuit breakers upon exceeding preset levels. Isolated housings shield reactive alloys from moisture while enabling thermodynamics to naturally trigger protective functions.

Causes requiring replacement involve over-heating from sustained over-drying preventing auto-stops. Physical damage exposing reactive cores could also impair intended response times.

Symptoms signaling the need for a new temperature limiter include:

• Inability to sense rising exhaust temperatures activating cutoffs
• Constantly energized heating elements lacking temperature regulation
• Excessively long or uncontrolled dry cycles posing combustion risks

This OEM Bosch replacement component is also compatible with some Gaggenau, Thermador, and select Kenmore dryers employing sensitive temperature cutoffs. Correct installation restores critical overheat protection circuits.


A temperature limiter (thermal cutoff) that helps protect the appliance by interrupting power to the heating circuit. Replaces a failed limiter to restore proper thermal protection. What it does

• Cuts power to the heater when internal temperature exceeds the designed threshold to prevent overheating.
• Commonly replaced when the appliance produces no heat or the heating element will not stay on.
• Helps stop intermittent or repeated over-temperature events that can trip other safety controls.
• Passive device with no moving parts; activates once its temperature limit is reached.

• One temperature limiter (thermal cutoff) as pictured.

• Disconnect power (and gas supply, if applicable) before accessing internal components.
• Typically mounted near the heater or on the blower housing; handle gently to avoid damaging terminals or insulation.
• Verify continuity with a multimeter before and after replacement to ensure correct operation.
• Do not operate the appliance with panels removed; follow OEM torque and fastening practices.

This high-temperature 220V, 15-watt oven light bulb restores bright interior lighting so you can monitor cooking progress without opening the door. It's built for sustained heat and replaces a burned-out or flickering lamp.

• Illuminates the oven cavity during baking, broiling, and cleaning cycles
• High-temperature design for continuous heat exposure
• Common failure symptoms: no light when switched on, dim or intermittent illumination, blackened glass, or a broken filament

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/cover; unthread and remove the old bulb
• Thread in the new bulb of the same voltage and wattage; do not overtighten
• Reinstall the cover, restore power, and test the light

This door lock/latch assembly secures the dishwasher door during operation to allow cycles to run and helps keep water inside the tub. Replaces a worn or broken latch to restore proper door closure and cycle starts. What it does:

• Secures the dishwasher door so the machine can start and run safely
• Sends the door-closed signal so wash cycles can begin
• Prevents water leaks caused by a faulty or loose latch
• Commonly used when the door won't stay closed, the cycle won't start, or the door feels loose

• Disconnect power and water supply before replacing the latch to avoid shock or unintended operation.
• Access typically requires opening the door inner panel; use proper tools to avoid damage to the door or trim.
• Retain all screws and hardware during disassembly; replace only the parts explicitly included unless other damage is found.

Thermister

The Dryer Lint Filter is an OEM component specifically designed for Bosch dryers. Located inside the dryer door, it prevents lint and other debris from escaping into the surrounding area.

Symptoms of a bad dryer lint filter include:

• Reduced airflow and inefficient drying times
• Lint accumulation inside the dryer drum and ductwork
• Excess lint in the surrounding area and on clothes

Causes of a bad lint filter can include normal wear and tear over time, or damage such as cracks or tears that compromise filtration. Failure to clean after each use also contributes to eventual clogging.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement cover restores a secure, finished closure over its designated opening, helping protect internal components from dust, moisture, and accidental contact. Replace a cracked, loose, or missing cover to maintain proper protection, fit, and appearance.

• Shields internal parts and wiring from debris and accidental contact
• Helps maintain proper sealing and airflow where applicable
• Common signs to replace: cracked, warped, broken tabs, or cover won't stay attached
• Can reduce rattling or vibration noises caused by a loose panel

• Disconnect power; if the appliance is plumbed, turn off water supply before service
• Use the correct driver to remove/replace retaining screws or clips; note orientation
• Transfer any reusable fasteners or grommets from the old part
• Do not overtighten; ensure a flush, secure fit before restoring power

The Sealing is an OEM part for Bosch dryers. This part is responsible for creating a tight seal between the dryer door and the drum, preventing heat, moisture, and lint from escaping during the drying process. It helps to maintain the ideal drying conditions inside the drum, allowing for faster and more effective drying of your laundry.

A bad sealing can occur due to wear and tear, accidental damage, or exposure to high temperatures over time. Signs of a faulty sealing include visible cracks, gaps, or a loose fit between the door and the drum.

Symptoms of a bad sealing include:

• Heat or moisture escaping from the dryer
• Excessive lint buildup around the door
• Longer drying times

Replace your worn-out or damaged dryer door sealing with this genuine OEM Bosch part to restore your dryer. This Bosch part can also be used on Thermador and Gaggenau appliances.


The Wheel is an OEM part for Bosch clothes dryers. It is an essential component that works with the drum to tumble clothes, facilitating effective drying action during cycles.

Wheels can cause shorts and come loose over time from heavy drum usage, leading to:

• Vibrating, shaking noises
• Difficulty spinning the dryer drum by hand
• Stretching or pilling of clothes
• Unerwven drying performance

Causes of a faulty wheel tend to be wear and tear over time from carrying heavy loads inside a spinning drum. Foreign objects inside the drum can also potentially cause damage.

It is also compatible with some Thermador, Gaggenau, and Kenmore dryer models.

This replacement ring fits in its designated location within your appliance to secure or space components so they operate smoothly and stay aligned. Replacing a worn or missing ring helps restore proper fit and prevent looseness and noise. What it does:

• Positions or retains a mating part within the assembly
• Maintains correct alignment/clearance between components
• Helps reduce vibration and wear from parts rubbing
• Common clues of a bad or missing ring: loose/wobbly component, rattling, misalignment, or visible damage

• 1 ring

• Disconnect power and shut off water or gas, if applicable, before servicing
• Refer to your model's service manual for access steps and orientation
• Note the ring's position before removal; seat the new ring fully and evenly
• Inspect related parts for wear and replace if damaged

This door window frame surrounds and supports the glass window in the appliance door. It secures the window and hardware so the door closes and latches properly, restoring a clean appearance and solid, rattle-free operation.

• Holds the door glass in place as part of the door assembly
• Provides mounting points for screws/clips and trim pieces
• Helps maintain alignment between the door, hinge, and latch
• Replace if the frame is cracked/warped, tabs are broken, the window feels loose, or latching becomes difficult

• Disconnect power before servicing; allow the unit to cool if recently used
• Support the door, remove fasteners, and separate the old frame carefully to avoid stressing the glass
• Transfer the door glass and any clips/screws to the new frame; ensure any gasket seats evenly if present
• Reassemble and test that the door closes and latches smoothly

This inner oven door window provides a clear, heat-resistant viewing panel so you can monitor cooking without opening the door. It restores visibility and helps the door retain heat for more consistent baking and roasting. What it does:

• Replaces a cracked, chipped, or broken oven door window to restore a safe viewing surface
• Prevents heat loss and maintains cooking temperature by sealing the door opening
• Reduces drafts and stops rattling or vibration caused by damaged glass
• Lets you check food progress without opening the door, avoiding temperature drops

• Disconnect power to the appliance and allow the oven to fully cool before servicing
• Wear cut-resistant gloves and safety glasses when handling glass to avoid injury
• Door removal or partial disassembly is often required; follow the oven's service manual
• Inspect door seals and mounting clips and replace any damaged hardware during installation

The Metal Hook is an OEM part for Bosch dryers. This metal hook works in conjunction with the door latch to securely close the dryer door, ensuring safe and efficient operation.

Causes of a bad Metal Hook can include wear and tear from regular use, accidental damage if the door is forcefully opened or closed, or corrosion over time, which can weaken the metal and impair its function.

Symptoms of a failing Metal Hook include:

• Difficulty in getting the dryer door to close or stay closed, which can prevent the dryer from operating.
• The door popping open during cycles, which poses a safety risk and disrupts the drying process.
• Visible wear, deformation, or damage to the strike that prevents it from engaging with the latch properly.
• Unusual noises from the door area, indicating a loose or malfunctioning strike.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

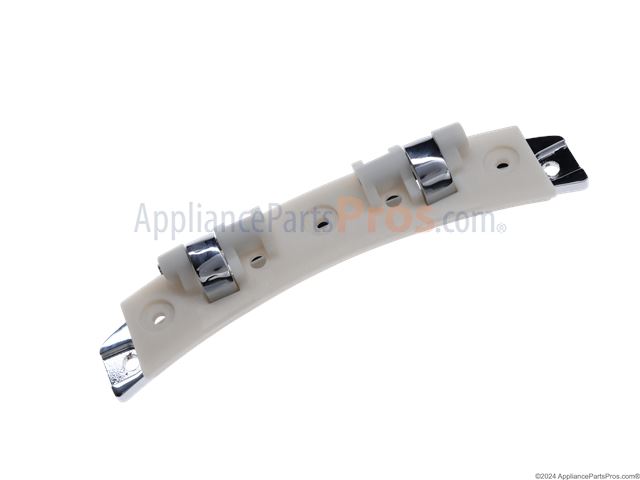

The Door Hinge is an OEM part for Bosch dryers. It provides the pivot point that allows the dryer door to smoothly swing open and closed.

Causes of a bad hinge include normal wear and tear over time, repeated heavy use, or accidental damage. Hinges experience stress every time the door is opened and closed.

Symptoms of a bad hinge can include:

• Loose or sagging door that does not latch securely
• Noisy squeaks or grinding noises from the hinge area
• Difficulty smoothly opening or closing the dryer door
• Visible damage, cracks, or loose screws on the hinge

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Drum Baffle is an OEM part for Bosch dryers. It is an internal plastic ribbed component that is securely attached inside the dryer drum.

The drum baffle helps move the clothes and helps circulate air flow evenly throughout the load during the drying cycle.

Causes of a bad baffle include normal wear and tear from extended use. Heat cycling also makes the material more brittle. Accidental damage during maintenance is possible.

Symptoms of a bad drum baffle include:

• Sections of clothes not drying fully or taking excessively long to dry
• Excessively loud vibrations or noises heard from the dryer drum
• Premature failure of other components like heating elements

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Belt Drive is an OEM part for Bosch dryers. It provides power transmission from the motor to the drum through its durable, stretch-resistant belt. Precise alignment of the belt is crucial for smooth, efficient operation.

Symptoms of a bad belt drive include slipping, squealing noises, or vibrations during use. The belt may show signs of cracking, stretching, or looseness.

Causes can be normal wear over many cycles of use, overloading the dryer with too many wet items, or accidentally impacting or bending internal components.

Causes of a bad belt drive include:

• Misalignment placing undue stress on the belt or pulleys
• Stretching, cracking, or loosening of the belt over time
• Damage to the belt from snags or debris caught in the mechanism

This OEM Bosch part is also compatible with some Kenmore, Maytag, and Whirpool dryers. Replace yours today for quiet, dependable performance.


The Bearing is an OEM part for Bosch dryers. It is a component located within the drum assembly that works to smoothly rotate the drying tumbler during the cycle.

Symptoms of a bad bearing include:

• Loud grinding or scraping noises coming from the dryer drum area
• The dryer drum fails to rotate or gets stuck during the operation
• Vibrations felt in the dryer cabinet or presenting during the operation

Over time, the constant rotation of the dryer drum can cause wear and tear on the bearings. Accidental damage during maintenance or cleaning is also possible. If any of the above issues occur, it may be time to replace this bearing.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


A replacement support mounting bracket that secures internal components and keeps assemblies aligned for reliable operation. Fits where the appliance requires a fixed bracket to hold parts in place and reduce movement. What it does:

• Provides a stable mounting point for internal components and assemblies
• Helps maintain proper alignment to prevent binding or rubbing
• Reduces vibration and movement that can cause noise or wear
• Restores secure attachment when original bracket is cracked, bent, or missing

• Disconnect power and water before starting any repair
• Basic hand tools are typically required; follow the service manual for exact steps
• Inspect surrounding parts and fasteners; replace any damaged screws or clips

This is a replacement seal used to restore a watertight connection and help prevent leaks in compatible appliances. It provides a simple, low-cost way to replace a worn or damaged sealing element. What it does:

• Creates a secure, leak-resistant barrier at the mating surfaces where installed
• Helps stop visible leaks and drip symptoms associated with damaged seals
• Restores intended sealing performance when original gasket or seal is deteriorated

• Inspect mating surfaces for damage or debris and clean before installing the new seal
• Make sure the seal seats evenly and is fully inserted into its groove or recess
• Replace only with the correct OEM part number for a proper fit
• Disconnect power and water supply and follow appliance safety procedures before servicing

The Drum is an OEM part for Bosch dryers. Located inside the cabinet, this drum holds clothes during the drying cycle.

Causes of a bad drum can include rusting from wear over many cycles, dents from heavy loads impacting the surface, or cracked welds compromising integrity.

Symptoms of a bad drum include:

• Excessive drying times or wet clothes after cycles
• Noise or vibration due to an imbalance
• Loose or detached mounting points
• Chaffed or ruined clothing from rough surfaces

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Foot is an OEM component specifically designed for select Bosch dryers. It securely elevates the appliance above the floor for ventilation purposes. Rigid plastic construction supports weight distribution evenly during cycles.

Causes of a bad foot can involve normal wear from long-term appliance positioning. Exposure to moisture or impacts posing cracking and weakening risks over time necessitate replacement.

Causes of a bad foot include:

• Dryer is unstable and rocks or sways more than usual
• Scratches or damage to flooring surfaces it contacts
• Uneven drying performance from improper elevation

Symptoms of a bad foot include collapsed or unstable base structure inhibiting dependable operation. Timely replacement ensures correct height positioning.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dryers. Replace to properly elevate your unit and maximize airflow circulation.


This part is a dryer motor assembly. It is located on the back of the appliance. The part is responsible for turning the dryer blower and drum. Make sure the dryer is free of lint and regularly clean the dryer vents to keep the motor assembly in good shape. If the motor assembly is damaged or malfunctioning, it may cause the dryer to hum. The dryer may also have difficulty spinning.If the motor assembly has gone bad, it should be replaced. Unplug the dryer and consider work gloves to protect the hands. Remove the lint screen and housing, the lid, and the wire harness plug. Take off the front panel and unhook it from the hinges. Remove the pulley and belt to reach the drive motor. Take out the clamps and pull the motor assembly out. Place the new one in the same location and reassemble the dryer.Designed for dryers manufactured by Bosch, this motor assembly is sold individually. It is a genuine OEM replacement part that has been directly obtained from the manufacturer.

The Tension Roller is an OEM part for Bosch dryers. This part maintains the correct tension on the drive belt to ensure smooth and efficient operation. The tension roller ensures that the belt is tightly secured around the drum, allowing it to rotate smoothly and evenly during cycles.

The need for replacement can stem from normal wear and tear over time, as the roller can become worn or damaged, affecting its ability to maintain proper tension on the belt.

Symptoms of a failing Tension Roller include:

• Unusual noises, such as squeaking or grinding, coming from the dryer when it is running.
• The dryer drum not spinning correctly or at all, which can occur if the tension roller is not providing the necessary support and tension for the belt.
• Excessive vibration during operation, suggesting that the drive belt is not tensioned properly

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Drive Belt is an OEM part for Bosch dryers. It works to transfer power from the dryer motor to the drum, helping rotate and tumble clothes during the drying cycle.

Causes of a bad drive belt usually come down to regular use over several years. Infrequent belt replacement intervals can lead to premature failure.

Symptoms of a bad drive belt can include:

• The dryer not starting or not completing full cycles
• Loud squealing or slipping noises coming from the dryer
• Visible cracking, fraying, or looseness of the belt

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This fan drum is the rotating blower housing that moves air through the dryer to dry clothes and vent moisture. Replacing a worn or damaged fan drum restores airflow for more consistent drying and helps prevent overheating. What it does:

• Houses the blower/fan and directs airflow from the drum to the exhaust
• Ensures consistent air movement for efficient drying performance
• Worn, cracked, or warped drums can cause poor airflow, longer dry times, or unusual noises
• Can reduce lint buildup in the vent path when intact and correctly installed

• Disconnect power and gas before beginning any repair
• Replacement typically requires access to the dryer cabinet and removal of the front or rear panel
• Inspect adjoining seals, fan/fan wheel, and mounting hardware for wear and replace as needed

This replacement fan drum directs airflow inside the dryer to help move heated air through the drum and vent system, restoring proper ventilation and reducing rubbing or noise caused by a damaged housing. What it does

• Channels air from the blower into and through the dryer drum for effective airflow
• Helps maintain consistent drying performance when the housing is intact
• Stops rubbing, scraping, or vibration caused by a cracked or warped fan drum
• Works with the blower assembly and drum to prevent airflow restrictions that can cause longer dry times

• One fan drum housing

• Disconnect power (and turn off gas supply for gas models) before servicing
• Handle sharp edges carefully; wear gloves
• Replacement may require removing the dryer top/front panel and drum;

This metal paper capacitor replaces a failed film capacitor in household appliances to help stabilize voltage and support reliable electrical operation. It's used where the control or motor circuit needs clean, steady capacitance for proper function. What it does:

• Smooths and stabilizes voltage to reduce electrical noise and spikes
• Helps motors and control circuits start and run more reliably
• Can reduce intermittent operation, sputtering or weak motor performance
• Prevents control errors caused by unstable supply to electronic components

• Always disconnect the appliance from power before accessing electrical components
• Discharge the capacitor safely before handling to avoid shock
• Inspect mounting and wiring for heat or corrosion; replace connectors if damaged

This replacement lid is the top cover that protects internal components and restores the appliance's finished appearance. It helps keep water, dust, and debris out of the cabinet while providing a secure closure for normal use. What it does:

• Covers and protects internal components from moisture, lint, and debris
• Restores a flush, finished look to the appliance top and control area
• Helps the appliance maintain proper sealing and alignment at the top panel
• Replaces cracked, warped, or missing lids that can expose internal parts

• Disconnect power and water before starting any repair.
• Handle carefully to avoid scratching the finish; use proper lifting/support for larger lids.
• Basic hand tools are typically required; follow the appliance service manual for disassembly/reassembly steps.

The condensation pump is an OEM part compatible with Bosch dryers. It plays a crucial role in removing the condensed water from the dryer during the drying cycle, ensuring efficient and proper operation.

Symptoms of a bad dryer pump include:

• Water leakage from the dryer
• Excessive moisture or dampness in the drum after a cycle
• Loud or unusual noises during operation
• Error codes or indicators related to drainage issues

Causes of a bad pump can range from clogs or obstructions in the drainage system, worn-out seals or bearings within the pump, or electrical malfunctions that prevent the pump from functioning correctly.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dryer models.

This hose connection inlet provides the sealed connection point where the appliance's water inlet hose mates to the valve or tub, restoring a leak-free water feed and reliable flow for normal operation. What it does

• Connects the inlet water hose to the appliance inlet fitting or valve, directing water into the unit
• Creates a sealed joint to prevent drips and leaks at the hose connection
• Replaces cracked, worn, or damaged fittings that can cause visible leaks or reduced water flow
• Helps resolve symptoms such as water pooling under the appliance, continuous dripping, or inlet hose not seating properly

• One hose connection inlet

• Always disconnect power and shut off the water supply before starting work
• Inspect and replace any worn O-rings, gaskets, or clamps when installing this fitting
• Hand-start threads, then tighten clamps or fasteners to secure the hose; avoid over-tightening plastic parts
• After installation, restore water and power and check carefully for leaks during a short test cycle

This fill hose routes water from the supply or inlet valve to the appliance tub, restoring normal water flow for cycles that need filling. It's a direct-replacement hose designed to prevent leaks and ensure proper fill performance. What it does:

• Carries incoming water from the inlet valve to the washer/dish tub or dispenser
• Replaces cracked, split or collapsed hose that causes leaks or poor filling
• Helps stop continuous running or under-fill symptoms when the hose is damaged
• Restores a proper water path so fill cycles complete correctly

• One replacement fill hose

• Turn off water supply and power to the appliance before starting work
• Inspect and reuse or replace hose clamps; tighten securely to prevent leaks
• Route hose without kinks and ensure fittings match valve and tub connections

This replacement cover restores the appliance's protective housing, shielding internal components from debris and moisture to help maintain safe operation. It fits into the original mounting points for a direct, secure replacement. What it does:

• Replaces a damaged or missing housing cover to protect motors, switches, or electronics from contaminants
• Helps reduce the risk of water intrusion in the covered area when properly installed
• Restores the original barrier that prevents accidental contact with internal parts
• Fits where the factory cover was designed to install without modification

• One replacement cover as shown

• Turn off power and disconnect the appliance before removing the old cover
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the new cover

This access panel cover protects internal components and keeps wiring and mechanisms enclosed for safe, reliable operation. It restores the appliance's exterior finish and helps prevent debris from entering sensitive areas. What it does

• Shields internal parts and wiring from dust, moisture, and accidental contact
• Helps maintain correct airflow and component spacing behind the panel
• Stops rattles and vibration-related noise when properly seated
• Common symptom fix: cracked, loose, or missing cover causing exposed components or unusual noise

• One access panel cover

• Refer to your model's service manual for correct removal and reinstallation steps
• Disconnect power before starting any repair
• Use proper fasteners and align tabs to avoid damaging mounting clips or the cover
• If clips or screws are broken, replace them to ensure a secure fit

The Cover is an OEM part for Bosch dryers. It provides an additional seal over the removable lint filter compartment inside the dryer cabinet.

Causes of a bad filter cover can be general wear and stress from repeated removal and replacement of the lint filter over extended use. Heat cycling during drying may also cause plastic material fatigue and impact integrity.

Symptoms of a bad dryer filter cover include:

• Cracks, warping or holes in the material compromising the seal
• Inability to properly protect the internal lint filter from accumulation
• Excessive airflow and circulation that impacts drying efficiency

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

A mechanical door latch assembly that secures the dishwasher door during operation to allow cycles to run and help prevent water leaks. Replaces a worn or broken latch so the door closes and locks reliably. What it does

• Secures and locks the dishwasher door so the control can start and maintain a wash cycle.
• Stops the door from reopening mid-cycle, helping prevent water spills.
• Can resolve symptoms such as the dishwasher not starting, displays error codes related to door/latch, or a loose/broken door catch.
• Operates as the physical locking mechanism — no electronic control functions included.

• One mechanical door latch assembly.

• Disconnect power to the appliance before beginning work to avoid shock; turn off water if accessing inner panels.
• Remove the inner door panel or access panel to access and replace the latch; keep fasteners organized.
• Verify correct alignment and smooth operation of the latch before reassembling the door panels; do not force parts.

This dishwasher heat exchanger is the side-tank assembly that tempers incoming water and provides a cooled surface for condensation drying. Replacing a cracked or clogged tank restores proper fill, helps drying performance, and stops nuisance leaks. What it does:

• Routes and tempers incoming water before it enters the tub
• Provides a cold surface to condense steam for improved drying
• Assists controlled water flow/level management during fill
• Common symptoms when failed: leaks into the base, leak/error alerts, slow/insufficient fill, and poor drying

• 1 heat exchanger assembly

• Disconnect power and shut off the water supply before service
• Pull the dishwasher out as needed to access the side tank area
• Expect residual water; use towels and a container when removing hoses
• Transfer and securely reinstall existing clamps/seals; verify all connections are seated and leak-free before reinstallation and test run

This outlet hose is the dishwasher drain hose that carries wastewater from the pump to your household drain, restoring proper draining and helping prevent water pooling or leaks under the appliance. What it does:

• Channels wastewater from the dishwasher pump to the home drain line
• Replaces cracked, collapsed, or kinked hoses that can cause slow or no draining
• Use when the dishwasher leaves water in the tub, leaks at the base, or you hear unusual pump noise while draining
• Attaches to the pump outlet and drain plumbing and is secured with hose clamps

• Always disconnect power and shut off the water supply before servicing the appliance
• Remove the lower access panel to reach the pump outlet and existing hose; loosen clamps to remove the old hose
• Route the new hose without sharp bends or kinks and secure both ends with appropriate hose clamps
• After installation, restore power/water and run a short drain cycle; inspect connections for leaks

This holder is a replacement mounting bracket that secures a small internal component in place to restore proper alignment and support. It helps keep parts stable so the appliance operates as intended. What it does

• Secures and supports an internal component to prevent movement or misalignment
• Replaces cracked, broken, or worn mounting points that allow rattling or improper part position
• Restores stable contact where a loose component causes intermittent operation or noise
• Fits a specific OEM location; use the part number to confirm exact application

• One replacement holder/mounting bracket

• Disconnect power and water before starting any repairs
• Inspect surrounding clips or fasteners and reuse or replace as needed—this part typically snaps or screws into place
• Handle plastic mounting parts gently to avoid cracking during installation

This replacement sheet is a protective metal panel that helps shield internal components and restore proper fit where the original panel is damaged or missing. It's a direct-fit repair part used in appliance body and interior assemblies. What it does:

• Shields internal wiring and components from contact, debris, and minor impacts
• Helps maintain proper airflow paths and component spacing inside the appliance
• Can reduce rattles or vibration caused by a loose or damaged panel
• Restores a finished appearance when the original sheet is bent, corroded, or missing

• Disconnect power (and water if applicable) before starting any repair
• Handle edges carefully; sheet metal can be sharp—wear gloves and eye protection
• Removal/replacement typically requires basic hand tools; follow the appliance service manual for exact fastener locations
