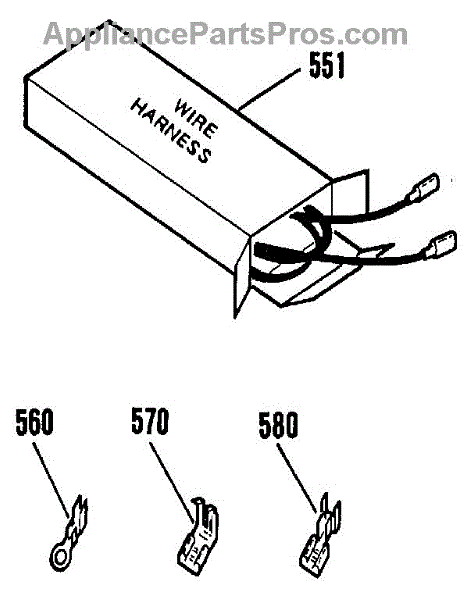

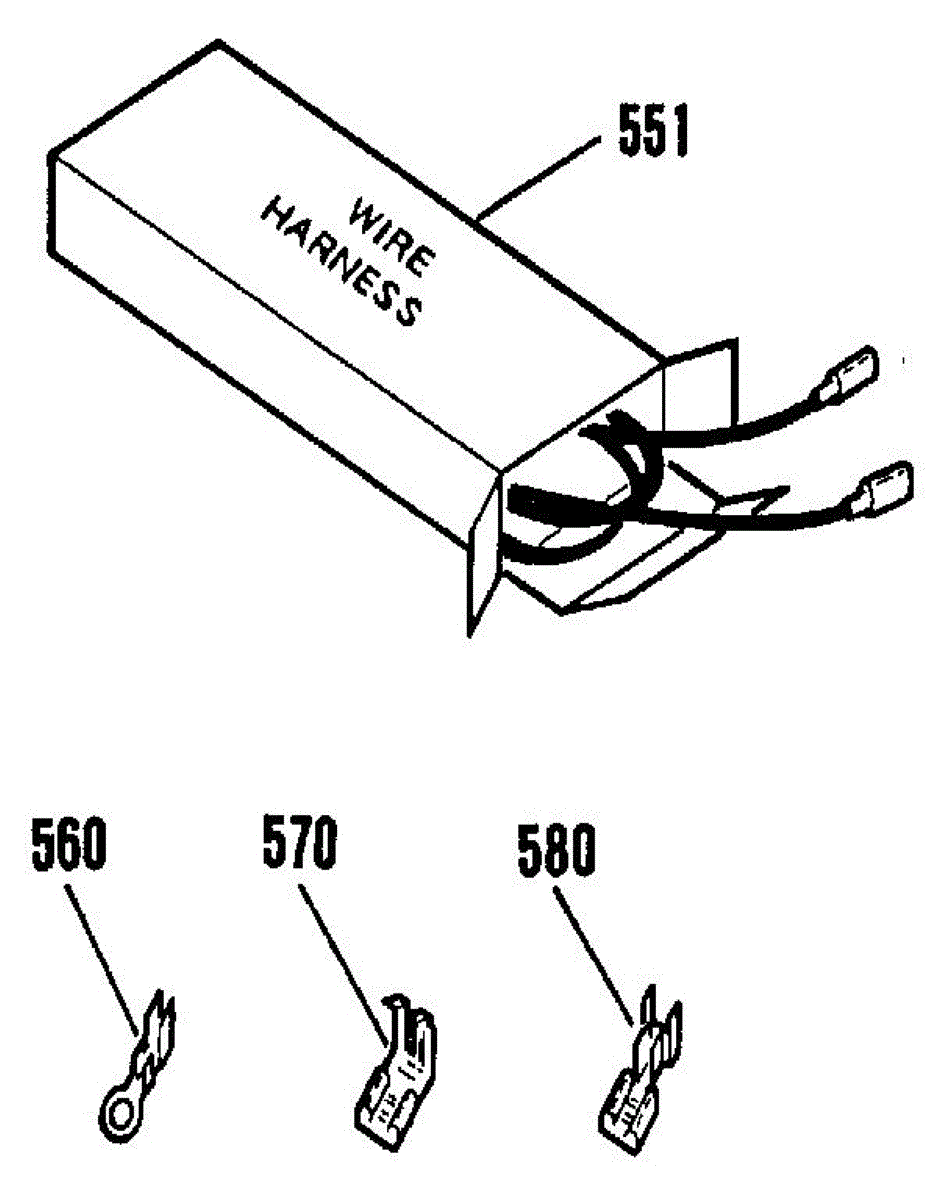

Parts for Kenmore 911.7312190 (9117312190, 911 7312190): Wire Harness And Components Parts

This main wiring harness routes power and signals between the appliance control and components so the unit's controls operate correctly. It replaces a damaged or burnt harness to restore reliable electrical connections and control responsiveness. What it does:

• Carries power and control signals between the main control board and other components
• Restores intermittent or non-working controls caused by damaged, chafed, or burnt wires
• Prevents shorts and electrical fault conditions from exposed or broken wiring
• Ensures connectors mate correctly for consistent operation of motors, valves, and sensors

• Disconnect appliance power at the breaker or unplug before starting service
• Match all connectors and wire routing to the original harness to avoid pin mis-wiring
• Inspect connector ends and mating pins; replace if corroded or damaged

This printed user manual provides the original owner's instructions, safety information, and basic operating guidance to help you use and maintain your appliance correctly. Clear illustrations and step-by-step guidance simplify everyday tasks. What it does:

• Explains controls, normal operation, and recommended maintenance to help keep the appliance running as intended
• Describes safety precautions and warnings to reduce risk during use and service
• Outlines basic troubleshooting steps and symptom guidance to identify common issues
• Provides care and cleaning instructions to protect finishes and components

• One printed user/owner's manual

• No tools or installation required; retain the manual with the appliance for reference
• Read safety and operating sections before first use
• Replace if the manual is lost or damaged to ensure continued safe operation
