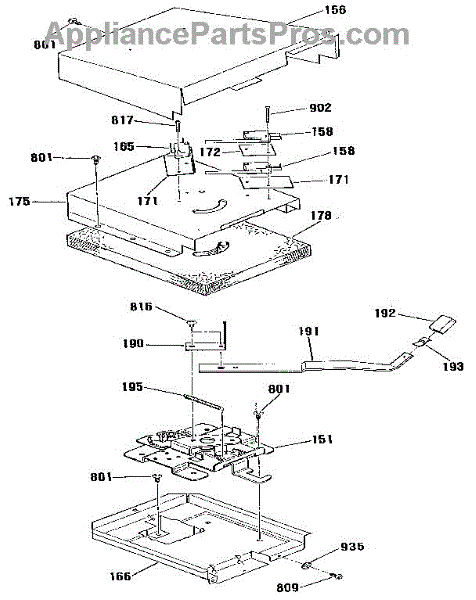

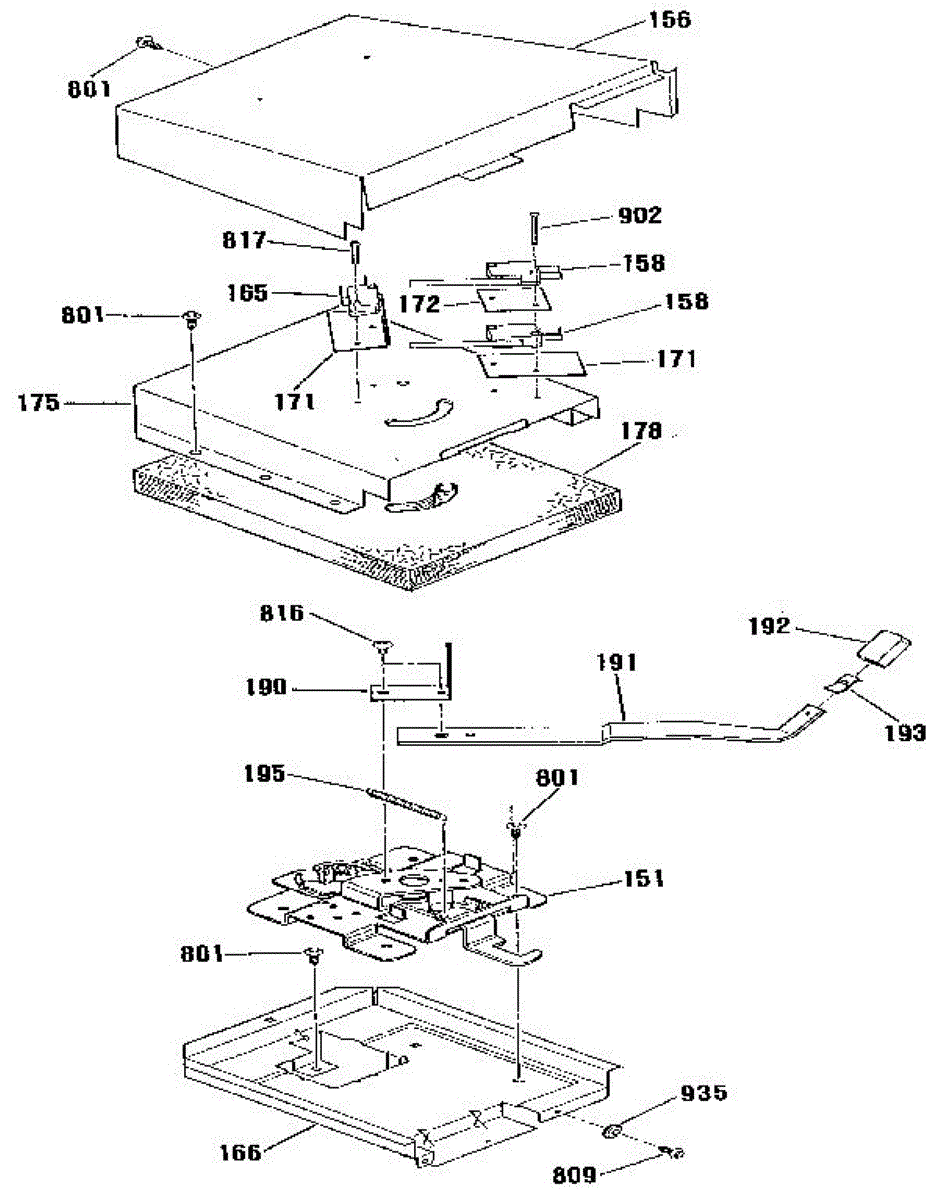

Parts for Kenmore 911.7312190 (9117312190, 911 7312190): Door Lock Section Parts

Replaces a broken or worn oven door latch handle rod. This pin connects the door handle to the latch mechanism for smooth operation and secure closure.

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

A replacement 10-24 x 1/4 machine screw that secures panels and components in place, restoring proper fit and reducing rattles or loose parts. Small but essential for assembly and trim fastening on compatible appliances. What it does:

• Fastens appliance panels, brackets, and small components using a 10-24 threaded connection
• Stops loose or rattling trim, control panels, and internal brackets when the original screw is missing or damaged
• Matches OEM thread and length for correct fit where specified
• Used wherever a short 10-24 machine screw is required to secure parts

• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Replace with the same part number to ensure proper thread engagement and fit
• Disconnect power and follow appliance safety procedures before accessing internal areas

Replace a cracked, worn, or missing washer in your oven or range. This small metal component ensures secure fastening of internal parts and panels.

This printed user manual provides the original owner's instructions, safety information, and basic operating guidance to help you use and maintain your appliance correctly. Clear illustrations and step-by-step guidance simplify everyday tasks. What it does:

• Explains controls, normal operation, and recommended maintenance to help keep the appliance running as intended
• Describes safety precautions and warnings to reduce risk during use and service
• Outlines basic troubleshooting steps and symptom guidance to identify common issues
• Provides care and cleaning instructions to protect finishes and components

• One printed user/owner's manual

• No tools or installation required; retain the manual with the appliance for reference
• Read safety and operating sections before first use
• Replace if the manual is lost or damaged to ensure continued safe operation
