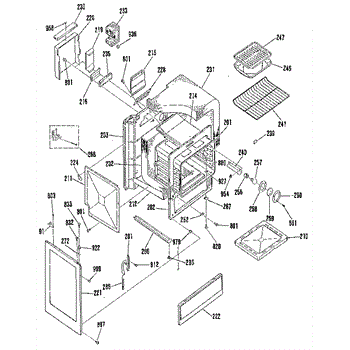

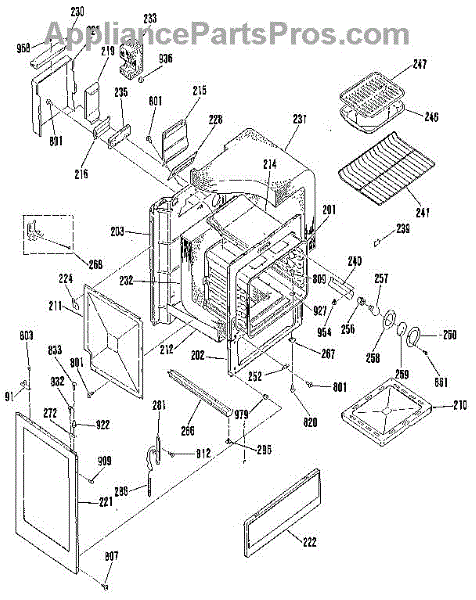

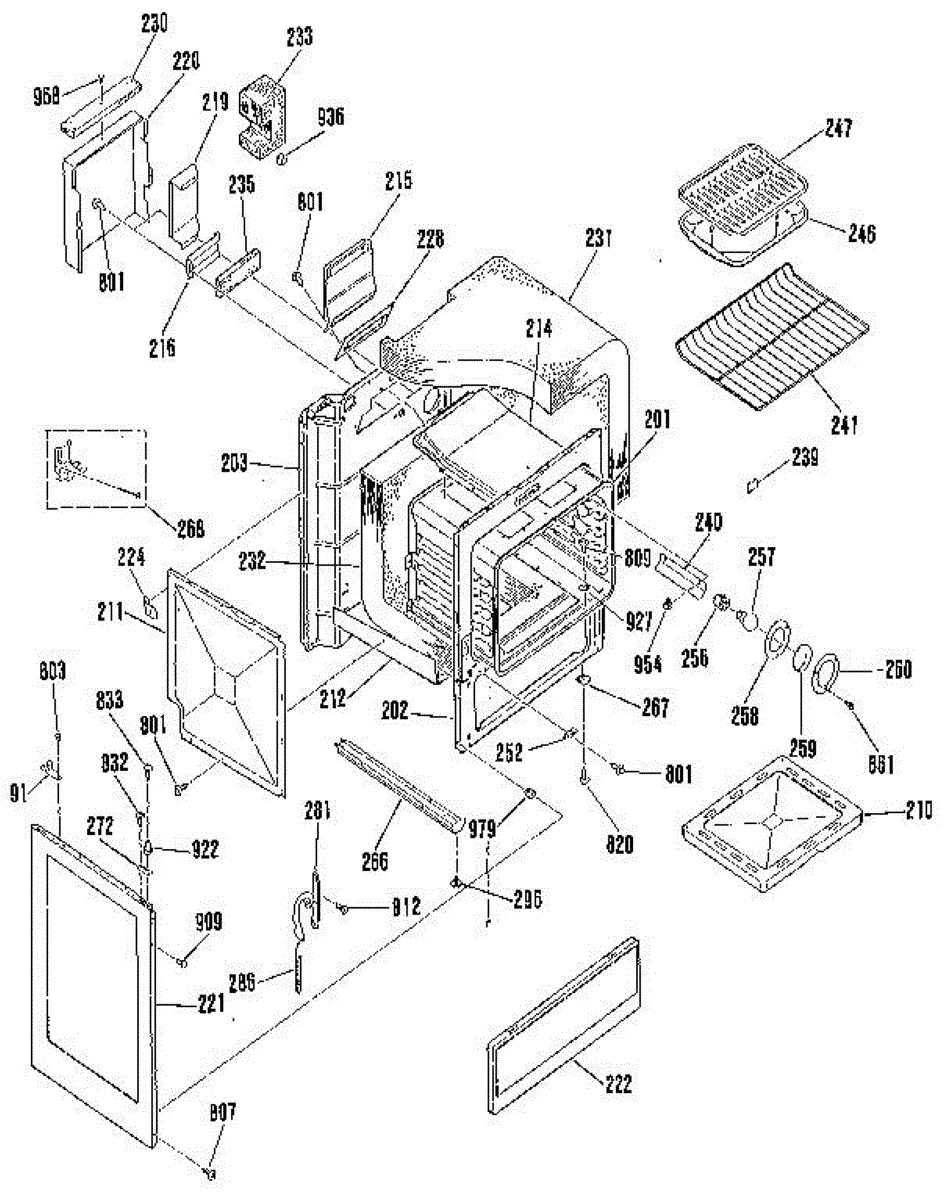

Parts for Kenmore 911.7312190 (9117312190, 911 7312190): Body Section Parts

Oven cavity wrapper assembly that forms the outer cabinet structure. Replace if your wrapper is cracked, damaged, rusted, or missing components.

This insulation retainer secures oven cavity or range insulation panels to internal sheet metal, helping keep insulation in place for efficient heat management and safe operation. Fits behind panels where insulation requires fastening. What it does:

• Holds heating appliance insulation against the cabinet or inner liner to prevent shifting
• Helps maintain proper heat containment and reduce hot spots
• Can prevent insulation from contacting electrical components or heating elements
• Common symptom: insulation coming loose or visible gaps behind the inner panel

• Basic hand tools may be required; disconnect power before servicing the appliance
• Work with cool, empty appliance cavities to avoid burns or injury
• Inspect surrounding insulation and fasteners; replace any damaged insulation or clips as needed

Insulation panel that installs at the back bottom of your range. Replace if original is damaged, deteriorated, missing, or no longer provides heat protection.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Replace your oven light bulb socket to restore interior lighting. Fixes flickering or non-working oven lights. Confirm fit with your model number.

Chain from floor to range design

Left side oven door hinge provides smooth opening and closing operation. Replace if cracked, seized, worn, or binding. Mounts to oven cavity interior.

Replaces a cracked, worn, or broken oven door hinge. Installs on the right side, allowing the door to open and close smoothly and securely.

ST10-16 X 7/16"

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

This replacement screw fastens panels, brackets, or trim inside your appliance. Swapping in a new screw restores a tight, secure fit and helps stop rattles, looseness, or misalignment caused by missing or damaged hardware.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain proper alignment and spacing of components
• Replaces missing, rusted, or stripped hardware
• Helps resolve loose panels/handles, vibration, or rattling noises

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location; start threads by hand to avoid cross-threading
• Use the appropriate driver and tighten snugly without overtightening
• Inspect the mounting hole or clip for damage and address as needed before reassembly

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Package of 12

Nickel

Mounting screw for ranges and ovens. Secures internal components and panels. Replace if screw is stripped, missing, or no longer holds parts firmly in place.

This push-type plastic rivet is a small fastening clip that secures trim, panels and lightweight components on appliances. It replaces worn or broken rivets to restore a snug fit and reduce rattles or loose trim. What it does:

• Secures interior or exterior trim, panels and access covers
• Holds wiring harnesses or insulation in place where a low-profile fastener is required
• Replaces missing or damaged rivets that cause loose panels or vibration noise
• Simple push-in design creates a firm hold without screws or adhesives

• Disconnect power to the appliance before working on panels or wiring
• Push the rivet stem into the hole until it snaps; remove by prying out the center pin or using pliers
• Use the same style and size rivet as the original to ensure proper fit and retention
• Protect surrounding surfaces from tools and work deliberately to avoid damage

Includes 12 washers.

Expansion nut spacer for electric ranges and ovens. Secures components and maintains proper spacing. Replace if cracked, stripped, or missing.

This printed user manual provides the original owner's instructions, safety information, and basic operating guidance to help you use and maintain your appliance correctly. Clear illustrations and step-by-step guidance simplify everyday tasks. What it does:

• Explains controls, normal operation, and recommended maintenance to help keep the appliance running as intended
• Describes safety precautions and warnings to reduce risk during use and service
• Outlines basic troubleshooting steps and symptom guidance to identify common issues
• Provides care and cleaning instructions to protect finishes and components

• One printed user/owner's manual

• No tools or installation required; retain the manual with the appliance for reference
• Read safety and operating sections before first use
• Replace if the manual is lost or damaged to ensure continued safe operation
