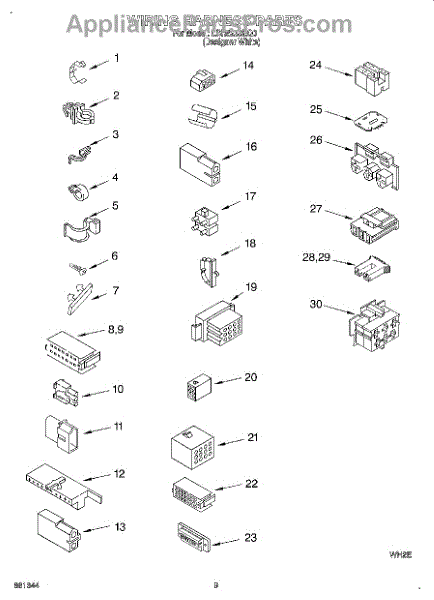

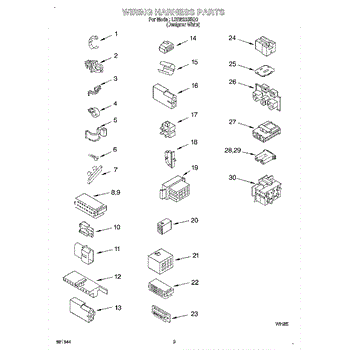

Parts for Whirlpool LSR5233EQ0: 06 - Wiring Harness Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Used from harness to top.

Harness retainer secures wiring harnesses inside your washer cabinet. Replace if cracked, broken, or missing to properly route and protect wires.

Wire connector block for washers. Transfers electrical connections between wiring harnesses. Replace if connector housing is cracked or melted.

Used for lid switch.

For mating plug use 691707.

This 10-circuit connector housing provides a secure plug-style connection for the appliance wiring harness, restoring reliable electrical contact where the original plastic connector is cracked or melted. It helps ensure circuits stay seated and insulated. What it does:

• Replaces a damaged or cracked 10-circuit plastic connector housing to restore a proper plug connection
• Secures wiring harness terminals to prevent intermittent power or signal loss
• Keeps electrical contacts insulated from vibration and moisture
• Useful when the mating connector body is broken, burned, or otherwise unusable

• One 10-circuit connector housing

• Disconnect power to the appliance before starting any repairs
• Verify terminal pin type and wiring orientation before removing the old housing; take a photo for reference
• This listing is for the housing only; transfer existing terminals/pins or replace pins with exact matches as needed

Push-in.

For terminal use WP596797.

For terminal use WP596797.

For terminal use 689173.

Water temperature control board.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This three-circuit connector housing organizes and protects terminals in an appliance wiring harness. It provides a secure, insulated plug connection to help prevent loose contacts, heat damage, and intermittent operation when the original housing is cracked or melted. What it does:

• Holds three wiring terminals in the correct orientation for a mating connector
• Insulates and locks terminals to reduce arcing and overheating at the plug
• Replaces cracked, brittle, or heat-damaged connector housings
• Symptoms can include intermittent power, burnt odor near the connector, discoloration/melting, or a plug that won't stay latched

• 1 three-circuit connector housing

• Disconnect power before servicing the appliance
• Note wire/terminal positions and transfer them one at a time into the new housing
• Inspect terminals; replace any that are discolored, loose, or damaged. Use the correct crimp tool/terminals specified for your model
• Fully seat each terminal until it locks and the connector latch engages securely

Used for the pressure switch.

Used for the temperature switch.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Use only in brake shoe assembly on roller & pin. Color: White/Grey.

Catches lint, threads, and strings.

Repair manual for top loading automatic direct drive washing machines made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.
