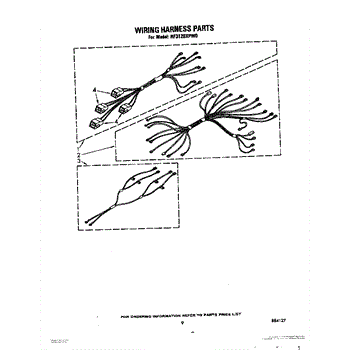

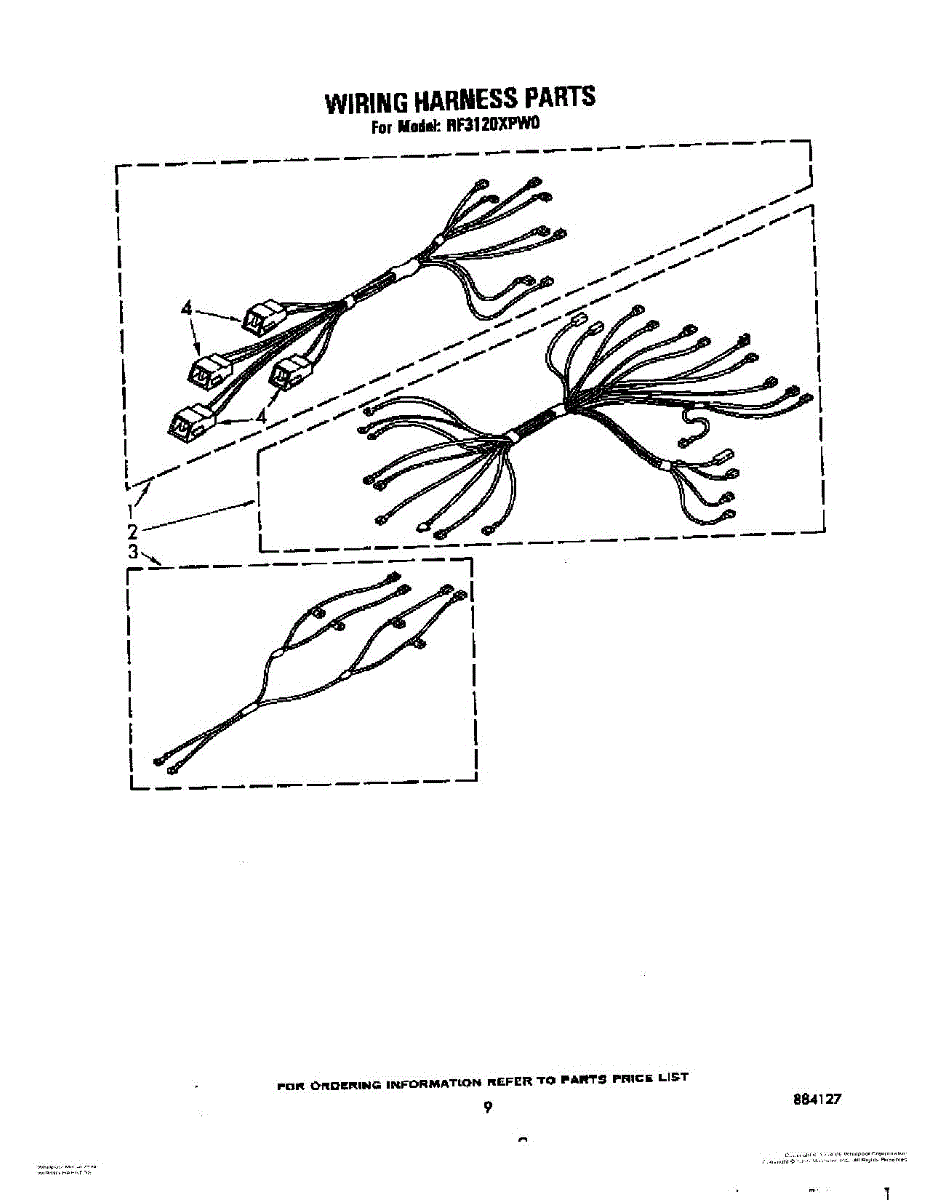

Parts for Whirlpool RF3120XPW0: 07 - Wiring Harness Parts

This top burner valve controls gas flow to the front cooking burner, restoring proper ignition and flame control so the burner lights and heats reliably. Designed as a direct replacement to repair gas range cooktop function. What it does:

• Regulates gas flow to the front top burner for proper ignition and steady flame
• Helps resolve no-ignite or weak/low-flame conditions at the front burner
• Stops intermittent flame outages or inconsistently sized flames on the front burner
• Restores normal burner response to the range's control knob

• One top burner valve as shown

• Turn off gas supply and power to the appliance before servicing
• Follow OEM service manual instructions; use proper tools and replacement procedures
• If you detect a strong gas odor or suspect a leak, stop.

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
