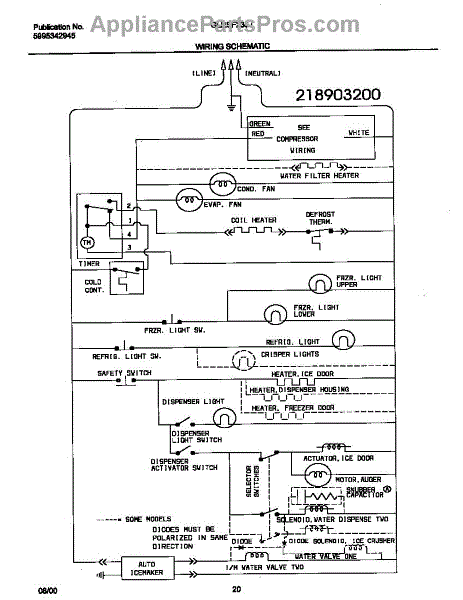

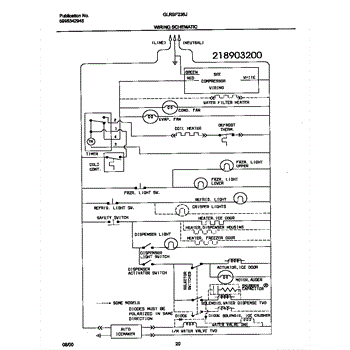

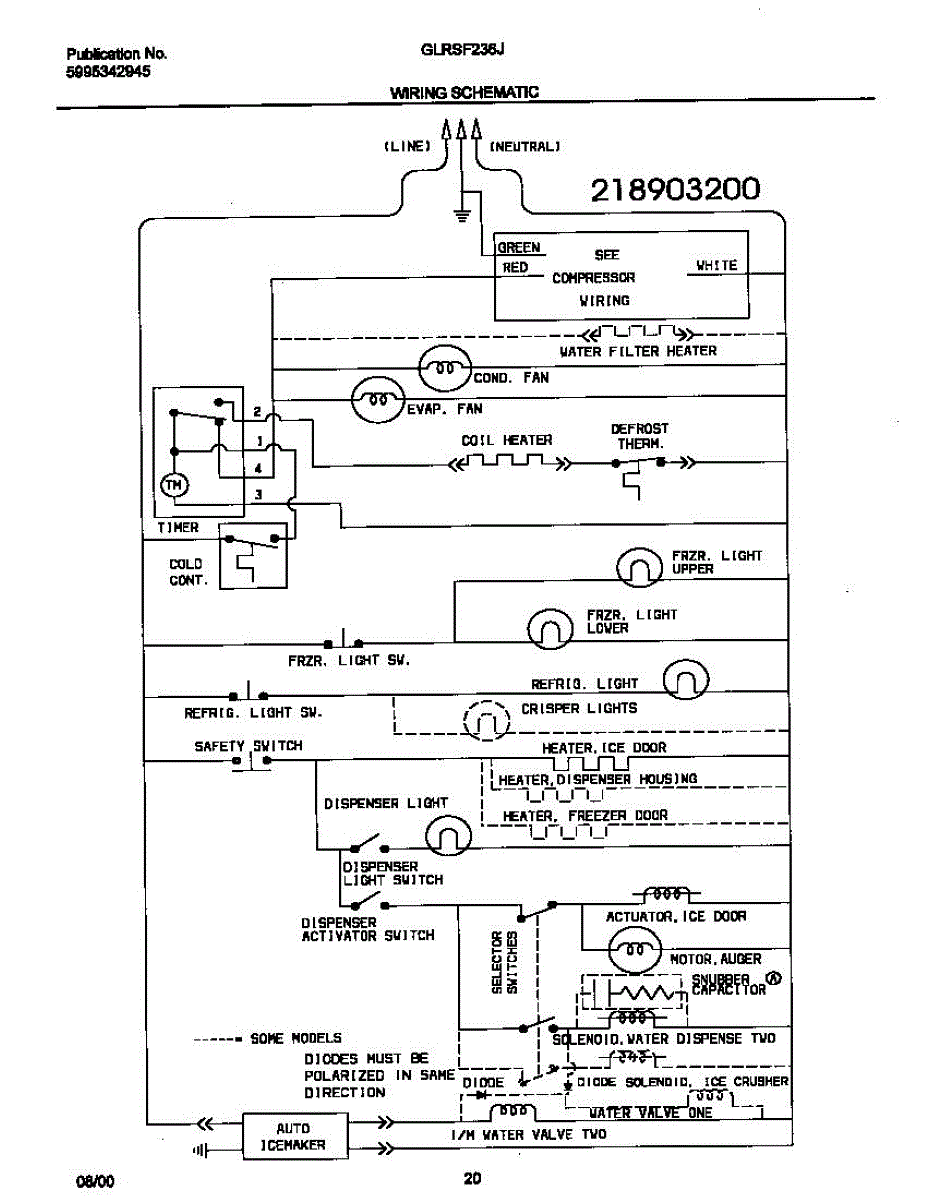

Parts for Frigidaire GLRSF236JD1: 11 - Wiring Schematic Parts

Plastic spacer that maintains proper distance between refrigerator shelves. Replace if cracked, broken, or missing to restore correct shelf positioning.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

This spacer tube positions and supports a refrigerator tube or small component to keep lines aligned and reduce vibration. Replaces a worn or missing spacer to help stop rubbing, rattling, or misalignment of tubing or nearby parts. What it does:

• Holds and centers a tube or small assembly to maintain proper clearance
• Prevents tubing from rubbing against cabinet walls or other components
• Reduces vibration and noise caused by loose or misaligned lines
• Helps maintain correct routing to lower risk of chafing or wear

• Disconnect power and shut off water supply before starting
• Typically installs by sliding or snapping onto the tube or mounting boss; minimal tools needed
• Inspect surrounding tubing and clips; replace any damaged fasteners to ensure secure routing

Refrigerator foam tape seals gaps and reduces vibration. Replace if worn, compressed, or causing air leaks. Verify fit with your model number.

Wiring harness that connects the auger motor to the refrigerator's electrical system. Replace if wires are frayed, damaged, or connections are loose.

Water valve cap for side-by-side refrigerators. Covers and protects the water inlet valve connection. Replace if cracked, broken, or missing.

Color: Black

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

Sliding damper control for refrigerator crisper drawer. Adjusts airflow and humidity to preserve fruits and vegetables. Replace if broken or missing.

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

Replacement water line tube for refrigerators. Connects water supply to dispenser or ice maker. Replace if cracked, kinked, leaking, or damaged.

Secures cantilever shelves to prevent shifting or slipping. Replace if cracked, broken, or missing to restore stable shelf support. Confirm fit with model.

Right hand side. For left hand side use 215002301

#10 OD, steel

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Replacement shelf support grommet for refrigerators and freezers. Provides stability for shelves. Replace if broken, missing, or worn to restore proper shelf support.

Nylon washer for the evaporator fan motor shaft in refrigerators. Replace if worn, cracked, or missing to ensure proper fan alignment and operation.

Seals water filter housing to prevent leaks in your refrigerator. Replace if water leaks when changing filters. Verify fit with your model number.

This complete ice maker unit produces and dispenses ice cubes in your refrigerator's freezer compartment. It includes all internal mechanisms for water filling, freezing, and ice ejection cycles. Install this assembly if your ice maker has stopped producing ice, makes unusual noises, or produces malformed ice cubes.

Ice won't dispense through the door? A broken auger or cracked ice bin causes this. This complete ice container assembly is a simple slide-in fix in 5 minutes.
