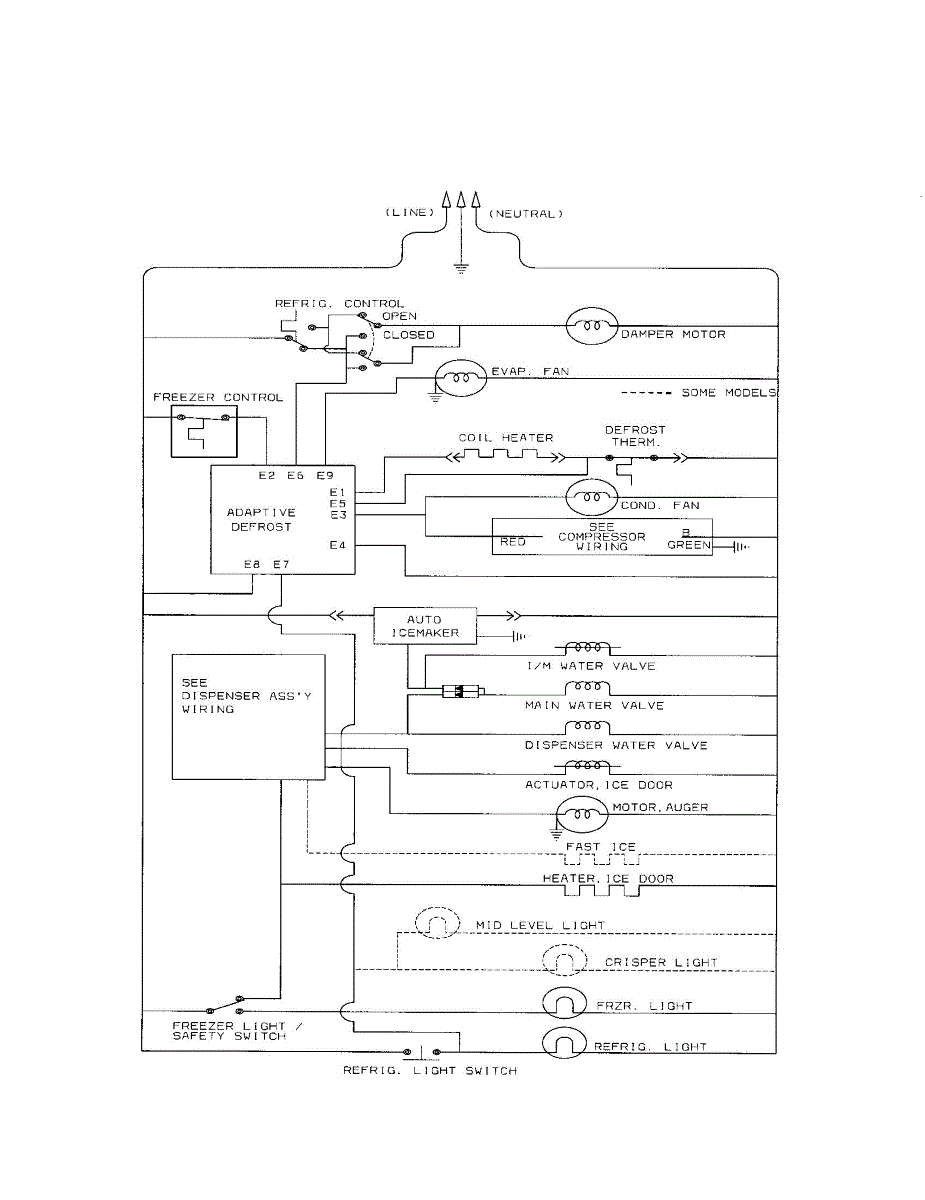

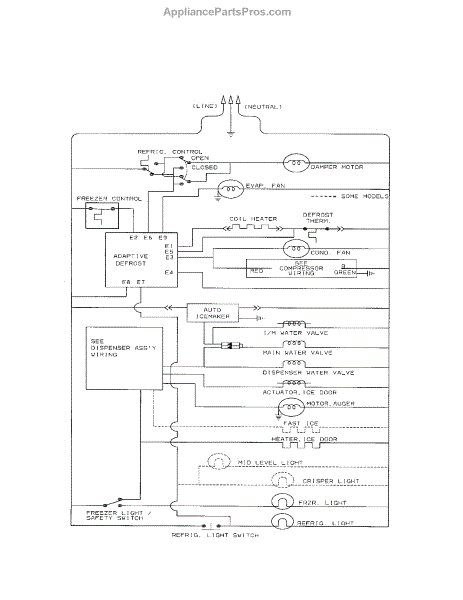

Parts for Kenmore 253.52649301 (25352649301, 253 52649301): Wiring Schematic Parts

This is a push on John Guess design elbow used to connect two 5/16" plastic lines together.

Fix frozen water dispenser issues with this dispenser heater kit. Prevents ice buildup in the fill tube and restores water flow to your refrigerator.

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

Color: White

Touch-up paint for appliances to cover scratches, chips, and worn areas on exterior surfaces. Restores appearance of refrigerators, ranges, and more.

Protects wiring harness edges in your refrigerator from wear and abrasion. Replace if cracked, broken, or missing to prevent wire damage and insulation.

Refrigerator not cooling properly? This heat exchanger kit improves cooling efficiency in the sealed system. Moderate difficulty repair for side-by-side models.

Refrigerator not dispensing ice or making grinding noises? This ice container assembly stores ice and includes the auger mechanism. Easy DIY repair.

Fix ice maker overfilling, water spillage, or no ice production. Includes cover, fill cup, bail arm, and harness. Easy 5-10 minute DIY install.
