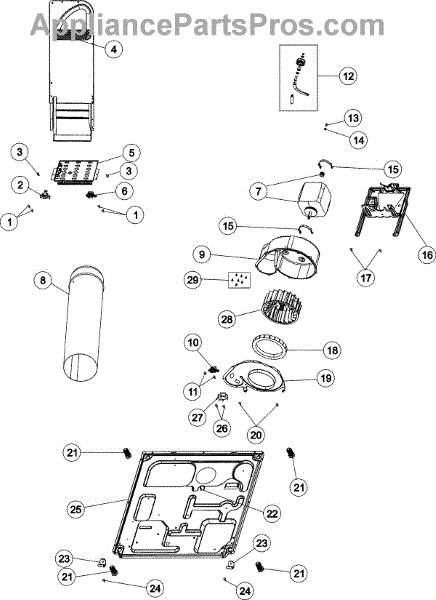

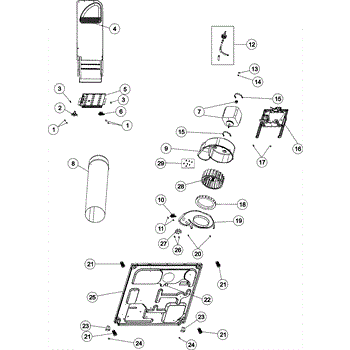

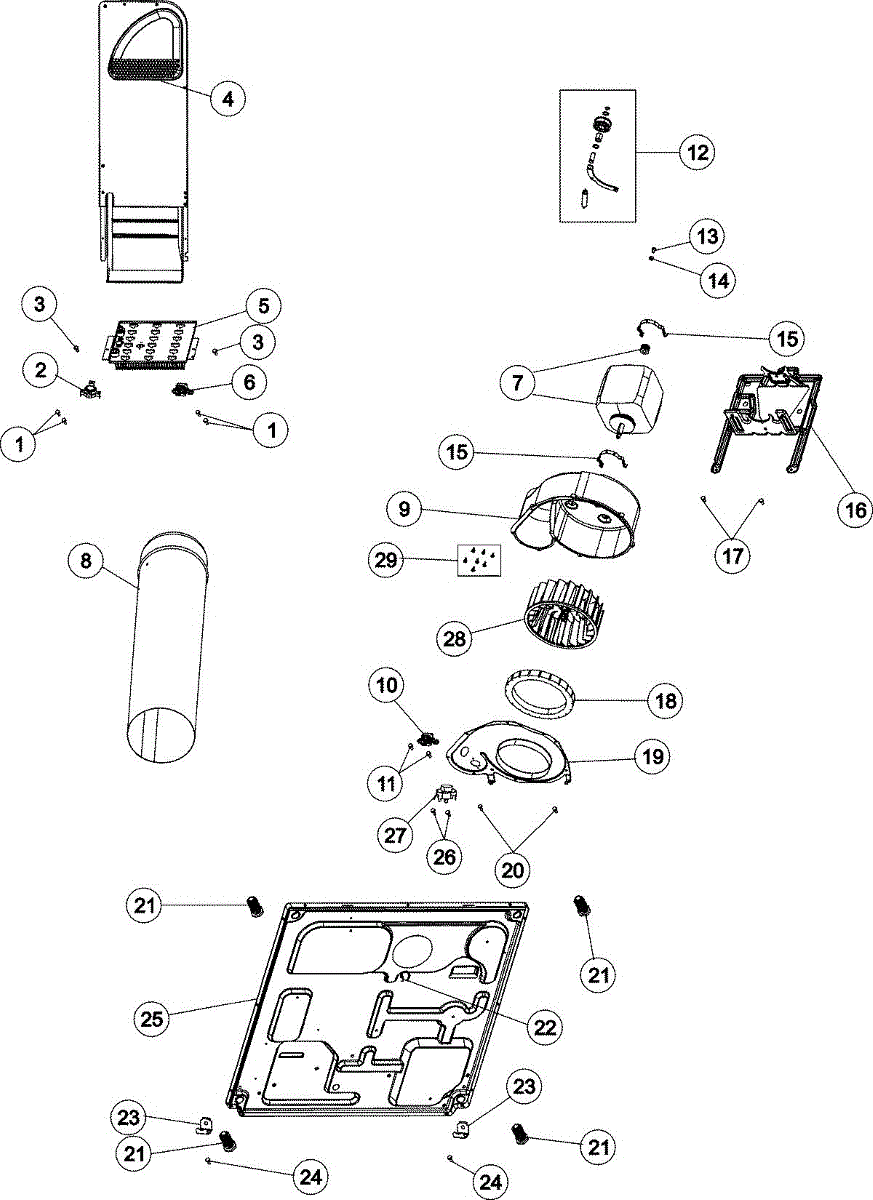

Parts for Maytag MDE508DAYK: 01 - Base, Heater & Motor Parts

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

The Hi-Limit Thermostat is an OEM part for Whirlpool dryers. It serves as a safety device that prevents the dryer from overheating by cutting off the power to the heating element if the temperature exceeds a certain limit.

You should replace the hi-limit thermostat if it malfunctions or fails. Causes of a bad hi-limit thermostat can include normal wear and tear, exposure to excessively high temperatures, or electrical issues that affect its functionality.

Symptoms of a bad hi-limit thermostat include:

• The dryer not heating properly
• The dryer shutting off unexpectedly during a cycle
• Long drying times or clothes not drying completely
• The dryer becoming excessively hot to the touch

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

10 - 16 x 1/2

This element repair kit restores a safe, solid electrical connection to an electric range/cooktop surface burner, helping the element heat consistently and reducing arcing after the original connector has overheated or loosened.

• Repairs a damaged or heat-weakened surface element connection
• Helps resolve a burner that won't heat or heats intermittently
• Addresses visible scorching, melting, or arcing at the element plug-in
• Supports a snug, reliable fit for the element prongs

• Disconnect power at the breaker or unplug before servicing; allow the cooking surface to cool completely
• Match connector orientation and move one wire at a time to avoid miswiring
• Inspect wire insulation and element terminals; replace any parts with burnt, pitted, or loose contacts
• Ensure the element seats firmly after repair and verify proper operation before regular use

The High Limit Thermal Fuse is an OEM replacement part for Whirlpool dryers that prevents overheating. It is a one-time use use part that must be replaced if it is tripped. Its designed to respond to excessively high temperatures, safeguarding both the appliance and the home.

Causes of a bad High Limit Thermal Fuse can include blocked ventilation in the dryer or exhaust vent, overloading the dryer, or component failure within the heating system leading to overheating.

Symptoms of a bad High Limit Thermal Fuse include:

• The dryer not starting or abruptly stopping during a cycle.
• No heat being produced during cycles, leading to damp clothes.
• A blown thermal fuse detected during a continuity test.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Dryer Motor is an OEM part for Whirlpool dryers. It is a vital component that provides the necessary power and rotation to tumble the dryer drum, allowing for the proper drying of clothes and linens.

Causes of a bad dryer motor can include excessive wear and tear over time, electrical malfunctions, or physical damage from impact or overloading. Symptoms of a faulty motor may include:

• The dryer drum not rotating or tumbling
• Loud grinding or squeaking noises during operation
• Burning smells or excessive heat buildup
• Failure to start or run completely

 This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Cycling Thermostat is an OEM part for Whirlpool dryers. It regulates and monitors the temperature inside the dryer during the drying cycle. It ensures that the dryer doesn't overheat and prevents potential damage to clothes or the dryer itself.

Causes of a faulty cycling thermostat can include wear and tear over time, electrical issues, or sensor malfunction.

Symptoms of a bad cycling thermostat may include:

• Clothes taking longer than usual to dry
• Inconsistent drying results
• Overheating or burning smell
• The dryer not heating at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Belt Tension Pulley Assembly is an OEM part for Whirlpool dryers. It plays a crucial role in the proper functioning of the dryer by maintaining tension on the drive belt. This tension ensures that the belt remains tight around the drum and motor pulley, allowing for smooth and effective operation of the dryer. The assembly includes a pulley wheel and the hardware necessary for installation.

Symptoms of a bad Dryer Belt Tension Pulley Assembly include:

• A squeaking or screeching noise during dryer operation, which can indicate the pulley is worn or malfunctioning.
• The dryer drum failing to rotate despite the motor running, suggesting the belt may have slipped off due to insufficient tension.
• Excessive wear or damage to the dryer belt, often accelerated by a faulty pulley.

Causes of a bad tension pulley can include wear and tear from regular use, accumulation of lint and debris which can impede the pulley's movement, or a malfunctioning bearing within the pulley itself.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 1/4-20 nut secures related fasteners in appliance assemblies to keep components aligned and stable. It's a direct-fit replacement when the original nut is worn, stripped, or missing. What it does:

• Threads onto a 1/4-20 bolt or stud to lock parts together
• Restores tight mechanical connections that reduce vibration and noise
• Helps maintain proper alignment of panels, brackets, or linkage
• Commonly replaced when the original nut is rounded, corroded, or loose

• One 1/4-20 nut

• Use the correct 1/4-20 bolt or stud size and thread engagement
• Tighten to manufacturer torque if specified; avoid over-tightening
• Inspect adjoining parts (bolt, washer, bracket) for wear before reassembly
• Turn off and unplug the appliance before performing repairs

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

This 12-14 x 1/2 screw is a factory fastener used to secure appliance panels, brackets, and components. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and keeps parts properly aligned for reliable operation.

• Secures panels, brackets, and internal components to their mounting points
• Replaces damaged, rusted, or missing hardware
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment and stability of covers or assemblies

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the original screw's location and length; replace one at a time
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Reinstall any original washers, clips, or spacers used with the screw

10 - 16 x 1/2

This 12-14 x 1/2 screw is a factory fastener used to secure appliance panels, brackets, and components. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and keeps parts properly aligned for reliable operation.

• Secures panels, brackets, and internal components to their mounting points
• Replaces damaged, rusted, or missing hardware
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment and stability of covers or assemblies

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the original screw's location and length; replace one at a time
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Reinstall any original washers, clips, or spacers used with the screw

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This cycling thermostat regulates exhaust temperature by switching the heater on and off to maintain proper drying heat. Replacing a failed thermostat restores consistent temperatures, helps auto-dry timing, and protects against fabric-damaging overheating.

• Controls the heating circuit to maintain target drying temperatures
• Provides temperature feedback for accurate auto-dry operation
• Common symptoms: long dry times, very hot drum/cabinet or scorching odors, auto-dry not advancing correctly, or no heat if the thermostat fails open
• Typically mounted on the blower housing to sense exhaust air temperature

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the thermostat (commonly on the blower housing); remove the necessary panel(s)
• Transfer wires one at a time to the new thermostat and mount it flat against the housing
• Reassemble, verify clear venting/airflow, and run a test cycle

The Dryer Blower Wheel is an OEM part for Whirlpool dryers. It is responsible for circulating air through the dryer drum and out the exhaust vent, ensuring efficient drying of clothes by maintaining proper airflow.

Causes of a bad blower wheel can include lint buildup, wear and tear over time, or damage from foreign objects that may have entered the dryer.

Symptoms of a bad blower wheel include:

• Reduced drying efficiency
• Unusual noises such as rattling or thumping during operation
• Overheating of the dryer
• Clothes taking longer than usual to dry

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
