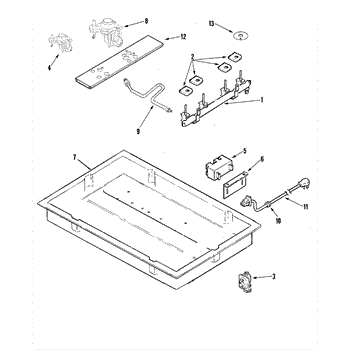

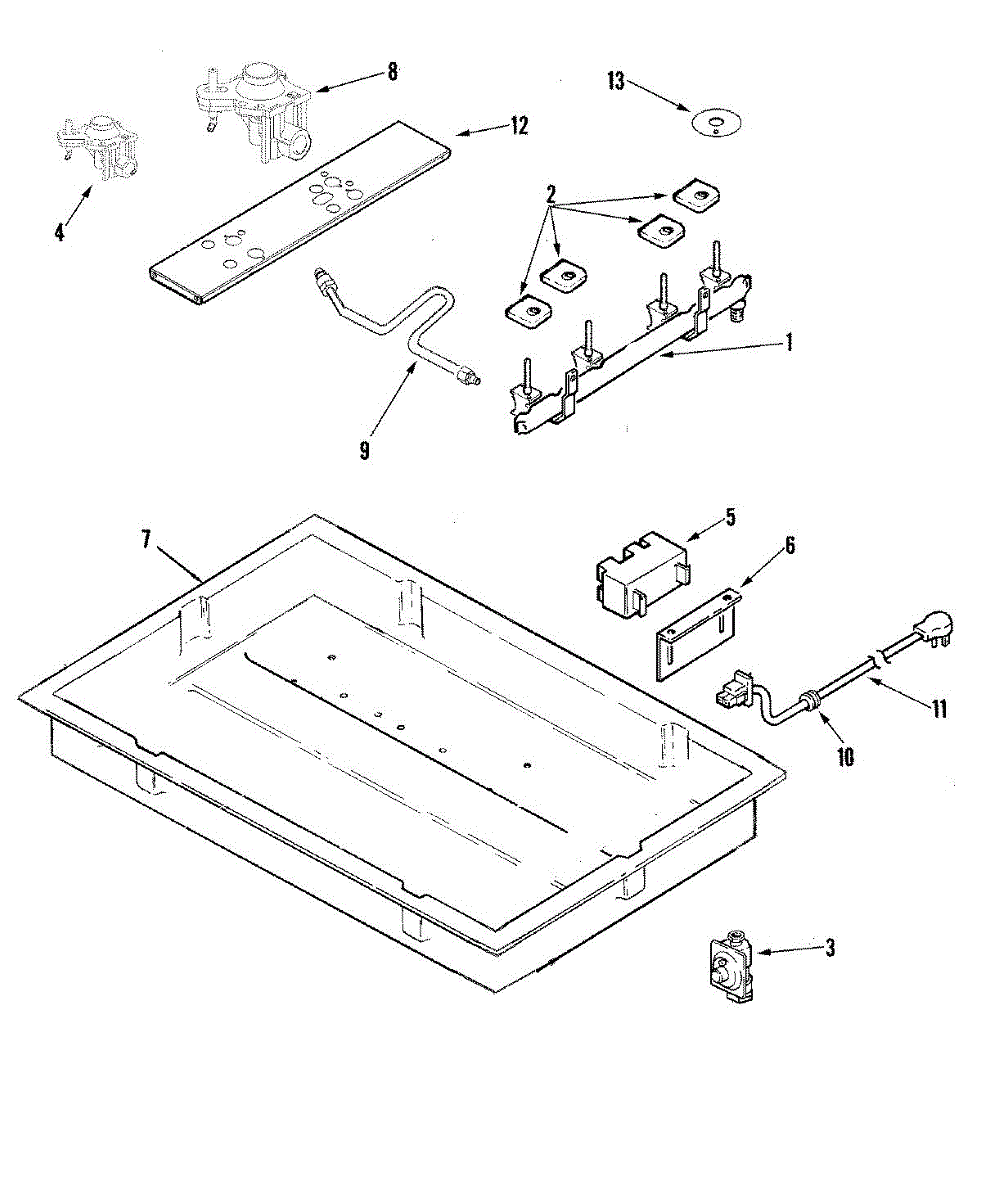

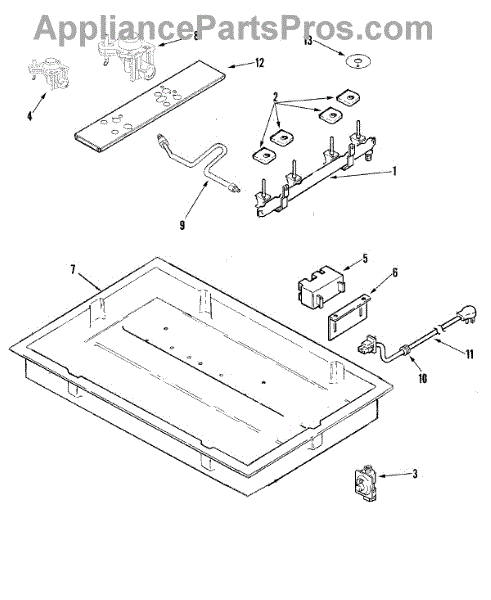

Parts for Maytag MGC6430BDB: 01 - Body Parts

Replacement switch/lead wire assembly restores a safe, insulated connection between a control switch and the appliance wiring, helping resolve intermittent controls, no-response switches, and visible wiring damage for consistent operation. What it does:

• Provides an insulated, factory-style connection between a control switch and the main wiring harness to carry control signals safely.
• Replaces frayed, burned, or corroded wires and terminals that can cause intermittent operation or arcing.
• Corrects symptoms such as unresponsive switches, intermittent power to components, or a burning/shorting odor when the wiring is damaged.
• Matches original connector types and terminal orientations for plug-and-play replacement when used in compatible machines.

• Disconnect power (unplug appliance or shut off circuit breaker) before inspecting or replacing any wiring.
• Compare the new assembly to the removed part for identical connector types, terminal orientation, and wire routing before installation.
• Use proper tools to release and seat terminals; avoid pulling on wire insulation.
• If terminals or surrounding components show burn damage, diagnose the underlying fault before installing the replacement wiring.

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use

This orifice holder secures the center burner orifice on gas ranges, keeping the orifice aligned so the burner lights and burns properly. Replaces a worn or damaged holder to restore consistent pilot/flame position and performance. What it does:

• Holds the center burner orifice in the correct position for proper gas flow
• Helps maintain an even, reliable flame at the center burner
• Can address symptoms like a center burner that won't light or has an uneven/weak flame
• Works as the mounting piece for the matched orifice insert

• Turn off the appliance and shut off the gas supply before servicing
• Only install the exact replacement part for your model; check the appliance parts diagram
• Use basic hand tools; avoid overtightening to protect threads and seals

The Surface Burner Spark Electrode is an OEM part for Whirlpool gas ranges. This electrode is responsible for generating the spark that ignites the gas burner, allowing the burner to produce a flame for cooking.

Over time, the spark electrode can become faulty due to exposure to high temperatures, grease, and general wear and tear. This can lead to unreliable ignition or complete failure to ignite the burner.

Symptoms of a bad surface burner spark electrode include:

• The burner not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Burner flame going out soon after ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 4-spark ignition module controls the spark for gas burners so your cooktop or range lights reliably. It replaces a worn or failed module to restore consistent ignition and reduce click/no-spark issues. What it does:

• Sends timed spark to up to four burner electrodes for ignition
• Enables safe ignition sequence when burner control is turned on
• Helps eliminate symptoms like intermittent sparking, no spark, or continuous clicking
• Works with the range/cooktop's control system to coordinate ignition

• One 4-spark ignition module

• Disconnect power and shut off gas before attempting service
• Handle module and wiring harnesses carefully to avoid damage to connectors
• Verify proper electrode gap and burner alignment when reassembling

The Spark Module Kit is an OEM part for Whirlpool ranges. It is responsible for generating the spark needed to ignite the gas burners on the cooktop. The spark module sends electrical signals to the igniters, creating the spark that lights the gas for cooking.

Over time, the spark module can fail due to electrical issues, exposure to moisture, or normal wear and tear. When the spark module becomes faulty, it can lead to various problems with igniting the burners.

Symptoms of a bad spark module include:

• Burners not lighting or taking a long time to light
• No clicking sound when turning the burner knob
• Burners only lighting intermittently
• Visible sparks or arcing from the module

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: This part is only compatible with serial numbers starting with 21 and up on model 8351VV.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This surface burner orifice holder is a genuine Whirlpool part, sold individually. This surface burner orifice holder can be used as a replacement part in a gas range. This part holds the components of the burners in place, such as the igniter, the burner cap, the retaining nut, the spring clips, and the burner grates.If the surface burner orifice holder of one of the burners is lost or misplaced, the component should be immediately replaced with this genuine OEM replacement part. If the surface burner orifice holder is damaged, the component should be removed and replaced. The repair or replacement process is simple. The repair or replacement will require a putty knife and a screwdriver. Work gloves should be worn during the repair or replacement process.This is an OEM part sourced directly from the manufacturer. This surface burner orifice holder is compatible with the following appliance brands: Whirlpool and Amana.

This orifice holder routes gas from the surface burner valve to the burner head. Sized for a 12K burner, it restores proper gas flow and reliable ignition when the original holder is damaged, clogged, or misaligned.

• Positions the orifice and channels gas to the burner head on a 12,000-BTU burner
• Maintains correct gas flow for a steady, consistent flame
• Common symptoms: burner won't ignite though the igniter sparks, weak/uneven flame, or stripped/damaged threads at the holder
• Match the 12K rating to the correct burner location per your model's parts diagram

• Disconnect power and shut off gas supply before servicing
• Remove grates and burner parts; lift the cooktop as needed to access the holder
• Transfer any brackets/gaskets from the original and install squarely; do not overtighten fittings
• Restore gas and check all connections with a non-corrosive leak-detection solution; verify ignition and flame quality

This snap-in bushing provides a low-profile bearing surface to support rotating shafts and reduce wear and noise in appliance assemblies. It restores smooth operation where the original bushing is worn or damaged. What it does:

• Provides a replaceable bearing/sleeve for rotating shafts and posts
• Reduces friction and wear on housing and moving parts
• Helps eliminate rubbing, grinding, or rattling noises during operation
• Maintains correct shaft alignment for smooth rotation

• One snap-in bushing

• Disconnect power before servicing and follow all safety instructions
• Access may require removing panels or covers; inspect surrounding parts for wear
• Press or snap the bushing squarely into the housing until fully seated; avoid deforming it
• Replace any damaged retainers or seals and test operation after reassembly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This valve switch cover protects the appliance's valve switch assembly and wiring, keeping components secure and shielding them from moisture, dust, and accidental contact. Replacing a damaged cover helps restore proper fit and reduces the risk of electrical or valve issues. What it does:

• Shields the valve switch and connector from moisture, dirt, and physical damage
• Secures the electrical connector and switch in the correct position
• Helps prevent intermittent valve operation caused by loose or exposed connections
• Reduces the chance of wiring abrasion or shorting near the valve area

• Disconnect power to the appliance before starting any work
• Turn off the water supply if working near water valves
• Handle electrical connectors and wiring gently; avoid pulling on wires
• Use basic hand tools and follow OEM diagram for correct reassembly

This grommet sits in the control panel opening around the valve/switch shaft on select ranges and cooktops. It helps seal out spills and stabilizes the control knob for a clean look and smooth operation.

• Seals the knob/shaft hole to help keep moisture, grease, and crumbs out of the control area
• Centers and supports the knob for a snug, stable feel
• Helps prevent rubbing and cosmetic wear around the panel opening
• Common signs: cracked or missing grommet, visible gap around knob, loose/wobbly knob, evidence of spills beneath the knob

• Disconnect power and, if applicable, shut off gas supply before servicing
• Pull the knob straight off the shaft and lift out the old grommet
• Clean the panel opening; press the new grommet fully into place, matching the original orientation
• Reinstall the knob and ensure smooth, unobstructed operation
