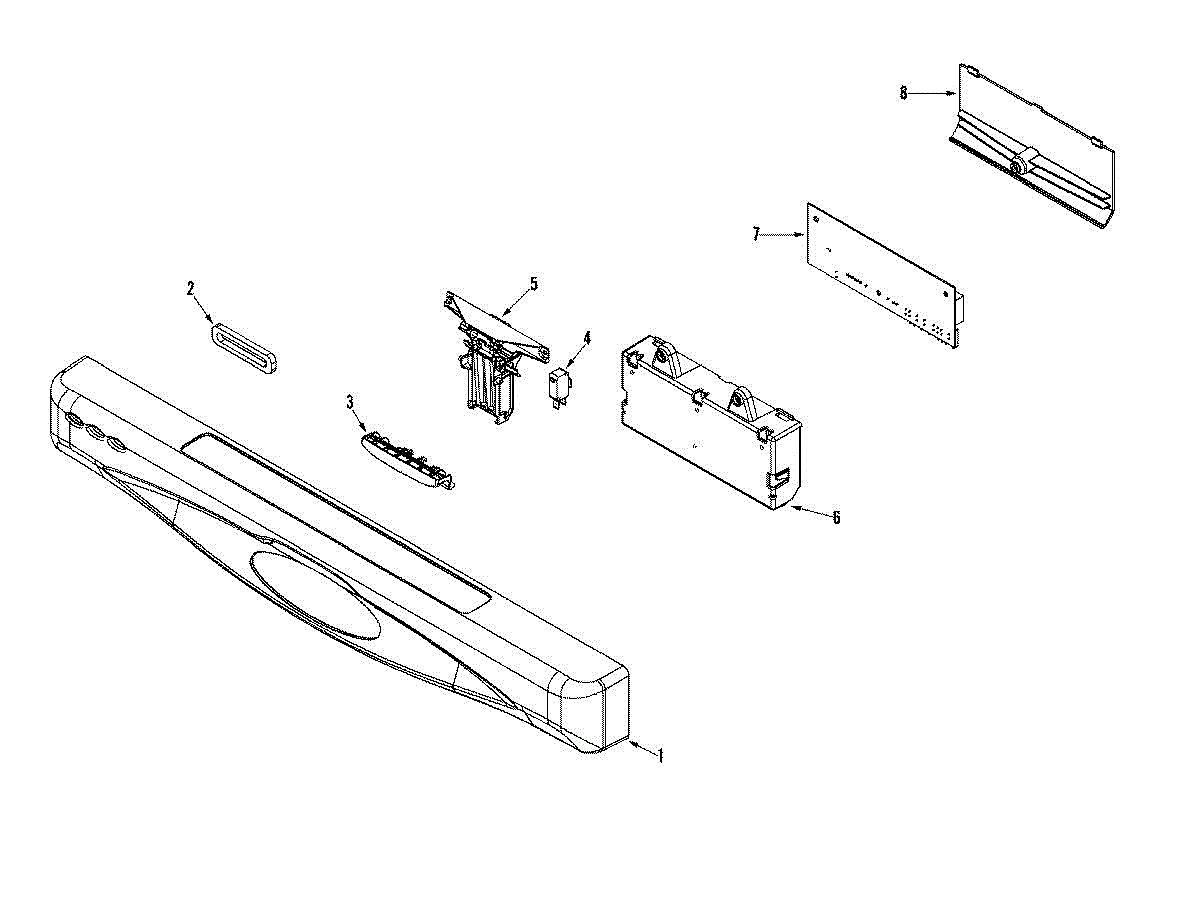

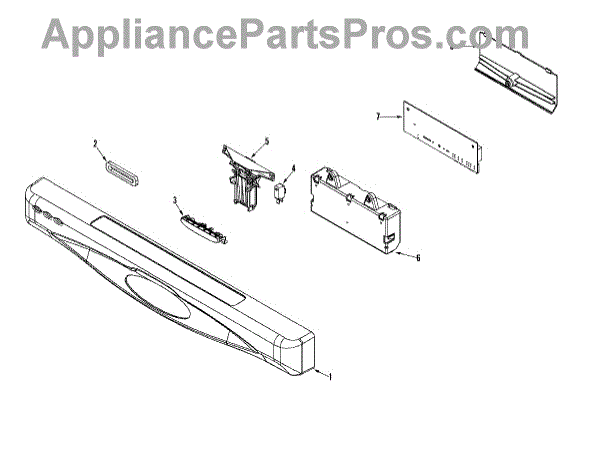

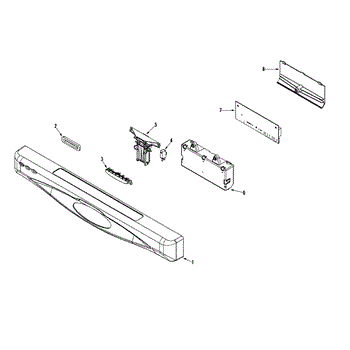

Parts for Maytag MDB9600AWB: 01 - Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This component is a control panel used on many dishwashers. It sits at the top of the dishwasher door and includes a small display window. The control panel has several buttons for users to select a cycle, turn on and off the dishwasher, and change the options for the appliance. The basic responsibility of the control panel is to ensure the appliance goes through the correct cycle with the right options to meet the needs of a user.If the control panel is damaged, it may cause the dishwasher to stop running. It can create sticky keys or cause the lights to blink or turn off completely. If the control panel is no longer working, it should be replaced. Make sure the dishwasher is disconnected from power. Use a screwdriver to remove the control panel from the door panel. Let it fall downward so a note can be made of how the wires are connected to the component. Disconnect the wiring and reconnect it to the new control panel. Screw the panel into place, turn the power on, and test the part.Made for use with Maytag dishwashers, this control panel is a genuine OEM replacement part. It is sold as a single component. This part is directly sourced from the manufacturer.

Specs: No.8X1/2 HEX WASHER HEAD

This vent seal fits at the appliance control panel to block gaps and stop drafts, helping keep lint, dust and moisture out of the control area for cleaner operation and improved safety. What it does

• Seals the gap between the control panel and cabinet to prevent air leakage and drafts.
• Helps keep lint, dust and moisture out of electrical and control components.
• Can reduce visible airflow or draft coming from the control area.
• Useful when a worn or damaged seal allows debris or excess air into the control cavity.

• One vent seal for the control panel.

• Disconnect power to the appliance before starting any repair.
• Remove the control panel per OEM instructions to access and replace the seal.
• Ensure the mating surfaces are clean and dry; press the seal into place for proper fit.
• If any fasteners or clips are damaged, replace them; do not force a misfitting seal.

The Door Latch Assembly is an OEM replacement part for Whirlpool dishwashers. It is responsible for securely latching and locking the dishwasher door during operation, preventing leaks and ensuring a proper seal.

Symptoms of needing to replace the door latch assembly include:

• Difficulty in properly closing or latching the dishwasher door
• Leaks or water seeping out from around the door area
• Visible signs of wear, damage, or cracks on the latch mechanism
• The door not staying securely closed during operation

Causes of a faulty dishwasher door latch assembly can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the latch mechanism itself.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Door Latch is an OEM part for Whirlpool dishwashers. It secures the dishwasher door during operation, ensuring it stays closed and maintains a tight seal to prevent water leaks. This latch also activates the safety switch, allowing the dishwasher to start its cycle only when the door is properly latched.

You should replace this door latch if it becomes worn out, damaged, or fails to secure the door properly. Common causes of a bad latch include repeated use, physical damage from forceful closing, or misalignment of the latch components.

Symptoms of a bad door latch include:

• Dishwasher door not staying closed
• Dishwasher not starting or stopping mid-cycle
• Water leaking from the door during operation
• Difficulty in latching or unlatching the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: This is the latch only and does not include the handle. For the latch with handle, order part# WPW10130695 which includes a black handle. The factory only offers the latch handle assembly in black. No other colors are available.

This control board housing secures and protects the washer's electronic control board, keeping circuitry stable and shielded from moisture and debris for reliable operation. It fits into the console area and supports proper control panel alignment. What it does:

• Holds and protects the electronic control board inside the console from impact, dust and moisture.
• Keeps the control board properly positioned for reliable electrical connections.
• Helps prevent control panel wobble or misalignment that can cause button or dial issues.
• Commonly replaced when housing is cracked, broken mounting tabs fail, or board access is needed.

• 1 control board housing

• Disconnect power and water to the appliance before beginning any repair.
• Handle the control board and housing carefully to avoid damage to connectors or circuit components.
• Use appropriate tools to remove console components; replace damaged mounting tabs and secure all fasteners.
• Discharge any capacitors and follow the board manufacturer's ESD/safety recommendations.

Specs: No.8X1/2 HEX WASHER HEAD

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This electronic control board kit is the appliance's central controller, coordinating inputs and powering key components. Replacing a failed board restores proper operation, responsive controls, and reliable cycle management. What it does:

• Manages timing and power to motors, valves, heaters, fans, and other loads
• Interprets sensor and user-interface signals to start, run, and end cycles correctly
• Common failure signs: dead or unresponsive controls, cycles that won't start/finish, repeated error codes, or intermittent operation
• Helps address issues caused by power surges or board damage

• 1 electronic control board (module)

• Disconnect electrical power to the appliance; turn off gas/water if applicable
• Use ESD protection and handle the board by its edges
• Photograph wiring; transfer connectors one at a time and match any jumpers/DIP-switch settings from the original board
• Restore power and perform any model-specific tests or programming per OEM instructions
