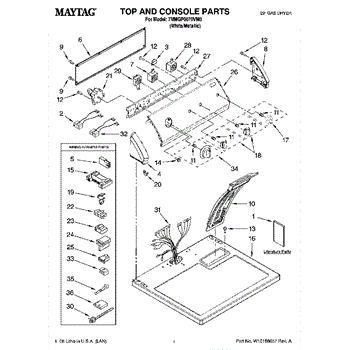

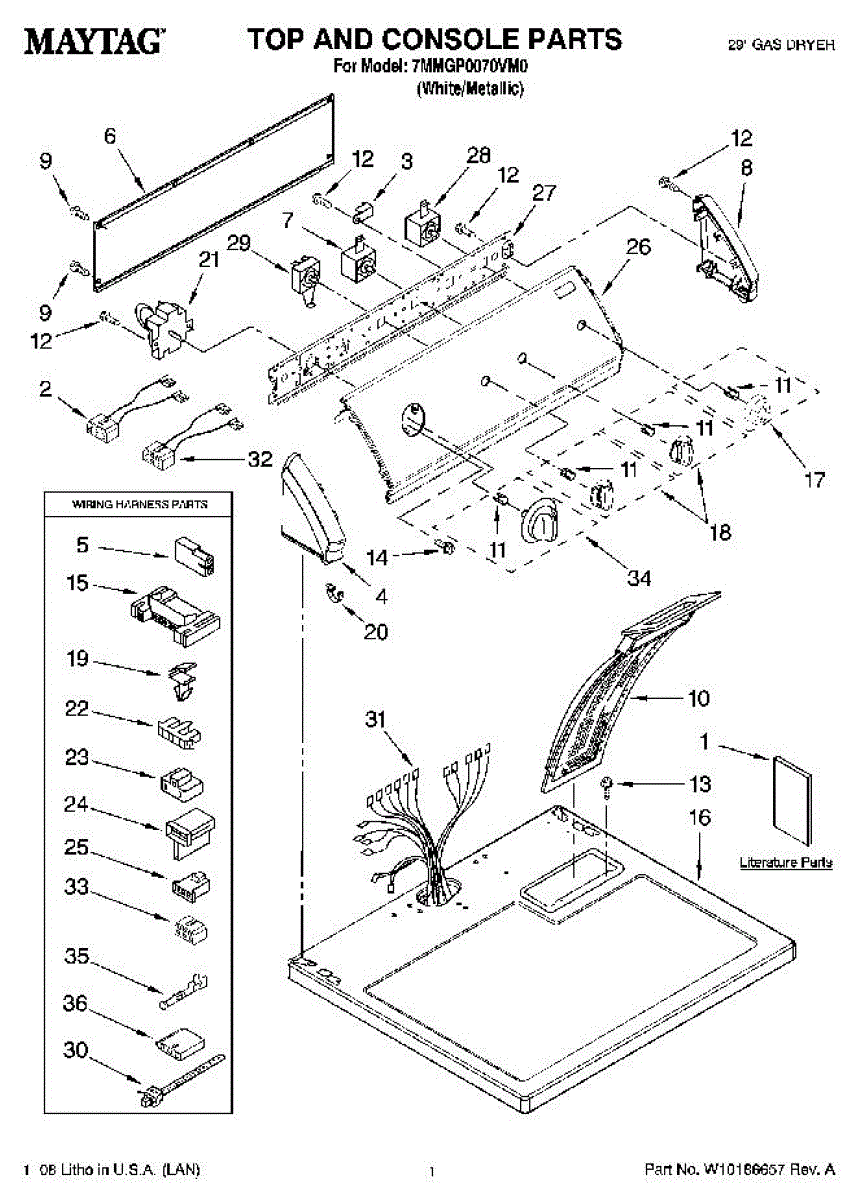

Parts for Maytag 7MMGP0070VM0: 01 - Top And Console Parts

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

The Temperature Selector Switch is an OEM replacement part for Whirlpool dryers. This electro-mechanical switch allows consumers to choose between heat settings that adequately dry different fabric types.

Causes of a damaged selector switch can include regular wear from hundreds of cycles over the appliance's lifetime. Mineral deposits accumulating inside linkage mechanics may cause rotational movements to stiffen. The physical impacts of shifting internal contact positions could potentially lead to switching issues as well.

Symptoms of a faulty temperature selector involve:

• Inability to change heat level for desired drying performance
• Temperature remaining stuck on highest or lowest settings
• Lint filter or duct cleaning lights failing to illuminate properly

This OEM replacement is compatible with some Kenmore and KitchenAid electric dryer models too.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This replacement screen fits into the appliance's filtration path. It captures debris to protect internal components and helps restore proper airflow or water flow when the original screen is torn, warped, clogged, or missing.

• Filters debris to prevent it from entering sensitive components such as pumps, blowers, or valves
• Helps maintain proper airflow or water circulation for consistent performance
• Common failure signs: torn mesh, cracked or warped frame, debris bypassing the screen
• Can contribute to longer cycles, reduced performance, or recurring clogs when damaged or missing

• Disconnect power to the appliance; turn off water supply if applicable
• Access the screen location per your model's instructions; remove the old screen and clean the housing
• Seat the new screen fully, ensuring correct orientation and that any tabs/locks engage
• Reassemble and test for proper operation; check for leaks or airflow restrictions

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This is the appliance's main top panel assembly. It restores a clean, sturdy top surface and protects internal components, helping the unit look and function like new after cosmetic or physical damage.

• Forms the finished top surface of the appliance and protects internal wiring/mechanisms
• Provides mounting/attachment points for surface components specific to the model
• Helps maintain proper alignment of surrounding panels and trim
• Common signs it needs replacement: dents, cracks, chips, rust, bowed or loose panel, rattling, or sharp edges

• Disconnect power to the appliance; shut off gas/water if your model requires it.
• Wear cut-resistant gloves and handle carefully to avoid bending or chipping the panel.
• Transfer any reusable brackets, trim, or grommets from the original panel to the new one.
• Reinstall using existing fasteners; avoid overtightening on painted or glass surfaces.

This replacement control knob restores a secure, accurate way to select settings on your appliance. Installing this part brings back confident control and a clean, factory look.

• Mounts to the control shaft so you can turn and select settings
• Replaces worn, cracked, or missing knobs to restore normal operation
• Helps resolve symptoms like wobbling, spinning freely, or difficulty turning
• Restores proper pointer alignment and tactile feel when adjusting settings

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Pull the old knob straight off the shaft; no tools needed in most cases
• Align the new knob with the control shaft and press firmly until fully seated
• Inspect the control shaft for damage; if bent or stripped, additional parts may be required

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electromechanical timer assembly controls and advances your appliance's selected operation. Driven by the home's 60 Hz line frequency, it restores consistent start/stop and cycle timing when a worn or seized timer no longer advances properly. What it does:

• Manages the duration and sequence of operations by opening/closing internal contacts
• Advances via a 60 Hz synchronous motor for accurate timing
• Common symptoms: cycle won't advance or stops early, runs too long or won't shut off
• Dial/shaft is hard to turn, feels loose, or unit only works when the timer is manually moved

• One timer assembly

• Disconnect power at the breaker or unplug the appliance before service
• Access the timer from the control area; photograph wiring and transfer one wire at a time
• Secure the new timer in the original mounting location and align the shaft
• Restore power and run a test cycle to ensure proper advancement and shutoff

This connector buzzer wire harness links the appliance control to the buzzer/alert so the unit can emit audible tones for cycle completion and error warnings. Replaces a damaged or corroded buzzer connector to restore alert sounds. What it does:

• Provides the electrical connection between the control board and the buzzer/alert assembly.
• Restores audible beeps or tones when the original connector is loose, broken, or corroded.
• Helps prevent intermittent or no-sound conditions caused by poor connector contact.
• Fits into the existing harness and plugs into the buzzer/board mating connector.

• One connector buzzer wire harness (1 piece).

• Disconnect power to the appliance before inspecting or replacing the connector.
• Unplug the old connector from the buzzer/control; note orientation and routing before removing.
• Plug the replacement connector into the matching buzzer/control socket until it snaps into place.

The Start Switch is an OEM part for Whirlpool dryers. This part initiates the drying cycle when you press the start button on the control panel. This switch sends a signal to the dryer to begin operation, ensuring your clothes drying process starts smoothly.

Causes of a bad start switch can include repeated use over time leading to wear and tear, electrical issues such as short circuits or power surges, and physical damage due to mishandling or impact.

Symptoms of a bad start switch include:

• The dryer not starting when the button is pressed
• The dryer stopping unexpectedly during a cycle
• No response or sound when pressing the start button
• Intermittent operation or the need to press the button multiple times

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This wire harness assembly routes power and control signals between components so the appliance operates reliably. It replaces a damaged or worn harness to restore proper electrical connections and reduce intermittent faults. What it does:

• Provides the main connector wiring between electrical components and the control board.
• Restores lost power or control signals caused by broken, frayed, or burnt wires.
• Helps stop intermittent operation, control errors, or components that won't power on.
• Maintains secure connector fit and correct wire routing to prevent shorting.

• Always disconnect power (unplug or switch off breaker) before starting any repair.
• Handle connectors carefully; release locking tabs to avoid damage.
• Route and secure the harness following original wire paths and clips to prevent chafing.

For mating terminal use [AP31136300].
