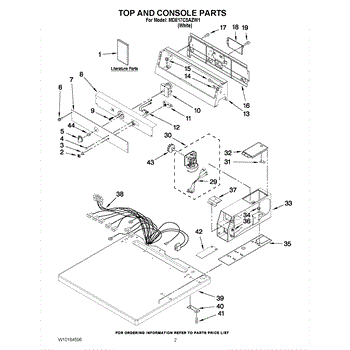

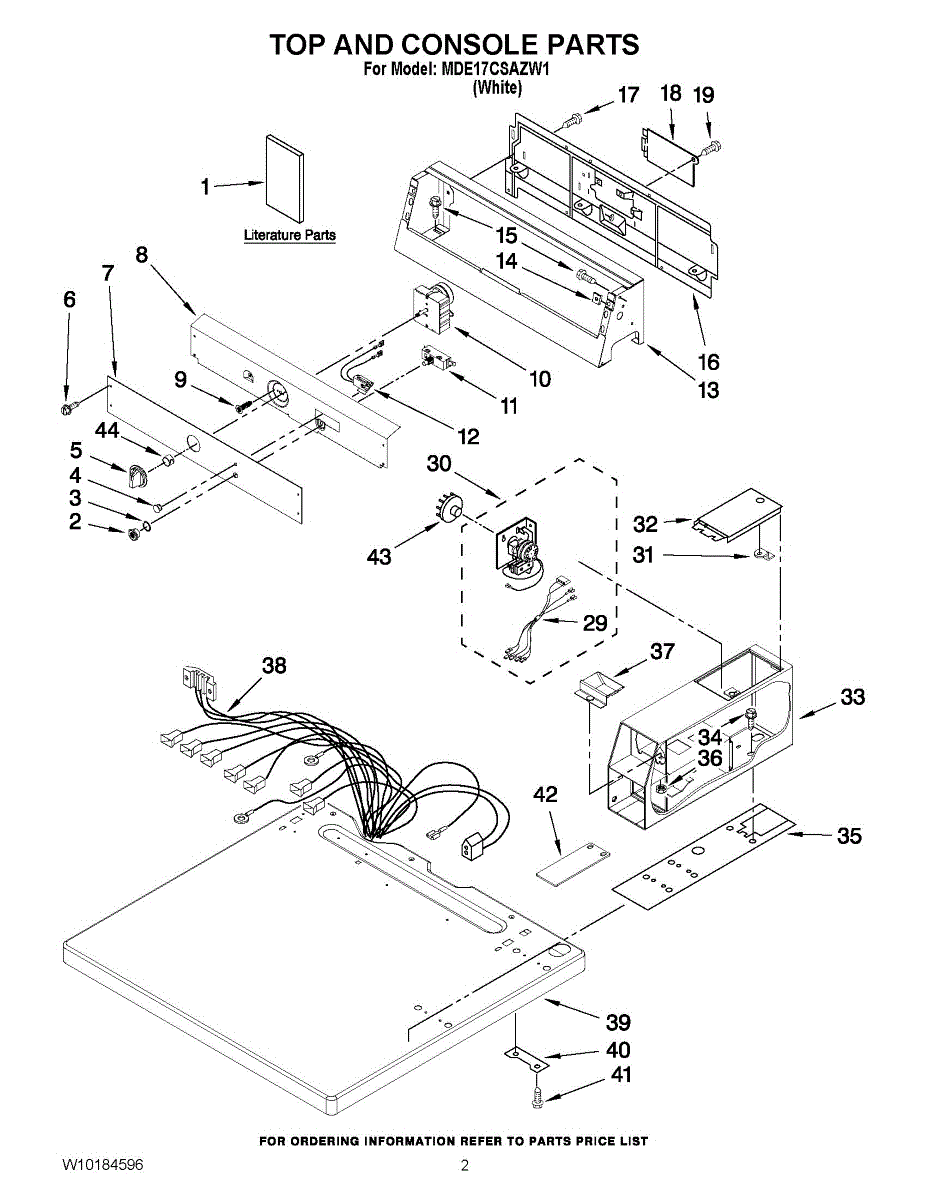

Parts for Maytag MDE17CSAZW1: 01 - Top And Console Parts

Pilot light not visible or broken lens? This control panel lens cover protects the indicator bulb and diffuses light. Simple snap-in replacement part.

Fix a dryer that won't start on certain settings or changes cycles unpredictably with this cycle selector switch. Lets you choose the operating cycle.

Dryer won't start when you press the button? This push-to-start switch restores one-press starting. Simple repair that reconnects the motor circuit.

Replace your dryer's interior light assembly when the bulb burns out or housing cracks. Restores visibility inside the drum. Verify fit with your model number.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This terminal cover protects and conceals the appliance's electrical wire terminals for safer handling and cleaner internal appearance. It helps reduce accidental contact with live connections and keeps wiring organized. What it does:

• Covers exposed wire terminals to help prevent accidental contact and shorting
• Keeps wiring routed and held in place for improved serviceability
• Protects terminals from dust and debris that can affect connections
• Supports safer access during diagnostics and repairs

• One terminal cover, as shown

• Disconnect power to the appliance before attempting any service
• Remove outer panels as needed to access the terminal area; use manufacturer service guide for panel removal steps
• Align cover over the terminal block and secure per factory mounting points; do not force or modify
• If terminals or wiring appear damaged or corroded, replace or repair those components before reinstalling the cover

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Internal wire harness assembly for dryers. Connects electrical components inside the cabinet. Replace if wires are frayed, damaged, or connectors are broken.

Fix dryer cycles running too short or too long with this timer. Controls drying duration and cycle sequences. Moderate difficulty repair requiring cam transfer.

Inner door panel insert for front-load washer door assembly. Provides structural support and finished interior surface. Replace if cracked or damaged.

Case cushion for dryers. Installs on the exterior cabinet to provide vibration dampening. Replace if your cushion is cracked, worn, or missing.

6 Pin 30 minute

3 pin 60 minute
