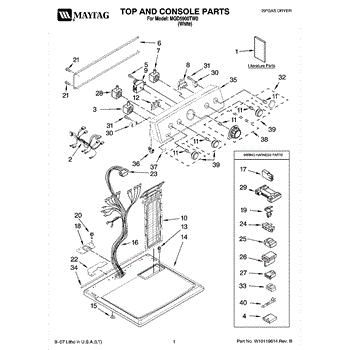

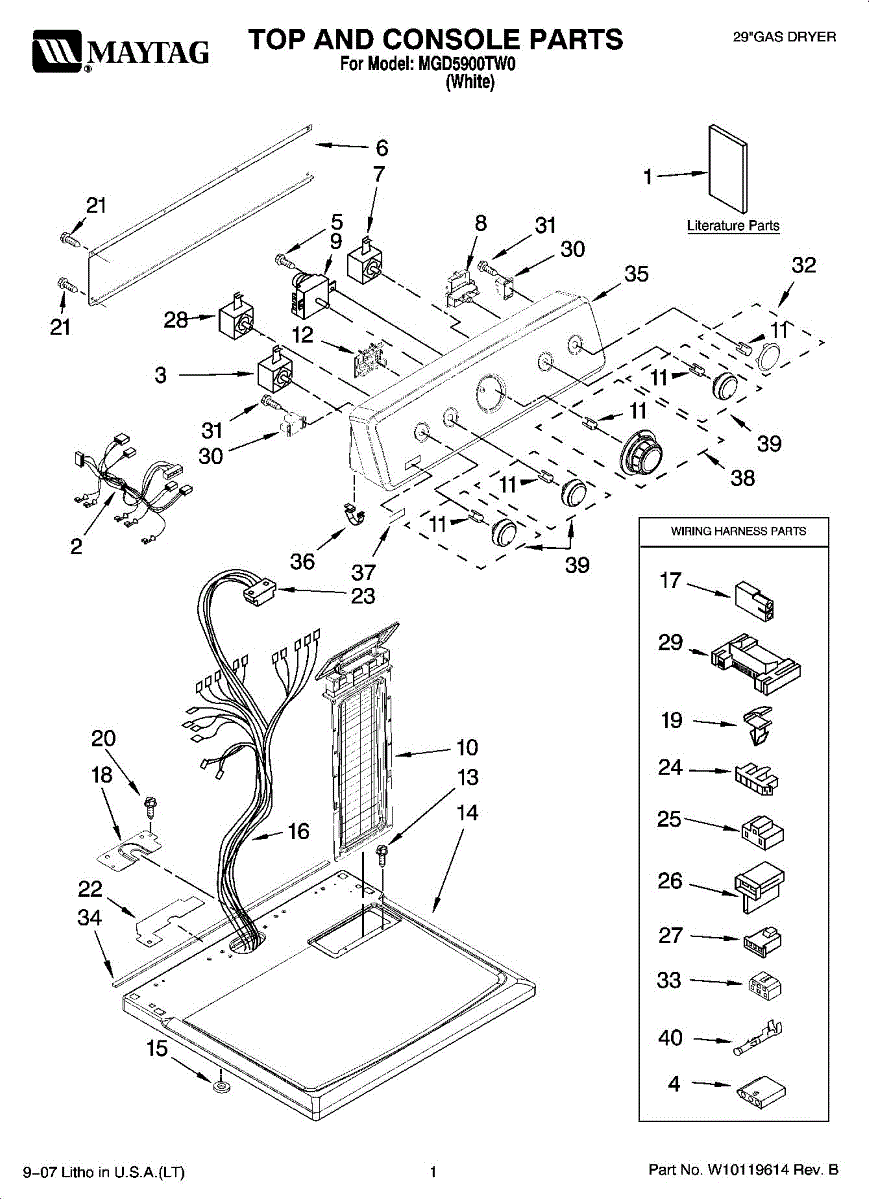

Parts for Maytag MGD5900TW0: 01 - Top And Console Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

For triangle top push to start switch use WP3977456.

This is a mechanical defrost timer that controls the automatic defrost cycle of the refrigerator. It periodically shuts off the compressor and energizes the defrost heater so frost can melt, helping maintain proper cooling performance.

• Cycles the unit between cooling and defrost at set intervals
• Stuck or failed timers can cause warm temperatures, heavy frost, or continuous running
• Can also cause short-cycling or no-cool if contacts fail

• Disconnect power before servicing
• Access is typically from the control housing or rear service area; note wire positions before removal
• Replace one-for-one with the same terminal orientation; do not force the cam
• After install, allow one full cycle to verify defrost operation

This replacement screen fits into the appliance's filtration path. It captures debris to protect internal components and helps restore proper airflow or water flow when the original screen is torn, warped, clogged, or missing.

• Filters debris to prevent it from entering sensitive components such as pumps, blowers, or valves
• Helps maintain proper airflow or water circulation for consistent performance
• Common failure signs: torn mesh, cracked or warped frame, debris bypassing the screen
• Can contribute to longer cycles, reduced performance, or recurring clogs when damaged or missing

• Disconnect power to the appliance; turn off water supply if applicable
• Access the screen location per your model's instructions; remove the old screen and clean the housing
• Seat the new screen fully, ensuring correct orientation and that any tabs/locks engage
• Reassemble and test for proper operation; check for leaks or airflow restrictions

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This connector buzzer wire harness links the appliance control to the buzzer/alert so the unit can emit audible tones for cycle completion and error warnings. Replaces a damaged or corroded buzzer connector to restore alert sounds. What it does:

• Provides the electrical connection between the control board and the buzzer/alert assembly.
• Restores audible beeps or tones when the original connector is loose, broken, or corroded.
• Helps prevent intermittent or no-sound conditions caused by poor connector contact.
• Fits into the existing harness and plugs into the buzzer/board mating connector.

• One connector buzzer wire harness (1 piece).

• Disconnect power to the appliance before inspecting or replacing the connector.
• Unplug the old connector from the buzzer/control; note orientation and routing before removing.
• Plug the replacement connector into the matching buzzer/control socket until it snaps into place.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This power relay is an electromechanical switch with a 48 VDC coil that lets the control board safely turn high-voltage components on and off. Replacing a weak or sticking relay helps restore consistent, reliable operation. What it does:

• Uses a 48 VDC coil signal from the control to open/close internal contacts
• Switches AC line power to high-demand loads (e.g., heater, motor, fan, or compressor)
• Helps maintain stable cycling and prevents intermittent operation
• Helps with symptoms such as no heat or no run, intermittent operation, clicking with no activation, or a component stuck on

• Power relay (48 VDC coil)

• Disconnect power to the appliance before servicing; allow capacitors to discharge
• Note/photograph wire locations and move wires one at a time to matching terminals
• Ensure terminals are fully seated; replace any burnt or loose connectors
• Mount in the original orientation and secure firmly to prevent vibration

This is a replacement mounting screw used to secure panels and components on compatible Whirlpool appliances, restoring loose or missing fasteners for safe, stable operation. What it does

• Fastens appliance panels, brackets, and small components in place
• Replaces stripped, rusted, or missing screws that cause rattling or loose parts
• Helps restore proper alignment and reduce vibration-related noise
• Matches OEM fit and function for straightforward replacement

• One replacement screw

• Use the matching screwdriver or nut driver to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or panel damage
• Turn off and unplug the appliance before accessing internal components

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This timer knob assembly replaces a worn or broken oven timer control knob, restoring easy, precise setting of bake and timer functions. It fits on compatible Whirlpool ranges and provides a secure, easy-turn grip for dependable operation. What it does:

• Replaces a damaged or missing timer control knob so you can set oven time and timers accurately
• Restores full rotational control and tactile detents for clear position feedback
• Helps stop slipping or loose knob movement that prevents proper timer selection
• Compatible with timer shafts that accept the same spline and clip attachment style

• One timer knob assembly

• Install by pulling off the old knob and pressing the new knob firmly onto the timer shaft until seated
• The knob is aligned to the timer's index mark before use
• Disconnect power to the appliance if working near live controls or if additional disassembly is required
• If the knob does not seat properly, check shaft type and fit; do not force

This is a replacement control knob assembly that restores a secure, easy-to-grip interface for selecting settings on the appliance. It replaces a worn, cracked, or missing knob so controls are easy to read and use. What it does:

• Replaces the worn or broken control knob so dials turn smoothly and settings hold
• Provides a correct fit on the control shaft for reliable selection of cycles or temperatures
• Helps eliminate slipping, sticking, or incomplete knob engagement when adjusting controls
• Matches OEM shape and mounting method for a factory-like feel

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Remove the old knob by pulling straight off the control shaft; inspect shaft and splines for damage
• Align the replacement knob to the shaft splines and press firmly until fully seated
• If knob does not fully engage, do not force—verify spline alignment

For mating terminal use [AP31136300].
