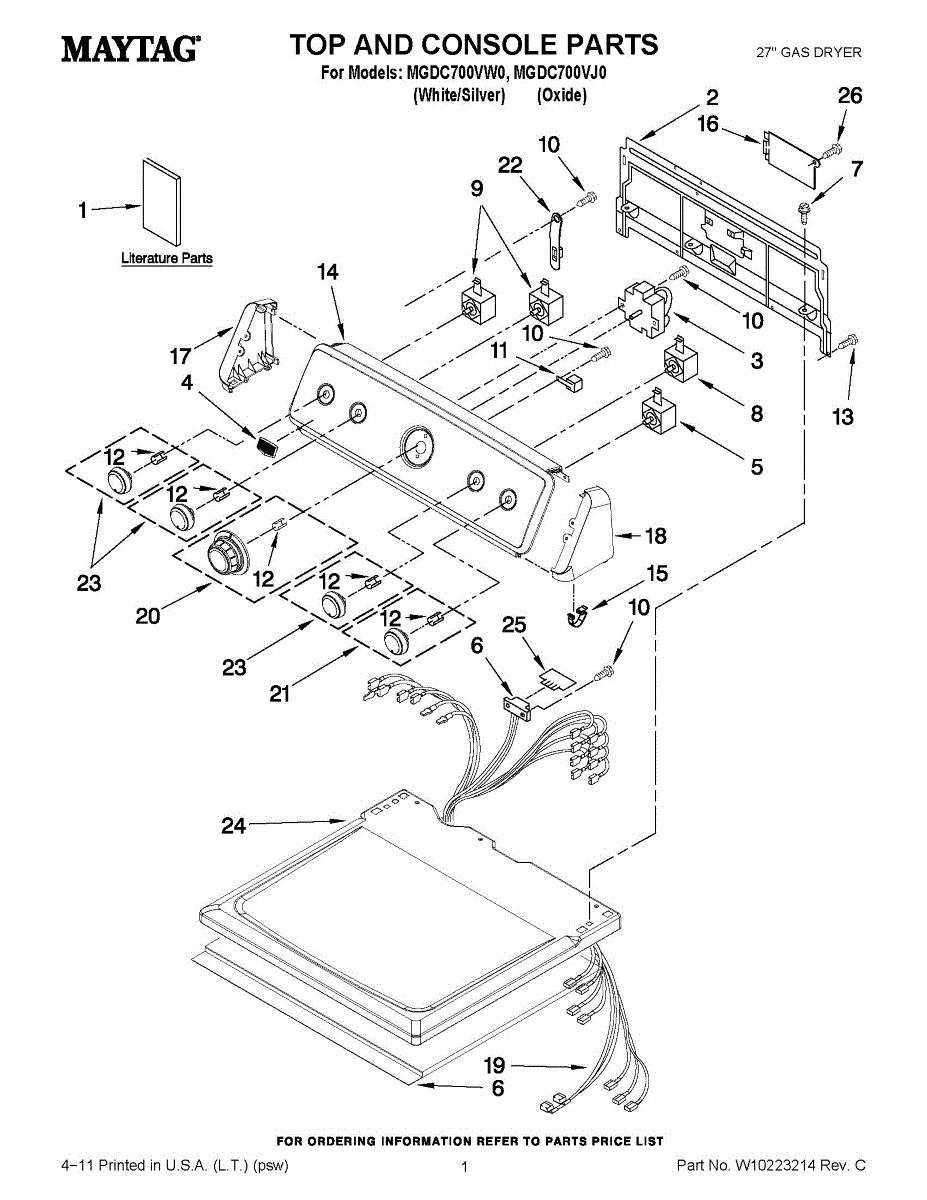

Parts for Maytag MGDC700VJ0: 01 - Top And Console Parts

The Dryer Timer is an OEM part for Whirlpool dryers. It controls the drying cycles by regulating the duration and sequence of operations, ensuring that clothes are dried properly according to the selected settings.

Over time, the dryer timer can wear out due to regular use, electrical issues, or internal mechanical failures. A faulty timer can lead to cycles not starting or ending correctly, resulting in under-dried or over-dried clothes.

Symptoms of a bad Dryer Timer include:

• The dryer not advancing through cycles
• The timer not moving or stopping
• Inconsistent drying times or the dryer stopping mid-cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Start Switch is an OEM part for Whirlpool dryers. This part initiates the drying cycle when you press the start button on the control panel. This switch sends a signal to the dryer to begin operation, ensuring your clothes drying process starts smoothly.

Causes of a bad start switch can include repeated use over time leading to wear and tear, electrical issues such as short circuits or power surges, and physical damage due to mishandling or impact.

Symptoms of a bad start switch include:

• The dryer not starting when the button is pressed
• The dryer stopping unexpectedly during a cycle
• No response or sound when pressing the start button
• Intermittent operation or the need to press the button multiple times

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This rotary on/off switch controls the dryer's Finish Guard (also called Wrinkle Guard/Wrinkle Shield) feature. Replacing it restores proper control of the post-cycle intermittent tumbling that helps reduce wrinkles, preventing the feature from being stuck on or off.

• Provides 2-position on/off selection for the Finish Guard/Wrinkle Guard function
• Failure can cause the feature not to engage or to stay on after the cycle ends
• Knob may feel loose or fail to click when the switch is worn
• Mounts in the control console and interfaces with the external selector knob

• Disconnect power before servicing
• Access through the control console; remove paneling as needed
• Transfer wires one at a time or photograph connections for reference
• Reinstall using the existing knob and mounting hardware

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This right-side endcap assembly replaces a damaged or missing trim piece to restore a clean finished edge and secure adjacent panels. It helps keep the appliance sealed at the outer edge and prevents rubbing or gaps. What it does:

• Replaces the right-side exterior endcap/trim on the appliance
• Holds adjoining panels in proper alignment and reduces edge movement
• Helps prevent debris and moisture from entering the seam at the appliance edge
• Stops rattling or scraping caused by a broken or loose endcap

• Disconnect power to the appliance before starting any work.
• Access may require removing the cooktop, control panel, or adjacent trim—refer to the model service manual.
• Handle edges and painted surfaces carefully to avoid scratches; use gloves if needed.

This left-hand end cap assembly restores a secure, finished mounting point on the appliance cabinet and helps keep internal components aligned and protected from friction or debris. Ideal when the original end cap is cracked, warped, or missing. What it does:

• Replaces a damaged or worn left-hand end cap to maintain proper alignment of adjacent components
• Provides a protective cover to prevent contact, rubbing, or debris entry at the cabinet edge
• Helps reduce vibration-related noise caused by loose or misaligned parts
• Fits into the original mounting location and matches OEM fit where specified

• Disconnect power to the appliance before starting any repair
• Verify left/right orientation by comparing to the removed part prior to installation
• Typical install requires removal of the adjacent trim or panel; handle parts gently to avoid damaging clips
• If mounting hardware is missing or damaged, replace with OEM-specified fasteners

This timer knob assembly lets you set and adjust the oven/range timer with a secure grip and simple snap-on replacement. Restores precise timer control so you can operate cooking functions safely and reliably. What it does:

• Replaces a cracked, stripped, or missing timer control knob
• Provides a firm interface to turn and set the timer smoothly
• Stops slipping or wobbling that prevents accurate timer adjustments
• Restores normal tactile feedback for time and cooking cycles

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Usually installs by pulling the old knob straight off and pushing the new knob onto the control shaft until it seats.
• If the knob does not seat easily, avoid forcing to prevent damage.

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

This control knob assembly replaces a worn, broken or missing knob so you can safely select settings and operate the appliance without slipping or inaccurate selection. It restores a positive grip and clear user control. What it does:

• Replaces a damaged or missing control knob to restore manual control operation
• Provides a secure, easy-to-turn interface for setting cycles or temperatures
• Stops slipping, cracking, or broken-turn symptoms that prevent proper selection
• Restores clear pointer/positioning for accurate setting selection

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Most knobs pull straight off the shaft and push onto the replacement; fit before final installation.
• Inspect shaft and mounting for damage; replace any worn adapters or retainer clips if present.

This part is a moisture sensor control board that is used on dryer units. This component monitors the moisture levels within the dryer and adjusts the dry time during the automatic drying cycle. A new moisture sensor control board will be needed if the time is not advancing in the automatic drying cycle, even if it does advance in the timed dry cycle. Another sign is if the dryer continues to run after the clothing inside is dry. Unplug the dryer from its power source prior to replacing this component. The person performing this task may wish to wear work gloves to protect their hands.The moisture sensor control board is compatible with dryers that are manufactured by Kenmore, KitchenAid, Kenmore Elite, Whirlpool, Amana, Crosley, Maytag, Inglis, Sears Canada, Roper, and Sears. This part is sold individually and it is a genuine OEM replacement part that comes straight from the manufacturer.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
