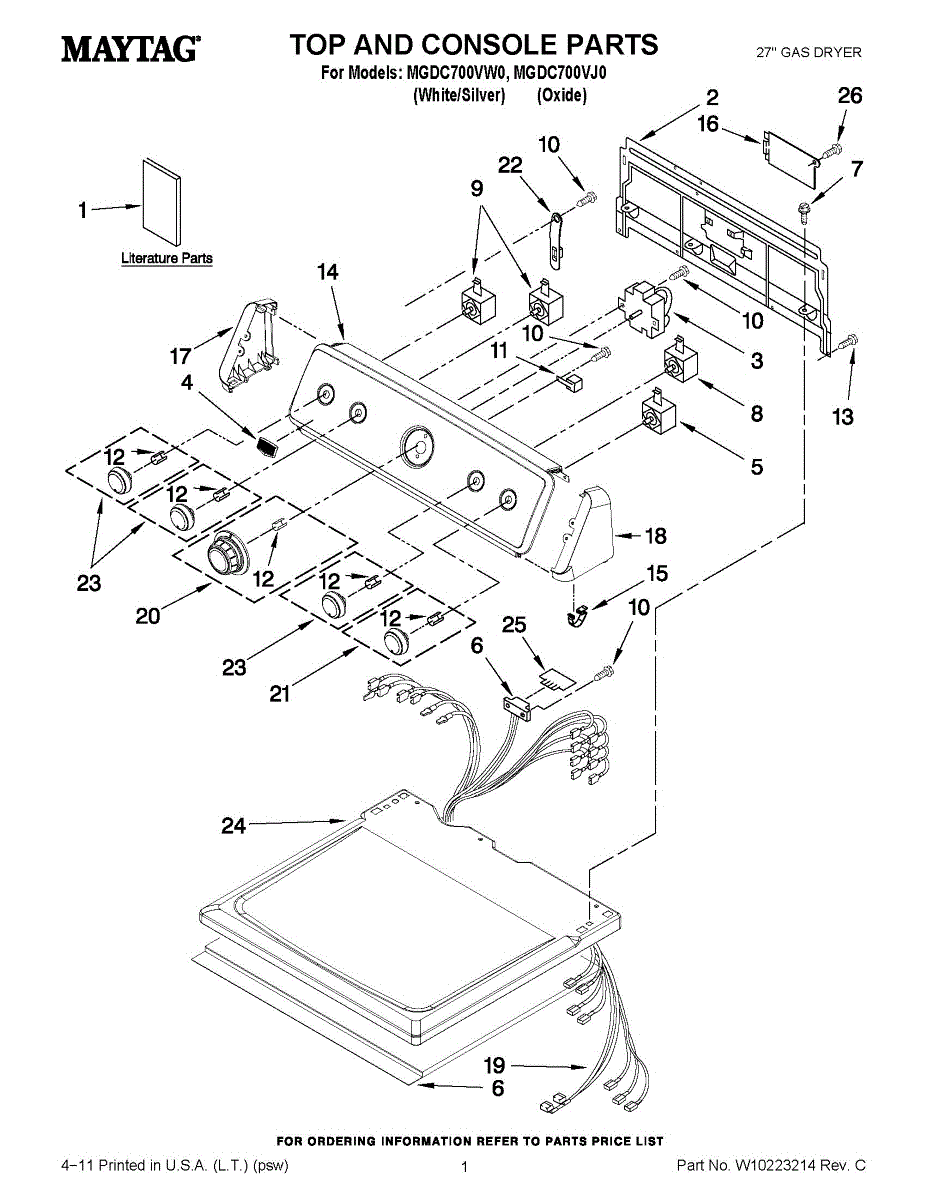

Parts for Maytag MGDC700VW0: 01 - Top And Console Parts

Dryer won't stop running or timer knob doesn't advance? The timer control regulates cycle duration. Moderate DIY repair, about 30 minutes to replace.

Dryer won't start when you press the button? The start switch sends the signal to begin the cycle. Simple 5-10 minute fix with basic tools.

Sound absorber insulation pad for dryers. Installs inside cabinet to dampen noise and vibration. Replace if torn, compressed, or missing.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This rotary on/off switch controls the dryer's Finish Guard (also called Wrinkle Guard/Wrinkle Shield) feature. Replacing it restores proper control of the post-cycle intermittent tumbling that helps reduce wrinkles, preventing the feature from being stuck on or off.

• Provides 2-position on/off selection for the Finish Guard/Wrinkle Guard function
• Failure can cause the feature not to engage or to stay on after the cycle ends
• Knob may feel loose or fail to click when the switch is worn
• Mounts in the control console and interfaces with the external selector knob

• Disconnect power before servicing
• Access through the control console; remove paneling as needed
• Transfer wires one at a time or photograph connections for reference
• Reinstall using the existing knob and mounting hardware

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This is a D-shaped knob insert or spring clip that fits inside a control knob and connects it to the control shaft on the dryer's front panel. It ensures the knob grips the shaft properly so you can turn the timer or selector. Replace this insert if your control knob spins freely without engaging the shaft or if the knob feels loose and won't stay in position.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cap or cover installs on your dryer to protect internal components and maintain a finished appearance. Replace if cracked, broken, or missing.

Replace your dryer's right-side endcap assembly to restore a finished edge, secure panels, and prevent gaps. Fits select dryer and laundry center models.

This left-hand end cap assembly restores a secure, finished mounting point on the appliance cabinet and helps keep internal components aligned and protected from friction or debris. Ideal when the original end cap is cracked, warped, or missing. What it does:

• Replaces a damaged or worn left-hand end cap to maintain proper alignment of adjacent components
• Provides a protective cover to prevent contact, rubbing, or debris entry at the cabinet edge
• Helps reduce vibration-related noise caused by loose or misaligned parts
• Fits into the original mounting location and matches OEM fit where specified

• Disconnect power to the appliance before starting any repair
• Verify left/right orientation by comparing to the removed part prior to installation
• Typical install requires removal of the adjacent trim or panel; handle parts gently to avoid damaging clips
• If mounting hardware is missing or damaged, replace with OEM-specified fasteners

Control knob for dryer cycle selector or temperature settings. Installs on the front control panel. Replace if cracked, broken, or missing.

Fix a broken or missing dryer timer knob that prevents you from setting cycles. This snap-on assembly restores precise control in minutes.

Replace your dryer's control panel knob if it's cracked, broken, or missing. This knob attaches to the front panel for cycle and temperature selection.

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

This control knob assembly replaces a worn, broken or missing knob so you can safely select settings and operate the appliance without slipping or inaccurate selection. It restores a positive grip and clear user control. What it does:

• Replaces a damaged or missing control knob to restore manual control operation
• Provides a secure, easy-to-turn interface for setting cycles or temperatures
• Stops slipping, cracking, or broken-turn symptoms that prevent proper selection
• Restores clear pointer/positioning for accurate setting selection

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Most knobs pull straight off the shaft and push onto the replacement; fit before final installation.
• Inspect shaft and mounting for damage; replace any worn adapters or retainer clips if present.

Dryer stops early on auto cycle but works on timed? The moisture sensor control board monitors dryness levels. DIY-friendly repair, 15-20 minutes.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
