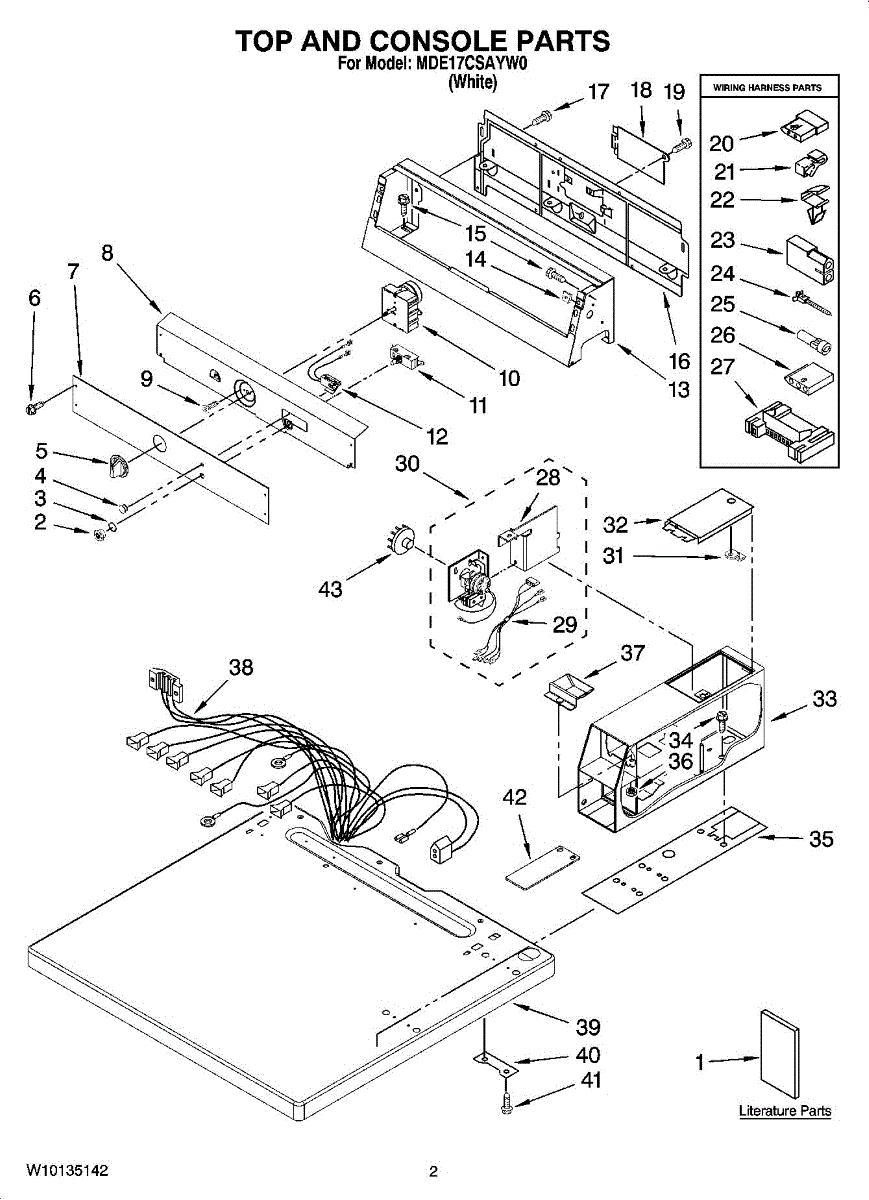

Parts for Whirlpool MDE17CSAYW0: 01 - Top And Console Parts

This is a replacement pilot light lens — the small cover that protects and diffuses the indicator/bulb on the control panel. It keeps the lamp shielded while letting the pilot light show through clearly. What it does:

• Protects the pilot/indicator bulb from dust, spills and contact.
• Diffuses and focuses the light so the indicator is visible without glare.
• Restores a finished appearance to a cracked, faded or missing lens.
• Helps prevent direct contact with the bulb for safer operation.

• Always disconnect power to the appliance before accessing the control panel.
• Lens may be secured by snap-fit tabs or small screws—remove the control panel or knob as needed.
• Handle the lens carefully to avoid scratches; align tabs or screw holes and seat fully.
• If the indicator still does not light after installation, check the bulb and wiring.

This cycle selector switch lets you choose and engage the desired operating cycle from the control panel. When it wears out or fails, the appliance may not start on certain settings or may change cycles unpredictably.

• Allows selection of the operating cycle from the control panel
• Routes the correct signals to the timer/main control for the chosen cycle
• Common symptoms: won't start on the selected cycle, only one cycle works, erratic or unintended cycle changes, selector feels loose or fails to hold a setting

• Disconnect power before servicing
• Access the switch from the console/control panel area
• Note wire locations or take a photo; transfer wires to the new switch one at a time
• Secure the switch, reassemble the console, and test cycle selection

The push-to-start switch activates the dryer motor when you press the Start button. Replacing it restores dependable starting with one press.

• Completes the start circuit to power the motor when pressed; spring-returns when released
• Restores normal operation when the original switch is worn, stuck, or electrically open
• Symptoms include: dryer won't start, starts only while button is held, intermittent starting, or no response when pressing Start
• Mounts in the control console behind the Start button/knob; connects with spade terminals

• Disconnect power to the dryer before servicing
• Remove the console/trim as needed to access the switch; pull off the knob if present
• Note wire positions (take a photo); move wires to the new switch one at a time and secure
• Test operation; also check the door switch, thermal fuse, and belt switch

This interior lamp assembly replaces a damaged or burned-out refrigerator light to restore clear visibility inside the compartment. It provides a direct swap for the factory-installed lamp housing and bulb connection. What it does:

• Holds and powers the interior light so you can see food and controls clearly
• Restores a light that is dim, flickering, or not turning on
• Ensures proper fit and alignment with the factory lamp opening and wiring
• Works with the door switch to turn the lamp on and off as intended

• Disconnect power to the appliance before installing to prevent shock
• Remove trim or lens per your model's instructions to access the lamp housing
• Handle the bulb carefully; replace with the correct rated bulb
• Test the light operation after installation and reassemble the lens/trim securely

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This terminal cover protects and conceals the appliance's electrical wire terminals for safer handling and cleaner internal appearance. It helps reduce accidental contact with live connections and keeps wiring organized. What it does:

• Covers exposed wire terminals to help prevent accidental contact and shorting
• Keeps wiring routed and held in place for improved serviceability
• Protects terminals from dust and debris that can affect connections
• Supports safer access during diagnostics and repairs

• One terminal cover, as shown

• Disconnect power to the appliance before attempting any service
• Remove outer panels as needed to access the terminal area; use manufacturer service guide for panel removal steps
• Align cover over the terminal block and secure per factory mounting points; do not force or modify
• If terminals or wiring appear damaged or corroded, replace or repair those components before reinstalling the cover

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement clamp secures flexible hoses and lines to prevent leaks and keep connections tight. It restores a secure seal so appliances move water or air without escaping at the joint. What it does:

• Secures inlet, drain or water lines to fittings and housings
• Helps stop leaks from loose or worn hose connections
• Keeps hoses from slipping off during operation or vibration
• Commonly replaced when clamps are corroded, broken, or no longer hold tension

• Inspect hose and fitting for damage before installing the new clamp
• Position clamp over the hose barb and tighten evenly until snug; avoid over-tightening
• Use appropriate tools (pliers or clamp driver) and follow appliance safety procedures
• Disconnect power and shut off water supply when working on water lines

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This is the factory replacement microwave door assembly. It restores a smooth, secure door closure and proper operation so the unit can open and close reliably and look like new. What it does:

• Provides a complete, aligned door to open/close the cavity smoothly
• Ensures latch hooks engage properly so the appliance can operate
• Replaces doors that are cracked, warped, or have broken handle mounts
• Addresses issues like the unit not starting unless the door is pressed, or stopping when the door is moved
• Helps resolve sparking/arcing around the door opening caused by a damaged door choke or screen

• One door assembly

• Disconnect power at the breaker before servicing; microwaves contain high-voltage components
• For over-the-range units, support or remove the microwave from the wall to safely access and handle the door
• Transfer any reusable hardware/hinge pins/trim from the original door as needed
• Align the hinges and verify the door closes, latches, and opens smoothly before remounting

6 Pin 30 minute

3 pin 60 minute
