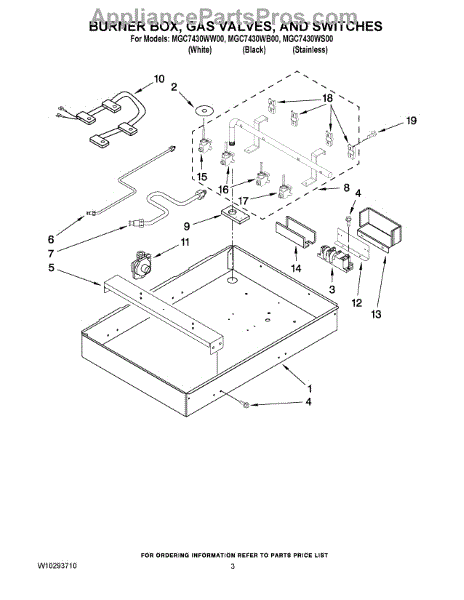

Parts for Maytag MGC7430WS00: 02 - Burner Box, Gas Valves, And Switches Parts

This grommet fits into a chassis or cooktop panel opening to cushion and seal where a shaft or component passes through. Replacing a worn grommet helps keep spills and debris out and restores a snug, quiet fit.

• Seals the opening to help prevent moisture and debris from entering the appliance chassis
• Centers and cushions the passing component to reduce vibration and rattling
• Helps maintain proper alignment and smooth operation of the control or related assembly
• Typical signs of wear: cracked or missing grommet, visible gap around the opening, loose/wobbly fit, evidence of spill intrusion

• Disconnect electrical power and, if applicable, shut off gas supply before servicing
• Remove knobs/bezels or access panels as needed to reach the grommet
• Lift out the old grommet and clean the opening of residue
• Press the new grommet fully into place without pinching; reassemble and test operation

The Whirlpool spark module is an OEM replacement part responsible for controlling the ignition and sparking of the gas burners in a Whirlpool range or cooktop. The spark module is typically located behind the control panel or near the burners, and it generates the electrical sparks needed to ignite the gas for cooking.

Causes of a bad module can include electrical surges, physical damage, or simply wear and tear over time.

This part fixes the following symptoms:

• Gas burners fail to ignite or have weak or inconsistent sparks
• Continuous sparking even after the burner is lit
• No spark at all when attempting to ignite the burners
• Unresponsive or non-functional burner control knobs
• Visible damage, such as burn marks or corrosion, on the spark module

The Whirlpool spark module can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This main wire harness routes power and control signals between the appliance's control board and components to restore electrical connectivity and reliable operation. Replacing a damaged harness helps eliminate intermittent faults and lost functions. What it does:

• Provides the primary electrical connections between the control board and motors, switches, sensors and valves
• Carries power and signal wiring so controls and components operate as intended
• Commonly replaces harnesses with broken, melted, or corroded wires or connectors
• Can resolve symptoms such as no power to components, intermittent operation, or unresponsive controls

• Disconnect power to the appliance before inspecting or replacing the harness
• Compare connector types and routing to the original harness; install in the same path to avoid chafing
• Secure connectors fully until they click; avoid pulling on individual wires
• If wiring or connectors show heat damage or corrosion beyond the harness, inspect associated components.

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use
