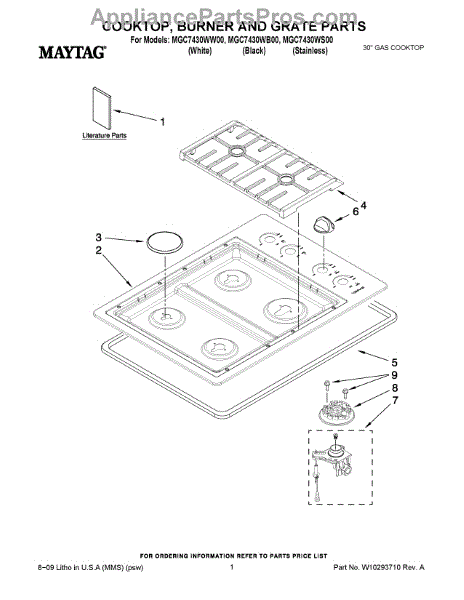

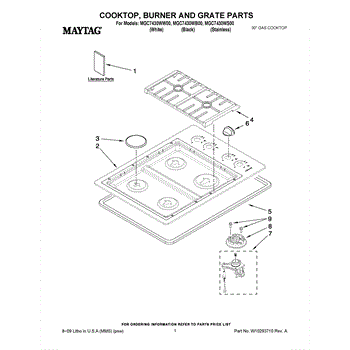

Parts for Maytag MGC7430WS00: 01 - Cooktop, Burner And Grate Parts

This burner cap is a replacement top piece for a 4-inch sealed cooktop burner. It helps distribute flame evenly and protects the burner base from spills and debris for more consistent cooking and easier cleanup. What it does:

• Covers and protects the burner head from food spills, grease and cookware contact
• Helps shape and stabilize the burner flame for even heat across cookware
• Restores proper burner aesthetics when a cap is cracked, chipped or missing
• Compatible with sealed gas cooktop burners using a 4-inch cap design

• One burner cap (4-inch)

• Turn off gas supply and ensure burners are cool before replacing the cap
• Remove old cap and set new cap onto the burner head, making sure it seats flat and centered
• No tools typically required; if cap won't seat, inspect burner head for debris or damage
• If you smell gas or burner does not light properly after installation, stop.

Replacement burner cap for the 4-inch sealed gas burner on your cooktop. Restores proper flame shape and helps keep the burner head clear of spills and debris for reliable ignition and even cooking. What it does:

• Covers the burner head to promote an even, focused flame for consistent heat distribution.
• Helps prevent food and liquid from entering the burner assembly and interfering with ignition.
• Can resolve common symptoms like uneven or yellowing flame, lifted flame, or a burner that doesn't heat evenly when the cap is damaged or missing.
• Fits onto the burner post and works with the existing burner head and igniter to maintain normal operation.

• Allow the cooktop to cool completely and turn off the gas supply or power to the appliance before servicing.
• No tools are normally required; remove the old cap and seat the replacement cap flat on the burner head.
• Make sure the cap is properly centered—misalignment can cause ignition issues or uneven flame.

This replacement control knob fits gas cooktops and restores intuitive control of burner flame settings for safe, consistent cooking. Made to match the OEM fit and feel for smooth, reliable operation. What it does:

• Replaces a cracked, stripped, or missing burner control knob so you can select low-to-high flame settings.
• Allows proper engagement with the valve stem splines for accurate temperature control.
• Helps stop slipping, wobbling, or a knob that won't turn or stay set.
• Restores a complete, easy-to-grip control surface for safer burner adjustments.

• One control knob for a gas cooktop valve stem.

• Turn off the cooktop and gas supply and ensure all surfaces and burners are cool before installing.
• Align the knob splines with the valve stem and push firmly until fully seated; do not force if it won't align.
• If you smell gas, stop and ventilate the area; do not install.

The Knob is an OEM part for Whirlpool cooktops. It is used to control the settings of the appliance, such as the temperature and cooking modes, by turning the control shaft.

Over time, knobs can wear out or become damaged due to frequent use, accidental impact, or exposure to heat. A faulty knob can make it difficult to adjust the appliance settings accurately.

Symptoms of a bad knob include:

• Difficulty turning the knob
• Knob slipping or not staying in place
• Cracks or breaks in the knob
• Inaccurate setting adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This orifice holder secures the burner orifice to the valve/manifold, keeping gas flow aligned for reliable burner operation. It replaces a worn or damaged holder to restore stable, consistent flames and safe burner performance. What it does

• Holds the orifice in place at the valve/manifold so gas flows correctly to the burner
• Helps maintain steady, even flames and consistent heat output
• Can resolve symptoms like weak or uneven flames, hard-to-light burners, or gas flow leaks near the orifice area
• Works with the matching 015 orifice size to ensure proper jetting

• One orifice holder (015)

• Turn off gas supply and electrical power before attempting service
• Use appropriate tools and avoid overtightening to prevent thread damage
• Inspect surrounding seals and the orifice for damage; replace any worn parts

This orifice holder secures the gas orifice in the burner assembly so the appliance meters fuel safely and reliably. It restores proper burner alignment and helps ensure consistent flame delivery for safe cooking performance. What it does:

• Holds the gas orifice in the correct position within the burner assembly
• Helps maintain a steady, properly directed flame for even heating
• Can reduce burner misalignment issues and intermittent flame problems
• Works with the valve/orifice assembly to support normal gas flow at the burner

• One orifice holder

• Designed for use with the original burner/orifice assembly; follow OEM diagram for placement
• Turn off gas supply and electricity before servicing; follow all safety precautions
• Use basic hand tools; handle orifice components carefully to avoid damage

This surface burner orifice holder is a genuine Whirlpool part, sold individually. This surface burner orifice holder can be used as a replacement part in a gas range. This part holds the components of the burners in place, such as the igniter, the burner cap, the retaining nut, the spring clips, and the burner grates.If the surface burner orifice holder of one of the burners is lost or misplaced, the component should be immediately replaced with this genuine OEM replacement part. If the surface burner orifice holder is damaged, the component should be removed and replaced. The repair or replacement process is simple. The repair or replacement will require a putty knife and a screwdriver. Work gloves should be worn during the repair or replacement process.This is an OEM part sourced directly from the manufacturer. This surface burner orifice holder is compatible with the following appliance brands: Whirlpool and Amana.

This orifice holder secures the center burner orifice on gas ranges, keeping the orifice aligned so the burner lights and burns properly. Replaces a worn or damaged holder to restore consistent pilot/flame position and performance. What it does:

• Holds the center burner orifice in the correct position for proper gas flow
• Helps maintain an even, reliable flame at the center burner
• Can address symptoms like a center burner that won't light or has an uneven/weak flame
• Works as the mounting piece for the matched orifice insert

• Turn off the appliance and shut off the gas supply before servicing
• Only install the exact replacement part for your model; check the appliance parts diagram
• Use basic hand tools; avoid overtightening to protect threads and seals

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
